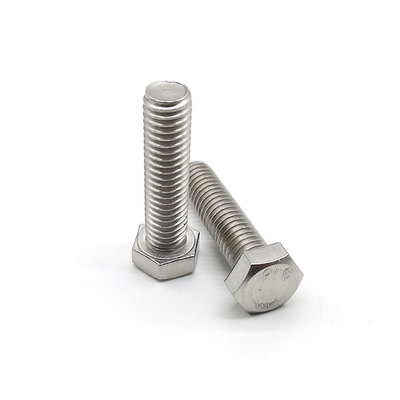

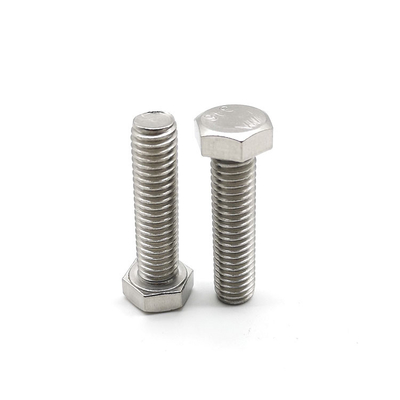

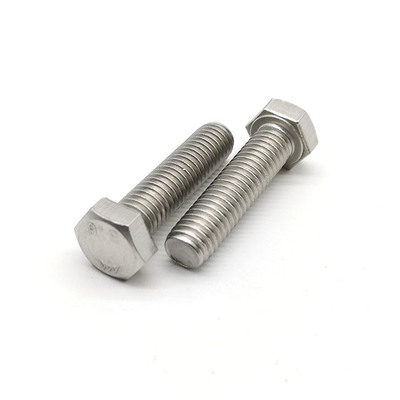

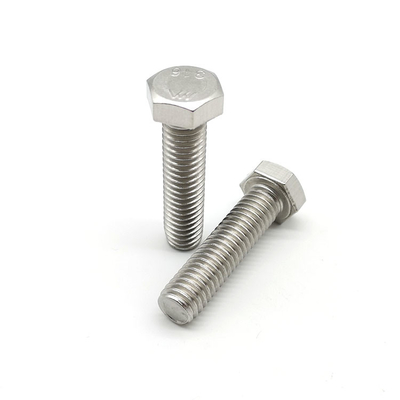

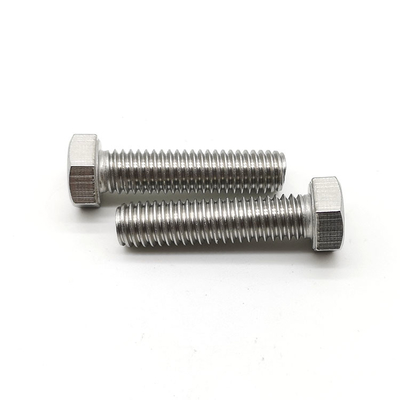

ASTM F593 SS 316 Hex ASME ANSI B18 2.1 Bolts Stainless Steel Hex Head Cap Screws

  • ASTM F593 SS 316 Hex ASME ANSI B18 2.1 Bolts Stainless Steel Hex Head Cap Screws
  • ASTM F593 SS 316 Hex ASME ANSI B18 2.1 Bolts Stainless Steel Hex Head Cap Screws
  • ASTM F593 SS 316 Hex ASME ANSI B18 2.1 Bolts Stainless Steel Hex Head Cap Screws
  • ASTM F593 SS 316 Hex ASME ANSI B18 2.1 Bolts Stainless Steel Hex Head Cap Screws
  • ASTM F593 SS 316 Hex ASME ANSI B18 2.1 Bolts Stainless Steel Hex Head Cap Screws
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ASME/ANSI B18.2.1
Minimum Order Quantity 100pcs
Price 0.1-2.5usd/pc
Packaging Details 25kg per carbon box and then pallet.
Delivery Time 5-15 work days
Payment Terms T/T, L/C
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ASME/ANSI B18.2.1 Material Stainless Steel 316
Grade F593G Finish Clean And Bright
Specification ASTM F593 System Of Measurement Imperial (Inch)
Thread UNC Type Hex Head Screws
Thread Fit Class 2A
High Light

XGFH ASTM F593 SS 316 Hex Bolt

,

ASTM F593 SS 316 Hex Bolt XGFH

,

stainless steel hex head cap screws
Leave a Message
Product Description

ASTM F593 Stainless Steel 316 Hex Bolts ASME/ANSI B18.2.1 Hex Head Cap Screws



Product Description:



Super-Corrosion-Resistant 316 Stainless Steel Hex Head Screws

More corrosion resistant than 18-8 stainless steel screws, these 316 stainless screws have excellent resistance to chemicals and salt water. They may be mildly magnetic. Length is measured from under the head

Hex head cap screws are designed for easy assembly into a tapped hole.

Stainless steel Hex cap screws meet ASTM F593 Specifications with a specially designed washer face under the head and a chamfered point.



Product Details:



Specification ASTM F593
Stainless Alloy Group 2
Condition CW1
Grade F593G
Tensile Strength 100-150ksi
Yield Strength 65ksi
Rockwell Hardness B95 to C32





Product Drawing:





Hex bolts
ASME/ANSI B18.2.1-2010
ASTM F593 SS 316 Hex ASME ANSI B18 2.1 Bolts Stainless Steel Hex Head Cap Screws 0
d(ich) ds(ich) s(ich) k(ich) b(ich)
min max min max min max L≤6 L>6
1/4 0.237 0.26 0.425 0.438 0.15 0.188 0.75 1
5/16 0.298 0.324 0.484 0.5 0.195 0.235 0.875 1.125
3/8 0.36 0.388 0.544 0.562 0.226 0.268 1 1.25
7/16 0.421 0.452 0.603 0.625 0.272 0.316 1.125 1.375
1/2 0.482 0.515 0.725 0.75 0.302 0.364 1.25 1.5
5/8 0.605 0.642 0.905 0.938 0.378 0.444 1.5 1.75
3/4 0.729 0.768 1.088 1.125 0.455 0.524 1.75 2
7/8 0.852 0.895 1.269 1.312 0.531 0.604 2 2.25
1 0.976 1.022 1.45 1.5 0.591 0.7 2.25 2.5
1-1/8 1.098 1.149 1.631 1.688 0.658 0.78 2.5 2.75
1-1/4 1.223 1.277 1.812 1.875 0.749 0.876 2.75 3
1-3/8 1.345 1.404 1.994 2.062 0.81 0.94 3 3.25
1-1/2 1.47 1.531 2.175 2.25 0.902 1.036 3.25 3.5
1-5/8 1.591 1.658 2.356 2.438 0.978 1.116 3.5 3.75
1-3/4 1.716 1.785 2.538 2.625 1.054 1.196 3.75 4
1-7/8 1.839 1.912 2.719 2.812 1.13 1.276 4 4.25
2 1.964 2.039 2.9 3 1.175 1.388 4.25 4.5
2-1/4 2.214 2.305 3.262 3.375 1.327 1.548 / 5
2-1/2 2.461 2.559 3.625 3.75 1.479 1.708 / 5.5
2-3/4 2.711 2.827 3.988 4.125 1.632 1.869 / 6
3 2.961 3.081 4.35 4.5 1.815 2.06 / 6.5
3-1/4 3.21 3.335 4.712 4.875 1.936 2.251 / 7
3-1/2 3.461 3.589 5.075 5.25 2.057 2.38 / 7.5
3-3/4 3.726 3.858 5.437 5.625 2.241 2.572 / 8
4 3.975 4.111 5.8 6 2.424 2.764 / 8.5





Product Features:



When Condition A is specifified, the austenitic alloys shall be heated to 1900 ±50°F (1038 ± 28°C), at which time the chromium carbide will go into the solution, be held for a sufficient time, and then be cooled at a rate sufficient to prevent precipitation of the carbide and to provide the specifified properties.



ASTM F593 SS 316 Hex ASME ANSI B18 2.1 Bolts Stainless Steel Hex Head Cap Screws 1ASTM F593 SS 316 Hex ASME ANSI B18 2.1 Bolts Stainless Steel Hex Head Cap Screws 2ASTM F593 SS 316 Hex ASME ANSI B18 2.1 Bolts Stainless Steel Hex Head Cap Screws 3
