316 Stainless Steel Hex Drive Round Head Screws ISO7380

  • 316 Stainless Steel Hex Drive Round Head Screws ISO7380
  • 316 Stainless Steel Hex Drive Round Head Screws ISO7380
  • 316 Stainless Steel Hex Drive Round Head Screws ISO7380
  • 316 Stainless Steel Hex Drive Round Head Screws ISO7380
  • 316 Stainless Steel Hex Drive Round Head Screws ISO7380
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ISO7380
Minimum Order Quantity 100pcs
Price 0.01usd-0.2usd/pc
Packaging Details 25kg per carbon box and then pallet.
Delivery Time 2-15 work days
Payment Terms T/T, L/C
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ISO7380.1 Material Stainless Steel 316
Grade A4-70 Finish Clean And Passivate
System Of Measurement Metric Specification ISO3506-1
Thread Fit Coarse Thread Direction Right
Thread 6g/6h Head Type Round Head
Drive Hex Drive
High Light

Stainless Steel Hex Drive Head Screws

,

ISO7380 Stainless Hex Drive Head Screws

,

316 Stainless Steel Hex Drive Screws
Leave a Message
Product Description

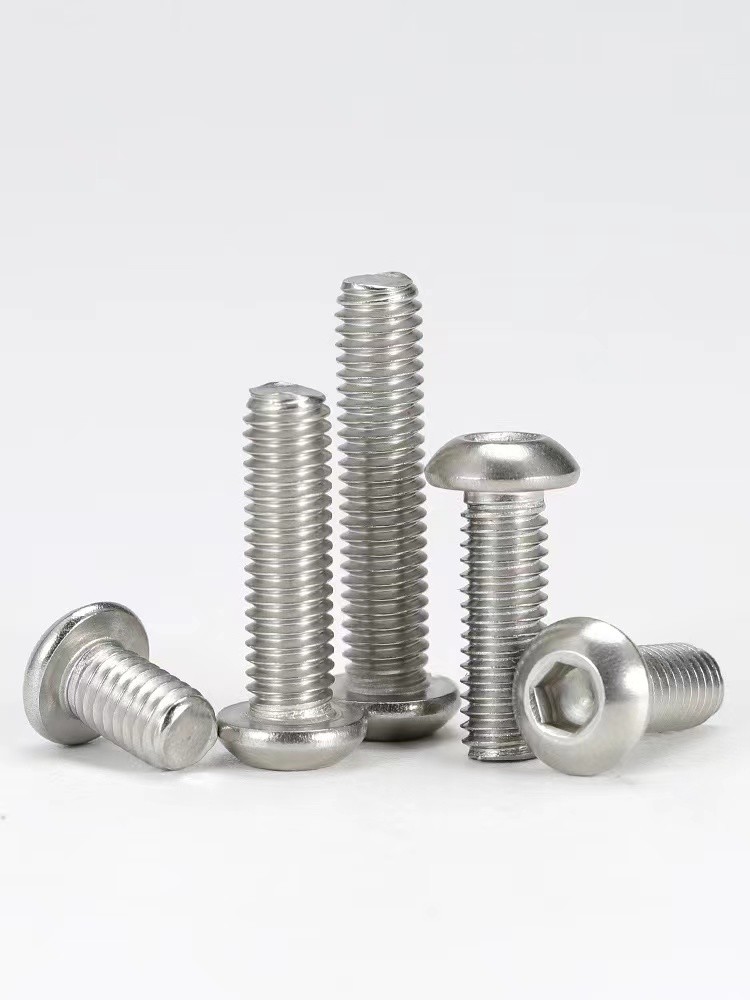

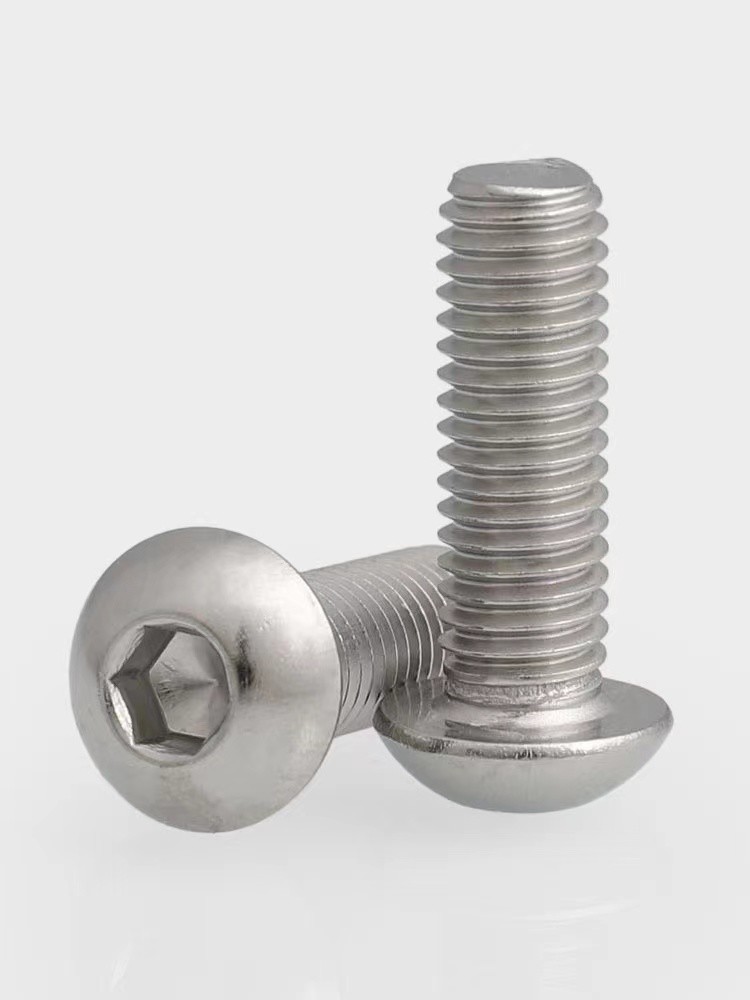

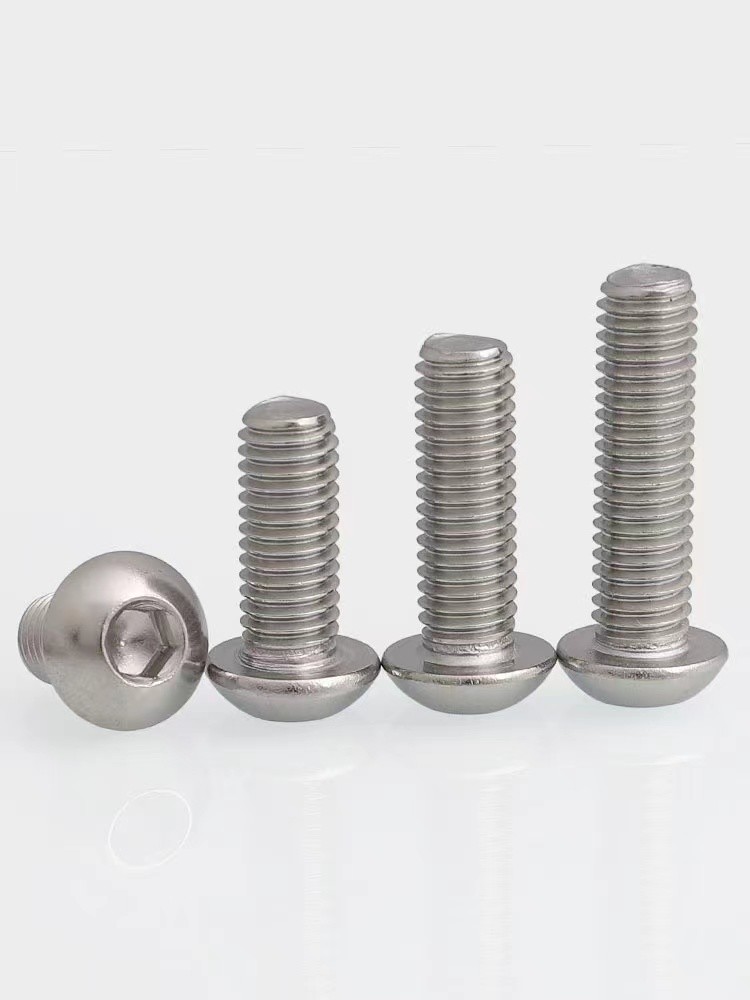

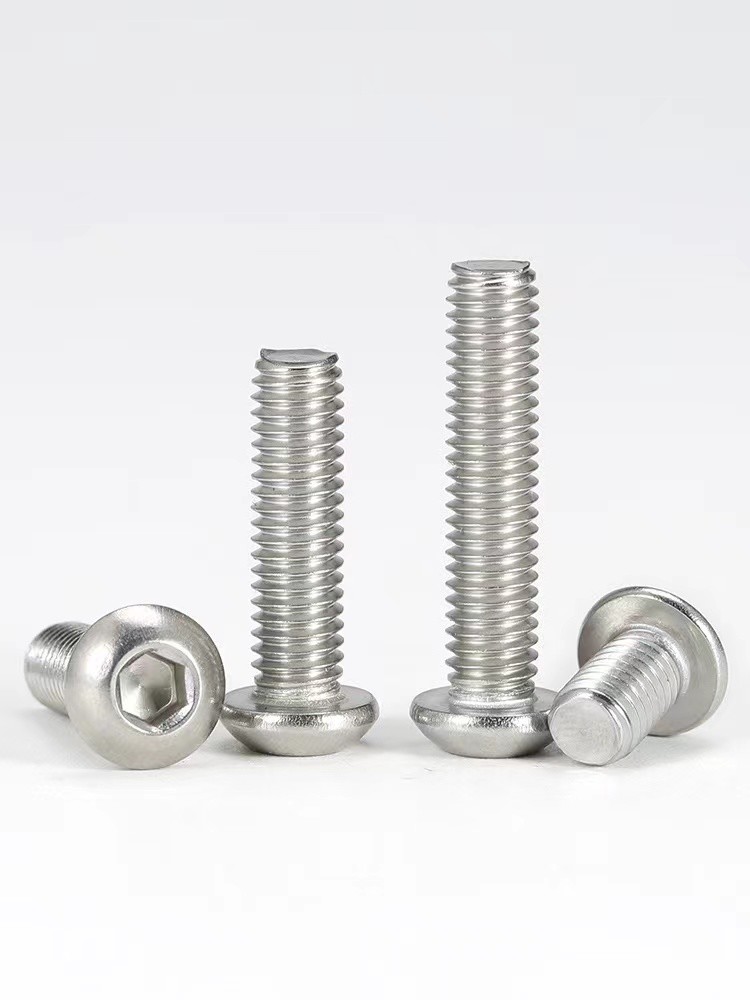

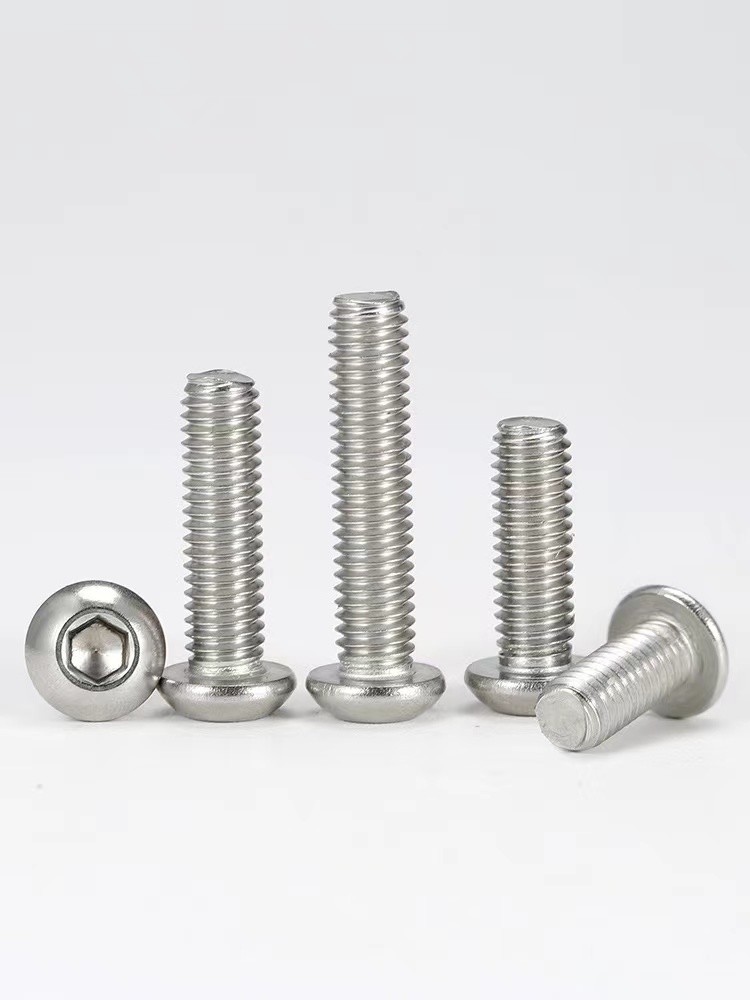

316 Stainless Steel Hex Drive Round Head Screws



Product Description:



316 stainless steel screws resist corrosion from chemicals and salt water better than 18-8 stainless steel screws.

All are passivated for added protection against oxidation and corrosion.

Screws may be mildly magnetic. Length is measured from under the head.



Product specifications:





Hexagon socket button head screws
ISO 7380-1-2011
316 Stainless Steel Hex Drive Round Head Screws ISO7380 0
d P(mm) b(mm) ds(mm) dk(mm) k(mm) s(mm) t(mm)
min max min max min max Nom min max min
M3 0.5 18 2.86 3 5.4 5.7 1.4 1.65 2 2.02 2.08 1.04
M4 0.7 20 3.82 4 7.24 7.6 1.95 2.2 2.5 2.52 2.58 1.3
M5 0.8 22 4.82 5 9.14 9.5 2.5 3 3 3.02 3.08 1.56
M6 1 24 5.82 6 10.07 10.5 3 3.3 4 4.02 4.095 2.08
M8 1.25 28 7.78 8 13.57 14 4.1 4.4 5 5.02 5.14 2.6
M10 1.5 32 9.78 10 17.07 17.5 5.2 5.5 6 6.02 6.14 3.12
M12 1.75 36 11.73 12 20.48 21 6.24 6.6 8 8.025 8.175 4.16
M16 2 44 15.73 16 27.48 28 8.44 8.8 10 10.025 10.175 5.2









316 Stainless Steel Hex Drive Round Head Screws ISO7380 1316 Stainless Steel Hex Drive Round Head Screws ISO7380 2
