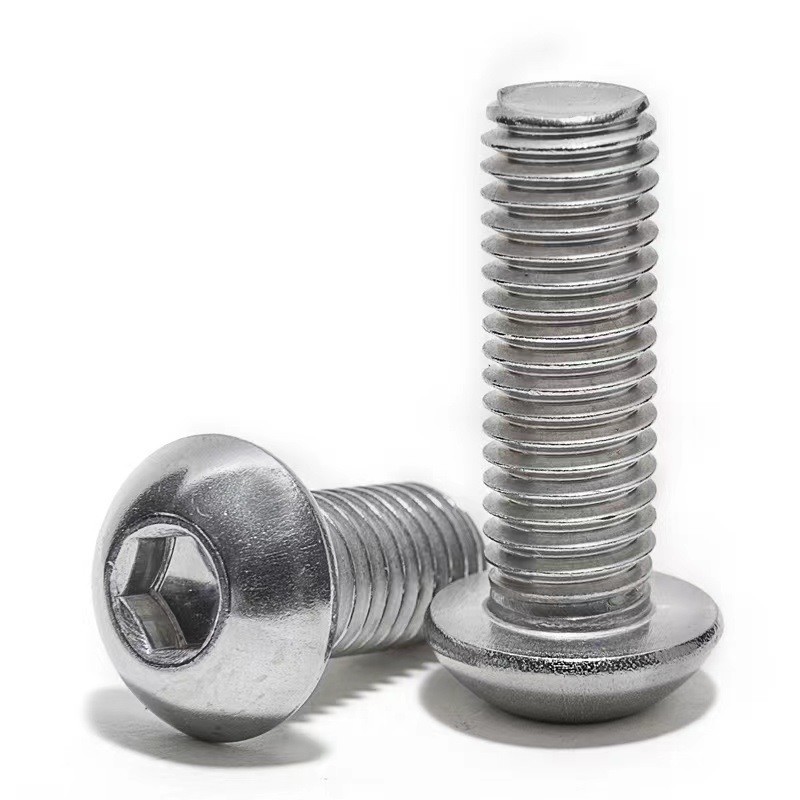

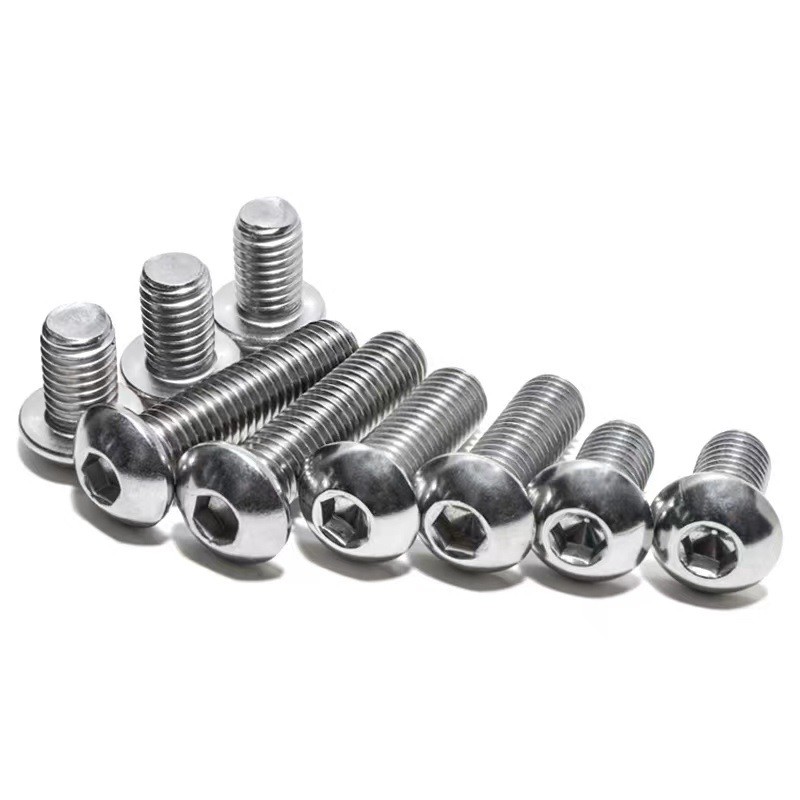

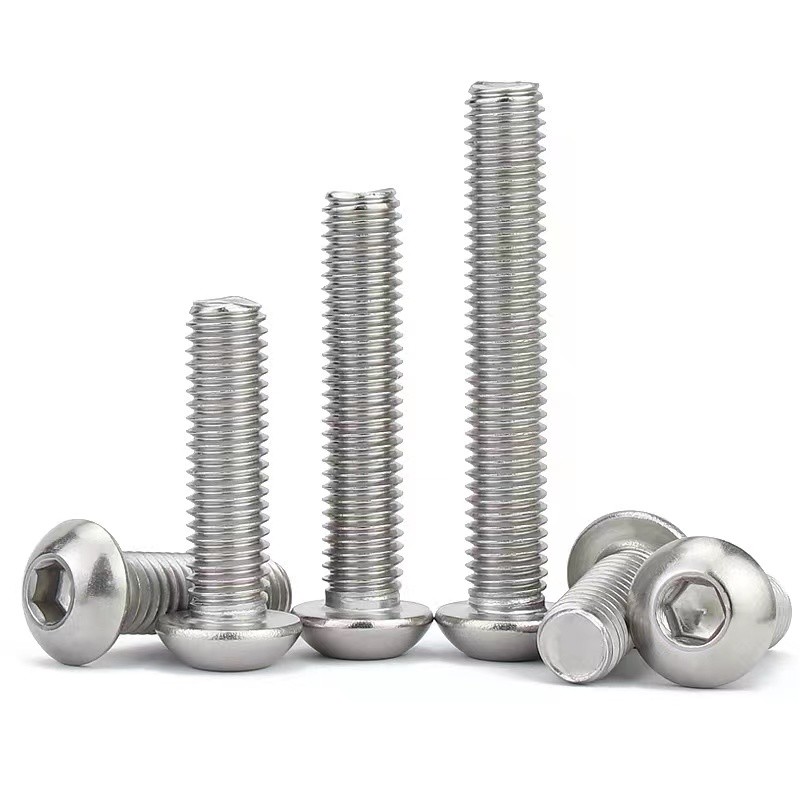

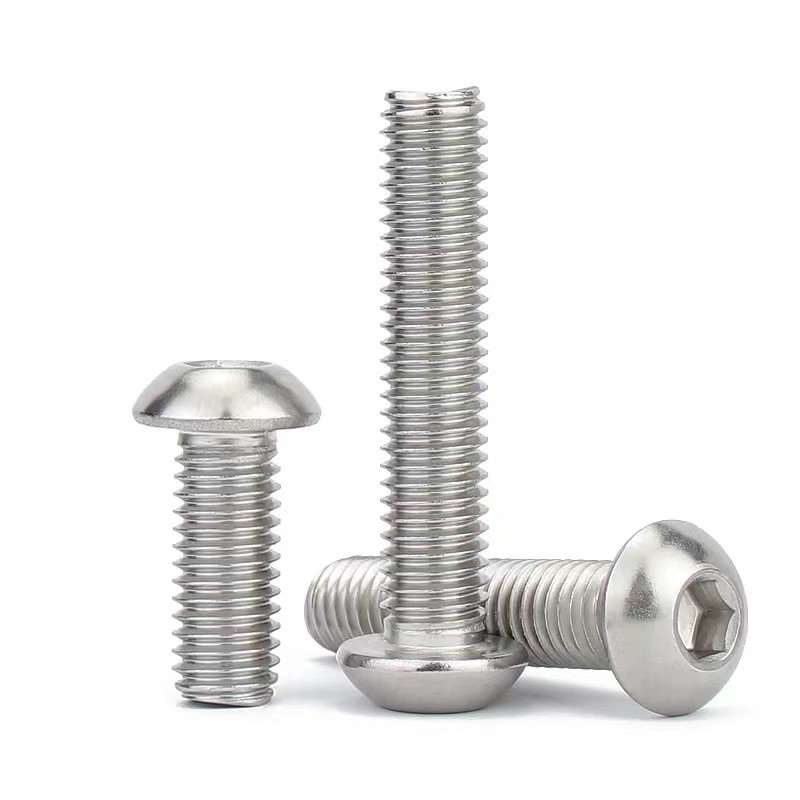

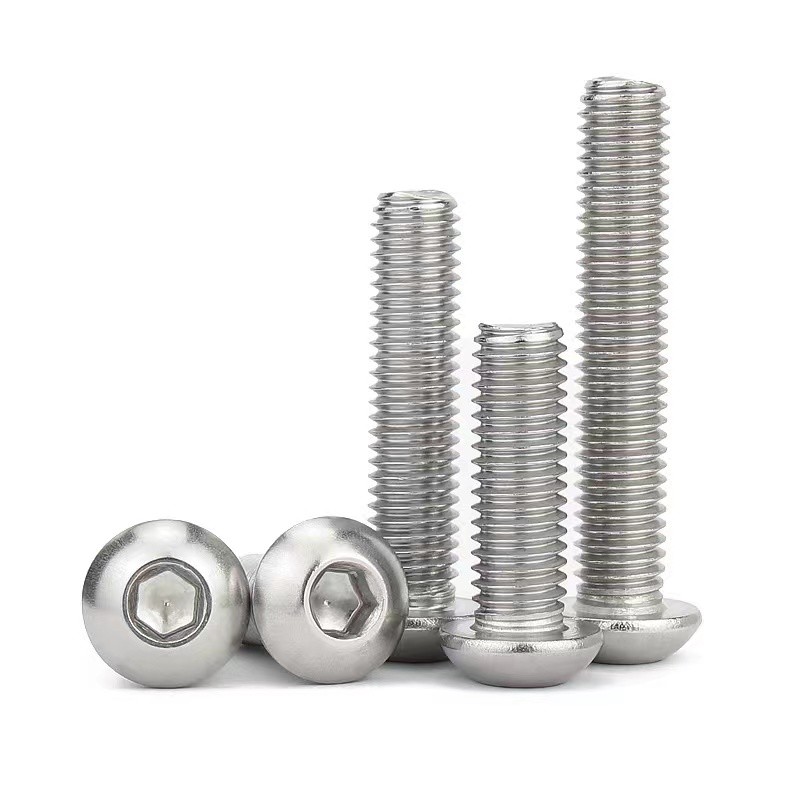

SS304 Stainless Steel Hex Socket Button Head Screws ISO3506-1 Metric A2-70

  • SS304 Stainless Steel Hex Socket Button Head Screws ISO3506-1 Metric A2-70
  • SS304 Stainless Steel Hex Socket Button Head Screws ISO3506-1 Metric A2-70
  • SS304 Stainless Steel Hex Socket Button Head Screws ISO3506-1 Metric A2-70
  • SS304 Stainless Steel Hex Socket Button Head Screws ISO3506-1 Metric A2-70
  • SS304 Stainless Steel Hex Socket Button Head Screws ISO3506-1 Metric A2-70
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ISO7380
Minimum Order Quantity 100pcs
Price 0.01usd-0.2usd/pc
Packaging Details 25kg per carbon box and then pallet.
Delivery Time 2-15 work days
Payment Terms T/T, L/C
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ISO7380.1 Material Stainless Steel 304
Grade A2-70 Finish Clean And Passivate
System Of Measurement Metric Specification ISO3506-1
Thread Fit Coarse Thread Direction Right
Thread 6g/6h Head Type Button Head
High Light

Stainless Hex Socket Button Head Screws

,

SS304 Stainless Hex Socket Button Screws

,

Metric Stainless Hex Socket Button Screws
Leave a Message
Product Description

Metric 18-8 Stainless Steel Button Head Hex Drive Screws



Product Description:



Made from 18-8 stainless steel, these button head screws have good chemical resistance and may be mildly magnetic.

Length is measured from under the head.

Passivated stainless steel screws provide added protection against oxidation and corrosion.



Product specifications:





Hexagon socket button head screws
ISO 7380-1-2011
SS304 Stainless Steel Hex Socket Button Head Screws ISO3506-1 Metric A2-70 0
d P(mm) b(mm) ds(mm) dk(mm) k(mm) s(mm) t(mm)
min max min max min max Nom min max min
M3 0.5 18 2.86 3 5.4 5.7 1.4 1.65 2 2.02 2.08 1.04
M4 0.7 20 3.82 4 7.24 7.6 1.95 2.2 2.5 2.52 2.58 1.3
M5 0.8 22 4.82 5 9.14 9.5 2.5 3 3 3.02 3.08 1.56
M6 1 24 5.82 6 10.07 10.5 3 3.3 4 4.02 4.095 2.08
M8 1.25 28 7.78 8 13.57 14 4.1 4.4 5 5.02 5.14 2.6
M10 1.5 32 9.78 10 17.07 17.5 5.2 5.5 6 6.02 6.14 3.12
M12 1.75 36 11.73 12 20.48 21 6.24 6.6 8 8.025 8.175 4.16
M16 2 44 15.73 16 27.48 28 8.44 8.8 10 10.025 10.175 5.2







SS304 Stainless Steel Hex Socket Button Head Screws ISO3506-1 Metric A2-70 1

SS304 Stainless Steel Hex Socket Button Head Screws ISO3506-1 Metric A2-70 2
