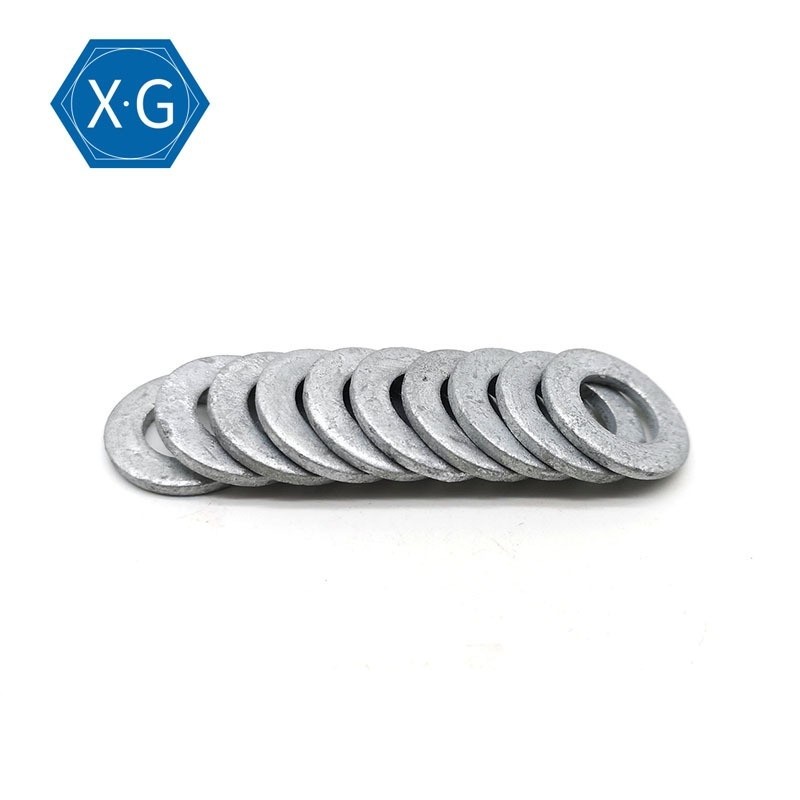

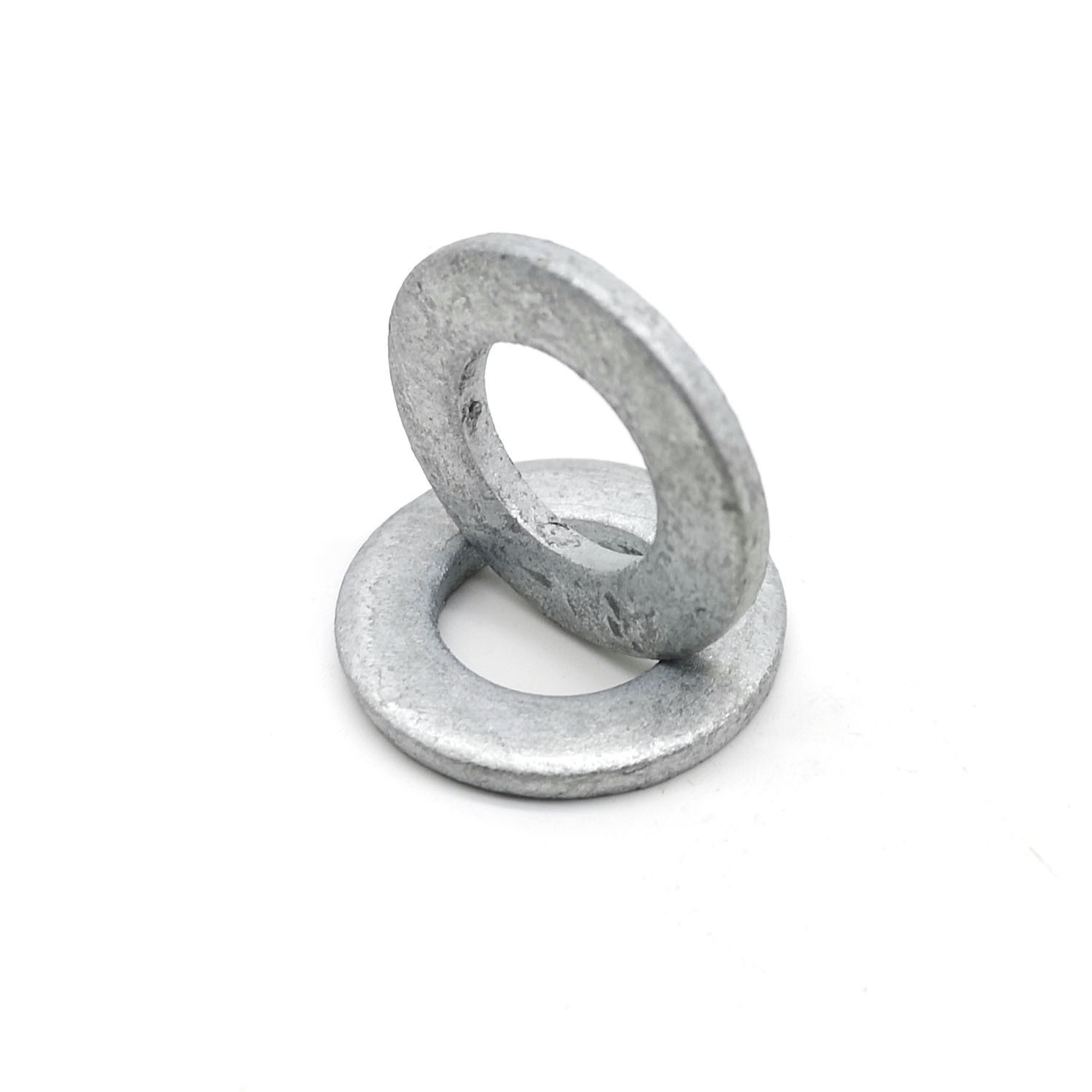

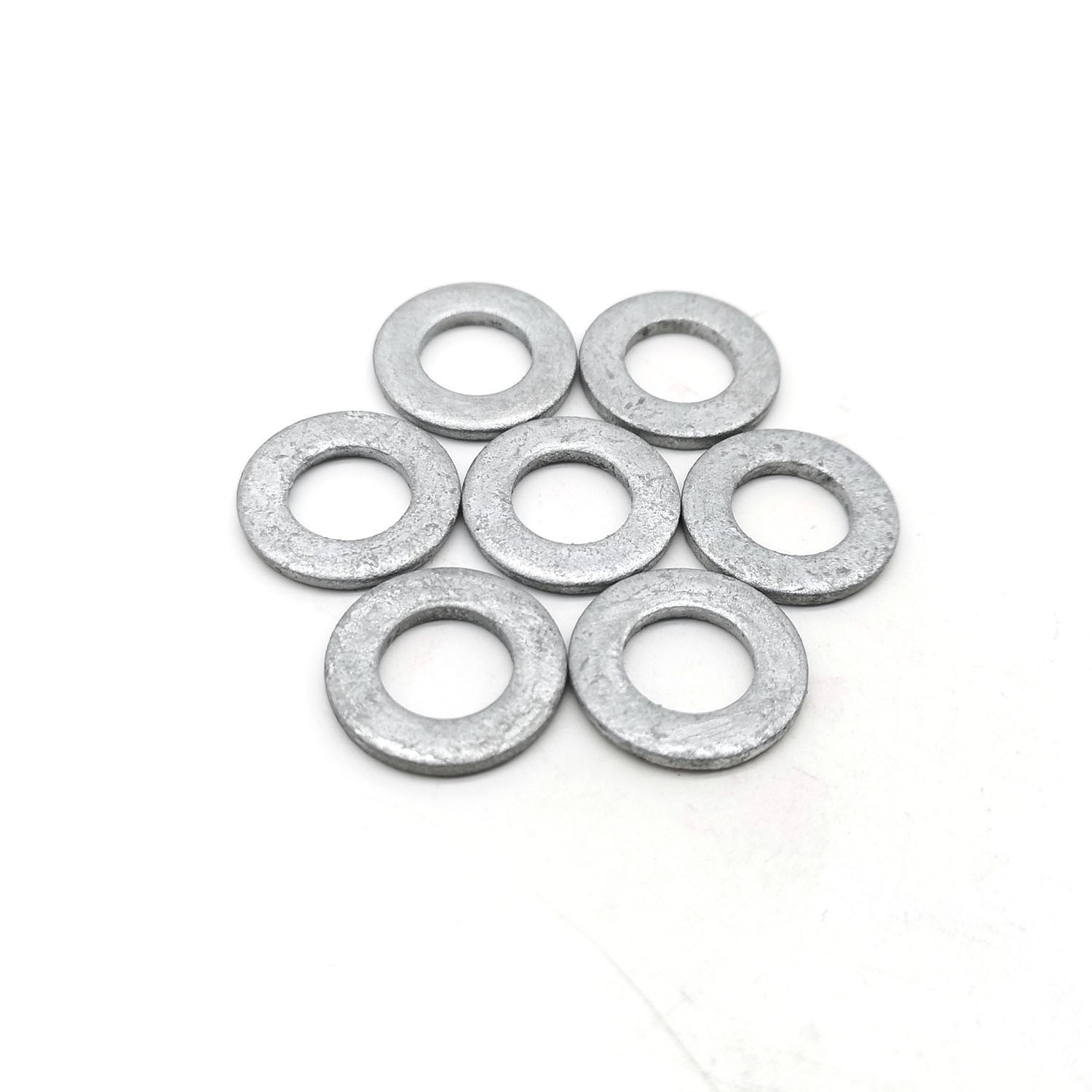

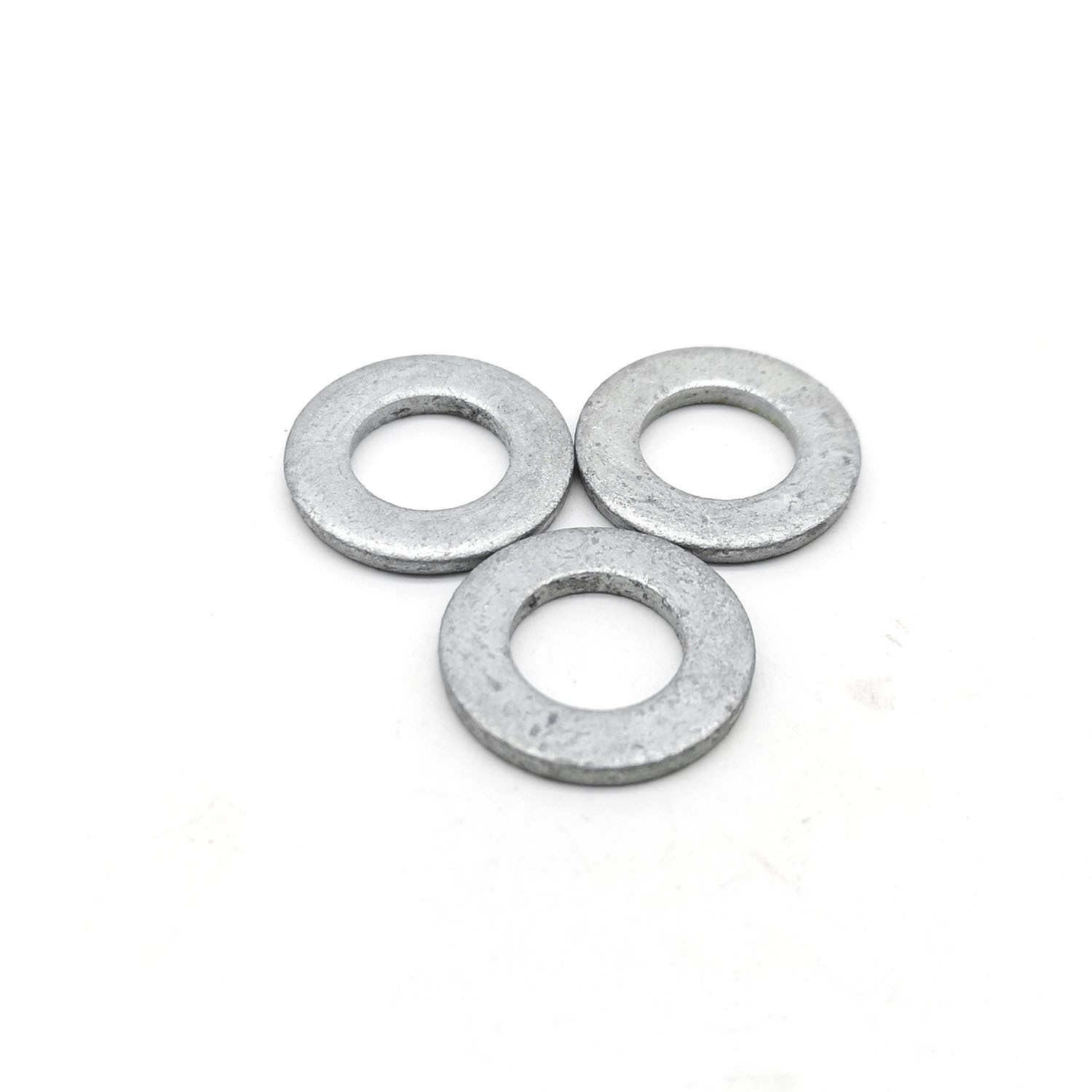

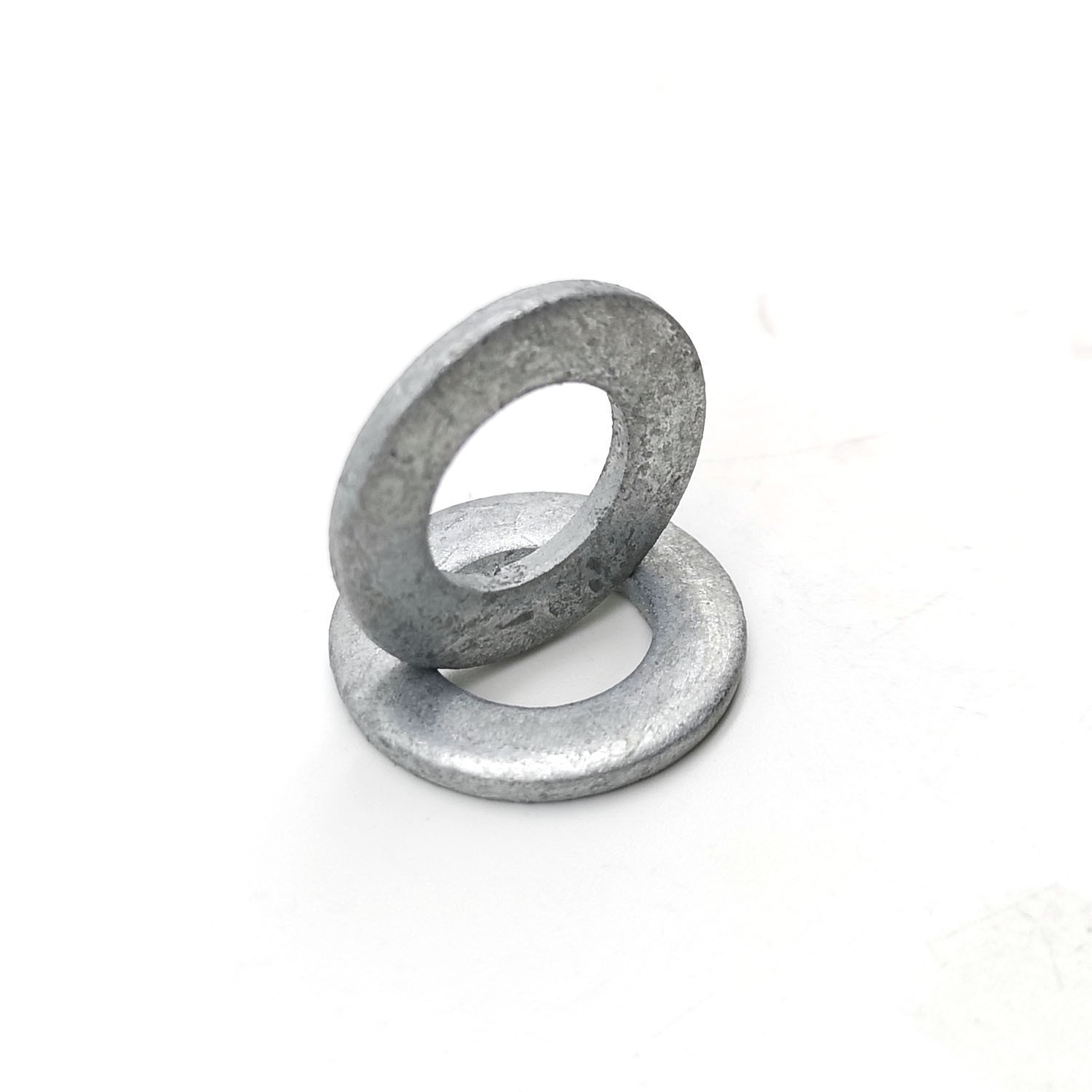

ISO 7089 DIN 125A Flat Washer Steel 200HV Hot Dip Galvanized Finish
| Place of Origin | China |
|---|---|
| Brand Name | XG |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | ISO7089 |
| Minimum Order Quantity | 100PCS |
| Price | USD0.01-2/PCS |
| Packaging Details | Bulk into plastic bag and carton box, and then Pallet. |
| Delivery Time | 3-20work days |
| Payment Terms | T/T |
| Supply Ability | 100000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ISO7089 | Grade | 200HV |
|---|---|---|---|
| Finish | Hot Dipped Galvanized | Material | Steel |
| Type | Flat | Coating Thickness | 50micro |
| Name | Flat Washer | Size | M8 To M64 |
| High Light | ISO7089 DIN 125A Flat Washer,DIN 125A Flat Washer 200HV,iso 7089 din 125a |
||
Product Description
Description:
Product Description:
| Products name | DIN125A ISO7089 Steel 200HV Hot Dip Galvanized Finish Flat Washers |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L |
| Steel Grade: 100HV,140HV,200HV,300HV,350HV | |
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet |
| Related Products | Bolts,Flat Washer,and Spring Washer |
| Applications | Used in all industries,especially used for outside. |
| Stock Products | Flat washer most of sizes are in stock. |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |
Drawing:
| Flat washers-Product grade A | |||||||
| ISO7089 & GB97.1-2002 | |||||||
 |
|||||||
| Size | d(mm) | dc(mm) | h(mm) | ||||
| Nom | min | max | min | max | Nom | min | max |
| 1.6 | 1.7 | 1.84 | 3.7 | 4 | 0.3 | 0.25 | 0.35 |
| 2 | 2.2 | 2.34 | 4.7 | 5 | 0.3 | 0.25 | 0.35 |
| 2.5 | 2.7 | 2.84 | 5.7 | 6 | 0.5 | 0.45 | 0.55 |
| 3 | 3.2 | 3.38 | 6.64 | 7 | 0.5 | 0.45 | 0.55 |
| 4 | 4.3 | 4.38 | 8.64 | 9 | 0.8 | 0.7 | 0.9 |
| 5 | 5.3 | 5.48 | 9.64 | 10 | 1 | 0.9 | 1.1 |
| 6 | 6.4 | 6.62 | 11.57 | 12 | 1.6 | 1.4 | 1.8 |
| 8 | 8.4 | 8.62 | 15.57 | 16 | 1.6 | 1.4 | 1.8 |
| 10 | 10.5 | 10.77 | 19.48 | 20 | 2 | 1.8 | 2.2 |
| 12 | 13 | 13.27 | 23.48 | 24 | 2.5 | 2.3 | 2.7 |
| 14 | 15 | 15.27 | 27.48 | 28 | 2.5 | 2.3 | 2.7 |
| 16 | 17 | 17.27 | 29.48 | 30 | 3 | 2.7 | 3.3 |
| 18 | 19 | 19.38 | 33.38 | 34 | 3 | 2.7 | 3.3 |
| 20 | 21 | 21.33 | 36.38 | 37 | 3 | 2.7 | 3.3 |
| 22 | 23 | 23.33 | 38.38 | 39 | 3 | 2.7 | 3.3 |
| 24 | 25 | 25.33 | 43.38 | 44 | 4 | 3.7 | 4.3 |
| 27 | 28 | 28.33 | 49.38 | 50 | 4 | 3.7 | 4.3 |
| 30 | 31 | 31.39 | 55.26 | 56 | 4 | 3.7 | 4.3 |
| 33 | 34 | 34.62 | 58.8 | 60 | 5 | 4.4 | 5.6 |
| 36 | 37 | 37.62 | 64.8 | 66 | 5 | 4.4 | 5.6 |
| 39 | 42 | 42.62 | 70.8 | 72 | 6 | 5.4 | 6.6 |
| 42 | 45 | 45.62 | 76.8 | 78 | 8 | 7 | 9 |
| 45 | 48 | 48.62 | 83.6 | 85 | 8 | 7 | 9 |
| 48 | 52 | 52.74 | 90.6 | 92 | 8 | 7 | 9 |
| 52 | 56 | 56.74 | 96.6 | 98 | 8 | 7 | 9 |
| 56 | 62 | 62.74 | 103.6 | 105 | 10 | 9 | 11 |
| 60 | 66 | 66.74 | 108.6 | 110 | 10 | 9 | 11 |
| 64 | 70 | 70.74 | 113.6 | 115 | 10 | 9 | 11 |
FAQ:
Q1. Can I have a sample order for Hex flange bolt?
A:Yes,we welcome sample order to test and check quality.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production
Q3. Do you have any MOQ limit for hex flange bolt order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days
Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.
Q5. How to proceed an order for hex flange bolt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
