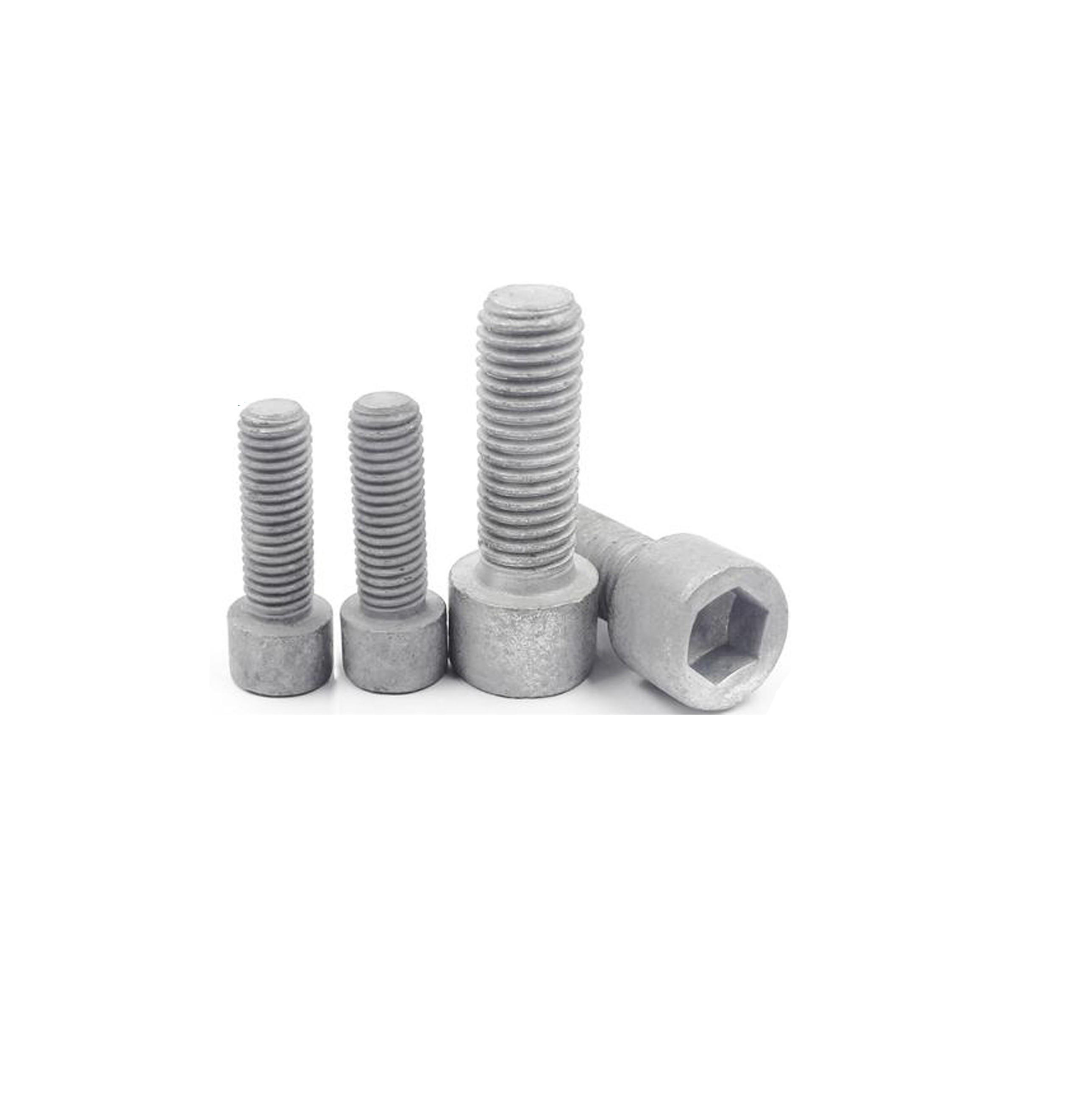

ISO 4762 M3 M6 M5 Hex Socket Head Cap Screws Hot Dip Galvanized

  • ISO 4762 M3 M6 M5 Hex Socket Head Cap Screws Hot Dip Galvanized
  • ISO 4762 M3 M6 M5 Hex Socket Head Cap Screws Hot Dip Galvanized
  • ISO 4762 M3 M6 M5 Hex Socket Head Cap Screws Hot Dip Galvanized
  • ISO 4762 M3 M6 M5 Hex Socket Head Cap Screws Hot Dip Galvanized
  • ISO 4762 M3 M6 M5 Hex Socket Head Cap Screws Hot Dip Galvanized
Place of Origin China
Brand Name XG
Certification ISO9001,EN10204 3.1Certificate
Model Number ISO4762
Minimum Order Quantity 100PCS
Price USD0.01-2/PCS
Packaging Details Bulk into plastic bag and carton box, and then Pallet.
Delivery Time 3-20work days
Payment Terms T/T
Supply Ability 100000PCS per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ISO4762 Grade CLASS 8.8
Finish HDG Material C1035
Head Type Hex Socket Cap Head Name Hex Socket Allen Head Screw
Size M8-M12
High Light

ISO 4762 hex socket head cap screws xianggu

,

hex socket head cap screws Hot Dip xianggu

,

iso 4762 m3
Leave a Message
Product Description

Description:

Solar Panel Fasteners ISO4762 Hot Dip Galvanized Hex Socket Head Cap Screw



Solar Panel Fasteners ISO4762 Hot Dip Galvanized Hex Socket Head Cap Screw Made In China.

Serrated grooves securely grip the lip of the channel.



Products name Solar Panel Fasteners ISO4762 Hot Dip Galvanized Hex Socket Head Cap Screw
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 8.8,10.9,12.9,Grade2,5 and 8,Class A2-70,A4-70,A4-80
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet

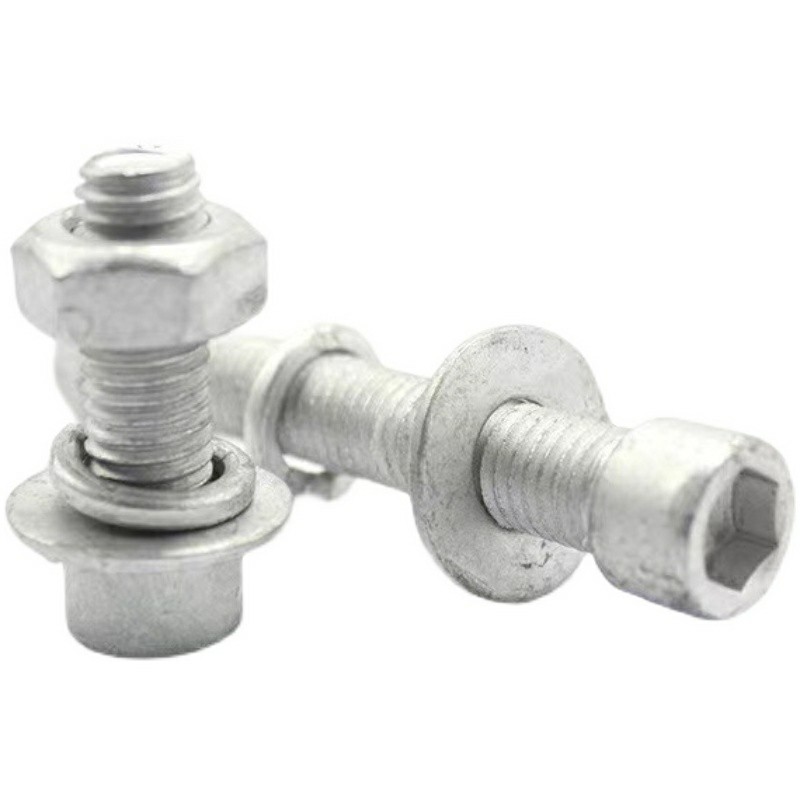

Related Products Hex nut,Flat Washer,and Spring Washer
Applications Used in Solar panel.
Stock Products Hex socket head cap screw most of sizes are in stock.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.





Product Drawing:



Hexagon socket cheese head screws
ISO4762 & GB/T 70.1-2008
ISO 4762 M3 M6 M5 Hex Socket Head Cap Screws Hot Dip Galvanized 0
d(mm) P(mm) b(mm) dk(mm) k(mm) s(mm) t(mm)
min max min max Nom min max min
M1.6 0.35 15 2.86 3.14 1.46 1.6 1.5 1.52 1.58 0.7
M2 0.4 16 3.62 3.98 1.86 2 1.5 1.52 1.58 1
M2.5 0.45 17 4.32 4.68 2.36 2.5 2 2.02 2.08 1.1
M3 0.5 18 5.32 5.68 2.86 3 2.5 2.52 2.58 1.3
M4 0.7 20 6.78 7.22 3.82 4 3 3.02 3.08 2
M5 0.8 22 8.28 8.72 4.82 5 4 4.02 4.095 2.5
M6 1 24 9.78 10.22 5.7 6 5 5.02 5.14 3
M8 1.25 28 12.73 13.27 7.64 8 6 6.02 6.14 4
M10 1.5 32 15.73 16.27 9.64 10 8 8.025 8.175 5
M12 1.75 36 17.73 18.27 11.57 12 10 10.025 10.175 6
M14 2 40 20.67 21.33 13.57 14 12 12.032 12.212 7
M16 2 44 23.67 24.33 15.57 16 14 14.032 14.212 8
M20 2.5 52 29.67 30.33 19.48 20 17 17.05 17.23 10
M24 3 60 35.61 36.39 23.48 24 19 19.065 19.275 12
M30 3.5 72 44.61 45.39 29.48 30 22 22.065 22.275 15.5
M36 4 84 53.54 54.46 35.38 36 27 27.065 27.275 19
M42 4.5 96 62.54 63.46 41.38 42 32 32.08 32.33 24
M48 5 108 71.54 72.46 47.38 48 36 36.08 36.33 28
M56 5.5 124 83.46 84.54 55.26 56 41 41.08 41.33 34
M64 6 140 95.46 96.54 63.26 64 46 46.08 46.33 38

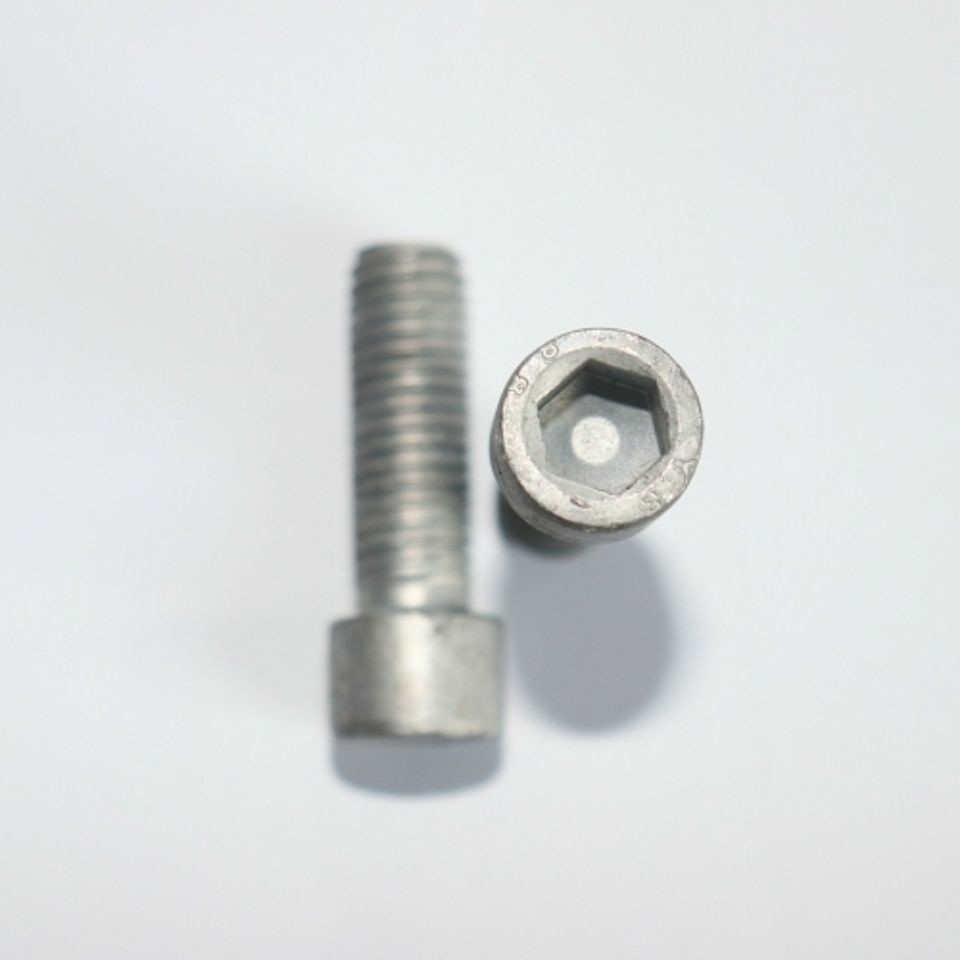

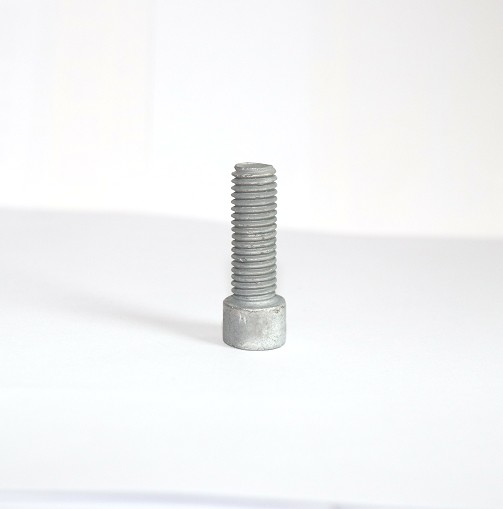

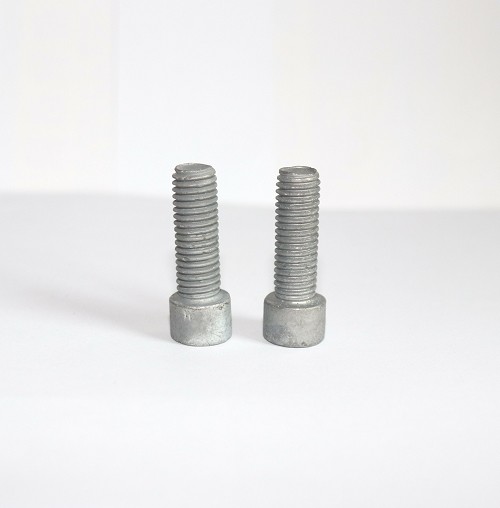

ISO 4762 M3 M6 M5 Hex Socket Head Cap Screws Hot Dip Galvanized 1ISO 4762 M3 M6 M5 Hex Socket Head Cap Screws Hot Dip Galvanized 2ISO 4762 M3 M6 M5 Hex Socket Head Cap Screws Hot Dip Galvanized 3



FAQ:
Q1. Can I have a sample order for Hex flange bolt?
A:Yes,we welcome sample order to test and check quality.

Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production


Q3. Do you have any MOQ limit for hex flange bolt order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days
Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.

Q5. How to proceed an order for hex flange bolt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
