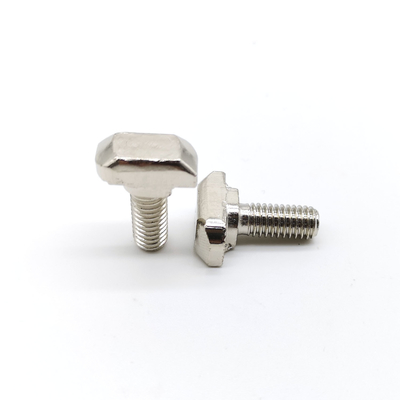

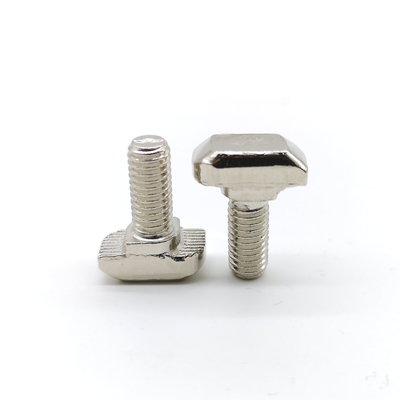

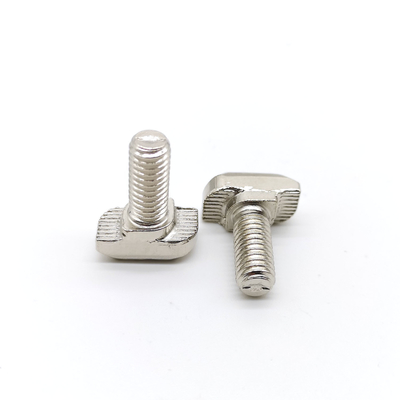

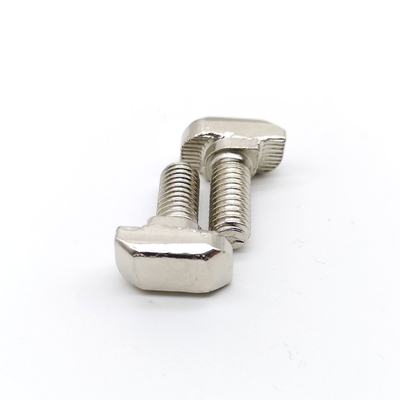

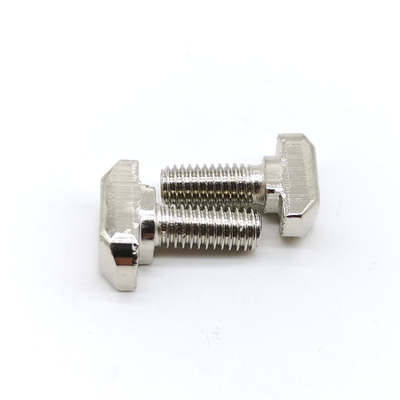

Grade 4.8 Solar Panel Fasteners Nickel Coating Hammer Head T Bolt DIN 186

  • Grade 4.8 Solar Panel Fasteners Nickel Coating Hammer Head T Bolt DIN 186
  • Grade 4.8 Solar Panel Fasteners Nickel Coating Hammer Head T Bolt DIN 186
  • Grade 4.8 Solar Panel Fasteners Nickel Coating Hammer Head T Bolt DIN 186
  • Grade 4.8 Solar Panel Fasteners Nickel Coating Hammer Head T Bolt DIN 186
  • Grade 4.8 Solar Panel Fasteners Nickel Coating Hammer Head T Bolt DIN 186
Place of Origin China
Brand Name XG
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN186
Minimum Order Quantity 100PCS
Price USD0.01-2/PCS
Packaging Details Bulk into plastic bag and carton box, and then Pallet.
Delivery Time 3-20work days
Payment Terms T/T
Supply Ability 100000PCS per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard DIN186 Grade Class 4.8
Finish Nickel Plated Material Steel
Thread Fit Coarse Thread Specification ISO898.2
Name T Slot Bolts Thread Direction Right Hand
High Light

Grade 4.8 Solar Panel Fasteners xianggu

,

hammer head t bolt DIN 186 xianggu

,

Nickel Coating hammer head t bolt xianggu
Leave a Message
Product Description

Description:

Solar Panel Fasteners Steel 4.8Grade Nickel Coating T Slot Head Bolt Hammer Head Bolt



Solar Panel Fasteners Steel 4.8Grade Nickel Coating T Slot Head Bolt Hammer Head Bolt Made In China.

Sizes from M12 to M24 as standard.

Non standard sizes and materials are available to order as specials,including custom parts made to drawings.

Products name Solar Panel Fasteners Steel 4.8Grade Nickel Coating T Slot Head Bolt Hammer Head Bolt
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 8.8,10.9,12.9,Grade2,5 and 8,Class A2-70,A4-70,A4-80
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet
Related Products Flange Bolts,Flat Washer,and Spring Washer
Applications

T-head bolt otherwise known as Hammer head bolts,are used in a range of applications,such as the fastening of lift guide rails.

They are able to be placed flexibly in required positions within anchor channels.

Able to be fitted flush within the housing hole or object,but the T head bolts can also be combined with angled pieces in order to bridge distance.
Stock Products Channel nut most of sizes are in stock.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.





Drawing:





T-head bolts with square neck
DIN 186-2010

d(mm) P(mm) b(mm) ds(mm) k(mm) n(mm) m(mm)
L≤120 120<L≤200 L>200 min max min max min max min max
M6 1 18 / / 5.52 6.48 4.1 4.9 5.4 6.6 15.1 16.9
M8 1.25 22 28 / 7.42 8.58 5.1 5.9 7.25 8.75 17.1 18.9
M10 1.5 26 32 / 9.42 10.58 6.5 7.5 9.25 10.75 20 22
M12 1.75 30 36 49 11.3 12.7 7.25 8.75 11.1 12.9 25 27
M16 2 38 44 57 15.3 16.7 9.6 11.4 15.1 16.9 29 31
M20 2.5 46 52 65 19.16 20.84 12.1 13.9 19 21 34.75 37.25
M24 3 54 60 73 23.16 24.84 14.1 15.9 23 25 41.75 44.25
M30 3.5 66 72 85 29.16 30.84 18 20 29 31 52.5 55.5
M36 4 78 84 97 35 37 22 24 34.75 37.25 64.5 67.5
M42 4.5 / 96 109 41 43 25 27 40.75 43.25 78.5 81.5
M48 5 / 108 128 47 49 29 31 46.75 49.25 86.25 89.75







Grade 4.8 Solar Panel Fasteners Nickel Coating Hammer Head T Bolt DIN 186 0Grade 4.8 Solar Panel Fasteners Nickel Coating Hammer Head T Bolt DIN 186 1Grade 4.8 Solar Panel Fasteners Nickel Coating Hammer Head T Bolt DIN 186 2



FAQ:
Q1. Can I have a sample order for Hex flange bolt?
A:Yes,we welcome sample order to test and check quality.

Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production


Q3. Do you have any MOQ limit for hex flange bolt order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days
Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.

Q5. How to proceed an order for hex flange bolt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
