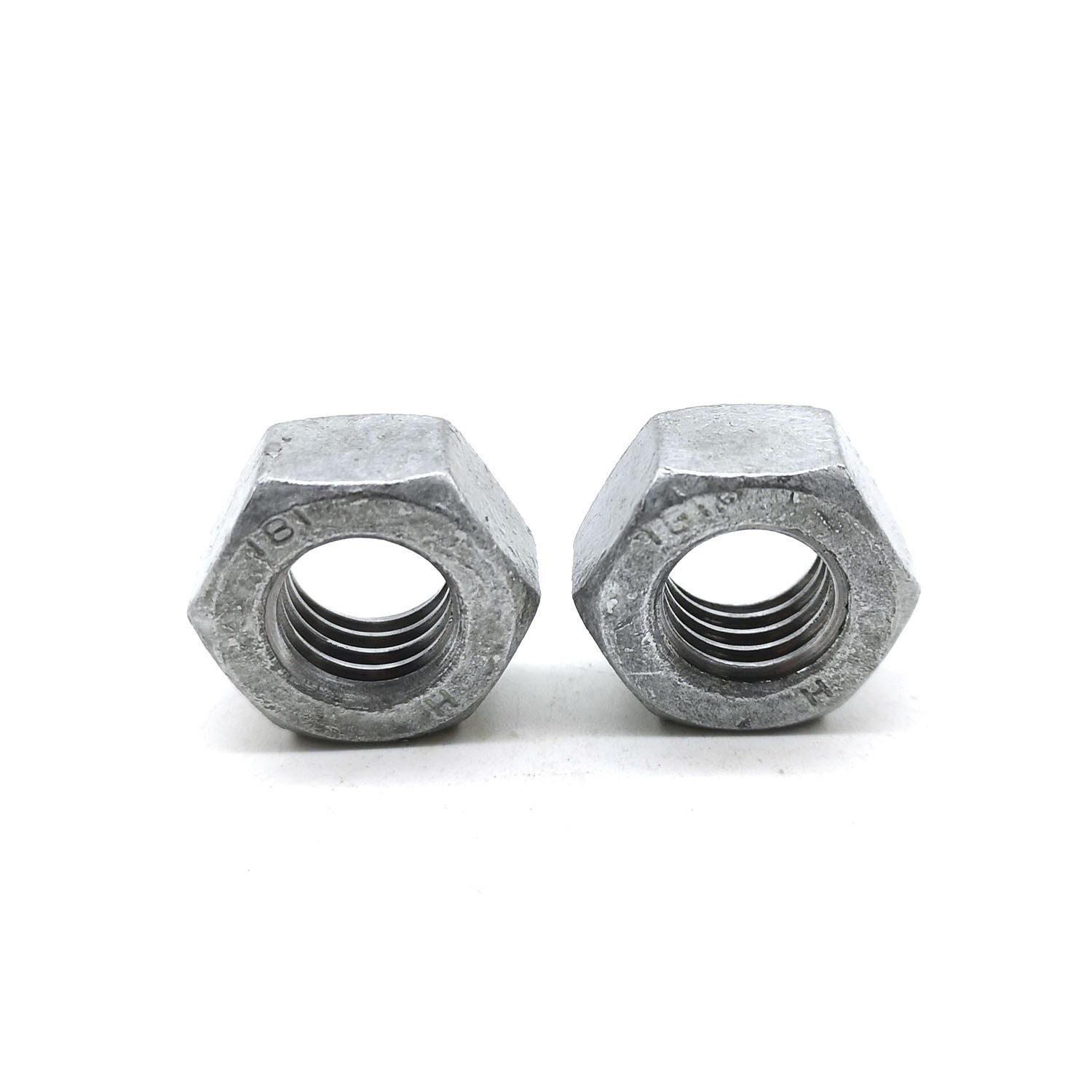

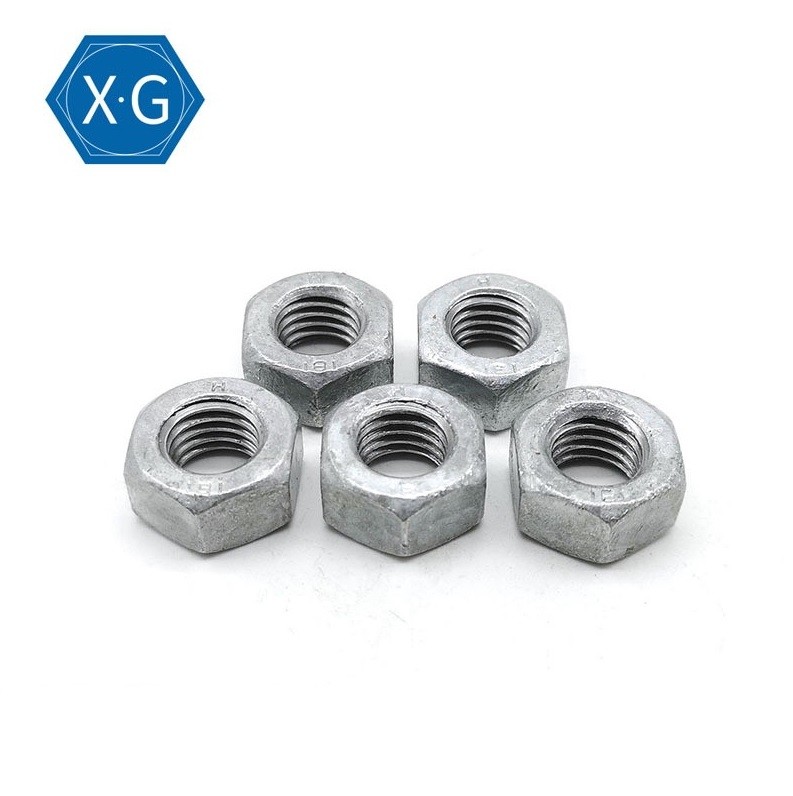

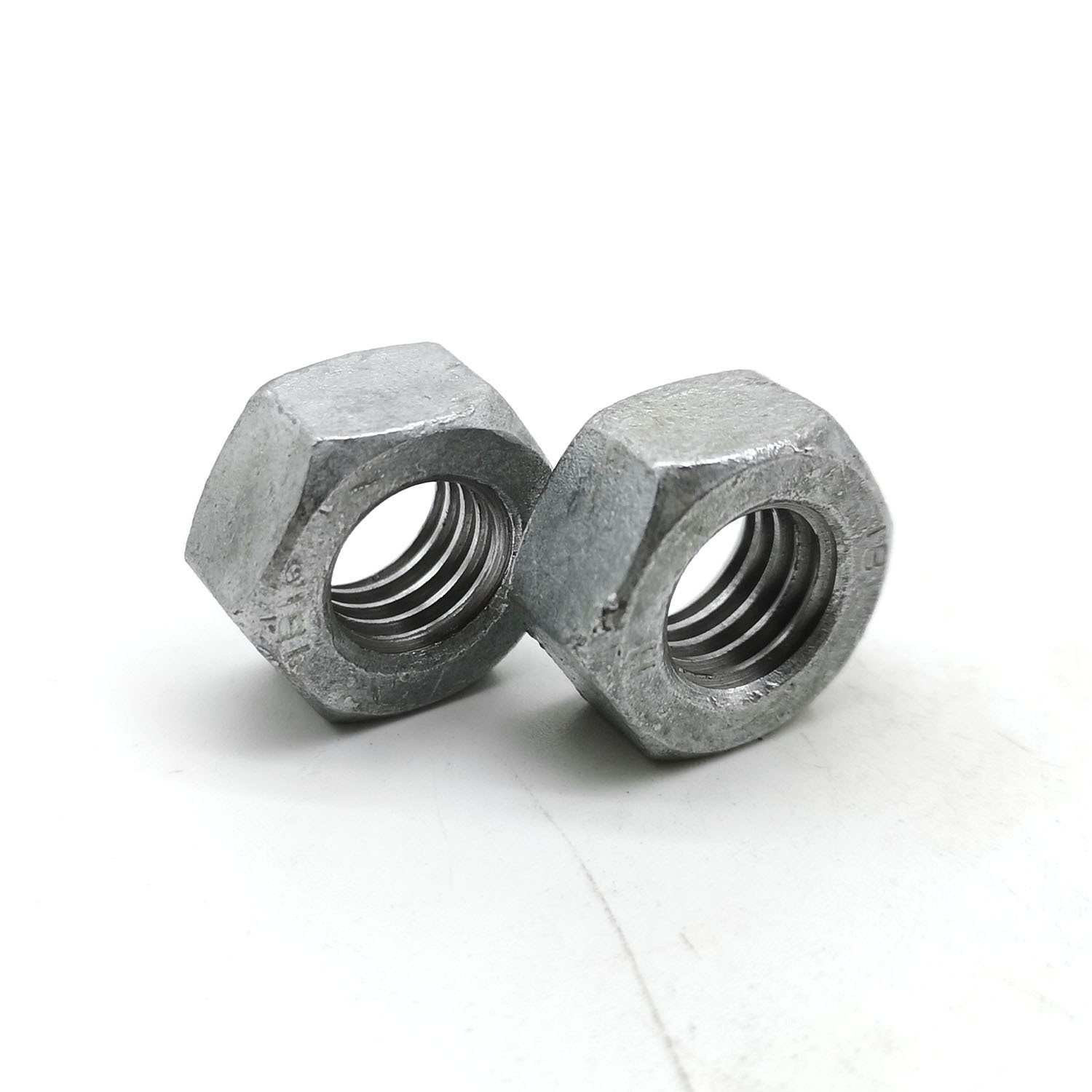

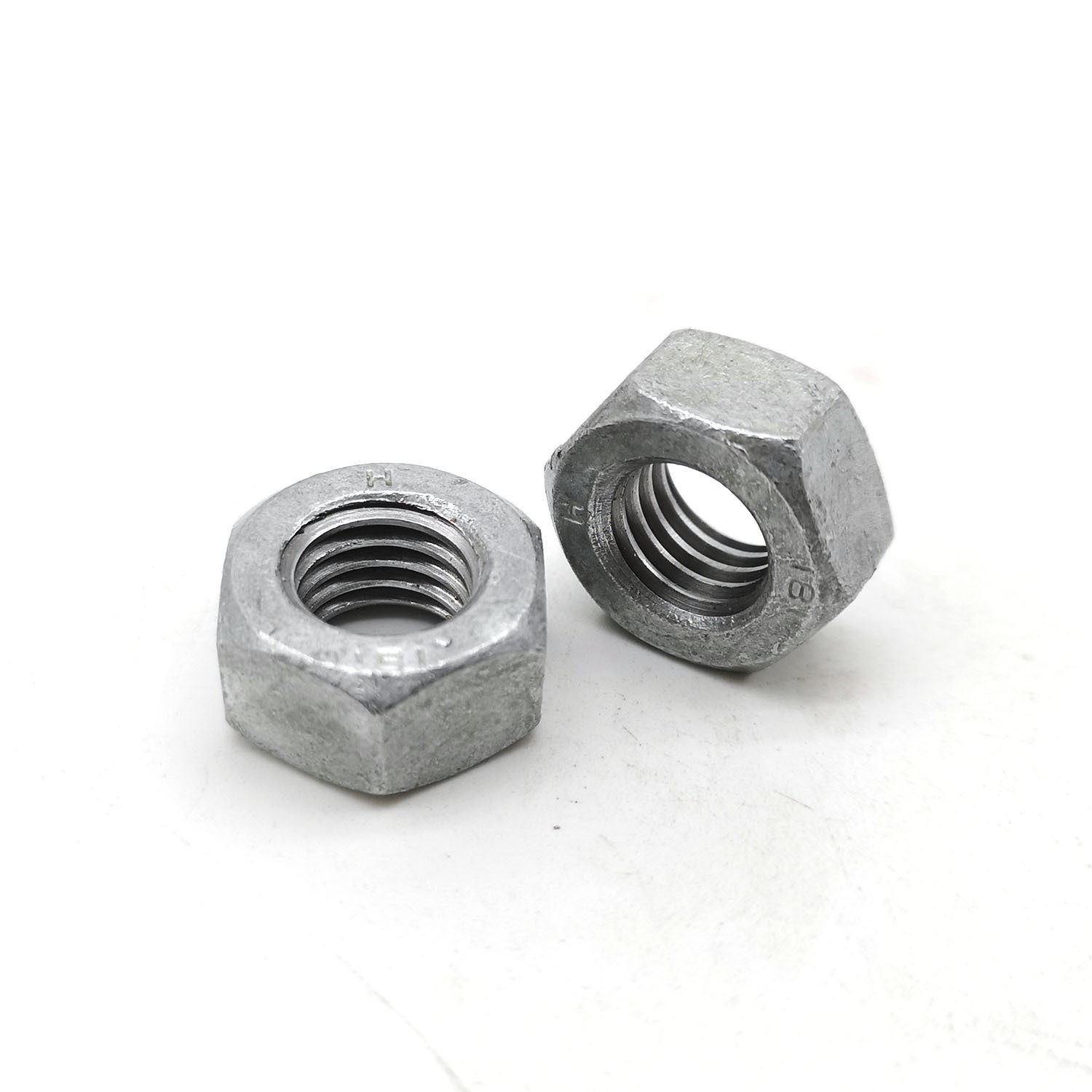

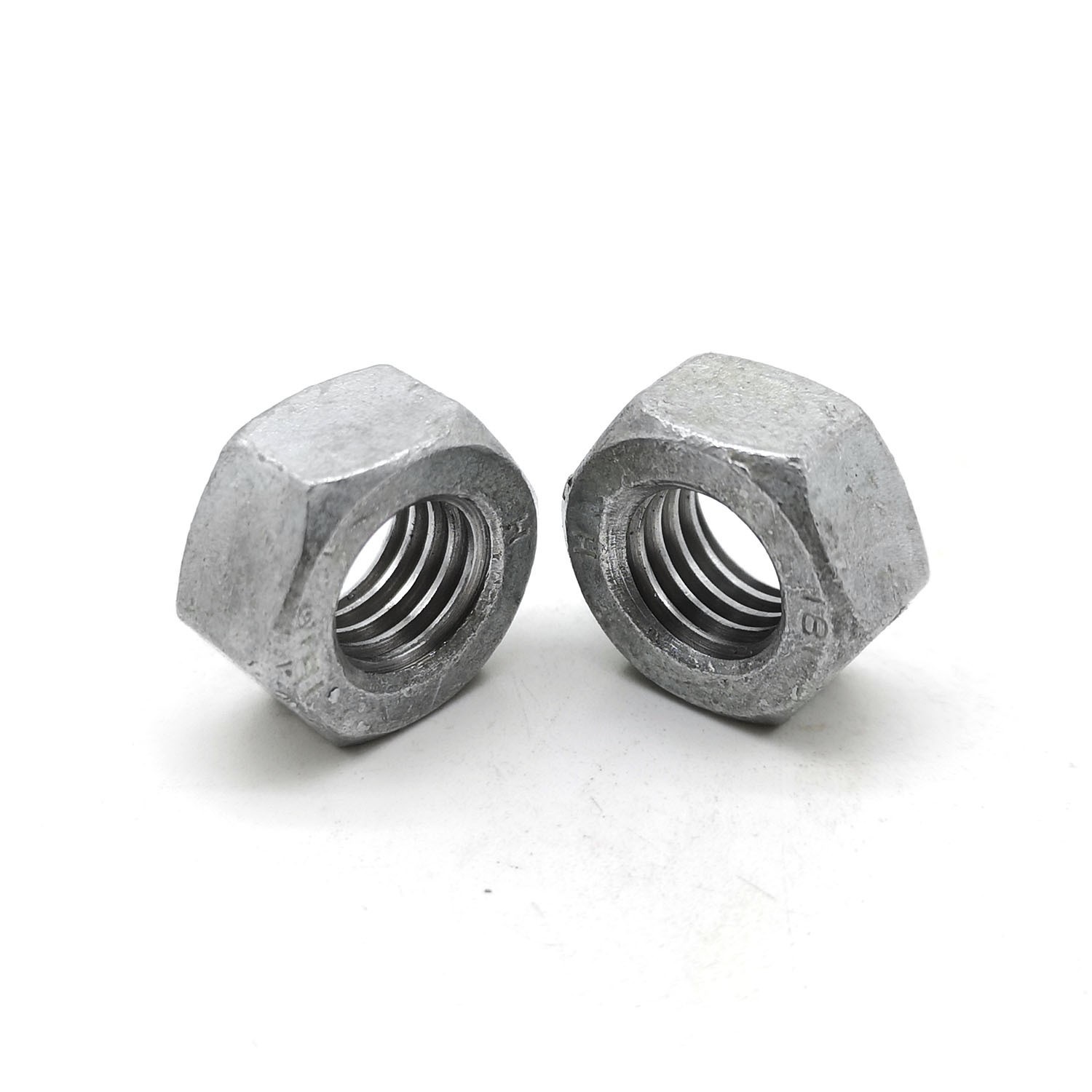

Steel Class 8 Solar Panel Fasteners HDG DIN 934 Hex Nut M16M20M24

  • Steel Class 8 Solar Panel Fasteners HDG DIN 934 Hex Nut M16M20M24
  • Steel Class 8 Solar Panel Fasteners HDG DIN 934 Hex Nut M16M20M24
  • Steel Class 8 Solar Panel Fasteners HDG DIN 934 Hex Nut M16M20M24
  • Steel Class 8 Solar Panel Fasteners HDG DIN 934 Hex Nut M16M20M24
  • Steel Class 8 Solar Panel Fasteners HDG DIN 934 Hex Nut M16M20M24
Place of Origin China
Brand Name XG
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN934
Minimum Order Quantity 100PCS
Price USD0.01-2/PCS
Packaging Details Bulk into plastic bag and carton box, and then Pallet.
Delivery Time 3-20work days
Payment Terms T/T
Supply Ability 100000PCS per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard DIN934 Grade Class 8
Finish Hot Dipped Galvanized Material Medium Carbon Steel
Thread Fit Coarse Thread Specification ISO898.2
Name Hex Nuts Thread Oversize The Thread Hole, Tap
Coating Thickness 50-80micro
High Light

Class 8 Solar Panel Fasteners xianggu

,

Steel Solar Panel Fasteners xianggu

,

DIN 934 Hex Nut M16 M20 xianggu
Leave a Message
Product Description

Description:

Solar Panel Fasteners Steel Class 8 HDG DIN934 Hex Nut M16M20M24



Solar Panel Fasteners Steel Class 8 HDG DIN934 Hex Nut M16M20M24 Made In China.



Products name Solar Panel Fasteners Steel Class 8 HDG DIN934 Hex Nut M16M20M24
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 8.8,10.9,12.9,Grade2,5 and 8,Class A2-70,A4-70,A4-80
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet
Related Products Bolts,Flat Washer,and Spring Washer
Applications Used in all industries,especially used for outside.
Stock Products Hex nut most of sizes are in stock.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.



Drawing:





Hexagon nuts with metric screw threads,product grades A and B
DIN 934-1987
Steel Class 8 Solar Panel Fasteners HDG DIN 934 Hex Nut M16M20M24 0
d(mm) p(mm) m(mm) s(mm) d(mm) P(mm) m(mm) S(mm)
min max min max min max min max
M1 0.25 0.55 0.8 2.4 2.5 M27 2/3 20.7 22 40 41
M1.2 0.25 0.75 1 2.9 3 M30 2/3.5 22.7 24 45 46
M1.4 0.3 0.95 1.2 2.9 3 M33 2/3.5 24.7 26 49 50
M1.6 0.35 1.05 1.3 3.02 3.2 M36 3/4 27.4 29 53.8 55
M1.7 0.35 1.15 1.4 3.38 3.5 M39 3/4 29.4 31 58.8 60
M2 0.4 1.35 1.6 3.82 4 M42 3/4.5 32.4 34 63.1 65
M2.3 0.45 1.55 1.8 4.32 4.5 M45 3/4.5 34.4 36 68.1 70
M2.5 0.45 1.75 2 4.82 5 M48 3/5 36.4 38 73.1 75
M2.6 0.45 1.75 2 4.82 5 M52 3/5 40.4 42 78.1 80
M3 0.5 2.15 2.4 5.32 5.5 M56 4/5.5 43.4 45 82.8 85
M3.5 0.6 2.55 2.8 5.82 6 M60 4/5.5 46.4 48 87.8 90
M4 0.7 2.9 3.2 6.78 7 M64 4/6 49.1 51 92.8 95
M5 0.8 3.7 4 7.78 8 M68 4/6 52.1 54 97.8 100
M6 1 4.7 5 9.78 10 M72 4/6 56.1 58 102.8 105
M7 1 5.2 5.5 10.73 11 M76 4/6 59.1 61 107.8 110
M8 1/1.25 6.14 6.5 12.73 13 M80 4/6 62.1 64 112.8 115
M10 1/1.25/1.5 7.64 8 16.73 17 M85 4/6 66.1 66 117.8 120
M12 1.25/1.5/1.75 9.64 10 18.67 19 M90 4/6 70.1 72 127.5 130
M14 1.5/2 10.3 11 21.67 22 M100 4/6 78.1 80 142.5 145
M16 1.5/2 12.3 13 23.67 24 M110 4/6 85.8 88 152.5 155
M18 1.5/2/2.5 14.3 15 26.16 27 M125 4/6 97.8 100 177.5 180
M20 1.5/2/2.5 14.9 16 29.16 30 M140 4/6 109.8 112 195.4 200
M22 1.5/2/2.5 16.9 18 31 32 M160 4/6 125.5 128 225.4 230
M24 2/3 17.7 19 35 36







Steel Class 8 Solar Panel Fasteners HDG DIN 934 Hex Nut M16M20M24 1Steel Class 8 Solar Panel Fasteners HDG DIN 934 Hex Nut M16M20M24 2Steel Class 8 Solar Panel Fasteners HDG DIN 934 Hex Nut M16M20M24 3



FAQ:
Q1. Can I have a sample order for Hex flange bolt?
A:Yes,we welcome sample order to test and check quality.

Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production


Q3. Do you have any MOQ limit for hex flange bolt order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days
Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.

Q5. How to proceed an order for hex flange bolt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
