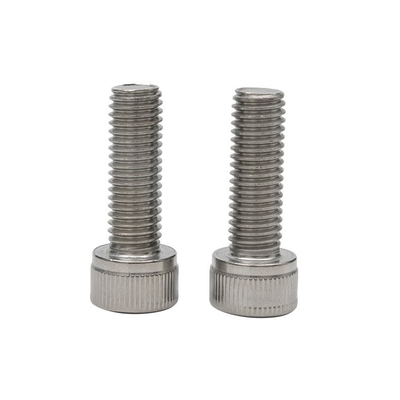

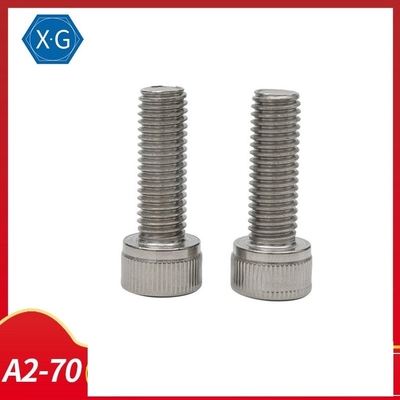

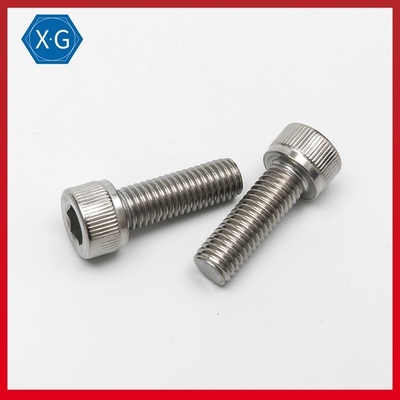

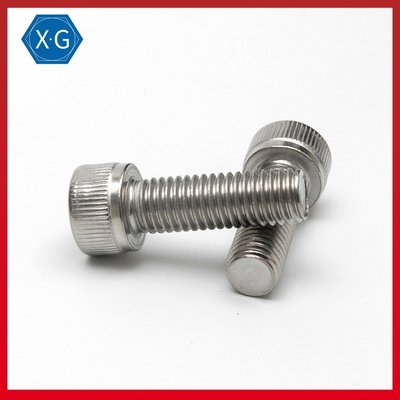

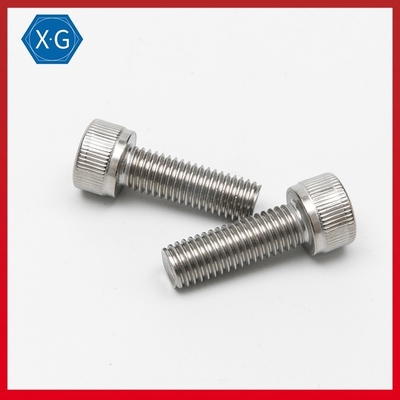

Din 912 A2 70 SS304 Hex Socket Head Cap Screw Self Tapping Hex Head Bolts
Place of Origin | China |
---|---|
Brand Name | XG |
Certification | ISO9001,EN10204 3.1Certificate |
Model Number | DIN912 |
Minimum Order Quantity | 100PCS |
Price | USD0.01-2/PCS |
Packaging Details | Bulk into plastic bag and carton box, and then Pallet. |
Delivery Time | 3-20work days |
Payment Terms | T/T |
Supply Ability | 100000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xStandard | SIN912 | Grade | A2-70 |
---|---|---|---|
Finish | Clean | Material | Stainless Steel 304 |
Head Type | Hex Socket Cap Head | Size | M1.6-M48 |
Name | Hex Socket Cap Head Screw | Drive | Allen |
High Light | SS304 Hex Socket Head Cap Screw xianggu,din 912 a2 70 xianggu,self tapping hex head bolts xianggu |
Description:
Solar Panel Fasteners DIN912 SS304 Grade A2-70 Hex Socket Head Cap Screw
Solar Panel Fasteners DIN912 SS304 Grade A2-70 Hex Socket Head Cap Screw Made In China.
Sizes from M1.6 to M48 as standard.
Products name | Solar Panel Fasteners DIN912 SS304 Grade A2-70 Hex Socket Head Cap Screw |
Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
Material | Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L |
Steel Grade: 8.8,10.9,12.9,Grade2,5 and 8,Class A2-70,A4-70,A4-80 | |
Finishing | Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet |
Related Products | Hex nuts,Flat Washer,and Spring Washer |
Applications | Solar Panel |
Stock Products | Hex Socket Head Cap Screw most of sizes are in stock. |
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
Focus On Supplying High Quality Fasteners. |
Product Drawing:
Hexagon socket head cap screws | |||||||||
DIN 912-1983 | |||||||||
d(mm) | P(mm) | b(mm) | dk(mm) | k(mm) | s(mm) | t(mm) | |||
min | max | min | max | min | max | min | |||
M1.4 | 0.3 | 14 | 2.46 | 2.74 | 1.26 | 1.4 | 1.32 | 1.36 | 0.6 |
M1.6 | 0.35 | 15 | 2.86 | 3.14 | 1.46 | 1.6 | 1.52 | 1.56 | 0.7 |
M2 | 0.4 | 16 | 3.62 | 3.98 | 1.86 | 2 | 1.52 | 1.56 | 1 |
M2.5 | 0.45 | 17 | 4.32 | 4.68 | 2.36 | 2.5 | 2.02 | 2.06 | 1.1 |
M3 | 0.5 | 18 | 5.32 | 5.68 | 2.86 | 3 | 2.52 | 2.58 | 1.3 |
M4 | 0.7 | 20 | 6.78 | 7.22 | 3.82 | 4 | 3.02 | 3.08 | 2 |
M5 | 0.8 | 22 | 8.28 | 8.72 | 4.82 | 5 | 4.02 | 4.095 | 2.5 |
M6 | 1 | 24 | 9.78 | 10.22 | 5.7 | 6 | 5.02 | 5.14 | 3 |
M8 | 1.25/1 | 28 | 12.73 | 13.27 | 7.64 | 8 | 6.02 | 6.14 | 4 |
M10 | 1.5/1.25/1 | 32 | 15.73 | 16.27 | 9.64 | 10 | 8.025 | 8.175 | 5 |
M12 | 1.75/1.5/1.25 | 36 | 17.73 | 18.27 | 11.57 | 12 | 10.025 | 10.18 | 6 |
M14 | 2/1.5 | 40 | 20.67 | 21.33 | 13.57 | 14 | 12.032 | 12.21 | 7 |
M16 | 2/1.5 | 44 | 23.67 | 24.33 | 15.57 | 16 | 14.032 | 14.21 | 8 |
M18 | 2.5/2/1.5 | 48 | 26.67 | 27.33 | 17.57 | 18 | 14.032 | 14.21 | 9 |
M20 | 2.5/2/1.5 | 52 | 29.67 | 30.33 | 19.48 | 20 | 17.05 | 17.23 | 10 |
M22 | 2.5/2/1.5 | 56 | 32.61 | 33.39 | 21.48 | 22 | 17.05 | 17.23 | 11 |
M24 | 3/2 | 60 | 35.61 | 36.39 | 23.48 | 24 | 19.065 | 19.28 | 12 |
M27 | 3/2 | 66 | 39.61 | 40.39 | 26.48 | 27 | 19.065 | 19.28 | 13.5 |
M30 | 3.5/2 | 72 | 44.61 | 45.39 | 29.48 | 30 | 22.065 | 22.28 | 15.5 |
M33 | 3.5/2 | 78 | 49.61 | 50.39 | 32.38 | 33 | 24.065 | 24.28 | 18 |
M36 | 4/3 | 84 | 53.54 | 54.46 | 35.38 | 36 | 27.065 | 27.28 | 19 |
M42 | 4.5/3 | 96 | 62.54 | 63.46 | 41.38 | 42 | 32.08 | 32.33 | 24 |
M48 | 5/3 | 108 | 71.54 | 72.46 | 47.38 | 48 | 36.08 | 36.33 | 28 |
M56 | 5.5/4 | 124 | 83.46 | 84.54 | 56.26 | 57 | 41.08 | 41.33 | 34 |
M64 | 6/4 | 140 | 95.46 | 96.54 | 63.26 | 64 | 46.08 | 46.33 | 38 |
M72*4 | 6/4 | 156 | 107.5 | 108.5 | 71.26 | 72 | 55.1 | 55.4 | 43 |
M80*4 | 6/4 | 172 | 119.5 | 120.5 | 79.26 | 80 | 65.1 | 65.4 | 48 |
M90*4 | 6/4 | 192 | 134.4 | 135.6 | 89.13 | 90 | 75.1 | 75.4 | 54 |
M100*4 | 6/4 | 212 | 149.4 | 150.6 | 99.13 | 100 | 85.12 | 85.47 | 60 |
FAQ:
Q1. Can I have a sample order for Hex flange bolt?
A:Yes,we welcome sample order to test and check quality.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production
Q3. Do you have any MOQ limit for hex flange bolt order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days
Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.
Q5. How to proceed an order for hex flange bolt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
