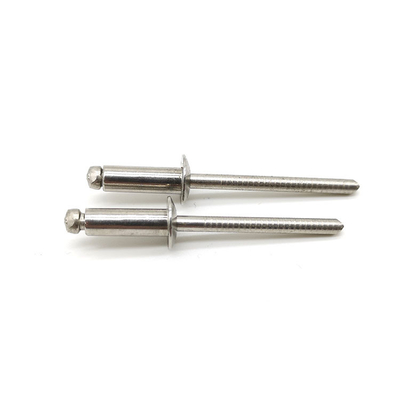

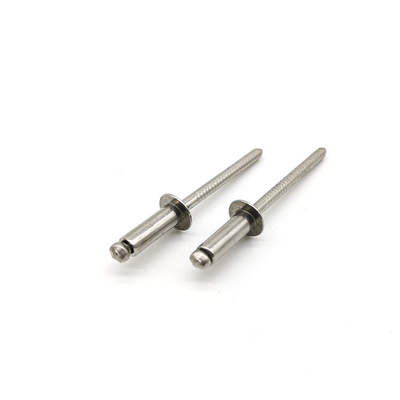

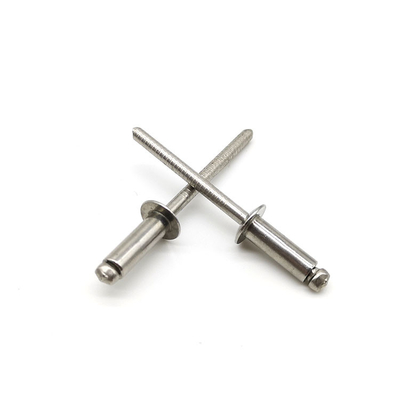

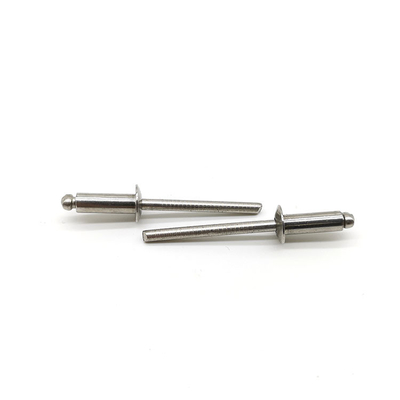

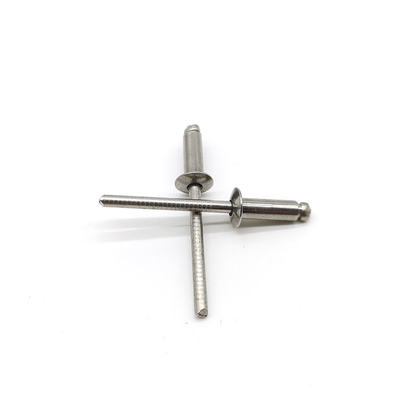

Button Dome Head Break Mandrel Blind Rivets Pop Rivets and Pins Stainless Steel 304

  • Button Dome Head Break Mandrel Blind Rivets Pop Rivets and Pins Stainless Steel 304
  • Button Dome Head Break Mandrel Blind Rivets Pop Rivets and Pins Stainless Steel 304
  • Button Dome Head Break Mandrel Blind Rivets Pop Rivets and Pins Stainless Steel 304
  • Button Dome Head Break Mandrel Blind Rivets Pop Rivets and Pins Stainless Steel 304
  • Button Dome Head Break Mandrel Blind Rivets Pop Rivets and Pins Stainless Steel 304
Place of Origin China
Brand Name XG
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN7337
Minimum Order Quantity 100PCS
Price USD0.01-2/PCS
Packaging Details Bulk into plastic bag and carton box, and then Pallet.
Delivery Time 3-20work days
Payment Terms T/T
Supply Ability 100000PCS per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard DIN7337 Grade A2-70
Finish Bright And Clean Material Stainless Steel 304
Name Blind Rivets Head Type Dome/button Head
High Light

Break Mandrel Blind Rivets

,

Button Dome Head Blind Rivets

,

Rivets and Pins Stainless Steel 304
Leave a Message
Product Description

Description:

Stainless Steel 304 Break Mandrel Blind Rivets Flat Head Pop Rivets


Stainless Steel 304 Break Mandrel Blind Rivets Flat Head Pop Rivets Made In China.
Blind Rivets are a two-piece fastener that consists of a tubular body and with mandrel through the center.
They are used to permanently fasten two or more pieces of materials together.
Blind Rivets have the advantage of being installed from the front side of the material where access to the blind side is not available or necessary.
They are inserted into pre-drilled holes of the materials being joined.Using a specific tool,the mandrel is drawn through the body of the rivet and is snapped off once the blind end expands.


Products name Stainless Steel 304 Break Mandrel Blind Rivets Flat Head Pop Rivets
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel,Aluminum;Stainless Steel:SS304, SS316,SS316L
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet
Related Products Bolts,Flat Washer,and Spring Washer
Applications

Blind Rivets allow objects to be fastened together when there is only access from one side and are often referred to as hollow rivets,pop rivets,or bread stem rivets.
There are most commonly used with electronics,structural steel beams,aircraft,and sheet metal jointing.
Stock Products Blind Rivets most of sizes are in stock.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.


Drawing:



Break manderl blind rivets Flat head
DIN 7337(A)-1991
Button Dome Head Break Mandrel Blind Rivets Pop Rivets and Pins Stainless Steel 304 0
d(mm) dk(mm) k(mm)
Nom min max min max min max
2.4 2.3 2.48 4.3 5 0.4 0.7
3 2.9 3.08 5.8 6.5 0.6 1
3.2 3.1 3.28 5.8 6.5 0.6 1
4 3.85 4.08 7 8 0.7 1.3
4.8 4.65 4.88 8.5 9.5 0.8 1.4
5 4.85 5.08 8.5 9.5 0.8 1.4
6 5.85 6.08 10.5 12 1.1 1.9
6.4 6.25 6.48 11.5 13 1.4 2.2




Button Dome Head Break Mandrel Blind Rivets Pop Rivets and Pins Stainless Steel 304 1Button Dome Head Break Mandrel Blind Rivets Pop Rivets and Pins Stainless Steel 304 2Button Dome Head Break Mandrel Blind Rivets Pop Rivets and Pins Stainless Steel 304 3



FAQ:
Q1. Can I have a sample order for Hex flange bolt?
A:Yes,we welcome sample order to test and check quality.

Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production


Q3. Do you have any MOQ limit for hex flange bolt order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days
Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.

Q5. How to proceed an order for hex flange bolt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
