ISO15977 Rivets And Pins RVT AL ST Zinc Plating Open End Blind Rivet
| Place of Origin | China |
|---|---|
| Brand Name | XG |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | ISO15977 |
| Minimum Order Quantity | 100PCS |
| Price | USD0.01-2/PCS |
| Packaging Details | Bulk into plastic bag and carton box, and then Pallet. |
| Delivery Time | 3-20work days |
| Payment Terms | T/T |
| Supply Ability | 100000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | ISO15977 | Grade | AL5050 |
|---|---|---|---|
| Finish | Zinc Plated | Material | Aluminum And Steel |
| Name | Blind Rivets | Head Type | Dome/button Head |
| High Light | Zinc Plating Open End Blind Rivet,RVT AL ST Open End Blind Rivet,ISO15977 Rivets and Pins |
||
Product Description
Description:

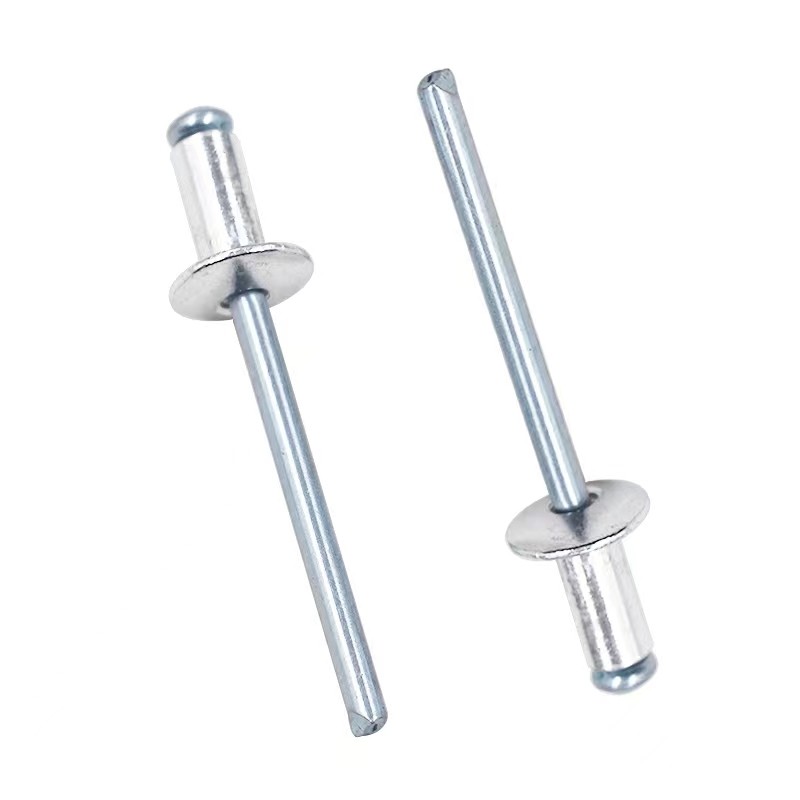

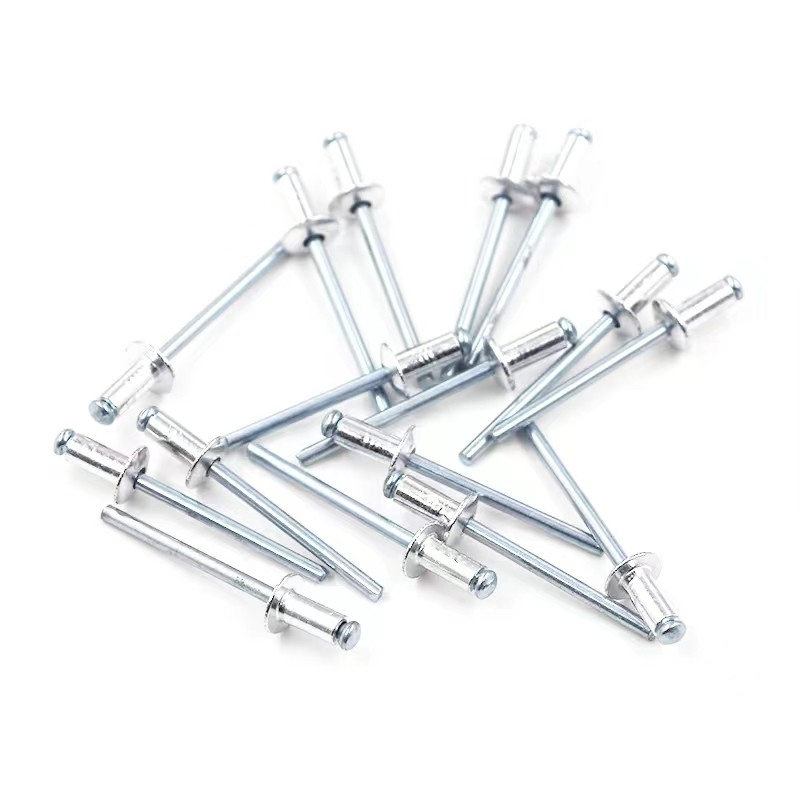

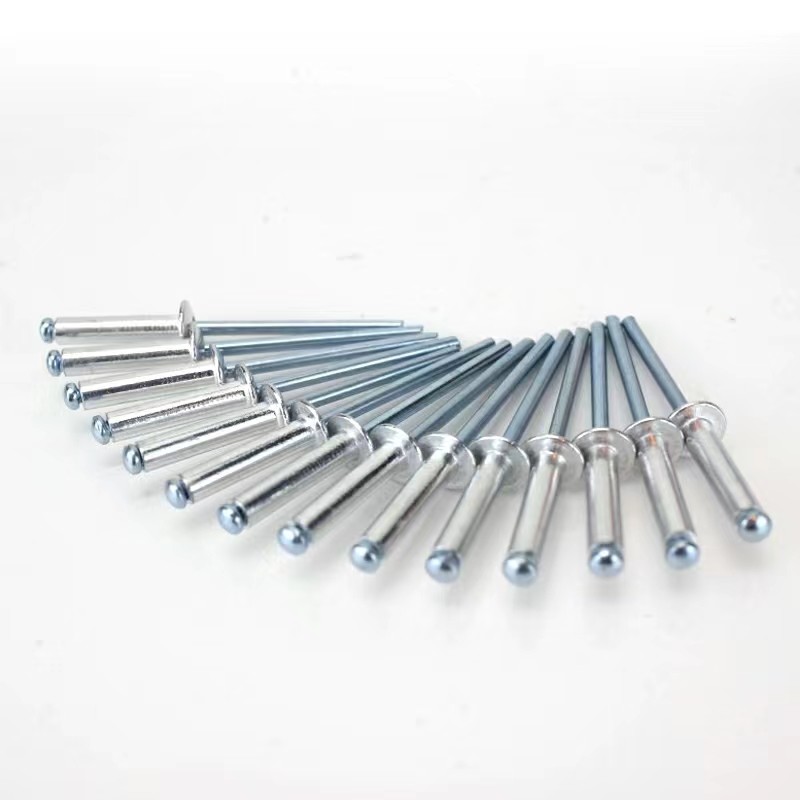

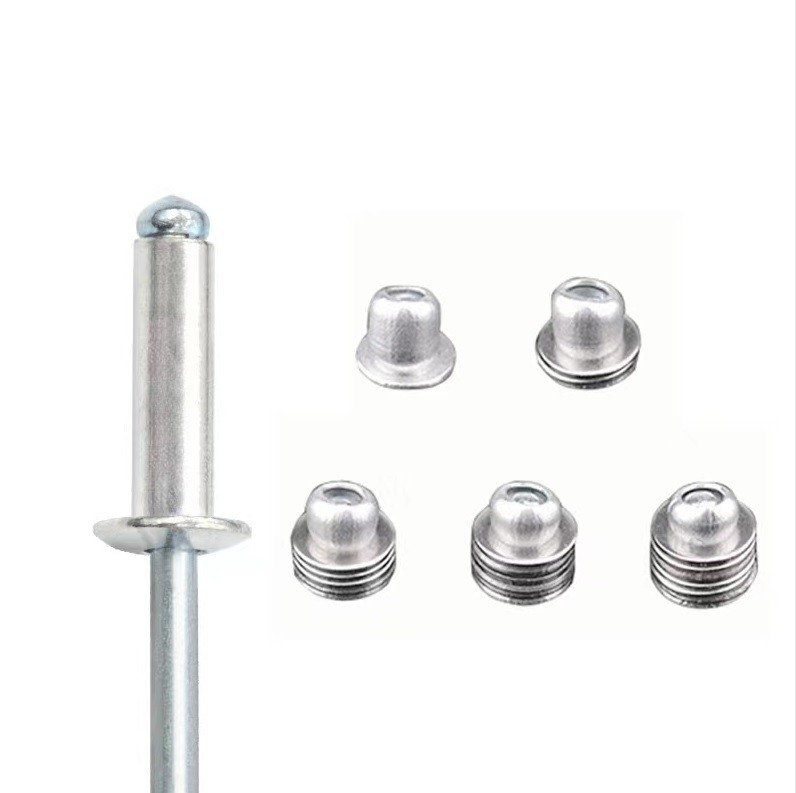

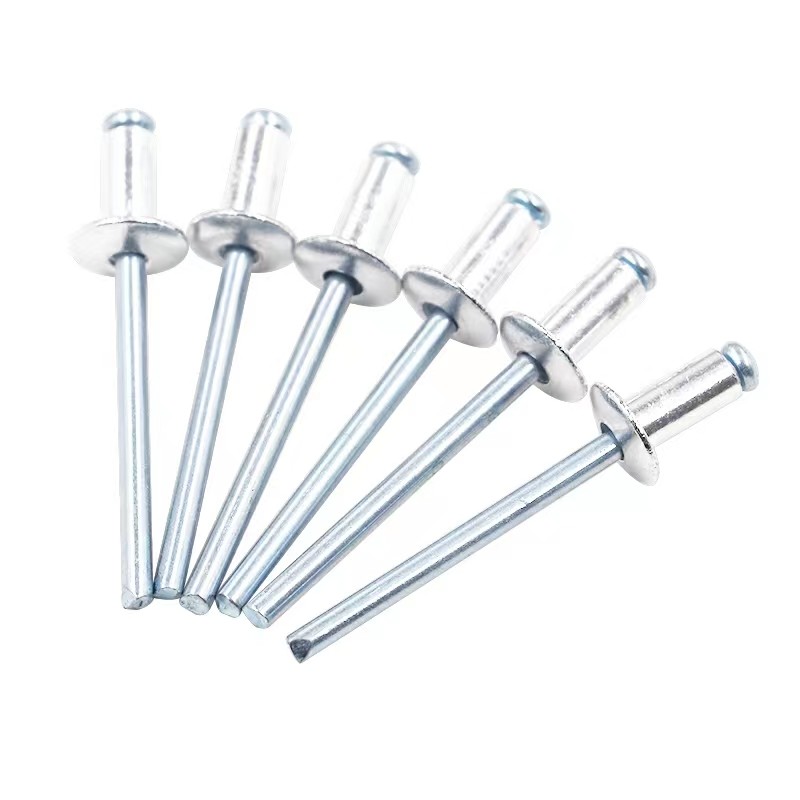

ISO15977 RVT AL/ST Zinc Plating Open End Blind Rivet
ISO15977 RVT AL/ST Zinc Plating Open End Blind Rivet Made In China.
Blind Rivets are a two-piece fastener that consists of a tubular body and with mandrel through the center.
They are used to permanently fasten two or more pieces of materials together.
Blind Rivets have the advantage of being installed from the front side of the material where access to the blind side is not available or necessary.
They are inserted into pre-drilled holes of the materials being joined.Using a specific tool,the mandrel is drawn through the body of the rivet and is snapped off once the blind end expands.
| Products name | ISO15977 RVT AL/ST Zinc Plating Open End Blind Rivet |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel,Aluminum;Stainless Steel:SS304, SS316,SS316L |
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet |
| Related Products | Bolts,Flat Washer,and Spring Washer |
| Applications |
Blind Rivets allow objects to be fastened together when there is only access from one side and are often referred to as hollow rivets,pop rivets,or bread stem rivets. |
| Stock Products | Blind Rivets most of sizes are in stock. |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |
Drawing:
| Open End Blind Rivets With Break Pull Mandrel And Protruding Head - AIA/St | ||||||
| ISO 15977 | ||||||
 |
||||||
| d(mm) | dk(mm) | K | d1 | |||
| Nom | min | max | min | max | max | max |
| 2.4 | 2.25 | 2.48 | 4.2 | 5 | 1 | 1.55 |
| 3 | 2.85 | 3.08 | 5.4 | 6.3 | 1.3 | 2 |
| 3.2 | 3.05 | 3.28 | 5.8 | 6.7 | 1.3 | 2 |
| 4 | 3.85 | 4.08 | 6.9 | 8.4 | 1.7 | 2.45 |
| 4.8 | 4.65 | 4.88 | 8.3 | 10.1 | 2 | 2.95 |
| 5 | 4.85 | 5.08 | 8.7 | 10.5 | 2.1 | 2.95 |
| 6 | 5.85 | 6.08 | 10.8 | 12.6 | 2.5 | 3.4 |
| 6.4 | 6.25 | 6.48 | 11.6 | 13.4 | 2.7 | 3.9 |
FAQ:
Q1. Can I have a sample order for Hex flange bolt?
A:Yes,we welcome sample order to test and check quality.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production
Q3. Do you have any MOQ limit for hex flange bolt order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days
Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.
Q5. How to proceed an order for hex flange bolt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
