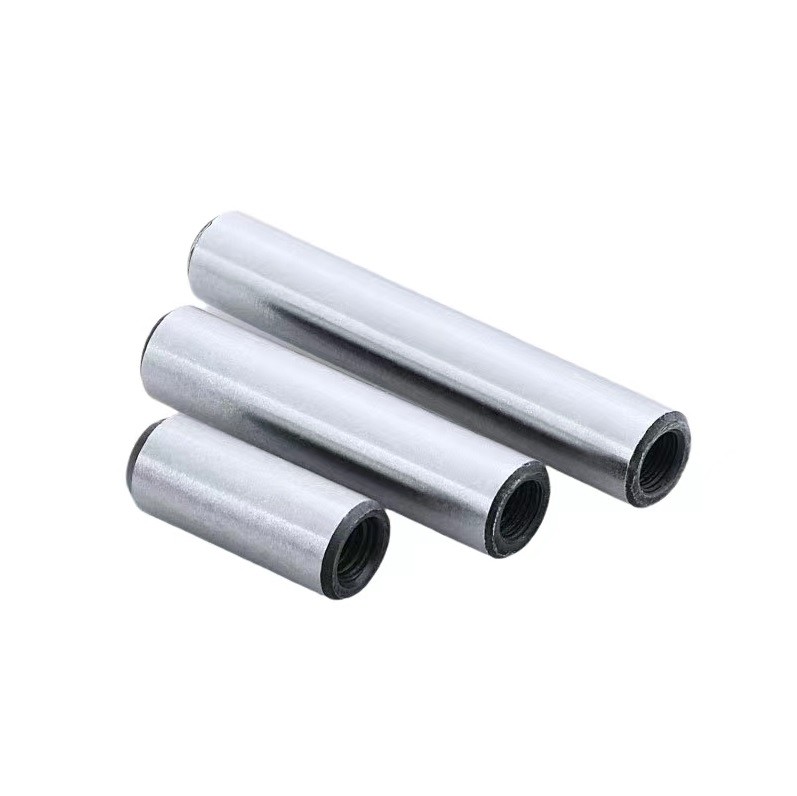

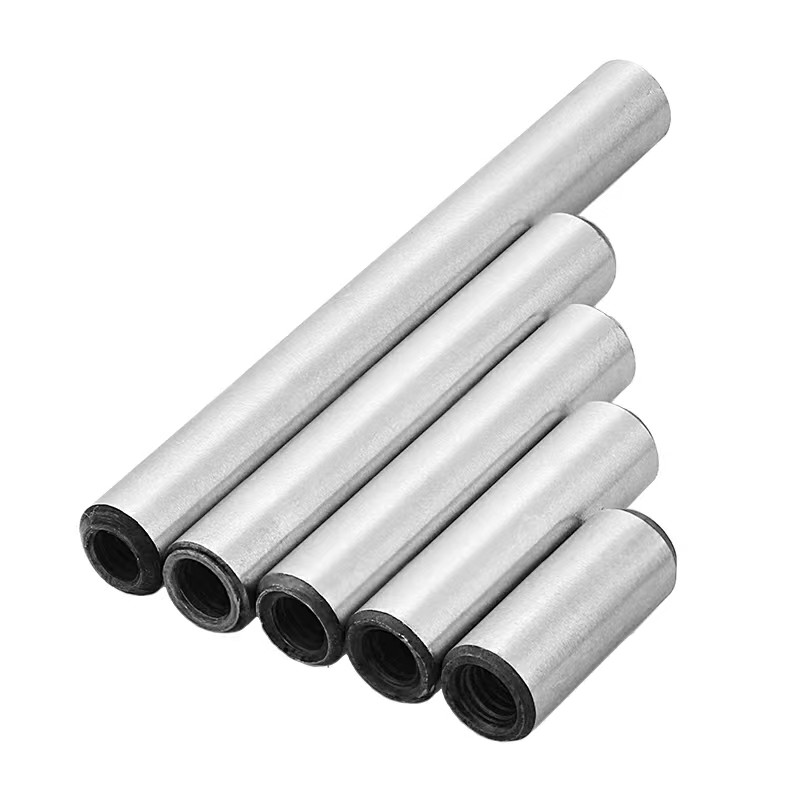

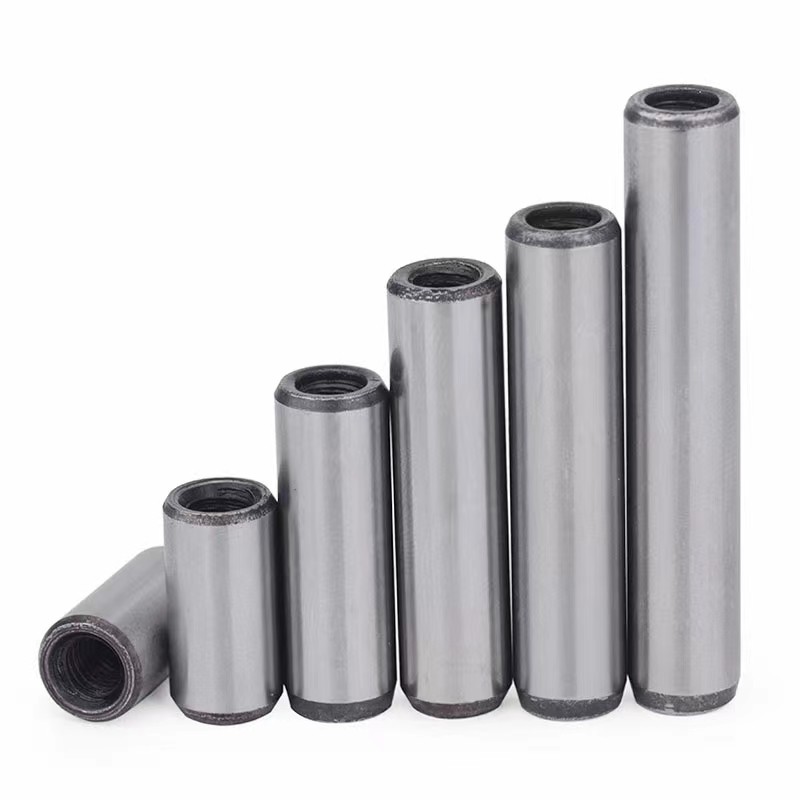

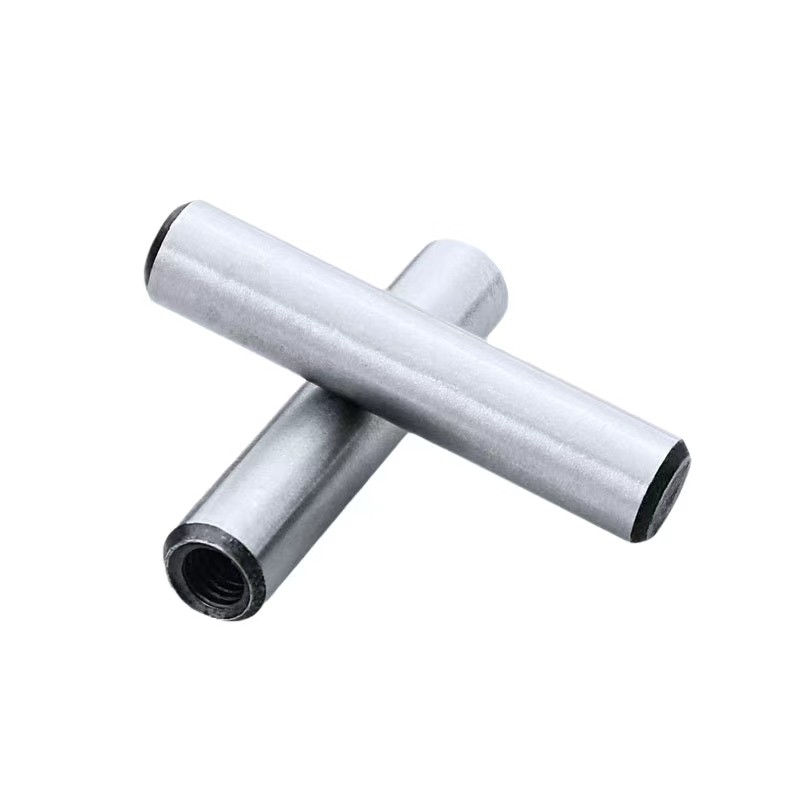

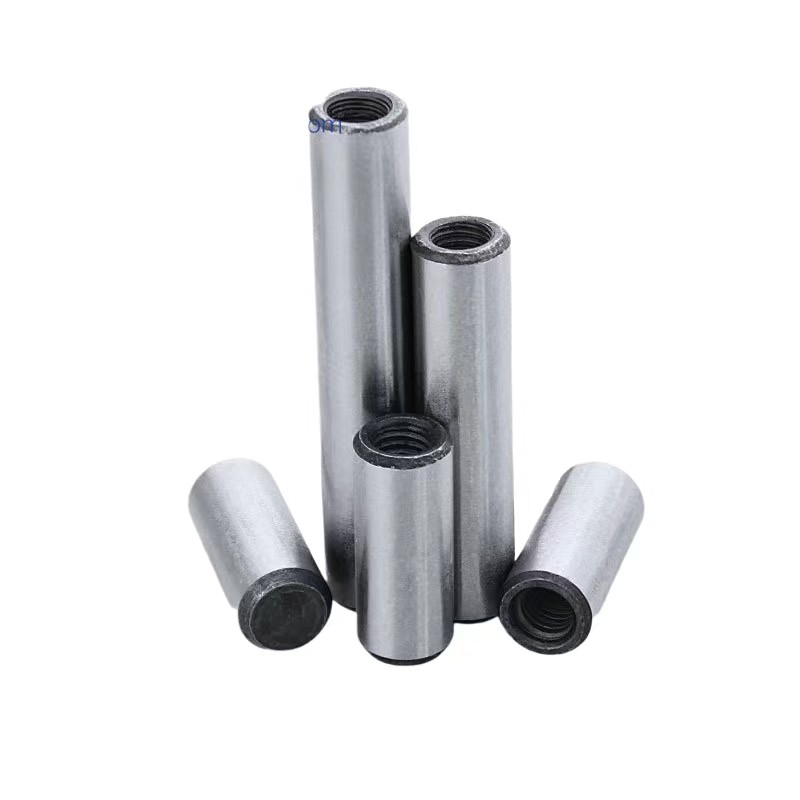

Hardened Polishing Alloy Steel Parallel Dowel Pin Rivets And Pins Internal Thread

  • Hardened Polishing Alloy Steel Parallel Dowel Pin Rivets And Pins Internal Thread
  • Hardened Polishing Alloy Steel Parallel Dowel Pin Rivets And Pins Internal Thread
  • Hardened Polishing Alloy Steel Parallel Dowel Pin Rivets And Pins Internal Thread
  • Hardened Polishing Alloy Steel Parallel Dowel Pin Rivets And Pins Internal Thread
  • Hardened Polishing Alloy Steel Parallel Dowel Pin Rivets And Pins Internal Thread
Place of Origin China
Brand Name XG
Certification ISO9001,EN10204 3.1Certificate
Model Number Dowel pin
Minimum Order Quantity 100PCS
Price USD0.01-2/PCS
Packaging Details Bulk into plastic bag and carton box, and then Pallet.
Delivery Time 3-20work days
Payment Terms T/T
Supply Ability 100000PCS per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Internal Threaded Dowel Pins Grade Alloy Steel
Finish Polishing Material 40Cr
Type Internal Threaded Thread Coarse
System Inch And Metric Treatment Hardened
Hardness HRC 38-50
High Light

Alloy Steel parallel dowel pin

,

Hardened Polishing parallel dowel pin

,

Rivets and Pins Internal Thread
Leave a Message
Product Description

Description:

Alloy Steel Hardened Polishing Parallel Pin with Internal Thread



Alloy Steel Hardened Polishing Parallel Pin with Internal Thread Made In China.

One end of these pins is tapped, and the other is chamfered for easy insertion. To remove, thread a screw or tool into the tapped hole, then pull the pin out. Because they aren't vented.

Pins that meet ASME B18.8.2 specifications conform to ASME standards for material and dimensions.

Metric pins meet DIN 7979D-m6 specifications.

Steel pins have good strength. Pins with a black-oxide finish resist rusting in dry environments.



Products name Alloy Steel Hardened Polishing Parallel Pin with Internal Thread
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel,Aluminum;Stainless Steel:SS304, SS316,SS316L
Finishing Black Oxide,Zinc Plated,Dacromet,Bright and Clean
Related Products Bolts,Flat Washer,and Spring Washer
Applications Internal threaded Pins work best in through holes. Use them as pivots, hinges, shafts, jigs, and fixtures to locate or hold parts. Pins are precision ground for accurate alignment. Breaking strength is measured as double shear, which is the force required to break a pin into three pieces.
Stock Products Internal threaded pins can be produced as your drawings.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.





Drawing:



Parallel Pins With Internal Thread
GB 120
Hardened Polishing Alloy Steel Parallel Dowel Pin Rivets And Pins Internal Thread 0
d(mm) d m6 a c d1 P d2 t1 t2 t3
min max approx. approx. Pitch min.
6 6.004 6.012 0.8 1.2 M4 0.7 4.3 6 10 1
8 8.006 8.015 1 1.6 M5 0.8 5.3 8 12 1.2
10 10.006 10.015 1.2 2 M6 1 6.4 10 16 1.2
12 12.007 12.018 1.6 2.5 M6 1 6.4 12 20 1.2
16 16.007 16.018 2 3 M8 1.25 8.4 16 25 1.5
20 20.008 20.021 2.5 3.5 M10 1.5 10.5 18 28 1.5
25 25.008 25.021 3 4 M16 2 17 24 35 2
30 30.008 30.021 4 5 M20 2.5 21 30 40 2
40 40.009 40.025 5 6.3 M20 2.5 21 30 40 2.5
50 50.009 50.025 6.3 8 M24 3 25 36 50 2.5



 Hardened Polishing Alloy Steel Parallel Dowel Pin Rivets And Pins Internal Thread 1Hardened Polishing Alloy Steel Parallel Dowel Pin Rivets And Pins Internal Thread 2Hardened Polishing Alloy Steel Parallel Dowel Pin Rivets And Pins Internal Thread 3



FAQ:
Q1. Can I have a sample order for Hex flange bolt?
A:Yes,we welcome sample order to test and check quality.

Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production


Q3. Do you have any MOQ limit for hex flange bolt order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days
Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.

Q5. How to proceed an order for hex flange bolt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
