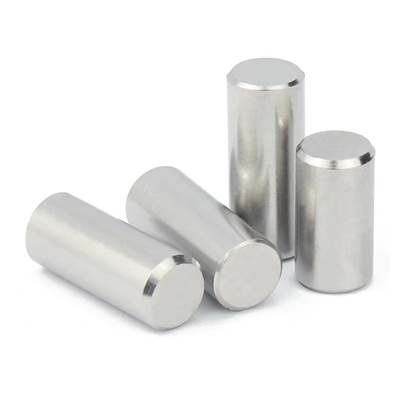

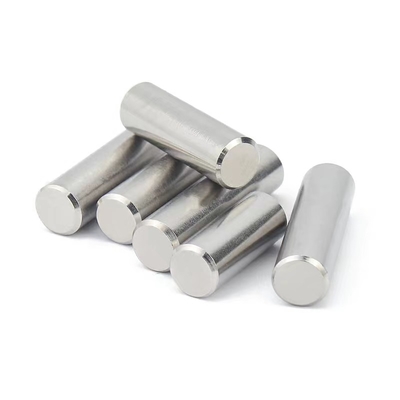

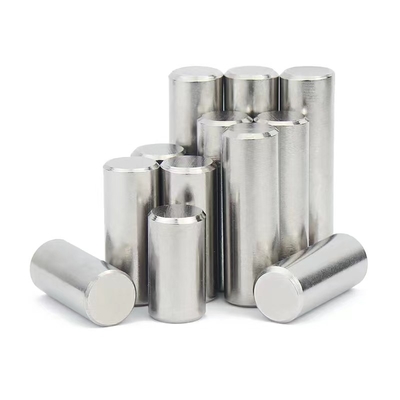

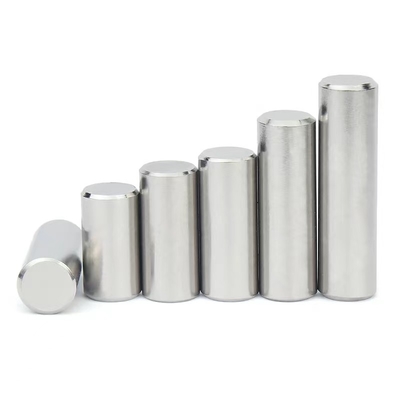

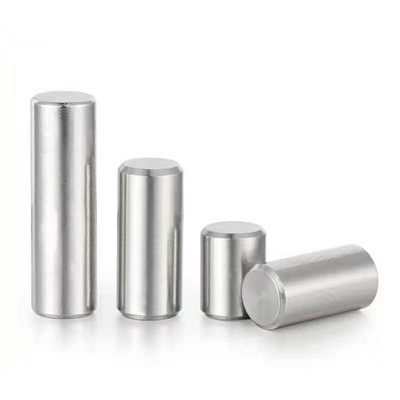

SS316L DIN 7 Stainless Steel Dowel Pin 2mm 3mm 4mm 5mm 7mm 8mm A4-70
| Place of Origin | China |
|---|---|
| Brand Name | XG |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | Dowel pin |
| Minimum Order Quantity | 100PCS |
| Price | USD0.01-2/PCS |
| Packaging Details | Bulk into plastic bag and carton box, and then Pallet. |
| Delivery Time | 3-20work days |
| Payment Terms | T/T |
| Supply Ability | 100000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Dowel Pins | Grade | A4-70 |
|---|---|---|---|
| Finish | Polishing | Material | Stainless Steel 316L |
| Head Type | Plain | System | Inch And Metric |
| Size | Diameter 0.8-50mm | End Shape | Chamfered |
| Passivation | Not Passivated | ||
| High Light | SS316L stainless steel dowel pin,din 7 dowel pin A4-70,ss dowel pin 2mm |
||
Product Description
Description:
DIN7 SS316L Stainless Steel A4-70 Dowel Pin
DIN7 SS316L Stainless Steel A4-70 Dowel Pin Made In China.
Use dowel pins as pivots, hinges, shafts, jigs, and fixtures to locate or hold parts. For a tight fit, your hole should be equal to or slightly smaller than the diameter shown. Breaking strength is measured as double shear, which is the force required to break a pin into three pieces.
Pins with a material certificate provide a traceable lot number and test report.
316L stainless steel pins have the best corrosion resistance of our stainless steel pins. They may be mildly magnetic
| Products name | DIN7 SS316L Stainless Steel A4-70 Dowel Pin |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel,Aluminum;Stainless Steel:SS304, SS316,SS316L |
| Finishing | Black Oxide,Zinc Plated,Dacromet,Bright and Clean |
| Related Products | Bolts,Flat Washer,and Spring Washer |
| Applications | Dowel pins align or join components in machinery, construction, and furniture during assembly. They can also be used in masonry to join stone and concrete. |
| Stock Products | Dowel pin can be produced as your drawings. |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |
Drawing:
| Dowel Pins | |||||||
| DIN 7 | |||||||
 |
|||||||
| d(mm) | m6 | h8 | h11 | c | |||
| min | max | min | max | min | max | max | |
| 0.8 | / | / | 0.786 | 0.8 | 0.74 | 0.8 | 0.12 |
| 1 | 1.002 | 1.008 | 0.986 | 1 | 0.94 | 1 | 0.15 |
| 1.2 | 1.202 | 1.208 | 1.186 | 1.2 | 1.14 | 1.2 | 0.18 |
| 1.5 | 1.502 | 1.508 | 1.486 | 1.5 | 1.44 | 1.5 | 0.23 |
| 2 | 2.002 | 2.008 | 1.986 | 2 | 1.94 | 2 | 0.3 |
| 2.5 | 2.502 | 2.508 | 2.486 | 2.5 | 2.44 | 2.5 | 0.4 |
| 3 | 3.002 | 3.008 | 2.986 | 3 | 2.94 | 3 | 0.45 |
| 4 | 4.004 | 4.012 | 3.982 | 4 | 3.925 | 4 | 0.6 |
| 5 | 5.004 | 5.012 | 4.982 | 5 | 4.925 | 5 | 0.75 |
| 6 | 6.004 | 6.012 | 5.982 | 6 | 5.925 | 6 | 0.9 |
| 8 | 8.006 | 8.015 | 7.978 | 8 | 7.91 | 8 | 1.2 |
| 10 | 10.006 | 10.015 | 9.978 | 10 | 9.91 | 10 | 1.5 |
| 12 | 12.007 | 12.018 | 11.973 | 12 | 11.89 | 12 | 1.8 |
| 14 | 14.007 | 14.018 | 13.973 | 14 | 13.89 | 14 | 2 |
| 16 | 16.007 | 16.018 | 15.973 | 16 | 15.89 | 16 | 2.5 |
| 20 | 20.008 | 20.021 | 19.967 | 20 | 19.87 | 20 | 3 |
| 25 | 25.008 | 25.021 | 24.967 | 25 | 24.87 | 25 | 4 |
| 30 | 30.008 | 30.021 | 29.967 | 30 | 29.87 | 30 | 4.5 |
| 40 | 40.009 | 40.025 | 39.961 | 40 | 39.961 | 40 | 6 |
| 50 | 50.009 | 50.025 | 49.961 | 50 | 49.84 | 50 | 7.5 |
FAQ:
Q1. Can I have a sample order for Hex flange bolt?
A:Yes,we welcome sample order to test and check quality.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production
Q3. Do you have any MOQ limit for hex flange bolt order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days
Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.
Q5. How to proceed an order for hex flange bolt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
