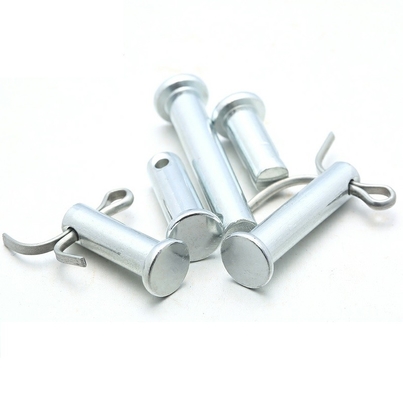

Zinc Plated Metal Steel Clevis Rivets And Pins 4.8 Flat Head 3-60mm
| Place of Origin | China |
|---|---|
| Brand Name | XG |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | Clevis pin |
| Minimum Order Quantity | 100PCS |
| Price | USD0.01-2/PCS |
| Packaging Details | Bulk into plastic bag and carton box, and then Pallet. |
| Delivery Time | 3-20work days |
| Payment Terms | T/T |
| Supply Ability | 100000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Clevis Pins | Grade | 4.8 |
|---|---|---|---|
| Finish | Zinc Plated | Material | Steel |
| Head Type | Flat Head | System | Inch And Metric |
| Size | 3-60mm | Type | With A Hole |
| High Light | Zinc Plated Rivets and Pins,Steel Clevis 4.8,metal Clevis 3-60mm |
||
Product Description
Description:

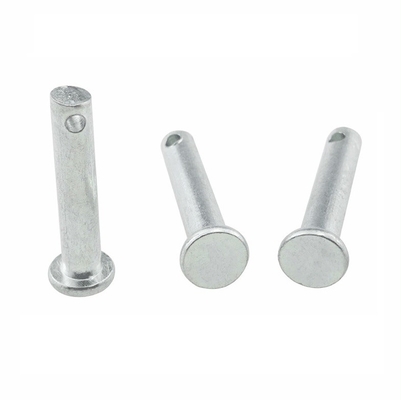

Steel Zinc Plated Clevis Pins
Steel Zinc Plated Clevis Pins Made In China.

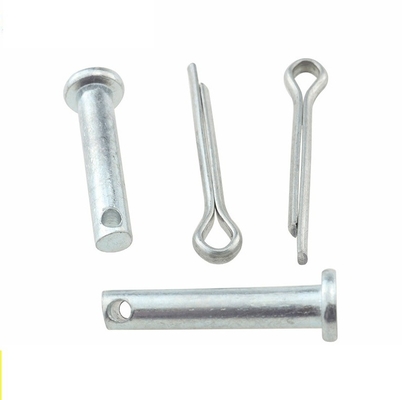

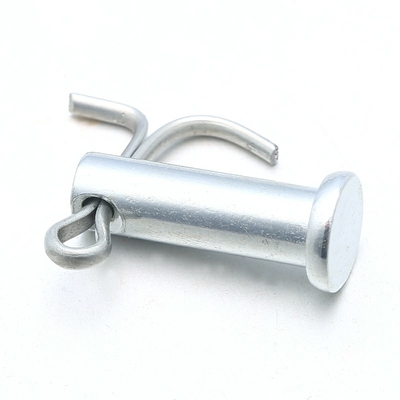

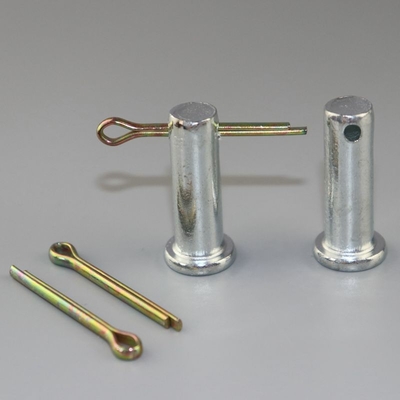

An alternative to bolts and rivets, these pins lock in place with a cotter pin. Choose a clevis pin and add your own cotter pin, or select a clevis pin that includes a reusable hairpin cotter pin.
Steel pins have good strength. Heat-treated pins have additional strength and hardness, making them less likely to bend, break, and wear than pins that aren't heat treated. Pins with a zinc-plated finish have some corrosion resistance. Pins with a zinc yellow-chromate plated finish are more corrosion resistant than zinc-plated pins. Galvanized pins are the most corrosion resistant steel pins.
| Products name | DIN7 SS316L Stainless Steel A4-70 Dowel Pin |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel,Aluminum;Stainless Steel:SS304, SS316,SS316L |
| Finishing | Black Oxide,Zinc Plated,Dacromet,Bright and Clean |
| Related Products | Bolts,Flat Washer,and Spring Washer |
| Applications | Clevis pins are one of the components of a three-piece clevis fastener system. Clevis pins are used as a quick and secure fastener in place of bolts and rivets. Designed with both a flat or domed head on one end and cross-hole at the other, a clevis pin is inserted through the holes at the pronged ends of a clevis and is kept in place by a cotter pin. |
| Stock Products | Clevis pin with zinc plated,plain in stock |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |
Drawing:
| Clevis pins with head | ||||||||||
| 销轴 | ||||||||||
| GB/T 882-1986 | ||||||||||
 |
||||||||||
| d(mm) | d(mm) | dk(mm) | k(mm) | d1(mm) | Lh(mm) | |||||
| min | max | min | max | Nom | min | max | min | max | min | |
| 3 | 2.94 | 3 | 4.7 | 5 | 1.5 | 1.375 | 1.625 | 1.6 | 1.74 | 1.6 |
| 4 | 3.925 | 4 | 5.7 | 6 | 2.2 | |||||
| 5 | 4.925 | 5 | 7.64 | 8 | 2 | 1.875 | 2.125 | 2 | 2.14 | 2.9 |
| 6 | 5.925 | 6 | 9.64 | 10 | 3.2 | |||||
| 8 | 7.91 | 8 | 11.57 | 12 | 2.5 | 2.375 | 2.625 | 3.2 | 3.38 | 3.5 |
| 10 | 9.91 | 10 | 13.57 | 14 | 4.5 | |||||
| 12 | 11.89 | 12 | 15.57 | 16 | 3 | 2.875 | 3.125 | 4 | 4.18 | 5.5 |
| 14 | 13.89 | 14 | 17.57 | 18 | 6 | |||||
| 16 | 15.89 | 16 | 19.48 | 20 | 3.5 | 3.35 | 3.65 | |||
| 18 | 17.89 | 18 | 21.48 | 22 | 5 | 5.18 | 7 | |||
| 20 | 19.87 | 20 | 24.48 | 25 | 4 | 3.85 | 4.15 | 8 | ||
| 22 | 21.87 | 22 | 27.48 | 28 | ||||||
| 25 | 24.87 | 25 | 31.38 | 32 | 5 | 4.85 | 5.15 | 6.3 | 6.52 | 9 |
| 28 | 27.87 | 28 | 35.38 | 36 | ||||||
| 30 | 29.87 | 30 | 37.38 | 38 | 10 | |||||
| 32 | 31.84 | 32 | 39.38 | 40 | 6 | 5.85 | 6.15 | |||
| 36 | 35.84 | 36 | 44.38 | 45 | 8 | 8.22 | ||||
| 40 | 39.84 | 40 | 49.38 | 50 | ||||||
| 45 | 44.84 | 45 | 54.26 | 55 | 7 | 6.82 | 7.18 | 12 | ||
| 50 | 49.84 | 50 | 59.26 | 60 | 10 | 10.22 | ||||
| 55 | 54.81 | 55 | 64.26 | 65 | 8 | 7.82 | 8.18 | 14 | ||
| 60 | 59.81 | 60 | 69.26 | 70 | ||||||
FAQ:
Q1. Can I have a sample order for Hex flange bolt?
A:Yes,we welcome sample order to test and check quality.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production
Q3. Do you have any MOQ limit for hex flange bolt order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days
Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.
Q5. How to proceed an order for hex flange bolt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
