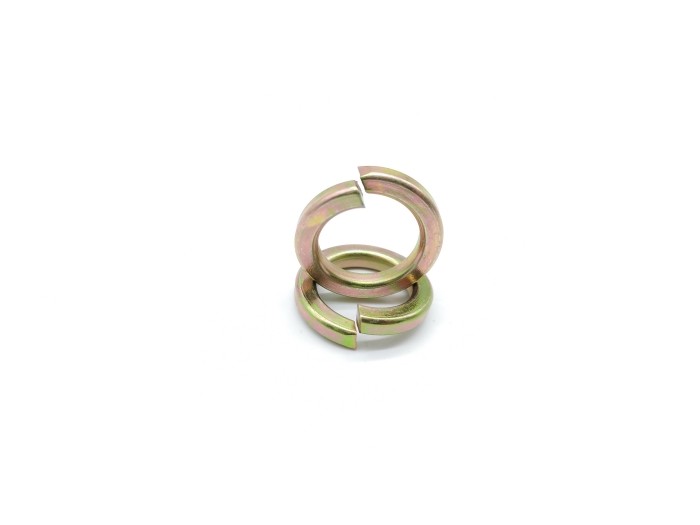

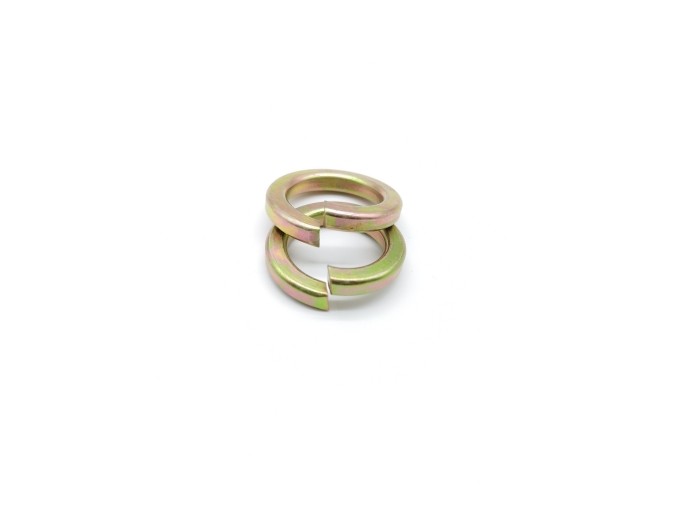

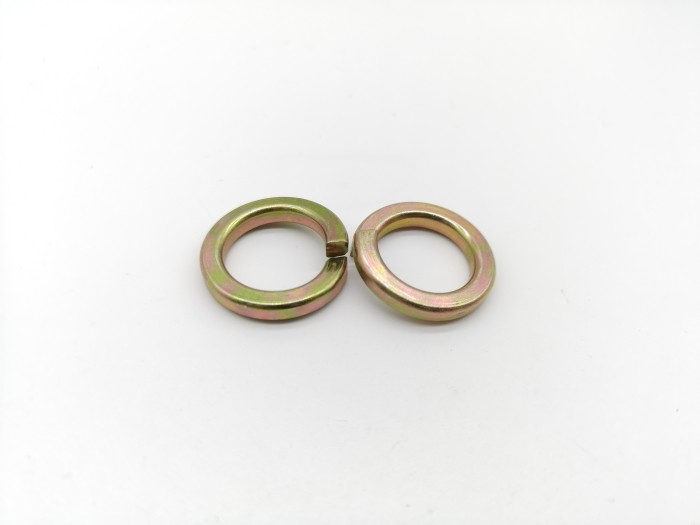

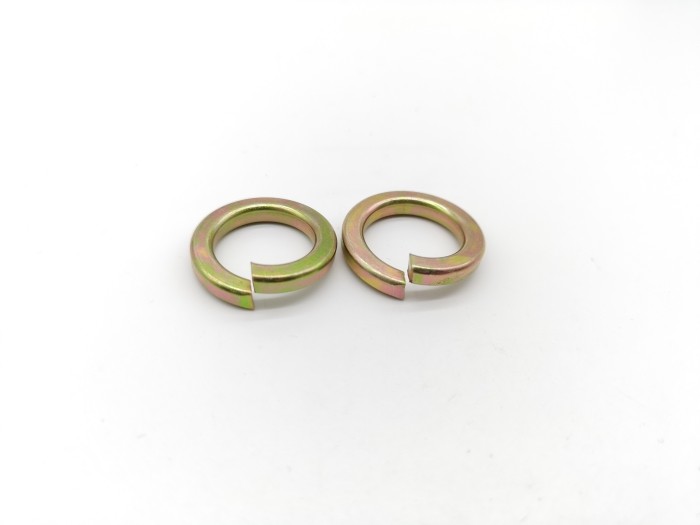

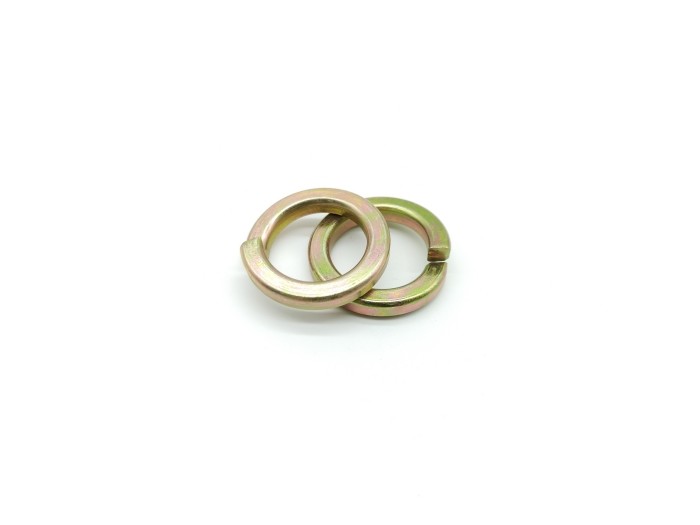

GB93 Spring Steel Washers Yellow Zinc Plated Split Lock Washers 2mm 48mm
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | GB93 |
| Minimum Order Quantity | 1000pcs |
| Price | 0.01-0.5usd/pc |
| Packaging Details | 25KG/Carton box, and then pallet. |
| Delivery Time | 3-10workdays |
| Payment Terms | T/T, L/C |
| Supply Ability | 500000pcs per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Spring Lock Washer | Standard | GB93 |
|---|---|---|---|
| Material | Spring Steel 65Mn | Finish | Yellow Zinc Plated |
| Size | Inner Dia. From 2mm To 48mm | Measurement System | Metric |
| Marking | No Marking | Type | Standard Split Lock |
| High Light | GB93 Spring Steel Washers,Spring Steel Washers Yellow Zinc Plated,Split Lock Washers 2mm 48mm |
||
Product Description
Product Description:
Yellow Zinc Plated Split Lock Washers Spring Steel Washers
Yellow Zinc Plated Split Lock Washers Spring Steel Washers Made In China.
We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.
Spring Washers can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.
Please state this requirement in your inquiry.
| Products name | Yellow Zinc Plated Split Lock Washers Spring Steel Washers |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel:Q235,#45,65Mn;Stainless Steel:SS304, SS316,SS316L |
| Steel Grade: 100HV,200HV,300HV,350HV,450HV | |
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet,PTFE |
| Related Products | DIN933 Hex Bolts,DIN934 Hex Nuts,DIN125 Flat Washers |
| Application | Standard split lock washers have a left-hand helix, which means you can only use them with bolts that have right-hand threads to prevent clockwise rotation from vibration. When tightened, their uneven split ends bite into unhardened nuts and bolts for a tighter hold than curved or wave washers, but only for applications with clockwise rotation. The washers, nuts, and bolts will be deformed when untightened, so none of them can be reused. Do not use these washers on hardened surfaces. |
| Stock Products | Lock Washer in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |
Product Specification:
| Single coil spring lock washers-Normal type | |||||||
| GB/T 93-1987 | |||||||
 |
|||||||
| size | d(mm) | h≈b(mm) | H(mm) | ||||
| Nom | min | max | Nom | min | max | min | max |
| 2 | 2.1 | 2.35 | 0.5 | 0.42 | 0.58 | 1 | 1.25 |
| 2.5 | 2.6 | 2.85 | 0.65 | 0.57 | 0.73 | 1.3 | 1.63 |
| 3 | 3.1 | 3.4 | 0.8 | 0.7 | 0.9 | 1.6 | 2 |
| 4 | 4.1 | 4.4 | 1.1 | 1 | 1.2 | 2.2 | 2.75 |
| 5 | 5.1 | 5.4 | 1.3 | 1.2 | 1.4 | 2.6 | 3.25 |
| 6 | 6.1 | 6.68 | 1.6 | 1.5 | 1.7 | 3.2 | 4 |
| 8 | 8.1 | 8.68 | 2.1 | 2 | 2.2 | 4.2 | 5.25 |
| 10 | 10.2 | 10.9 | 2.6 | 2.45 | 2.75 | 5.2 | 6.5 |
| 12 | 12.2 | 12.9 | 3.1 | 2.95 | 3.25 | 6.2 | 7.75 |
| 14 | 14.2 | 14.9 | 3.6 | 3.4 | 3.8 | 7.2 | 9 |
| 16 | 16.2 | 16.9 | 4.1 | 3.9 | 4.3 | 8.2 | 10.25 |
| 18 | 18.2 | 19.04 | 4.5 | 4.3 | 4.7 | 9 | 11.25 |
| 20 | 20.2 | 21.04 | 5 | 4.8 | 5.2 | 10 | 12.5 |
| 22 | 22.5 | 23.34 | 5.5 | 5.3 | 5.7 | 11 | 13.75 |
| 24 | 24.5 | 25.5 | 6 | 5.8 | 6.2 | 12 | 15 |
| 27 | 27.5 | 28.5 | 6.8 | 6.5 | 7.1 | 13.6 | 17 |
| 30 | 30.5 | 31.5 | 7.5 | 7.2 | 7.8 | 15 | 18.75 |
| 33 | 33.5 | 34.7 | 8.5 | 8.2 | 8.8 | 17 | 21.25 |
| 36 | 36.5 | 37.7 | 9 | 8.7 | 9.3 | 18 | 22.5 |
| 39 | 39.5 | 40.7 | 10 | 9.7 | 10.3 | 20 | 25 |
| 42 | 42.5 | 43.7 | 10.5 | 10.2 | 10.8 | 21 | 26.25 |
| 45 | 45.5 | 46.7 | 11 | 10.7 | 11.3 | 22 | 27.5 |
| 48 | 48.5 | 49.7 | 12 | 11.7 | 12.3 | 24 | 30 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
