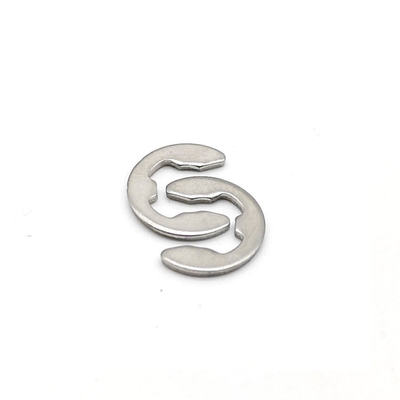

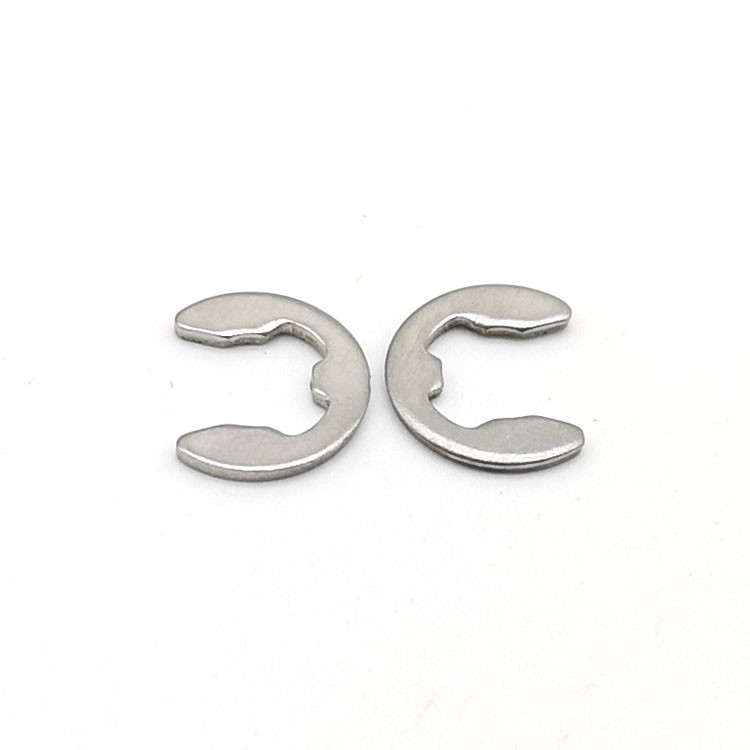

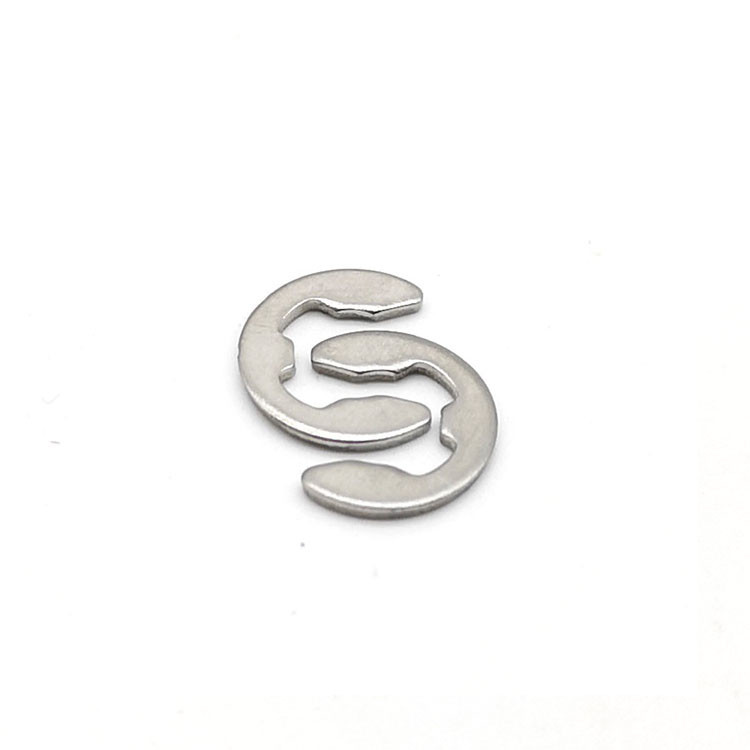

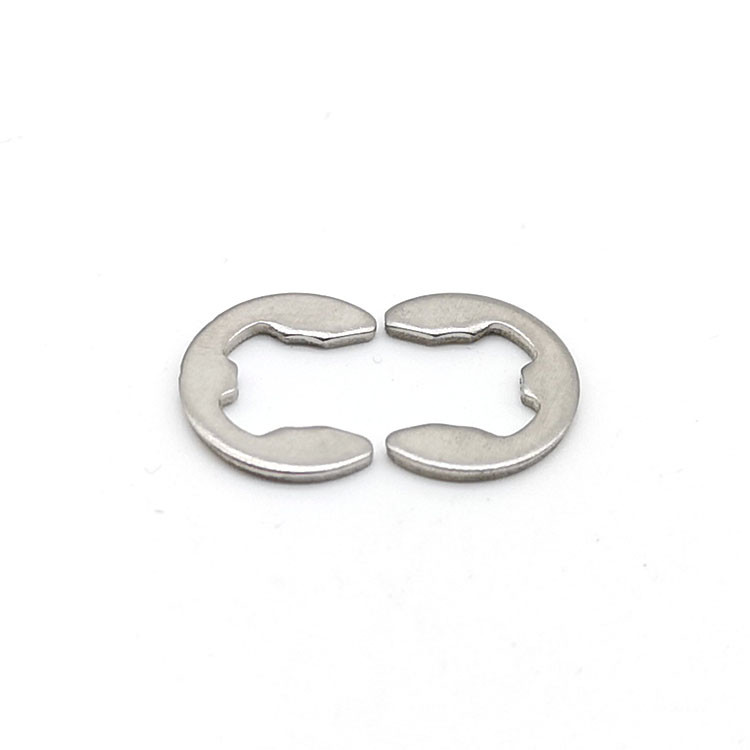

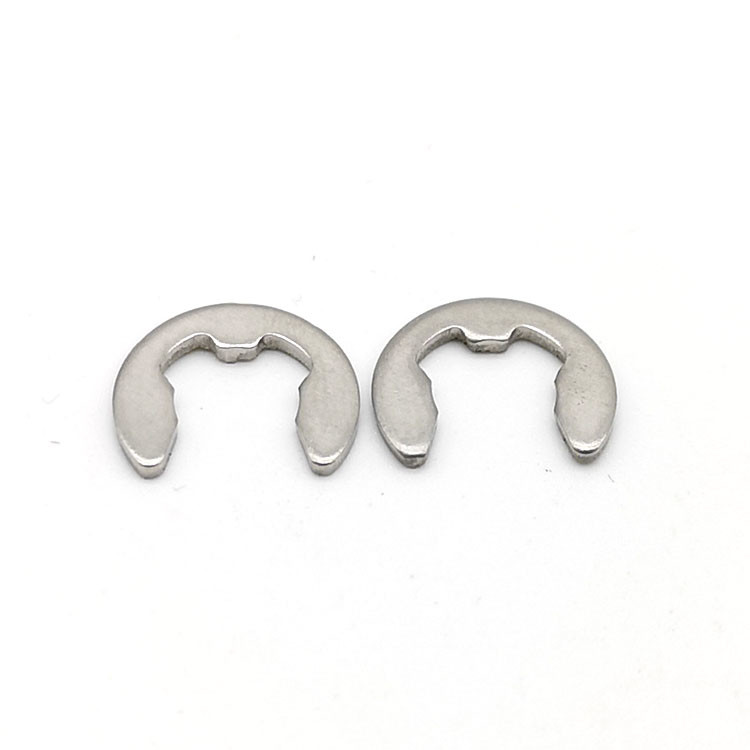

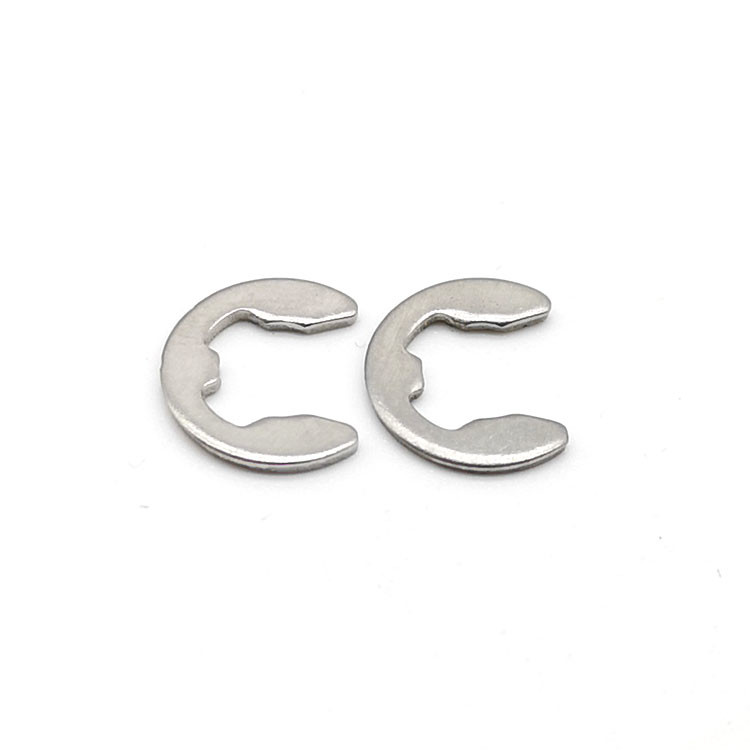

Stainless Steel E Clip Retaining Ring DIN6799 A2 Retaining Washers For Shafts

  • Stainless Steel E Clip Retaining Ring DIN6799 A2 Retaining Washers For Shafts
  • Stainless Steel E Clip Retaining Ring DIN6799 A2 Retaining Washers For Shafts
  • Stainless Steel E Clip Retaining Ring DIN6799 A2 Retaining Washers For Shafts
  • Stainless Steel E Clip Retaining Ring DIN6799 A2 Retaining Washers For Shafts
  • Stainless Steel E Clip Retaining Ring DIN6799 A2 Retaining Washers For Shafts
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN6799
Minimum Order Quantity 1000pcs
Price 0.01-0.5usd/pc
Packaging Details 25KG/Carton box, and then pallet.
Delivery Time 3-10workdays
Payment Terms T/T, L/C
Supply Ability 500000pcs per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name E Clips Standard DIN6799
Material Stainless Steel 304 Finish Plain
Size Inner Dia. From 0.8mm To 30mm Measurement System Metric
Similar Standard ANSI/ASME B18.27.1 Type For Shaft
High Light

Stainless Steel e clip DIN6799

,

e clip retaining ring A2

,

retaining washers for shafts
Leave a Message
Product Description

Product Description:


Retaining Rings E-Clips DIN6799 Stainless Steel A2 Retaining Washers For Shafts



Retaining Rings E-Clips DIN6799 Stainless Steel A2 Retaining Washers For Shafts Made In China.

We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.

Lock Washers can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.

Please state this requirement in your inquiry.



Products name Retaining Rings E-Clips DIN6799 Stainless Steel A2 Retaining Washers For Shafts
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel:Q235,#45,65Mn;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 100HV,200HV,300HV,350HV,450HV
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet,PTFE
Related Products Screws and Nuts
Application Retaining rings and clips come in a variety of shapes and sizes.They are primarily used for internally or externally securing a shaft to prevent the shaft from sliding out of its position.
Stock Products Lock Washer in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.



Product Specification:


Retaining Washers For Shafts
DIN 6799-2017
Stainless Steel E Clip Retaining Ring DIN6799 A2 Retaining Washers For Shafts 0
d(mm) h(mm) n(mm) dc(mm)
min max min max max
0.8 0.18 0.22 0.54 0.62 2.25
1.2 0.28 0.32 0.97 1.05 3.25
1.5 0.38 0.42 1.24 1.32 4.25
1.9 0.48 0.52 1.57 1.65 4.8
2.3 0.58 0.62 1.9 1.98 6.3
3.2 0.58 0.62 2.66 2.74 7.3
4 0.68 0.72 3.292 3.388 9.3
5 0.68 0.72 4.062 4.158 11.3
6 0.68 0.72 5.212 5.308 12.3
7 0.88 0.92 5.792 5.888 14.3
8 0.97 1.03 6.462 6.578 16.3
9 1.07 1.13 7.572 7.688 18.8
10 1.17 1.23 8.262 8.378 20.4
12 1.27 1.33 10.38 10.52 23.4
15 1.47 1.53 12.54 12.68 29.4
19 1.72 1.78 15.85 15.99 37.6
24 1.97 2.03 21.796 21.964 44.6
30 2.47 2.53 25.716 25.884 52.6



Stainless Steel E Clip Retaining Ring DIN6799 A2 Retaining Washers For Shafts 1
Stainless Steel E Clip Retaining Ring DIN6799 A2 Retaining Washers For Shafts 2Stainless Steel E Clip Retaining Ring DIN6799 A2 Retaining Washers For Shafts 3
FAQ



Q: Are you trading company or manufacturer ?



A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
