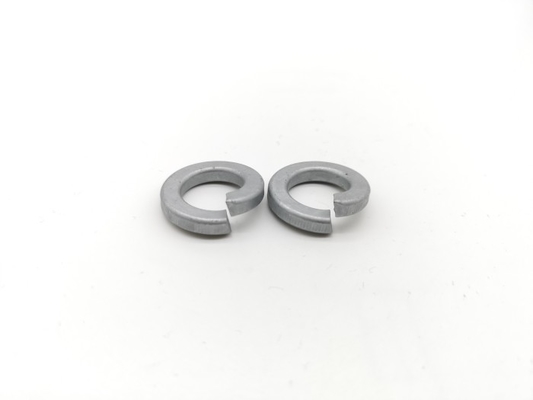

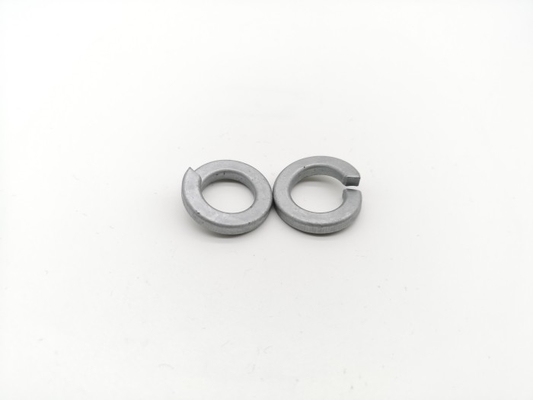

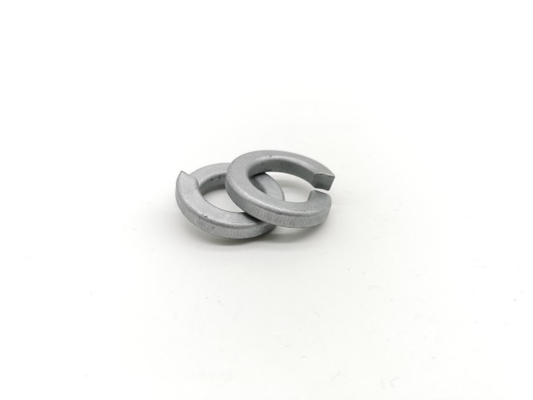

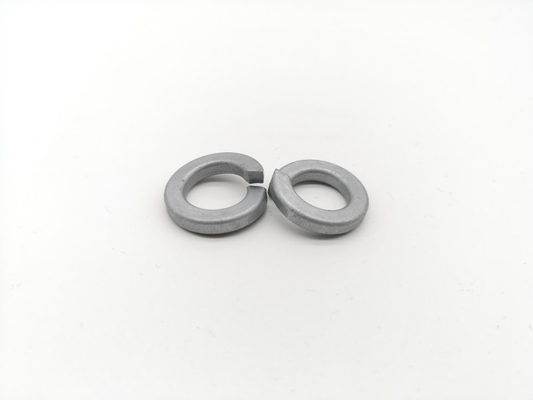

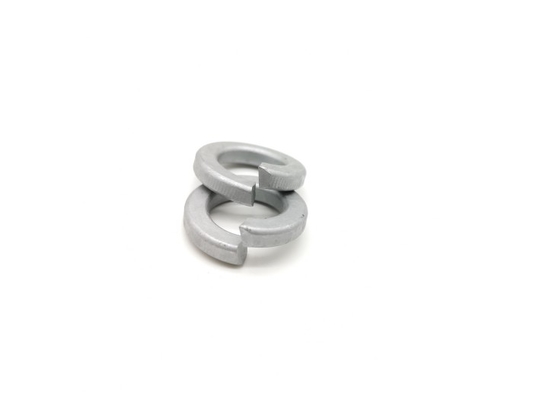

GB7244 Dacromet 65Mn Metric Spring Steel Lock Washers Heavy Type

  • GB7244 Dacromet 65Mn Metric Spring Steel Lock Washers Heavy Type
  • GB7244 Dacromet 65Mn Metric Spring Steel Lock Washers Heavy Type
  • GB7244 Dacromet 65Mn Metric Spring Steel Lock Washers Heavy Type
  • GB7244 Dacromet 65Mn Metric Spring Steel Lock Washers Heavy Type
  • GB7244 Dacromet 65Mn Metric Spring Steel Lock Washers Heavy Type
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number GB7244
Minimum Order Quantity 1000pcs
Price 0.01-0.5usd/pc
Packaging Details 25KG/Carton box, and then pallet.
Delivery Time 3-10workdays
Payment Terms T/T, L/C
Supply Ability 500000pcs per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Spring Lock Washer Standard GB7244
Material Spring Steel 65Mn Finish Dacromet
Size Inner Dia. From 6mm To 36mm Measurement System Metric
Marking No Marking Type Heavy Type
High Light

gb7244

,

Spring steel lock washer

,

steel lock washer Heavy Type
Leave a Message
Product Description

Product Description:



Dacromet 65Mn Spring Steel Lock Washers Heavy Type



Dacromet 65Mn Spring Steel Lock Washers Heavy Type Made In China.

We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.

Spring Washers can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.

Please state this requirement in your inquiry.



Products name Dacromet 65Mn Spring Steel Lock Washers Heavy
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 100HV,200HV,300HV,350HV,450HV
Finishing Black Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE
Related Products DIN933 Hex Bolts,DIN934 Hex Nuts,DIN125 Flat Washers
Application Standard split lock washers have a left-hand helix, which means you can only use them with bolts that have right-hand threads to prevent clockwise rotation from vibration. When tightened, their uneven split ends bite into unhardened nuts and bolts for a tighter hold than curved or wave washers, but only for applications with clockwise rotation. The washers, nuts, and bolts will be deformed when untightened, so none of them can be reused. Do not use these washers on hardened surfaces.
Stock Products Lock Washer in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.





Product Specification:







Heavy Duty Spring Washers
GB/T 7244-1987
GB7244 Dacromet 65Mn Metric Spring Steel Lock Washers Heavy Type 0
Size d(mm) h(mm) b(mm) H(mm)
Nom min max Nom min max Nom min max min max
6 6.1 6.68 1.8 1.65 1.95 2.6 2.45 2.75 3.6 4.5
8 8.1 8.68 2.4 2.25 2.55 3.2 3 3.4 4.8 6
10 10.2 10.9 3 2.85 3.15 3.8 3.6 4 6 7.5
12 12.2 12.9 3.5 3.3 3.7 4.3 4.1 4.5 7 8.75
14 14.2 14.9 4.1 3.9 4.3 4.8 4.6 5 8.2 10.25
16 16.2 16.9 4.8 4.6 5 5.3 5.1 5.5 9.6 12
18 18.2 19.04 5.3 5.1 5.5 5.8 5.6 6 10.6 13.25
20 20.2 21.04 6 5.8 6.2 6.4 6.1 6.7 12 15
22 22.5 23.34 6.6 6.3 6.9 7.2 6.9 7.5 13.2 16.5
24 24.5 25.5 7.1 6.8 7.4 7.5 7.2 7.8 14.2 17.75
27 27.5 28.5 8 7.7 8.3 8.5 8.2 8.8 16 20
30 30.5 31.5 9 8.7 9.3 9.3 9 9.6 18 22.5
33 33.5 34.7 9.9 9.6 10.2 10.2 9.9 10.5 19.8 24.75
36 36.5 37.7 10.8 10.5 11.1 11 10.7 11.3 21.6 27






GB7244 Dacromet 65Mn Metric Spring Steel Lock Washers Heavy Type 1
GB7244 Dacromet 65Mn Metric Spring Steel Lock Washers Heavy Type 2GB7244 Dacromet 65Mn Metric Spring Steel Lock Washers Heavy Type 3

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
