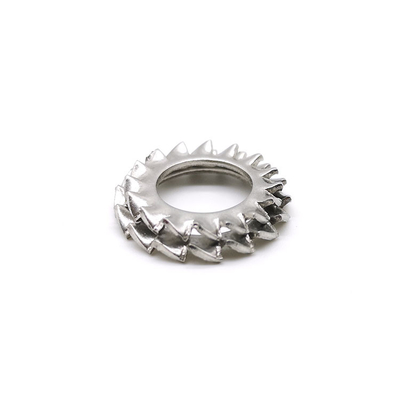

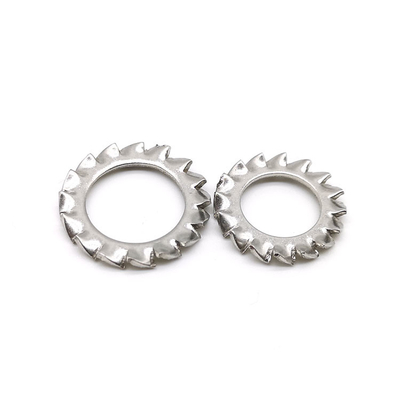

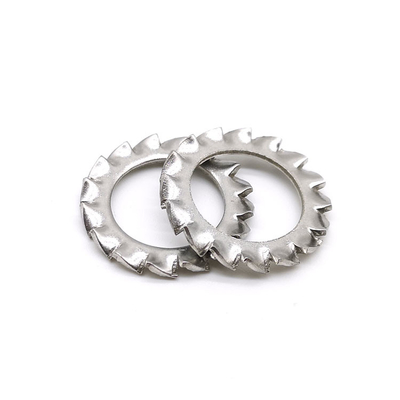

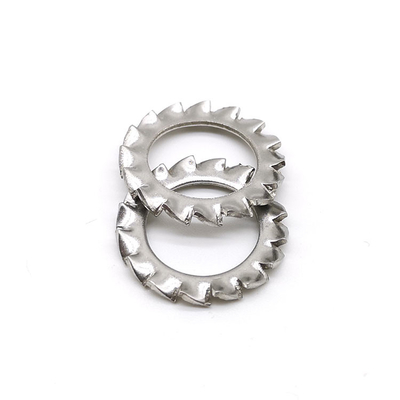

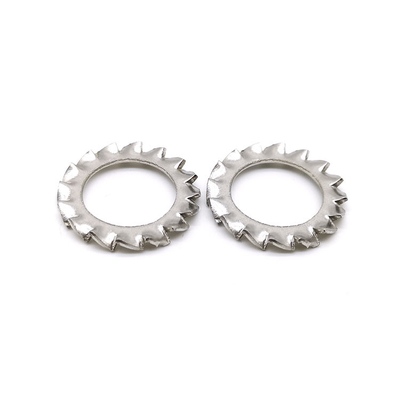

DIN6798 Type A Spring Steel Washers Stainless Steel 304 Serrated External Tooth Lock Washer

  • DIN6798 Type A Spring Steel Washers Stainless Steel 304 Serrated External Tooth Lock Washer
  • DIN6798 Type A Spring Steel Washers Stainless Steel 304 Serrated External Tooth Lock Washer
  • DIN6798 Type A Spring Steel Washers Stainless Steel 304 Serrated External Tooth Lock Washer
  • DIN6798 Type A Spring Steel Washers Stainless Steel 304 Serrated External Tooth Lock Washer
  • DIN6798 Type A Spring Steel Washers Stainless Steel 304 Serrated External Tooth Lock Washer
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN6798A
Minimum Order Quantity 1000pcs
Price 0.01-0.5usd/pc
Packaging Details 25KG/Carton box, and then pallet.
Delivery Time 3-10workdays
Payment Terms T/T, L/C
Supply Ability 500000pcs per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name External Tooth Serrated Lock Washer Standard DIN6798A
Material Spring Steel 65Mn Finish Bright
Size Inner Dia. From 1.7mm To 30mm Measurement System Metric
Hardness 350-425HV Type A
High Light

DIN 6798 Spring Steel Washers

,

Type A Spring Steel Washers

,

304 Serrated External Tooth Lock Washer
Leave a Message
Product Description

Product Description:


DIN6798 Type A Stainless Steel 304 External Serrated Toothed Lock Washers



DIN6798 Type A Stainless Steel 304 External Serrated Toothed Lock Washers Made In China.

We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.

Lock Washers can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.

Please state this requirement in your inquiry.



Products name DIN6798 Type A Stainless Steel 304 External Serrated Toothed Lock Washers
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel:Q235,#45,65Mn;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 100HV,200HV,300HV,350HV,450HV
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet,PTFE
Related Products Screws and Nuts
Application Internal tooth lock washer features teeth on the inner diameter of the washer.Internal Tooth Washers work best with small screw heads.They are used to prevent snagging or scratching and where appearance warrants that the teeth be hidden.The teeth lock into the screw head or nut to prevent loosening.
Stock Products Lock Washer in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.





Product Specification:




Serrated Lock Washers Internal Teeth
DIN6798 Type A
 DIN6798 Type A Spring Steel Washers Stainless Steel 304 Serrated External Tooth Lock Washer 0
d d(mm) dc(mm) h(mm) Teeth Qty Weight
min max min max min KG/1000pcs
1.7 1.7 1.84 3.3 3.6 0.3 9 0.02
2.2 2.2 2.34 4.2 4.5 0.3 9 0.03
2.7 2.7 2.84 5.2 5.5 0.4 9 0.045
3.2 3.2 3.38 5.7 6 0.4 9 0.06
3.7 3.7 3.88 6.64 7 0.5 10 0.11
4.3 4.3 4.48 7.64 8 0.5 11 0.14
5.3 5.3 5.48 9.64 10 0.6 11 0.28
6.4 6.4 6.62 10.57 11 0.7 12 0.36
7.4 7.4 7.62 12.07 12.5 0.8 14 0.5
8.4 8.4 8.62 14.57 15 0.8 14 0.8
10.5 10.5 10.77 17.57 18 0.9 16 1.25
13 13 13.27 19.98 20.5 1 16 1.6
15 15 15.27 23.48 24 1 18 2.3
17 17 17.27 25.48 26 1.2 18 2.9
19 19 19.33 29.48 30 1.4 18 5
21 21 21.33 32.38 33 1.4 20 6
23 23 23.33 35.38 36 1.5 20 7.5
25 25 25.33 37.38 38 1.5 20 8
28 28 28.33 43.38 44 1.6 22 12
31 31 31.39 47.38 48 1.6 22 14


DIN6798 Type A Spring Steel Washers Stainless Steel 304 Serrated External Tooth Lock Washer 1
DIN6798 Type A Spring Steel Washers Stainless Steel 304 Serrated External Tooth Lock Washer 2DIN6798 Type A Spring Steel Washers Stainless Steel 304 Serrated External Tooth Lock Washer 3
FAQ

Q: Are you trading company or manufacturer ?



A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
