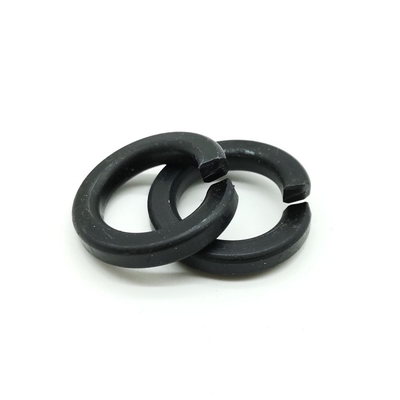

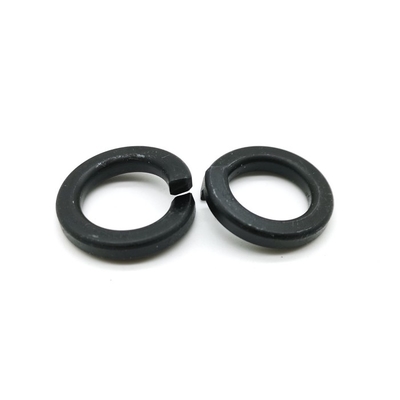

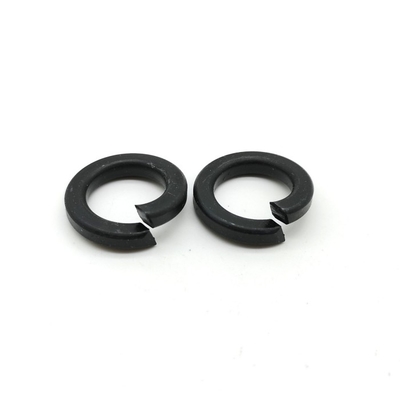

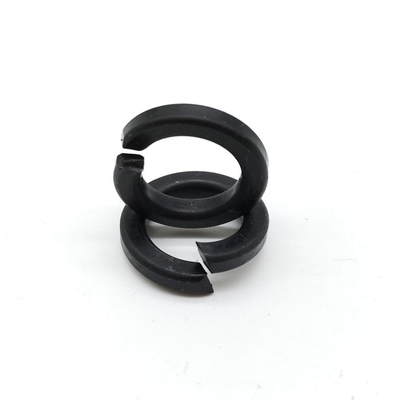

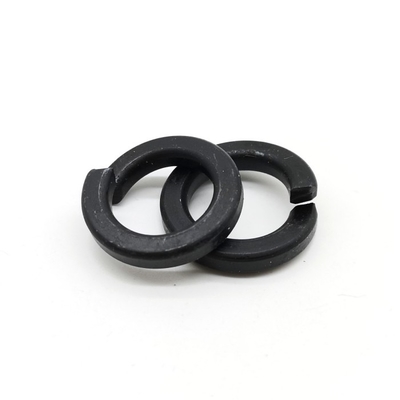

ASME B18.21.1 Regular Helical Spring Lock Washers Split Lock Washers Black Oxide

  • ASME B18.21.1 Regular Helical Spring Lock Washers Split Lock Washers Black Oxide
  • ASME B18.21.1 Regular Helical Spring Lock Washers Split Lock Washers Black Oxide
  • ASME B18.21.1 Regular Helical Spring Lock Washers Split Lock Washers Black Oxide
  • ASME B18.21.1 Regular Helical Spring Lock Washers Split Lock Washers Black Oxide
  • ASME B18.21.1 Regular Helical Spring Lock Washers Split Lock Washers Black Oxide
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ASME B18.21.1
Minimum Order Quantity 1000pcs
Price 0.01-0.5usd/pc
Packaging Details 25KG/Carton box, and then pallet.
Delivery Time 3-10workdays
Payment Terms T/T, L/C
Supply Ability 500000pcs per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Spring Lock Washer Standard ASME B18.21.1
Material Spring Steel 65Mn Finish Black Oxide
Size Inner Dia. From #2 To 3" Measurement System Inch
Marking No Marking Type Normal Type
High Light

ASME B18.21.1

,

Regular helical spring lock washers

,

Black Oxide Split Lock Washers
Leave a Message
Product Description

Product Description:



ASME B18.21.1 Regular Helical Spring Lock Washers Black Oxide Split Lock Washers



ASME B18.21.1 Regular Helical Spring Lock Washers Black Oxide Split Lock Washers

Made In China.

We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.

Spring Washers can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.

Please state this requirement in your inquiry.



Products name ASME B18.21.1 Regular Helical Spring Lock Washers Black Oxide Split Lock Washers
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel:Q235,#45,65Mn;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 100HV,200HV,300HV,350HV,450HV
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet,PTFE
Related Products DIN933 Hex Bolts,DIN934 Hex Nuts,DIN125 Flat Washers
Application Standard split lock washers have a left-hand helix, which means you can only use them with bolts that have right-hand threads to prevent clockwise rotation from vibration. When tightened, their uneven split ends bite into unhardened nuts and bolts for a tighter hold than curved or wave washers, but only for applications with clockwise rotation. The washers, nuts, and bolts will be deformed when untightened, so none of them can be reused. Do not use these washers on hardened surfaces.
Stock Products Lock Washer in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.



Product Specification:





Regular Helical Spring Lock Washers
ANSI/ASME B18.21.1-1999
ASME B18.21.1 Regular Helical Spring Lock Washers Split Lock Washers Black Oxide 0
Size d(inch) h(inch) b(inch)
Nom min max min min
#2 0.088 0.094 0.02 0.035
#3 0.101 0.107 0.025 0.04
#4 0.114 0.12 0.025 0.04
#5 0.127 0.133 0.031 0.047
#6 0.141 0.148 0.031 0.047
#8 0.167 0.174 0.04 0.055
#10 0.193 0.2 0.047 0.062
#12 0.22 0.227 0.056 0.07
1/4 0.252 0.26 0.062 0.109
5/16 0.314 0.322 0.078 0.125
3/8 0.377 0.385 0.094 0.141
7/16 0.44 0.45 0.109 0.156
1/2 0.502 0.512 0.125 0.171
9/16 0.564 0.574 0.141 0.188
5/8 0.628 0.641 0.156 0.203
11/16 0.691 0.704 0.172 0.219
3/4 0.753 0.766 0.188 0.234
13/16 0.816 0.832 0.203 0.25
7/8 0.878 0.894 0.219 0.266
15/16 0.941 0.958 0.234 0.281
1 1.003 1.024 0.25 0.297
1-1/16 1.066 1.087 0.266 0.312
1-1/8 1.129 1.153 0.281 0.328
1-3/16 1.192 1.217 0.297 0.344
1-1/4 1.254 1.28 0.312 0.359
1-5/16 1.317 1.344 0.328 0.375
1-3/8 1.379 1.408 0.344 0.391
1-7/16 1.442 1.472 0.359 0.406
1-1/2 1.504 1.534 0.375 0.422
1-5/8 1.633 1.663 0.389 0.424
1-3/4 1.758 1.789 0.389 0.424
1-7/8 1.883 1.914 0.422 0.427
2 2.008 2.039 0.422 0.427
2-1/4 2.262 2.293 0.44 0.442
2-1/2 2.512 2.543 0.44 0.442
2-3/4 2.762 2.793 0.458 0.491
3 3.012 3.043 0.458 0.491







ASME B18.21.1 Regular Helical Spring Lock Washers Split Lock Washers Black Oxide 1
ASME B18.21.1 Regular Helical Spring Lock Washers Split Lock Washers Black Oxide 2ASME B18.21.1 Regular Helical Spring Lock Washers Split Lock Washers Black Oxide 3

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
