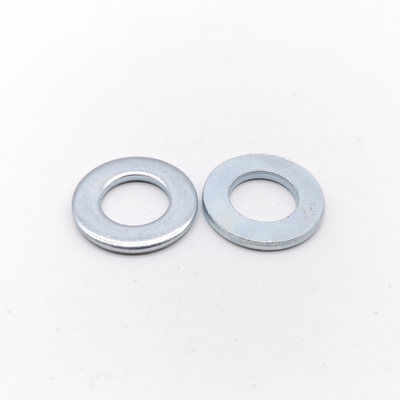

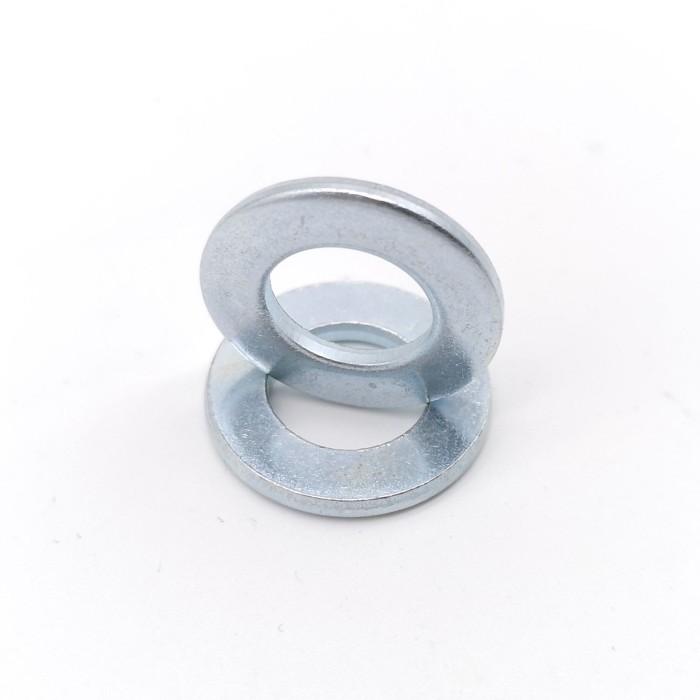

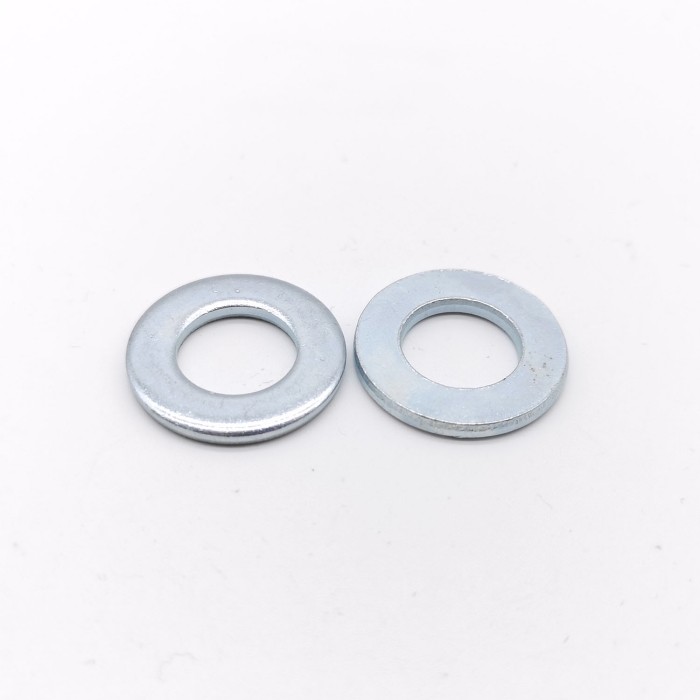

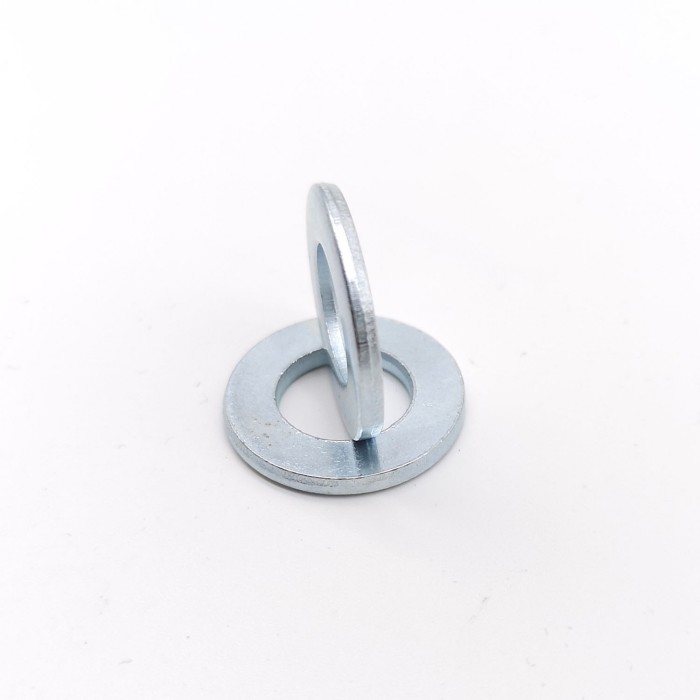

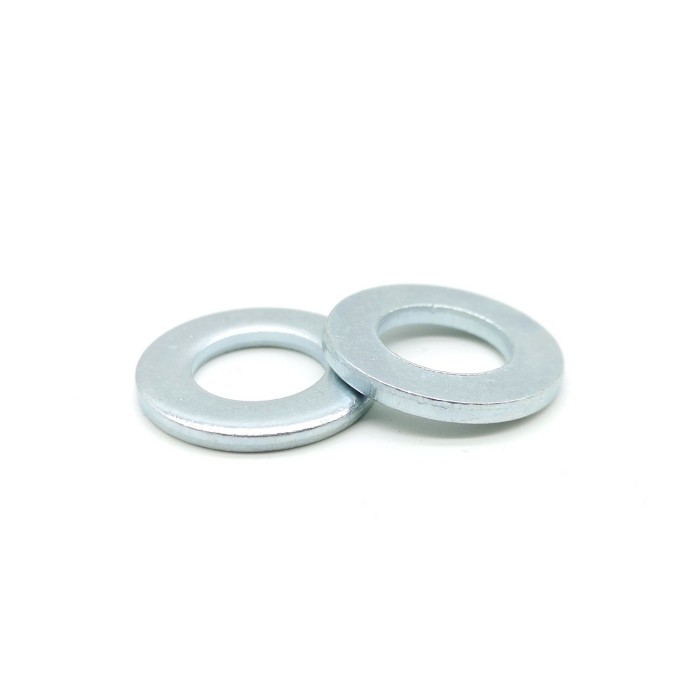

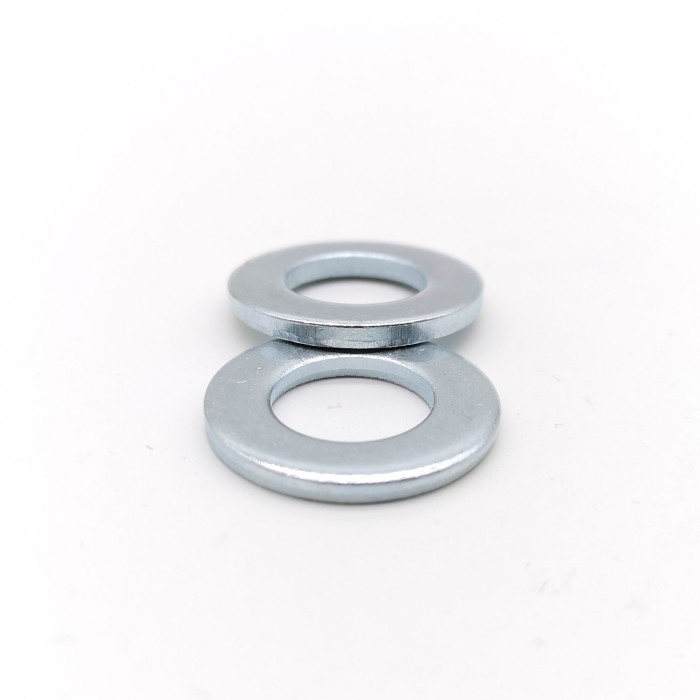

M10 M12 Steel Flat Washer DIN125A Zinc Plated M8 Thick Washers

  • M10 M12 Steel Flat Washer DIN125A Zinc Plated M8 Thick Washers
  • M10 M12 Steel Flat Washer DIN125A Zinc Plated M8 Thick Washers
  • M10 M12 Steel Flat Washer DIN125A Zinc Plated M8 Thick Washers
  • M10 M12 Steel Flat Washer DIN125A Zinc Plated M8 Thick Washers
  • M10 M12 Steel Flat Washer DIN125A Zinc Plated M8 Thick Washers
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN125A
Minimum Order Quantity 1000pcs
Price 0.01-0.5usd/pc
Packaging Details 25KG/Carton box, and then pallet.
Delivery Time 3-10workdays
Payment Terms T/T, L/C
Supply Ability 500000pcs per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Flat Washer Standard DIN125A
Material Carbon Steel Finish Zinc Plated
Size Inner Dia. From 1.6mm To 120mm Measurement System Metric
Type Type A Marking No Marking
High Light

M12 Steel Flat Washer

,

M10 Steel Flat Washer

,

Zinc Plated m8 thick washers
Leave a Message
Product Description

Product Description:



M8M10M12 DIN125A Zinc Plated Steel Flat Washers



M8M10M12 DIN125A Zinc Plated Steel Flat Washers Made In China.

We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.

Washers can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.

Please state this requirement in your inquiry.



Products name M8M10M12 DIN125A Zinc Plated Steel Flat Washers
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel:Q235,#45,65Mn;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 100HV,200HV,300HV,350HV,450HV
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet
Related Products DIN933 Hex Bolts,DIN934 Hex Nuts
Customized Products
Lead time		 Busy season:15-30days,Slack season:10-15days
Stock Products DIN125A Washer in stock with Black Oxide,Zinc Plated and HDG
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.





Product Specification:



Flat washers
DIN125
M10 M12 Steel Flat Washer DIN125A Zinc Plated M8 Thick Washers 0
d dc h
Nom min max min max Nom min max
1.6 1.7 1.84 3.7 4 0.3 0.25 0.35
1.7 1.8 1.94 4.2 4.5 0.3 0.25 0.35
2 2.2 2.34   5 0.3 0.25 0.35
2.3 2.5 2.64 5.7 6 0.5 0.45 0.55
2.5 2.7 2.84 5.7 6 0.5 0.45 0.55
2.6 2.8 2.94 6.64 7 0.5 0.45 0.55
3 3.2 3.38 6.64 7 0.5 0.45 0.55
3.5 3.7 3.88 7.64 8 0.5 0.45 0.55
4 4.3 4.48 8.64 9 0.8 0.7 0.9
5 5.3 5.48 9.64 10 1 0.9 1.1
6 6.4 6.62 11.57 12 1.6 1.4 1.8
7 7.4 7.62 13.57 14 1.6 1.4 1.8
8 8.4 8.62 15.57 16 1.6 1.4 1.8
10 10.5 10.77 19.48 20 2 1.8 2.2
12 13 13.27 23.48 24 2.5 2.3 2.7
14 15 15.27 27.48 28 2.5 2.3 2.7
16 17 17.27 29.48 30 3 2.7 3.3
18 19 19.33 33.38 34 3 2.7 3.3
20 21 21.33 36.38 37 3 2.7 3.3
22 23 23.33 38.38 39 3 2.7 3.3
24 25 25.33 43.38 44 4 3.7 4.3
26 27 27.33 49.38 50 4 3.7 4.3
27 28 28.33 49.38 50 4 3.7 4.3
28 29 29.33 49.38 50 4 3.7 4.3
30 31 31.39 55.26 56 4 3.7 4.3
32 33 33.62 58.8 60 5 4.4 5.6
33 34 34.62 58.8 60 5 4.4 5.6
35 36 36.62 64.8 66 5 4.4 5.6
36 37 37.62 64.8 66 5 4.4 5.6
38 39 39.62 70.8 72 6 5.4 6.6
39 40 40.62 70.8 72 6 5.4 6.6
40 41 41.62 70.8 72 6 5.4 6.6
42 43 43.62 76.8 78 7 6 8
45 46 46.62 83.6 85 7 6 8
48 50 50.62 90.6 92 8 7 9
50 52 52.74 90.6 92 8 7 9
52 54 54.74 96.6 98 8 7 9
55 57 57.74 103.6 105 9 8 10
56 58 58.74 103.6 105 9 8 10
58 60 60.74 108.6 110 9 8 10
60 62 62.74 108.6 110 10 9 11
64 66 66.74 113.6 115 10 9 11
68 70 70.74 118.6 120 10 9 11
72 74 74.74 123.4 125 10 9 11
76 78 78.74 133.4 135 10 9 11
80 82 82.87 138.4 140 12 10.8 13.2
85 87 87.87 143.4 145 12 10.8 13.2
90 93 93.87 158.4 160 12 10.8 13.2
95 98 98.87 163.4 165 12 10.8 13.2
100 104 104.9 173.4 175 14 12.8 15.2
105 109 109.9 178.4 180 14 12.8 15.2
110 114 114.9 183.2 185 14 12.8 15.2
115 119 119.9 198.2 200 14 12.8 15.2
120 124 125 208.2 210 16 14.8 17.2
125 129 130 218.2 220 16 14.8 17.2
130 134 135 218.2 220 16 14.8 17.2
135 139 140 228.2 230 16 14.8 17.2
140 144 145 238.2 240 18 16.8 19.2
145 149 150 248.2 250 18 16.8 19.2
150 155 156 248.2 250 18 16.8 19.2
160 165 166 248.2 250 18 16.8 19.2





M10 M12 Steel Flat Washer DIN125A Zinc Plated M8 Thick Washers 1M10 M12 Steel Flat Washer DIN125A Zinc Plated M8 Thick Washers 2





M10 M12 Steel Flat Washer DIN125A Zinc Plated M8 Thick Washers 3

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
