Slot Section Square Taper Washers Leveling Black Oxide Stainless Steel Washers
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | GB853 |
| Minimum Order Quantity | 1000pcs |
| Price | 0.01-0.5usd/pc |
| Packaging Details | 25KG/Carton box, and then pallet. |
| Delivery Time | 3-10workdays |
| Payment Terms | T/T, L/C |
| Supply Ability | 500000pcs per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Square Taper Washer | Standard | GB853 |
|---|---|---|---|
| Material | Carbon Steel | Finish | Black Oxide |
| Size | Inner Dia. From 6mm To 36mm | Measurement System | Metric |
| Marking | No Marking | Type | Square Washer |
| High Light | Slot Section Square Taper Washers xianggu,Square Taper Washers Leveling xianggu,Black Oxide Stainless Steel Washers xianggu |
||
Product Description
Product Description:

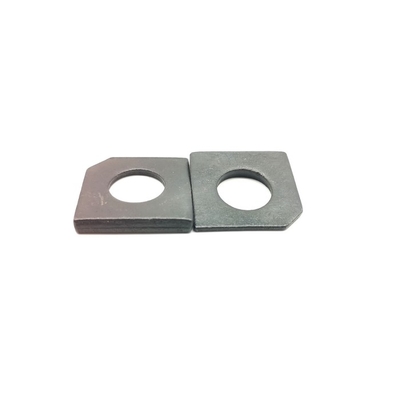

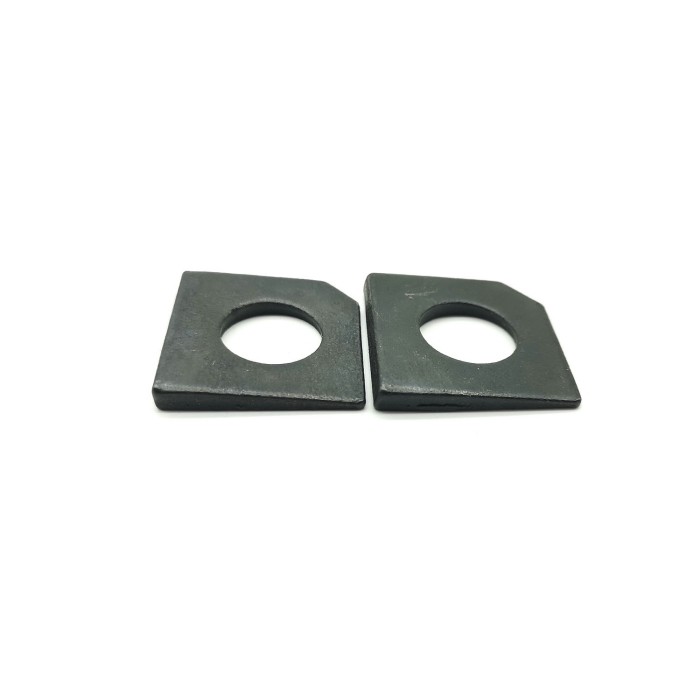

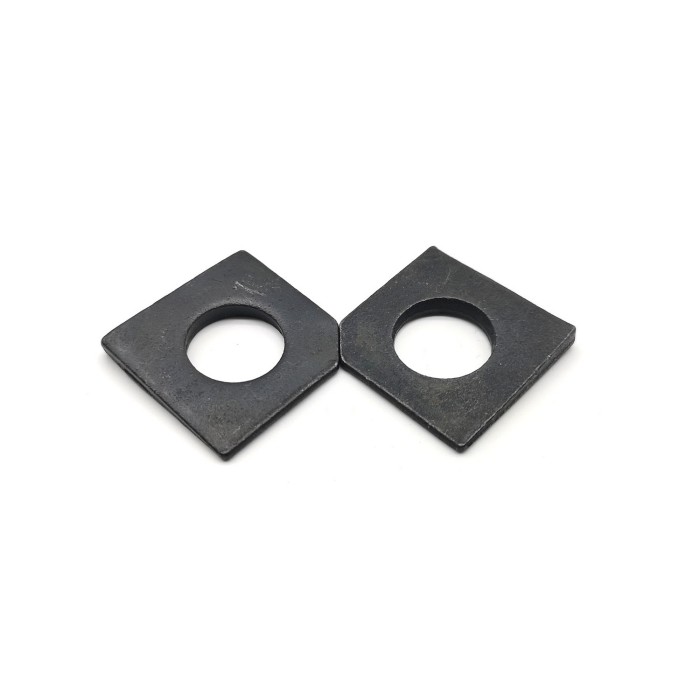

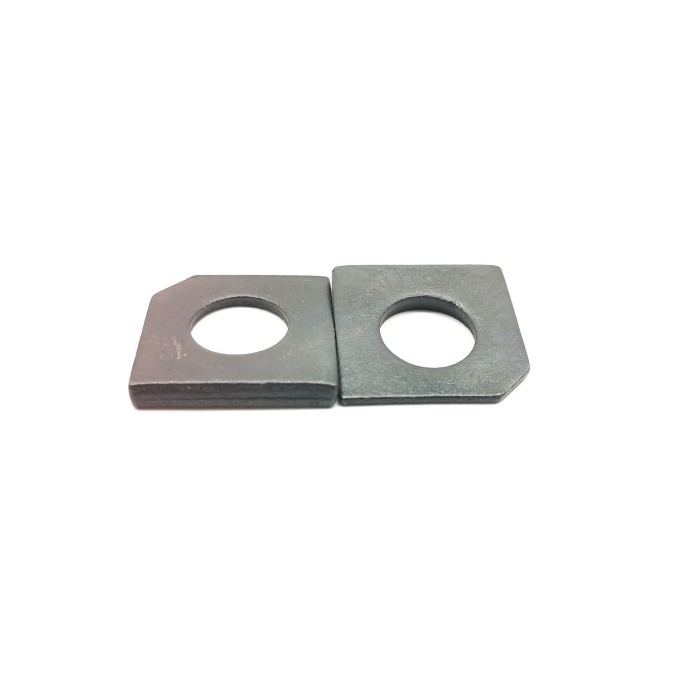

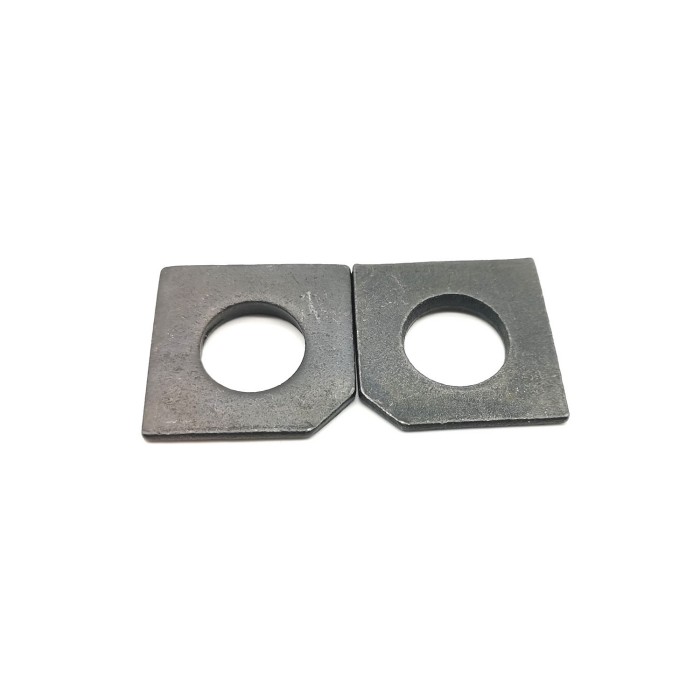

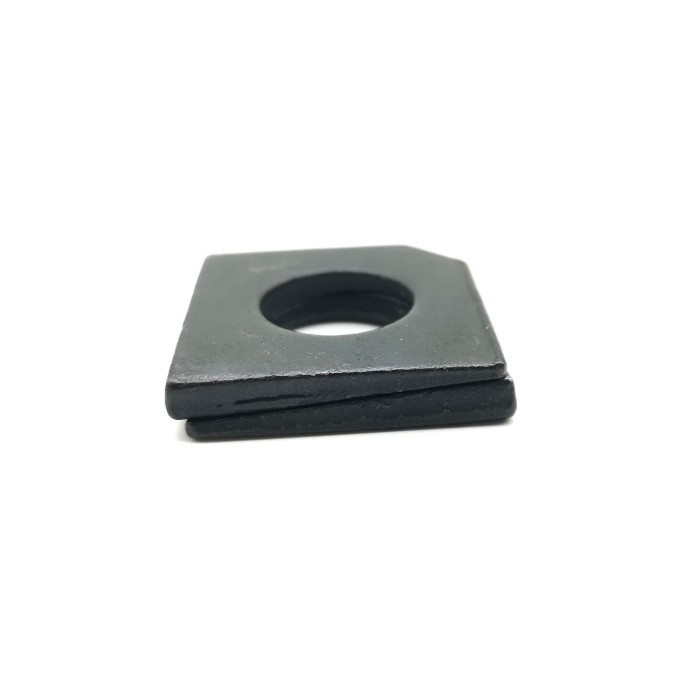

Square Taper Washers for Slot Section Black Oxide Leveling Washers
Square Taper Washers for Slot Section Black Oxide Leveling Washers Made In China.
We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.
Washers can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.
Please state this requirement in your inquiry.
| Products name | Square Taper Washers for Slot Section Black Oxide Leveling Washers |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel:Q235,#45,65Mn;Stainless Steel:SS304, SS316,SS316L |
| Steel Grade: 100HV,200HV,300HV,350HV,450HV | |
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet,PTFE |
| Related Products | DIN933 Hex Bolts,DIN934 Hex Nuts |
| Application | Commonly called beveled washers, these are tapered to fit inside an I-beam's flange to provide a parallel bearing surface |
| Stock Products | GB853 Square Washer in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |
Product Specification:
| Square Taper Washers For Slot Section | |||||
| GB 853-1988 | |||||
 |
|||||
| d | d(mm) | s(mm) | h(mm) | h1(mm) | |
| min | max | ||||
| M6 | 6.6 | 6.96 | 16 | 2 | 3.6 |
| M8 | 9 | 9.36 | 18 | 2 | 3.8 |
| M10 | 11 | 11.43 | 22 | 2 | 4.2 |
| M12 | 13.5 | 13.93 | 28 | 2 | 4.8 |
| M16 | 17.5 | 17.93 | 35 | 2 | 5.4 |
| M18 | 20 | 20.52 | 40 | 3 | 7 |
| M20 | 22 | 22.52 | 40 | 3 | 7 |
| M22 | 24 | 24.52 | 40 | 3 | 7 |
| M24 | 26 | 26.52 | 50 | 3 | 8 |
| M27 | 30 | 30.52 | 50 | 3 | 8 |
| M30 | 33 | 33.62 | 60 | 3 | 9 |
| M36 | 39 | 39.62 | 70 | 3 | 10 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
