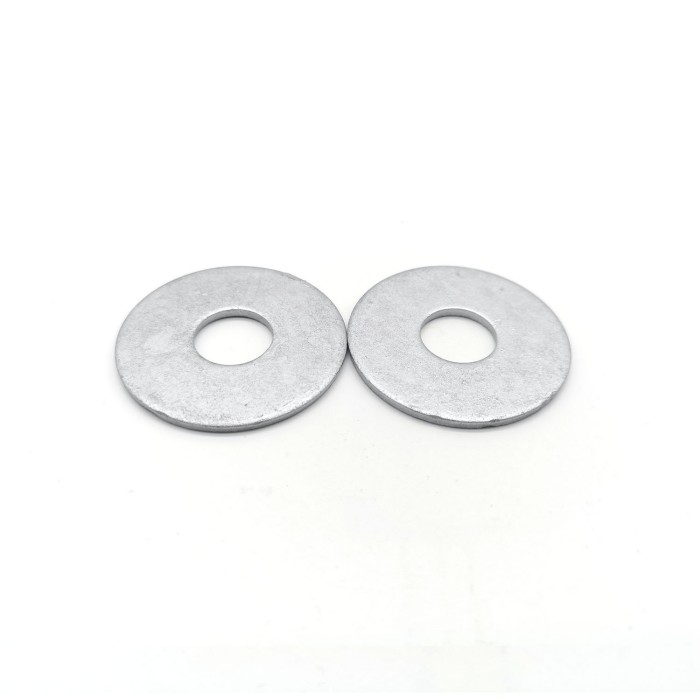

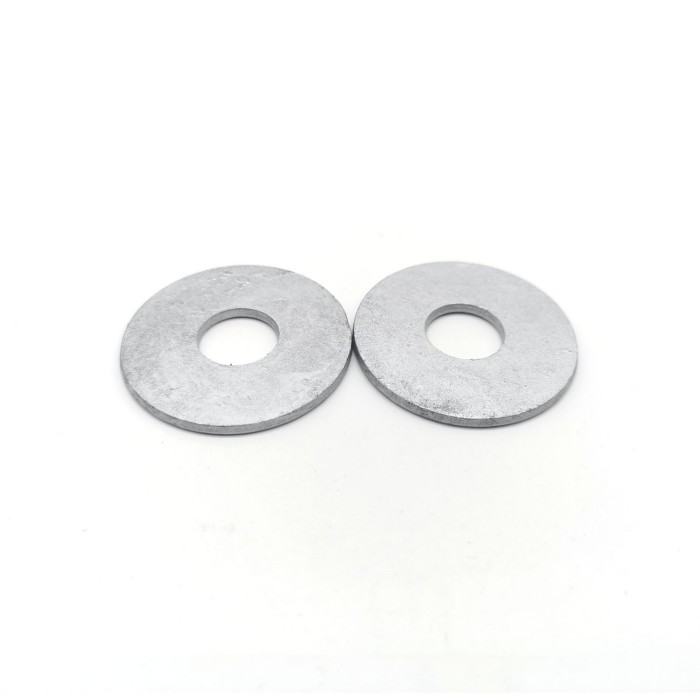

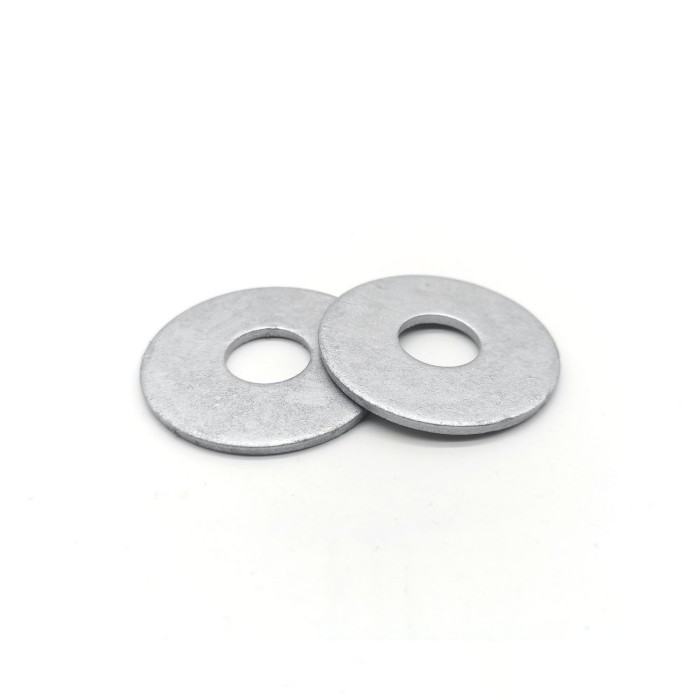

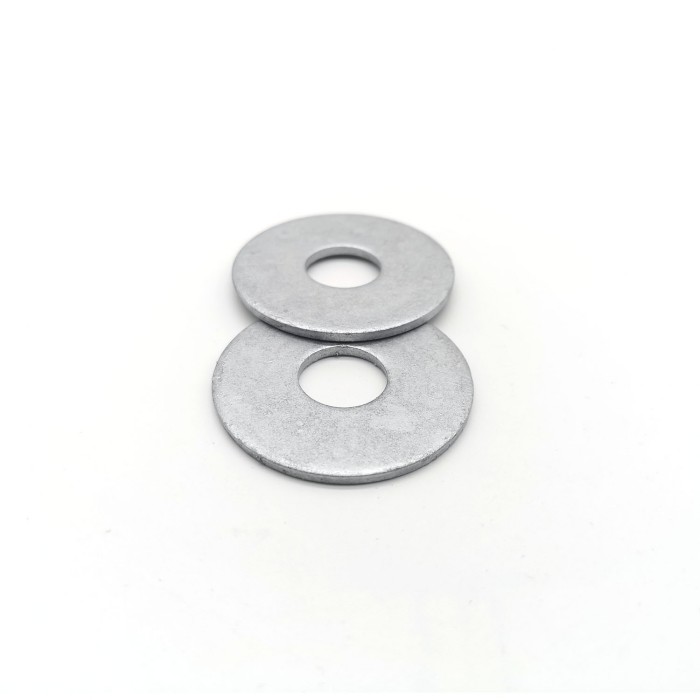

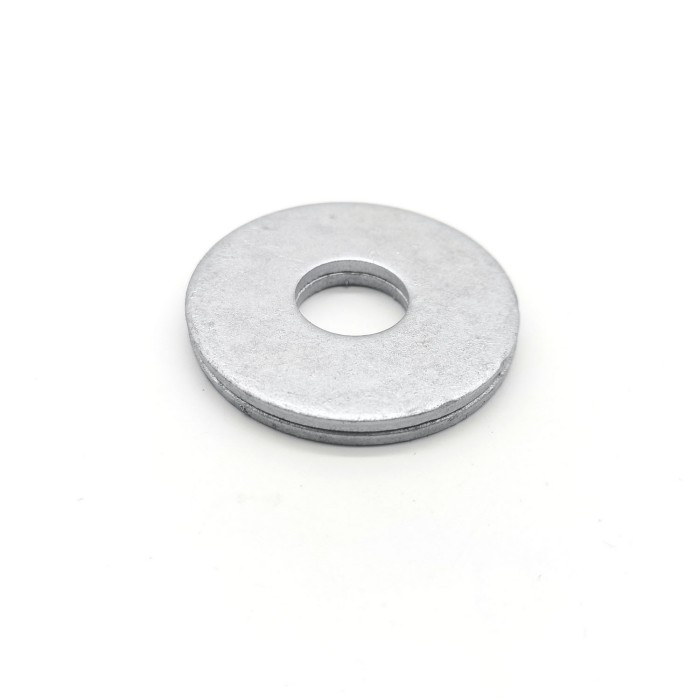

200HV Hot Dip Galvanized Steel Flat Washer DIN 9021 ISO 7093 HDG Washer
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | DIN9021 |
| Minimum Order Quantity | 1000pcs |
| Price | 0.01-0.5usd/pc |
| Packaging Details | 25KG/Carton box, and then pallet. |
| Delivery Time | 3-10workdays |
| Payment Terms | T/T, L/C |
| Supply Ability | 500000pcs per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Oversize Washer | Standard | DIN9021 |
|---|---|---|---|
| Material | Carbon Steel | Finish | Hot Dipped Galvanized |
| Size | Inner Dia. From 3mm To 36mm | Measurement System | Metric |
| Finish Thickness | 55μ Min. | Marking | No Marking |
| Type | Larger | ||
| High Light | Hot Dip Galvanized Steel Flat Washer xianggu,200HV Steel Flat Washer xianggu,ISO 7093 HDG Washer xianggu |
||
Product Description
Product Description:
DIN9021/ISO7093 HDG Oversize Washers 200HV Hot Dip Galvanized Steel Flat Washers
DIN9021/ISO7093 HDG Oversize Washers 200HV Hot Dip Galvanized Steel Flat Washers Made In China.
Compared to our general purpose washers, these have exaggerated diameters and/or thicknesses.
We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.
Washers can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.
Please state this requirement in your inquiry.
| Products name | DIN9021/ISO7093 HDG Oversize Washers 200HV Hot Dip Galvanized Steel Flat Washers | |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB | |
| Material | Carbon Steel:Q235,#45,65Mn;Stainless Steel:SS304, SS316,SS316L | |
| Steel Grade: 100HV,200HV,300HV,350HV,450HV | ||
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet,PTFE | |
| Related Products | ISO4017 Hex Bolts,ISO4032 Hex Nuts,DIN127 Spring Washers | |
| Customized Products Lead time |
Busy season:15-30days,Slack season:10-15days | |
| Stock Products | DIN9021 Washer in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG | |
| Application | Use them to cover oversized holes, hold heavy fastening loads, or as spacers and levelers | |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | ||
| Focus On Supplying High Quality Fasteners. | ||
Product Specification:
| Large plain washers -product grade A | |||||||
| DIN9021-1990 | |||||||
 |
|||||||
| d | d(mm) | dc(mm) | h(mm) | ||||
| min | max | min | max | Nom | min | max | |
| 2.5 | 2.7 | 2.84 | 7.64 | 8 | 0.8 | 0.7 | 0.9 |
| 3 | 3.2 | 3.38 | 8.64 | 9 | 0.8 | 0.7 | 0.9 |
| 3.5 | 3.7 | 3.88 | 10.57 | 11 | 0.8 | 0.7 | 0.9 |
| 4 | 4.3 | 4.48 | 11.57 | 12 | 1 | 0.9 | 1.1 |
| 5 | 5.3 | 5.48 | 14.57 | 15 | 1.2 | 1 | 1.4 |
| 6 | 6.4 | 6.62 | 17.57 | 18 | 1.6 | 1.4 | 1.8 |
| 7 | 7.4 | 7.62 | 21.48 | 22 | 2 | 1.8 | 2.2 |
| 8 | 8.4 | 8.62 | 23.48 | 24 | 2 | 1.8 | 2.2 |
| 10 | 10.5 | 10.77 | 29.48 | 30 | 2.5 | 2.3 | 2.7 |
| 12 | 13 | 13.27 | 36.38 | 37 | 3 | 2.7 | 3.3 |
| 14 | 15 | 15.27 | 43.38 | 44 | 3 | 2.7 | 3.3 |
| 16 | 17 | 17.27 | 49.38 | 50 | 3 | 2.7 | 3.3 |
| 18 | 20 | 20.52 | 54.1 | 56 | 4 | 3.4 | 4.6 |
| 20 | 22 | 22.52 | 58.1 | 60 | 4 | 3.4 | 4.6 |
| 24 | 26 | 26.84 | 70.1 | 72 | 5 | 4 | 6 |
| 30 | 33 | 34 | 89.8 | 92 | 6 | 5 | 7 |
| 36 | 39 | 40 | 107.8 | 110 | 8 | 6.8 | 9.2 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
