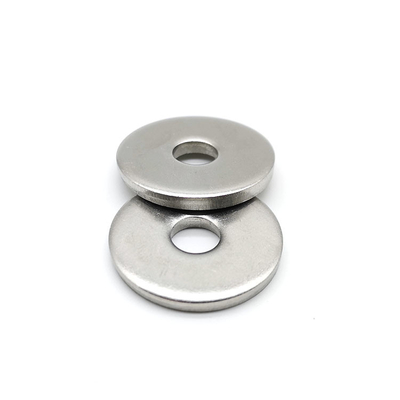

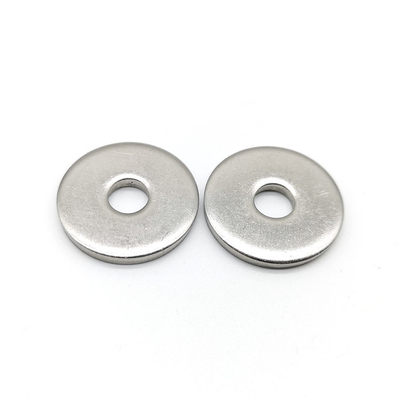

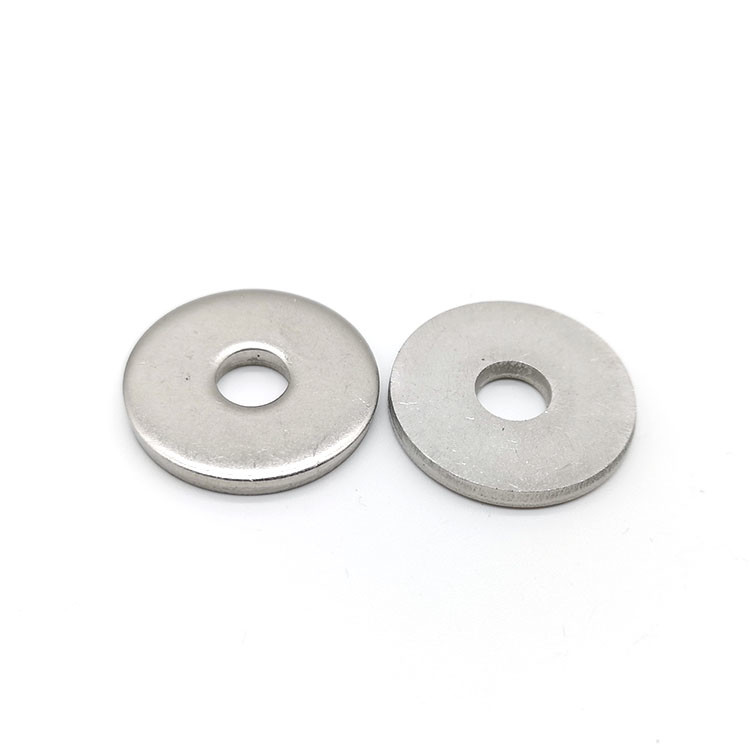

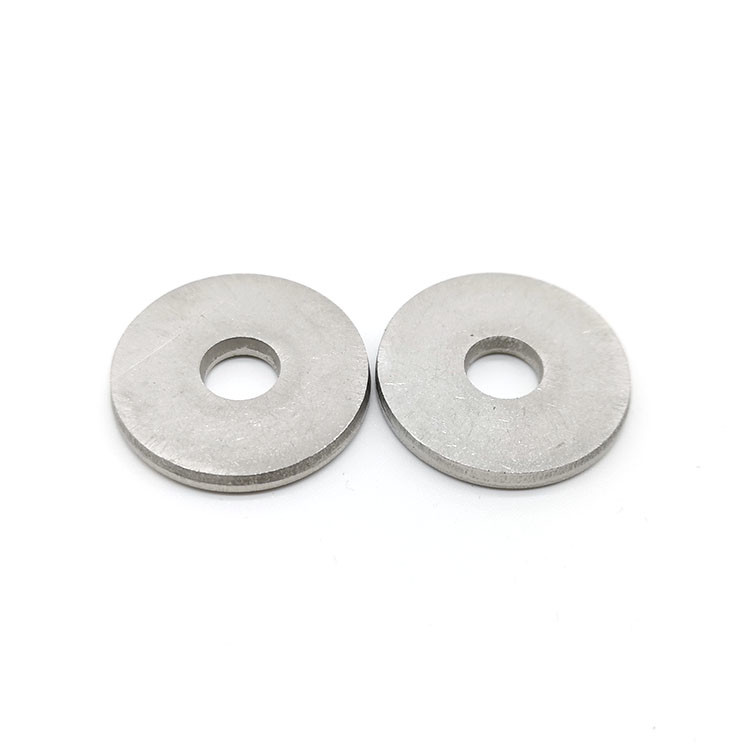

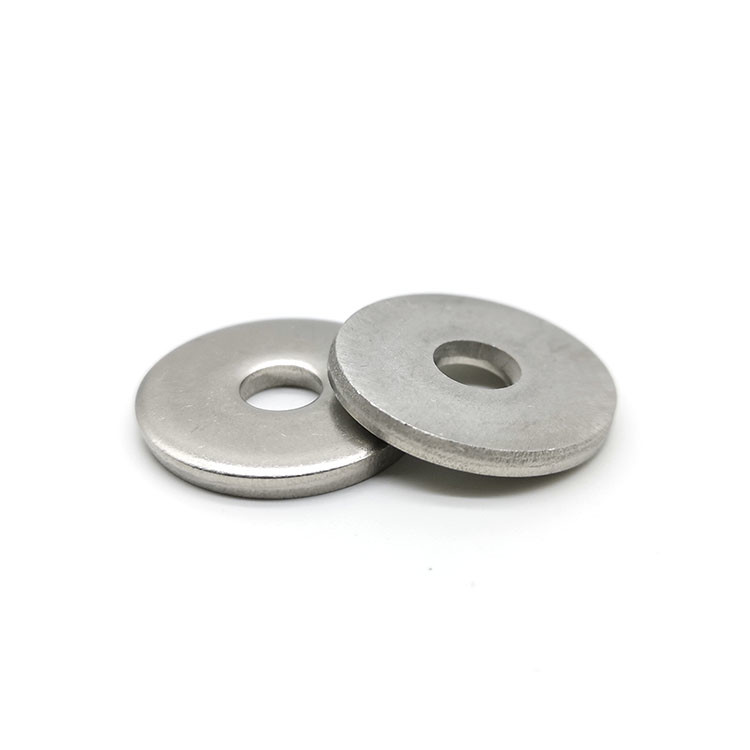

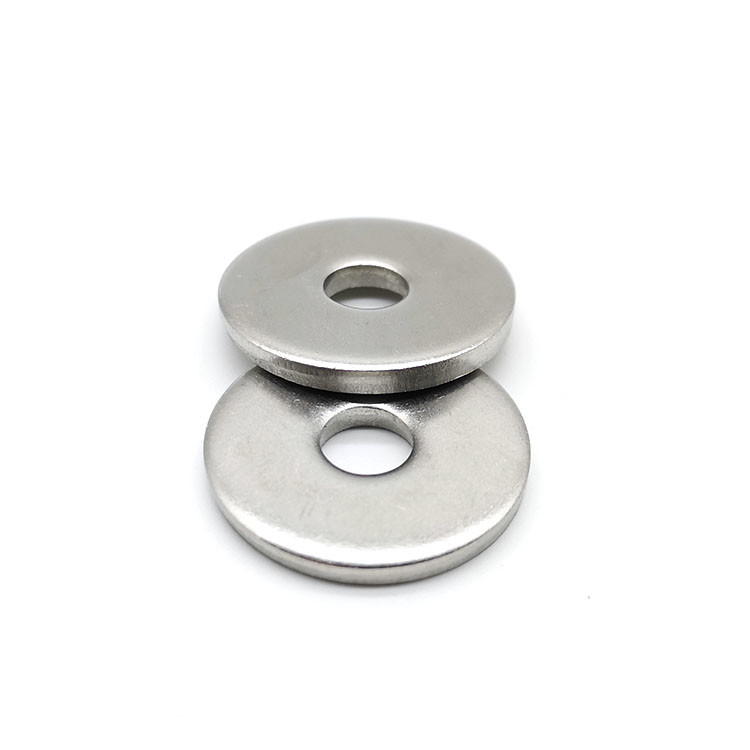

18-8 Stainless Steel Flat Washers Oversize Metric Large M8 Washer
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | GB5287 |
| Minimum Order Quantity | 1000pcs |
| Price | 0.01-0.5usd/pc |
| Packaging Details | 25KG/Carton box, and then pallet. |
| Delivery Time | 3-10workdays |
| Payment Terms | T/T, L/C |
| Supply Ability | 500000pcs per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Extra Large Washer | Standard | GB5287 |
|---|---|---|---|
| Material | Stainless Steel 18-8 | Finish | Bright |
| Size | Inner Dia. From 5mm To 36mm | Measurement System | Metric |
| Marking | No Marking | Type | Extra Large |
| Grade | A2 | ||
| High Light | Stainless Steel Flat Washers xianggu,18-8 Steel Flat Washers xianggu,Extra Large steel Washer xianggu |
||
Product Description
Product Description:
Oversize Washers Extra Large Washer 18-8 Stainless Steel Flat Washers Made In China.
Compared to our general purpose washers, these have exaggerated diameters and/or thicknesses.
We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.
Washers can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.
Please state this requirement in your inquiry.
| Products name | Oversize Washers Extra Large Washer 18-8 Stainless Steel Flat Washers | |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB | |
| Material | Carbon Steel:Q235,#45,65Mn;Stainless Steel:SS304, SS316,SS316L | |
| Steel Grade: 100HV,200HV,300HV,350HV,450HV | ||
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet,PTFE | |
| Related Products | ISO4017 Hex Bolts,ISO4032 Hex Nuts,DIN127 Spring Washers | |
| Application | for covering oversized holes or for use as spacers and levelers. | |
| Stock Products | Stianless steel 18-8 Oversize Washer in stock | |
| Application | Use them to cover oversized holes, hold heavy fastening loads, or as spacers and levelers | |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | ||
| Focus On Supplying High Quality Fasteners. | ||
Product Specification:
| Plain Washers - Extra Large Serles - Product Grade C | |||||||
| GB/T 5287-2002 | |||||||
 |
|||||||
| Size | d(mm) | dc(mm) | h(mm) | ||||
| min | max | min | max | Nom | min | max | |
| φ5 | 5.5 | 5.8 | 16.9 | 18 | 2 | 1.7 | 2.3 |
| φ6 | 6.6 | 6.96 | 20.7 | 22 | 2 | 1.7 | 2.3 |
| φ8 | 9 | 9.36 | 26.7 | 28 | 3 | 2.4 | 3.6 |
| φ10 | 11 | 11.43 | 32.4 | 34 | 3 | 2.4 | 3.6 |
| φ12 | 13.5 | 13.93 | 42.4 | 44 | 4 | 3.4 | 4.6 |
| φ14 | 15.5 | 15.93 | 48.1 | 50 | 4 | 3.4 | 4.6 |
| φ16 | 17.5 | 18.2 | 54.1 | 56 | 5 | 4 | 6 |
| φ18 | 20 | 20.84 | 58.1 | 60 | 5 | 4 | 6 |
| φ20 | 22 | 22.84 | 70.1 | 72 | 6 | 5 | 7 |
| φ22 | 24 | 24.84 | 78.1 | 80 | 6 | 5 | 7 |
| φ24 | 26 | 26.84 | 82.8 | 85 | 6 | 5 | 7 |
| φ27 | 30 | 30.84 | 95.8 | 98 | 6 | 5 | 7 |
| φ30 | 33 | 34 | 102.8 | 105 | 6 | 5 | 7 |
| φ33 | 36 | 37 | 112.8 | 115 | 8 | 6.8 | 9.2 |
| φ36 | 39 | 40 | 122.5 | 125 | 8 | 6.8 | 9.2 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
