DIN 125 A2 Stainless Black Steel Washers Zinc M4 M5 Flat Washers
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Flat Washer | Standard | DIN125A |
---|---|---|---|
Material | Stainless Steel 304 | Finish | Black Zinc |
Size | Inner Dia. From 1.6mm To 160mm | Measurement System | Metric |
Marking | No Marking | Type | Flat Washer |
High Light | A2 Stainless black steel washers xianggu,black steel washers Zinc xianggu,M4 M5 Flat Washers xianggu |
Product Description:

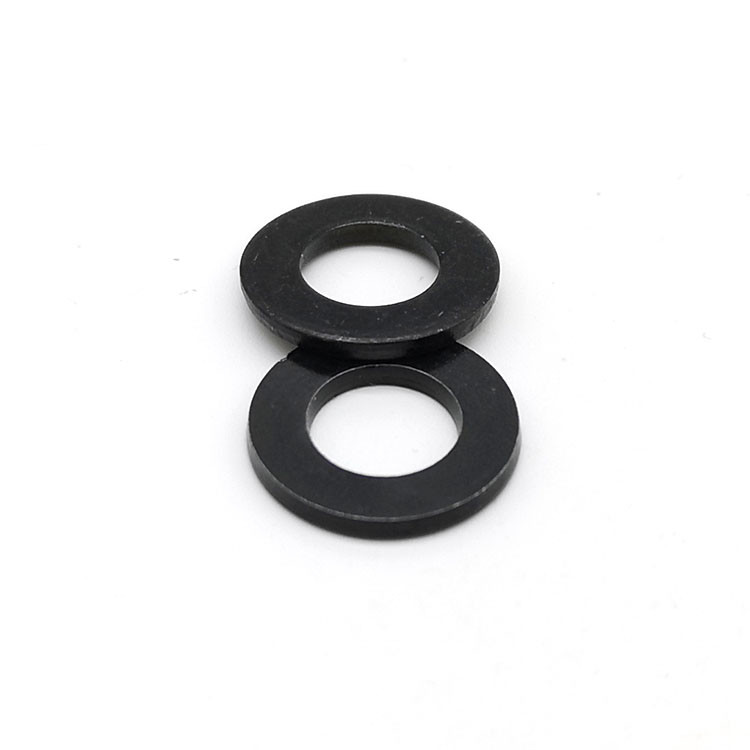

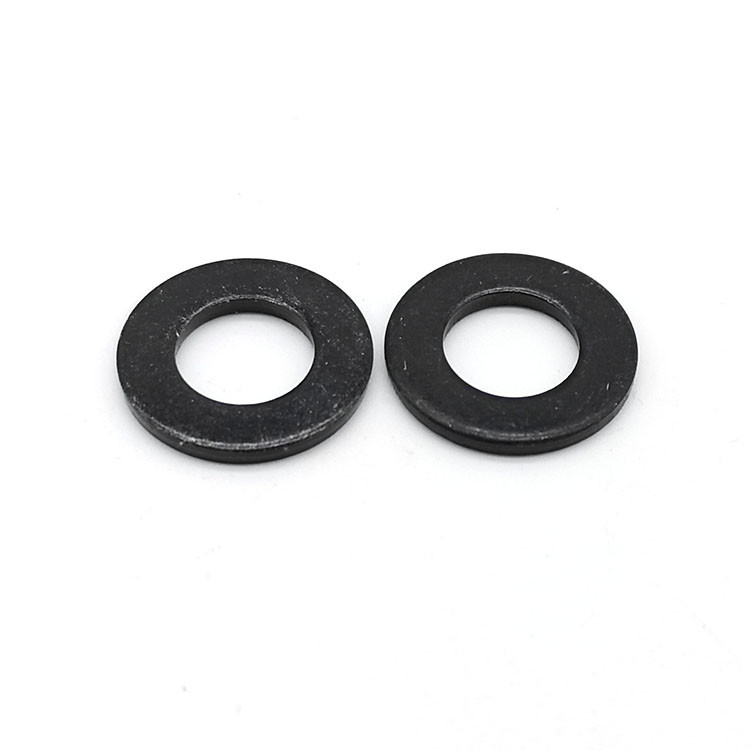

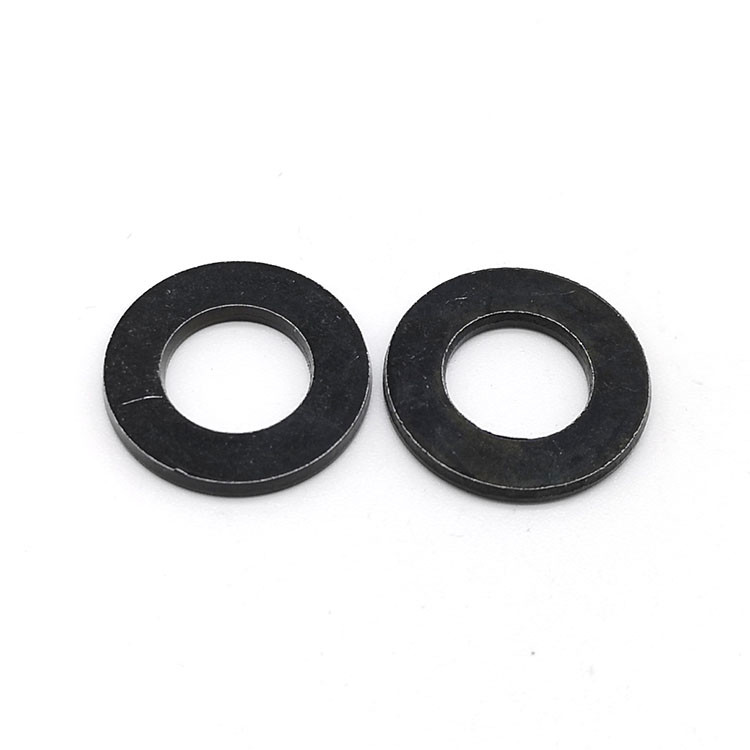

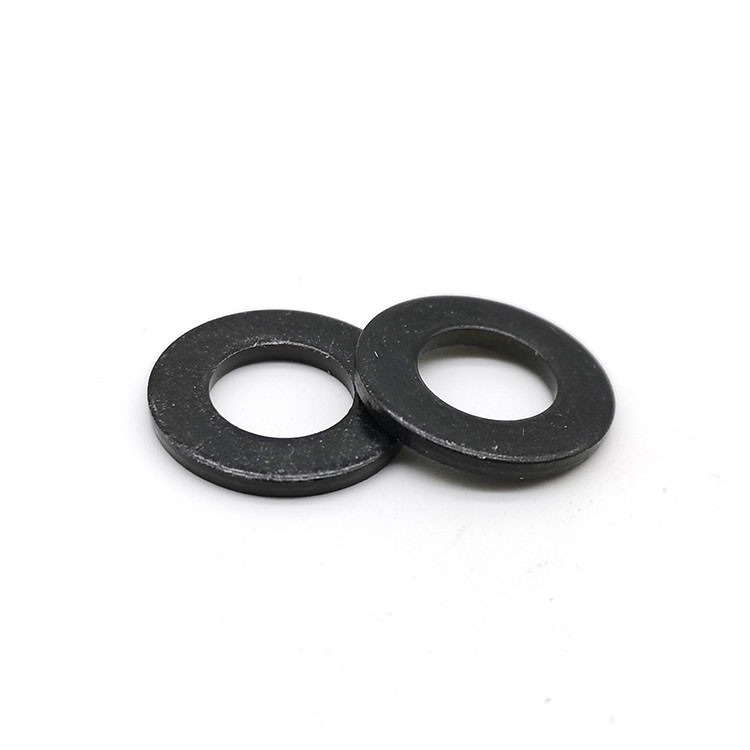

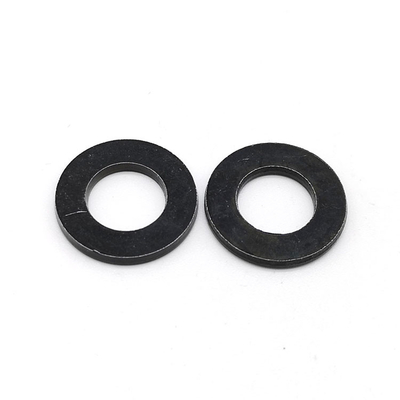

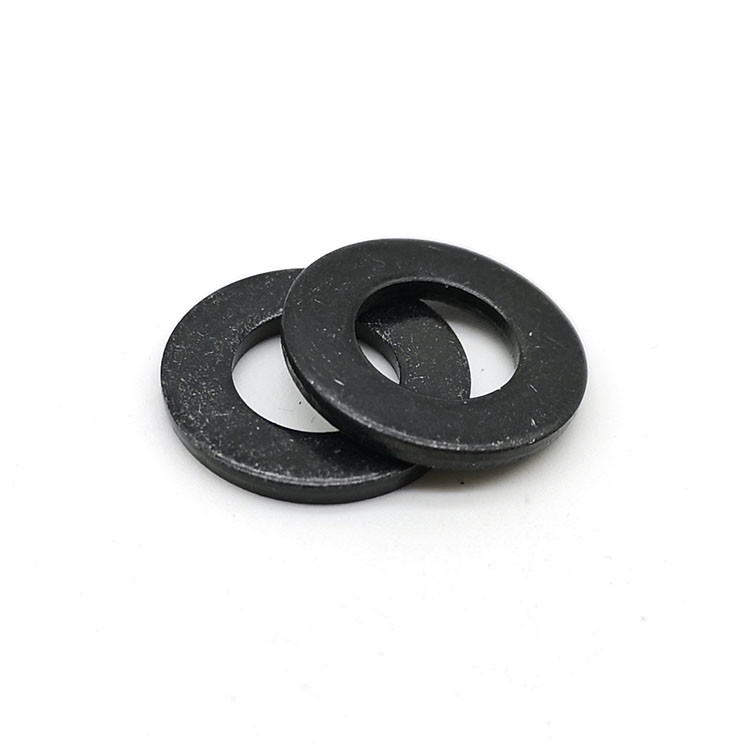

DIN125 A2 Stainless Steel Black Zinc Flat Washers
DIN125 A2 Stainless Steel Black Zinc Flat Washers Made In China.
We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.
Washers can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.
Please state this requirement in your inquiry.
Products name | DIN125 A2 Stainless Steel Black Zinc Flat Washers |
Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
Material | Carbon Steel:Q235,#45,65Mn;Stainless Steel:SS304, SS316,SS316L |
Steel Grade: 100HV,200HV,300HV,350HV,450HV | |
Finishing | Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Black Zinc,Dacromet,PTFE |
Related Products | DIN933 Hex Bolts,DIN934 Hex Nuts |
Application | These general use flat washers are positioned under the head of a bolt or nut in order to provide a smooth bearing surface and distribute the fastener load over a wider area. |
Stock Products | DIN125 A2 Washer in stock with Black Oxide,Zinc Plated,Black Zinc,Yellow Zinc,Dacromet and HDG |
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
Focus On Supplying High Quality Fasteners. |
Product Specification:
Flat washers | |||||||
DIN125 | |||||||
d | dc | h | |||||
Nom | min | max | min | max | Nom | min | max |
1.6 | 1.7 | 1.84 | 3.7 | 4 | 0.3 | 0.25 | 0.35 |
1.7 | 1.8 | 1.94 | 4.2 | 4.5 | 0.3 | 0.25 | 0.35 |
2 | 2.2 | 2.34 | 5 | 0.3 | 0.25 | 0.35 | |
2.3 | 2.5 | 2.64 | 5.7 | 6 | 0.5 | 0.45 | 0.55 |
2.5 | 2.7 | 2.84 | 5.7 | 6 | 0.5 | 0.45 | 0.55 |
2.6 | 2.8 | 2.94 | 6.64 | 7 | 0.5 | 0.45 | 0.55 |
3 | 3.2 | 3.38 | 6.64 | 7 | 0.5 | 0.45 | 0.55 |
3.5 | 3.7 | 3.88 | 7.64 | 8 | 0.5 | 0.45 | 0.55 |
4 | 4.3 | 4.48 | 8.64 | 9 | 0.8 | 0.7 | 0.9 |
5 | 5.3 | 5.48 | 9.64 | 10 | 1 | 0.9 | 1.1 |
6 | 6.4 | 6.62 | 11.57 | 12 | 1.6 | 1.4 | 1.8 |
7 | 7.4 | 7.62 | 13.57 | 14 | 1.6 | 1.4 | 1.8 |
8 | 8.4 | 8.62 | 15.57 | 16 | 1.6 | 1.4 | 1.8 |
10 | 10.5 | 10.77 | 19.48 | 20 | 2 | 1.8 | 2.2 |
12 | 13 | 13.27 | 23.48 | 24 | 2.5 | 2.3 | 2.7 |
14 | 15 | 15.27 | 27.48 | 28 | 2.5 | 2.3 | 2.7 |
16 | 17 | 17.27 | 29.48 | 30 | 3 | 2.7 | 3.3 |
18 | 19 | 19.33 | 33.38 | 34 | 3 | 2.7 | 3.3 |
20 | 21 | 21.33 | 36.38 | 37 | 3 | 2.7 | 3.3 |
22 | 23 | 23.33 | 38.38 | 39 | 3 | 2.7 | 3.3 |
24 | 25 | 25.33 | 43.38 | 44 | 4 | 3.7 | 4.3 |
26 | 27 | 27.33 | 49.38 | 50 | 4 | 3.7 | 4.3 |
27 | 28 | 28.33 | 49.38 | 50 | 4 | 3.7 | 4.3 |
28 | 29 | 29.33 | 49.38 | 50 | 4 | 3.7 | 4.3 |
30 | 31 | 31.39 | 55.26 | 56 | 4 | 3.7 | 4.3 |
32 | 33 | 33.62 | 58.8 | 60 | 5 | 4.4 | 5.6 |
33 | 34 | 34.62 | 58.8 | 60 | 5 | 4.4 | 5.6 |
35 | 36 | 36.62 | 64.8 | 66 | 5 | 4.4 | 5.6 |
36 | 37 | 37.62 | 64.8 | 66 | 5 | 4.4 | 5.6 |
38 | 39 | 39.62 | 70.8 | 72 | 6 | 5.4 | 6.6 |
39 | 40 | 40.62 | 70.8 | 72 | 6 | 5.4 | 6.6 |
40 | 41 | 41.62 | 70.8 | 72 | 6 | 5.4 | 6.6 |
42 | 43 | 43.62 | 76.8 | 78 | 7 | 6 | 8 |
45 | 46 | 46.62 | 83.6 | 85 | 7 | 6 | 8 |
48 | 50 | 50.62 | 90.6 | 92 | 8 | 7 | 9 |
50 | 52 | 52.74 | 90.6 | 92 | 8 | 7 | 9 |
52 | 54 | 54.74 | 96.6 | 98 | 8 | 7 | 9 |
55 | 57 | 57.74 | 103.6 | 105 | 9 | 8 | 10 |
56 | 58 | 58.74 | 103.6 | 105 | 9 | 8 | 10 |
58 | 60 | 60.74 | 108.6 | 110 | 9 | 8 | 10 |
60 | 62 | 62.74 | 108.6 | 110 | 10 | 9 | 11 |
64 | 66 | 66.74 | 113.6 | 115 | 10 | 9 | 11 |
68 | 70 | 70.74 | 118.6 | 120 | 10 | 9 | 11 |
72 | 74 | 74.74 | 123.4 | 125 | 10 | 9 | 11 |
76 | 78 | 78.74 | 133.4 | 135 | 10 | 9 | 11 |
80 | 82 | 82.87 | 138.4 | 140 | 12 | 10.8 | 13.2 |
85 | 87 | 87.87 | 143.4 | 145 | 12 | 10.8 | 13.2 |
90 | 93 | 93.87 | 158.4 | 160 | 12 | 10.8 | 13.2 |
95 | 98 | 98.87 | 163.4 | 165 | 12 | 10.8 | 13.2 |
100 | 104 | 104.9 | 173.4 | 175 | 14 | 12.8 | 15.2 |
105 | 109 | 109.9 | 178.4 | 180 | 14 | 12.8 | 15.2 |
110 | 114 | 114.9 | 183.2 | 185 | 14 | 12.8 | 15.2 |
115 | 119 | 119.9 | 198.2 | 200 | 14 | 12.8 | 15.2 |
120 | 124 | 125 | 208.2 | 210 | 16 | 14.8 | 17.2 |
125 | 129 | 130 | 218.2 | 220 | 16 | 14.8 | 17.2 |
130 | 134 | 135 | 218.2 | 220 | 16 | 14.8 | 17.2 |
135 | 139 | 140 | 228.2 | 230 | 16 | 14.8 | 17.2 |
140 | 144 | 145 | 238.2 | 240 | 18 | 16.8 | 19.2 |
145 | 149 | 150 | 248.2 | 250 | 18 | 16.8 | 19.2 |
150 | 155 | 156 | 248.2 | 250 | 18 | 16.8 | 19.2 |
160 | 165 | 166 | 248.2 | 250 | 18 | 16.8 | 19.2 |
