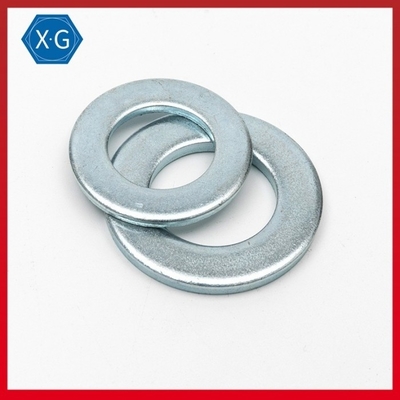

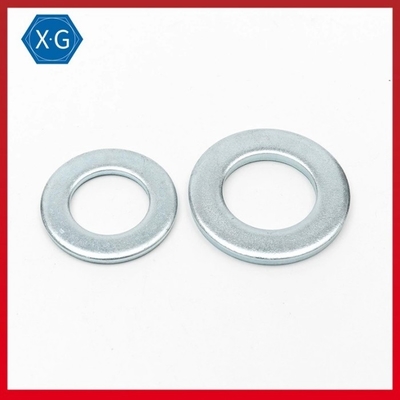

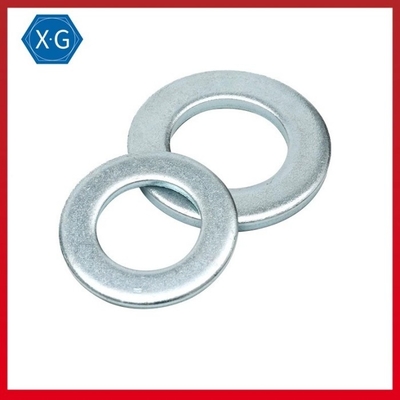

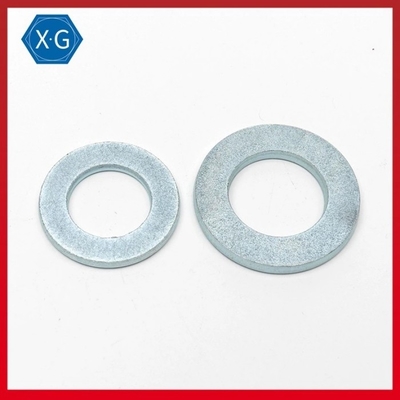

F436 3 Inch Outside Diameter Flat Washer SAE Zinc Plated AME B18.22.1

  • F436 3 Inch Outside Diameter Flat Washer SAE Zinc Plated AME B18.22.1
  • F436 3 Inch Outside Diameter Flat Washer SAE Zinc Plated AME B18.22.1
  • F436 3 Inch Outside Diameter Flat Washer SAE Zinc Plated AME B18.22.1
  • F436 3 Inch Outside Diameter Flat Washer SAE Zinc Plated AME B18.22.1
Place of Origin China
Brand Name XGFH
Certification ISO9001
Model Number SAE
Minimum Order Quantity 1000pcs
Price 0.01-0.2usd/pc
Packaging Details 25KG/Carton box, and then pallet.
Delivery Time 3-10workdays
Payment Terms T/T, L/C
Supply Ability 500000pcs per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Flat Washers Standard ANSI/SAME B18.22.1
Material Carbon Steel Finish Zinc Plated
Size Inner Dia. From #6 To 3" Measurement System Inch
High Light

3 inch outside diameter flat washer

,

f436 flat washer

,

f436 structural washer SAE Zinc Plated
Leave a Message
Product Description

SAE Zinc Plated Steel Flat Washers General Purpose Washers



Drawing:





Plain washer
ANSI/ASME B18.22.1
F436 3 Inch Outside Diameter Flat Washer SAE Zinc Plated AME B18.22.1 0
d 类型 d1(ich) dc(ich) h(ich)
Nom min max Nom min max Nom min max
6# 0.138 / 0.156 0.151 0.164 0.375 0.37 0.39 0.049 0.036 0.065
8# 0.164 / 0.188 0.183 0.196 0.438 0.433 0.453 0.049 0.036 0.065
10# 0.19 / 0.219 0.214 0.227 0.5 0.495 0.515 0.049 0.036 0.065
3/16 0.1875 / 0.25 0.245 0.265 0.562 0.557 0.577 0.049 0.036 0.065
12# 0.216 / 0.25 0.245 0.265 0.562 0.557 0.577 0.065 0.051 0.08
1/4 0.25 N 0.281 0.276 0.296 0.625 0.62 0.64 0.065 0.051 0.08
W 0.312 0.307 0.327 0.734 0.727 0.749 0.065 0.051 0.08
5/16 0.3125 N 0.344 0.339 0.359 0.688 0.681 0.703 0.065 0.051 0.08
W 0.375 0.37 0.39 0.875 0.868 0.905 0.083 0.065 0.104
3/8 0.375 N 0.406 0.401 0.421 0.812 0.805 0.827 0.065 0.051 0.08
W 0.438 0.433 0.453 1 0.933 1.03 0.083 0.064 0.104
7/16 0.4375 N 0.469 0.464 0.484 0.922 0.915 0.937 0.065 0.051 0.08
W 0.5 0.495 0.515 1.25 1.243 1.28 0.083 0.064 0.104
1/2 0.5 N 0.531 0.526 0.546 1.062 1.055 1.092 0.095 0.074 0.121
W 0.562 0.557 0.577 1.375 1.368 1.405 0.109 0.086 0.132
9/16 0.5625 N 0.594 0.589 0.609 1.156 1.149 1.186 0.095 0.074 0.121
W 0.625 0.62 0.64 1.469 1.462 1.499 0.109 0.086 0.132
5/8 0.625 N 0.656 0.649 0.686 1.312 1.305 1.342 0.095 0.074 0.121
W 0.688 0.681 0.718 1.75 1.743 1.78 0.134 0.108 0.16
3/4 0.75 N 0.812 0.805 0.842 1.469 1.462 1.499 0.134 0.108 0.16
W 0.812 0.805 0.842 2 1.993 2.03 0.148 0.122 0.177
7/8 0.875 N 0.938 0.931 0.968 1.75 1.743 1.78 0.134 0.108 0.16
W 0.938 0.931 0.968 2.25 2.243 2.28 0.165 0.136 0.192
1 1 N 1.062 1.055 1.092 2 1.993 2.03 0.134 0.108 0.16
W 1.062 1.055 1.092 2.5 2.493 2.53 0.165 0.136 0.192
1-1/8 1.125 N 1.25 1.243 1.28 2.25 2.243 2.28 0.134 0.108 0.16
W 1.25 1.243 1.28 2.75 2.743 2.78 0.165 0.136 0.192
1-1/4 1.25 N 1.375 1.368 1.405 2.5 2.493 2.53 0.165 0.136 0.192
W 1.375 1.368 1.405 3 2.993 3.03 0.165 0.136 0.192
1-3/8 1.375 N 1.5 1.493 1.53 2.75 2.743 2.78 0.165 0.136 0.192
W 1.5 1.49 1.545 3.25 3.24 3.295 0.18 0.153 0.213
1-1/2 1.5 N 1.625 1.618 1.655 3 2.993 3.03 0.165 0.136 0.192
W 1.625 1.615 1.67 3.5 3.49 3.545 0.18 0.153 0.213
1-5/8 1.625 / 1.75 1.74 1.795 3.75 3.74 3.795 0.18 0.153 0.213
1-3/4 1.75 / 1.875 1.865 1.92 4 3.99 4.045 0.18 0.153 0.213
1-7/8 1.875 / 2 1.99 2.045 4.25 4.24 4.295 0.18 0.153 0.213
2 2 / 2.125 2.115 2.17 4.5 4.49 4.545 0.18 0.153 0.213
2-1/4 2.25 / 2.375 2.365 2.42 4.75 4.74 4.795 0.22 0.193 0.248
2-1/2 2.5 / 2.625 2.615 2.67 5 4.99 5.045 0.238 0.21 0.28
2-3/4 2.75 / 2.875 2.865 2.94 5.25 5.24 5.315 0.259 0.228 0.31
3 3 / 3.125 3.115 3.19 5.5 5.49 5.565 0.284 0.249 0.327



Features:



SAE washers generally have a smaller ID and OD than USS washers.

Similar to a USS washer, but with inner and outer diameters slightly smaller. Most but not all
SAE washers are produced from thinner materials compared to USS washers.

These general use flat washers are positioned under the head of a bolt or a nut in order to provide a smooth bearing surface and distribute the fastener load over a wider area.

Zinc-plated, zinc yellow-chromate plated, and chrome-plated steel washers are corrosion resistant in wet environments.

General purpose steel flat washers are primarily used in every day applications and are utilized in dry environments.



F436 3 Inch Outside Diameter Flat Washer SAE Zinc Plated AME B18.22.1 1



Tags:
