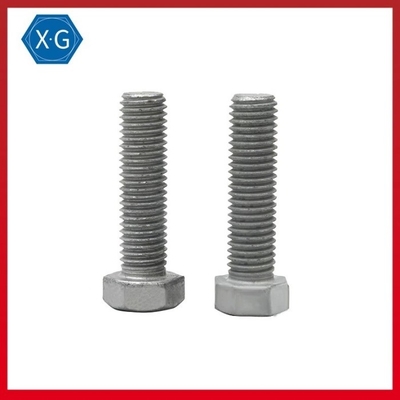

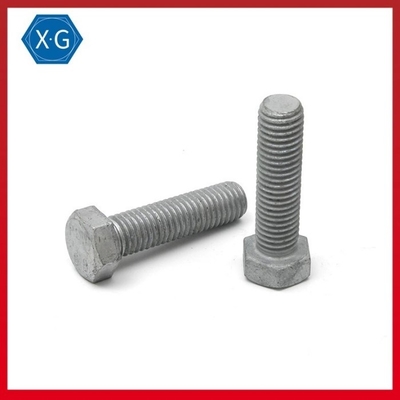

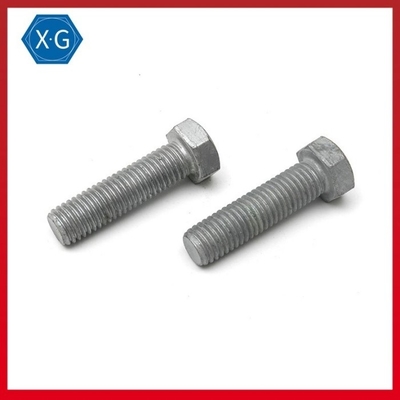

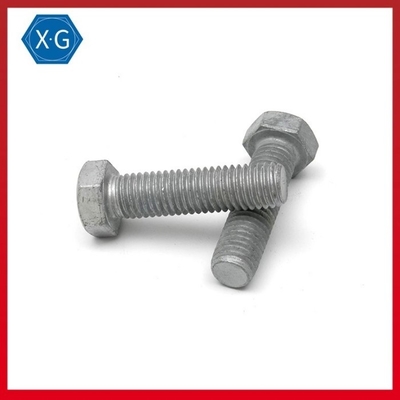

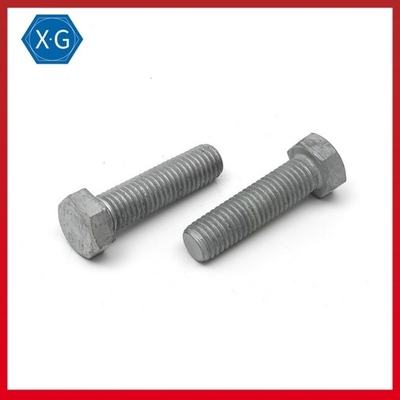

ISO4017 Grade 8.8 SS Hex Head Screws Hot Dip Galvanized Hex Head Cap Bolt

  • ISO4017 Grade 8.8 SS Hex Head Screws Hot Dip Galvanized Hex Head Cap Bolt
  • ISO4017 Grade 8.8 SS Hex Head Screws Hot Dip Galvanized Hex Head Cap Bolt
  • ISO4017 Grade 8.8 SS Hex Head Screws Hot Dip Galvanized Hex Head Cap Bolt
  • ISO4017 Grade 8.8 SS Hex Head Screws Hot Dip Galvanized Hex Head Cap Bolt
  • ISO4017 Grade 8.8 SS Hex Head Screws Hot Dip Galvanized Hex Head Cap Bolt
  • ISO4017 Grade 8.8 SS Hex Head Screws Hot Dip Galvanized Hex Head Cap Bolt
Place of Origin China
Brand Name XGFH
Certification ISO9001
Model Number ISO4017
Minimum Order Quantity 100pcs
Price 0.01-0.9USD/PC
Packaging Details 20-25KG/Carton box and then pallet.
Delivery Time 2-10workdays
Payment Terms T/T, L/C
Supply Ability 500000PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hexagonal Bolts Standard ISO4017/GB5783
Material 35K Grade 8.8
Finish Hot Dipped Galvanizing Size M8-M64
Specification ISO898-1 Tensile Strength Min.800Mpa
Hardness 23-34HRC Coating Thickness ≥55μ
Highlight

Grade 8.8 ss hex head screws xianggu

,

Hot Dip hex head cap bolt xianggu

,

Galvanized hex head cap bolt xianggu
Leave a Message
Product Description

Drawing:



Hexagon head bolts-Full thread--Product grades A and B
ISO4017 & GB/T5783
ISO4017 Grade 8.8 SS Hex Head Screws Hot Dip Galvanized Hex Head Cap Bolt 0
d P(mm) k(mm) s(mm)
A B min max
min max min max A B
M1.6 0.35 0.975 1.225 0.9 1.3 3.02 2.9 3.2
M2 0.4 1.275 1.525 1.2 1.6 3.82 3.7 4
M2.5 0.45 1.575 1.825 1.5 1.9 4.82 4.7 5
M3 0.5 1.875 2.125 1.8 2.2 5.32 5.2 5.5
M3.5 0.6 2.275 2.525 2.2 2.6 5.82 5.7 6
M4 0.7 2.675 2.925 2.6 3 6.78 6.64 7
M5 0.8 3.35 3.65 3.26 3.74 7.78 7.64 8
M6 1 3.85 4.15 3.76 4.24 9.78 9.64 10
M8 1.25 5.15 5.45 5.06 5.54 12.73 12.57 13
M10 1.5 6.22 6.58 6.11 6.69 15.73 15.57 16
M12 1.75 7.32 7.68 7.21 7.79 17.73 17.57 18
M14 2 8.62 8.98 8.51 9.09 20.67 20.16 21
M16 2 9.82 10.18 9.71 10.29 23.67 23.16 24
M18 2.5 11.29 11.72 11.15 11.85 26.67 26.16 27
M20 2.5 12.29 12.72 12.15 12.85 29.67 29.16 30
M22 2.5 13.79 14.22 13.65 14.35 33.38 33 34
M24 3 14.79 15.22 14.65 15.35 35.38 35 36
M27 3 / / 16.65 17.35 / 40 41
M30 3.5 / / 18.28 19.12 / 45 46
M33 3.5 / / 20.58 21.42 / 49 50
M36 4 / / 22.08 22.92 / 53.8 55
M39 4 / / 24.58 25.42 / 58.8 60
M42 4.5 / / 25.58 26.42 / 63.1 65
M45 4.5 / / 27.58 28.42 / 68.1 70
M48 5 / / 29.58 30.42 / 73.1 75
M52 5 / / 32.5 33.5 / 78.1 80
M56 5.5 / / 34.5 35.5 / 82.8 85
M60 5.5 / / 37.5 38.5 / 87.8 90
M64 6 / / 39.5 40.5 / 92.8 95





About the Hex bolts:

Hex cap screws and hex bolts feature a hexagonal head that is utilized during the tightening of the fastener.

A hex cap screw utilizes a washer face under the head and a chamfered end,while the hex bolts lack those features and requires a nut.

Hex cap screws and hex bolts are manufactured in variety of sizes,finishes,grades,and materials depending on application.



The function of hot dip galvanizing:

Hot-dip galvanizing prevents corrosion by offering barrier and galvanic protection to the base steel. The galvanized coating is metallurgically bonded to the underlying steel, forming an impervious barrier between the steel substrate and the corrosive environment. The hot-dip galvanized coating also preferentially corrodes to protect the underlying steel and is able to protect small areas of steel that may become exposed when scratched or abraded. Hot-dip galvanizing is the most effective method for delivering long-term barrier and cathodic protection.



Applications:

These fasteners are commonly used in construction,machine parts,and maintenance repairs.



ISO4017 Grade 8.8 SS Hex Head Screws Hot Dip Galvanized Hex Head Cap Bolt 1
