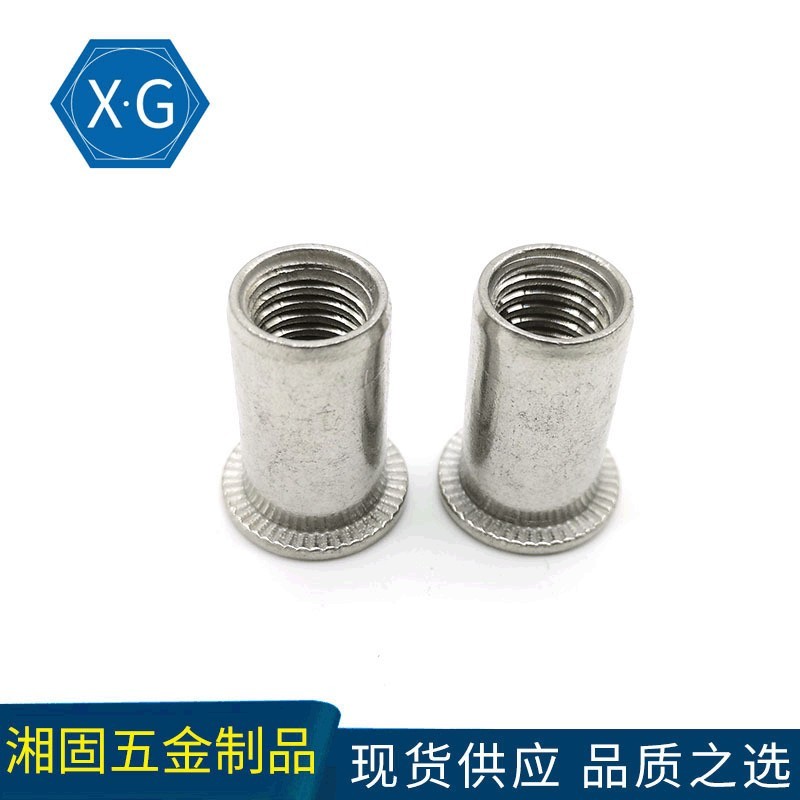

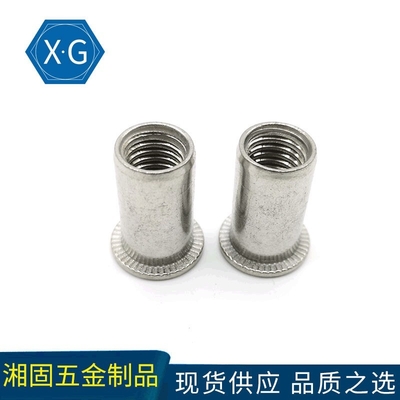

Twist Resistant SS304 A270 Flat Head Rivet Nuts M3 M4 M5 GB17880.1

  • Twist Resistant SS304 A270 Flat Head Rivet Nuts M3 M4 M5 GB17880.1
  • Twist Resistant SS304 A270 Flat Head Rivet Nuts M3 M4 M5 GB17880.1
  • Twist Resistant SS304 A270 Flat Head Rivet Nuts M3 M4 M5 GB17880.1
  • Twist Resistant SS304 A270 Flat Head Rivet Nuts M3 M4 M5 GB17880.1
  • Twist Resistant SS304 A270 Flat Head Rivet Nuts M3 M4 M5 GB17880.1
Place of Origin China
Brand Name XGFH
Certification ISO9001
Model Number GB17880.1
Minimum Order Quantity 100pcs
Price USD0.02*0.9/PC
Packaging Details Bulk into plastic bag and carton box,and then Pallet.
Delivery Time 3-20 work days
Payment Terms T/T, L/C
Supply Ability 100000PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard GB17880.1 Grade A2-70
Material Stainless Steel 304 Head Type Flat Head
Rivet Type Open Body Type Resistant
Thread Direction Right Hand Thread Fit Coarse
High Light

SS304 flat head rivet nuts

,

Flat Head Rivet Nuts M3

,

a270 nut M4 M5
Leave a Message
Product Description

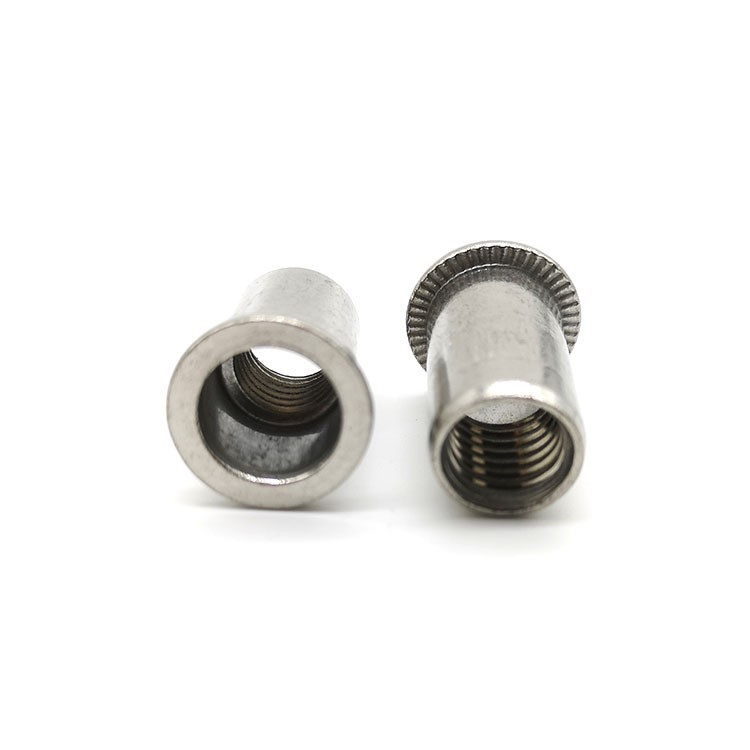

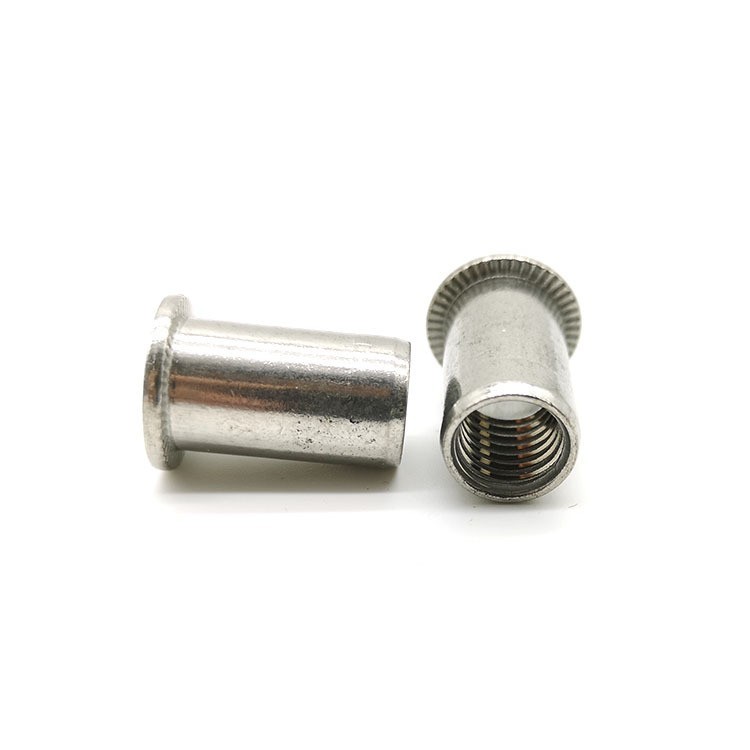

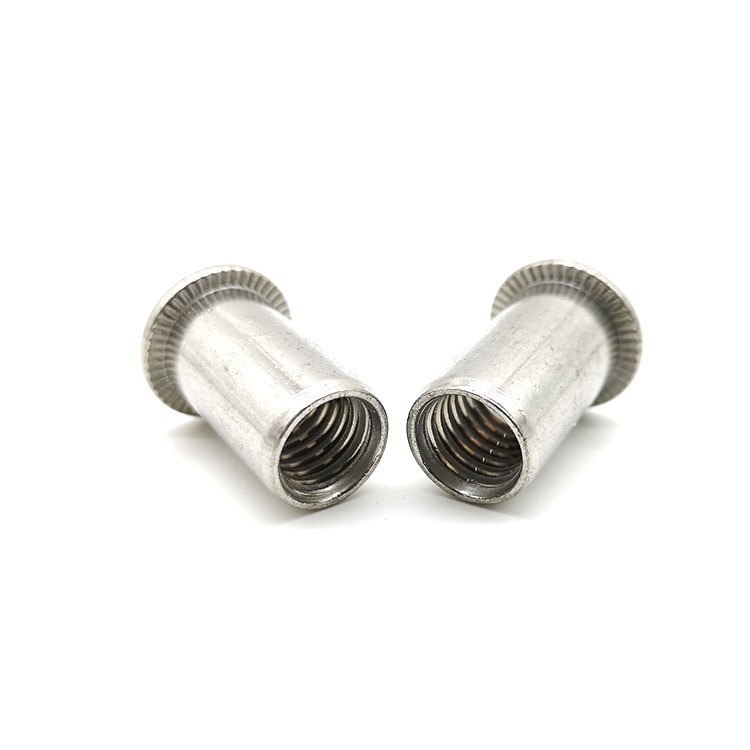

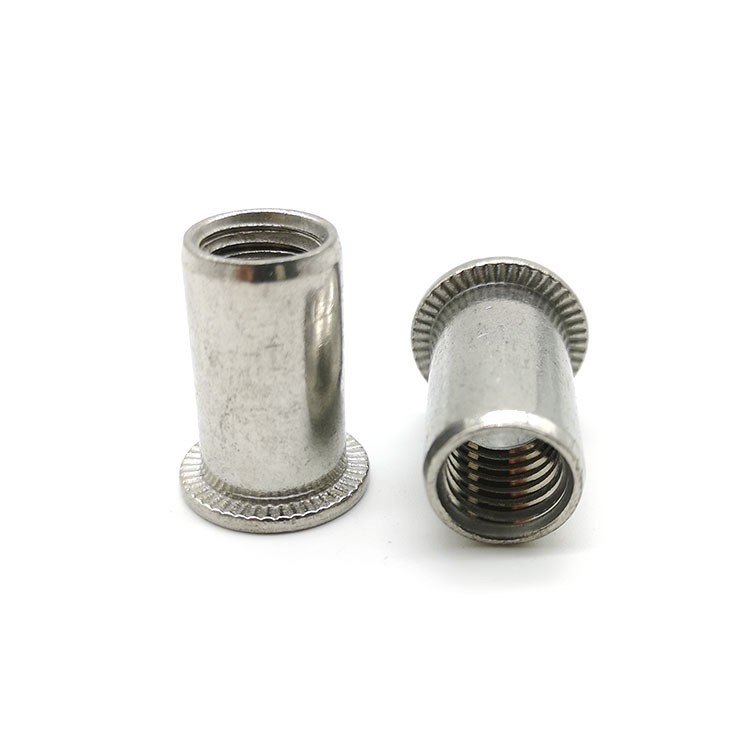

SS304 Flat Head Resistant Rivet Nuts



The most corrosion resistant twist-resistant rivet nuts we offer, these stand up to chemicals.

A ribbed body holds the nut in place so it won't turn when tightening a screw.

Also known as blind inserts, they can be installed when you have access to only one side of the material. Install in a drilled hole using a rivet nut tool.

The tool collapses the nut, creating a backside flange that holds the nut to the material.

Length is measured from under the flange.

Installed length is the maximum length of the barrel when installed.





Flat Head Riveted Nuts
GB/T 17880.1-1999
Twist Resistant SS304 A270 Flat Head Rivet Nuts M3 M4 M5 GB17880.1 0
d(mm) P(mm) ds(mm) d1(mm) dk(mm) k(mm)
Nom min max min max max
M3 0.5 5 4.9 4.97 4 4.12 8 0.8
M4 0.7 6 5.9 5.97 4.8 4.92 9 0.8
M5 0.8 7 6.9 6.97 5.6 5.72 10 1
M6 1 9 8.9 8.97 7.5 7.65 12 1.5
M8 1.25 11 10.9 10.97 9.2 9.35 14 1.5
M10 1.5 13 12.9 12.97 11 11.18 16 1.8
1
M12 1.75 15 14.9 14.97 13 13.18 18 1.8
1.5





Twist Resistant SS304 A270 Flat Head Rivet Nuts M3 M4 M5 GB17880.1 1Twist Resistant SS304 A270 Flat Head Rivet Nuts M3 M4 M5 GB17880.1 2Twist Resistant SS304 A270 Flat Head Rivet Nuts M3 M4 M5 GB17880.1 3
