DIN933 Stainless Steel Hex Bolts Full Thread A2 70 Hex Head Bolt
| Place of Origin | xxx |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001 |
| Model Number | DIN933 |
| Minimum Order Quantity | 100pcs |
| Price | USD0.01-2/PC |
| Packaging Details | Bulk into plastic bag and carton box,and then Pallet. |
| Delivery Time | 2-10 work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200000PCS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | DIN933 | Grade | A2-70 |
|---|---|---|---|
| Material | Stainless Steel 304 | Finish | Passivation |
| Specification | ISO3506-1 | Tensile Strength | 700Mpa Min. |
| Thread Length | Full Thread | Head Type | Hex Head |
| Thread Direction | Right Hand | Thread Fit | Coarse Thread |
| High Light | DIN933 Stainless Steel Hex Bolts,a2 70 hex head bolt XGFH,din933 full thread hex bolt |
||
Product Description

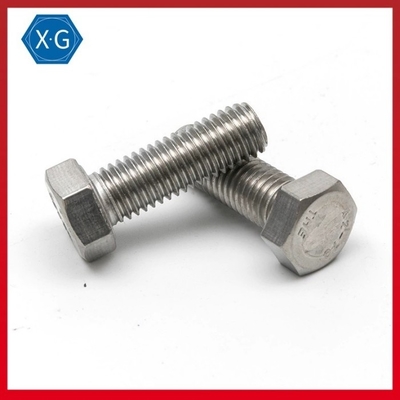

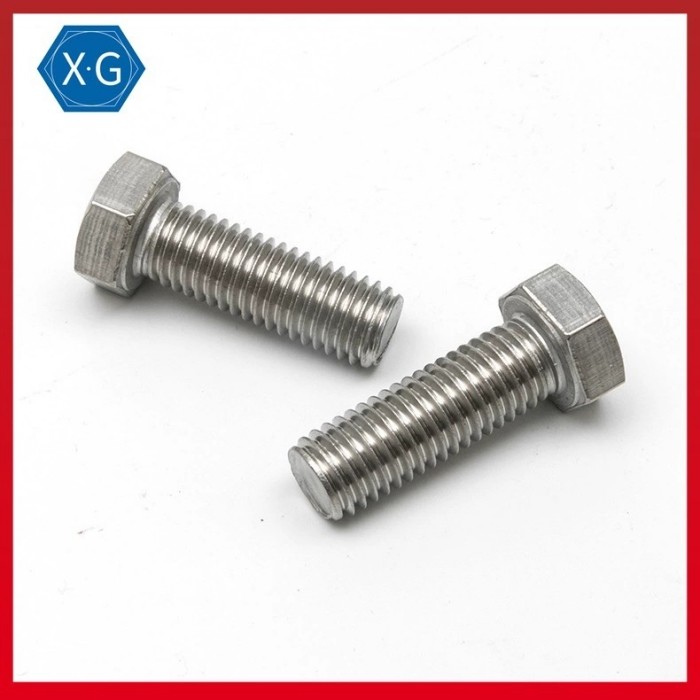

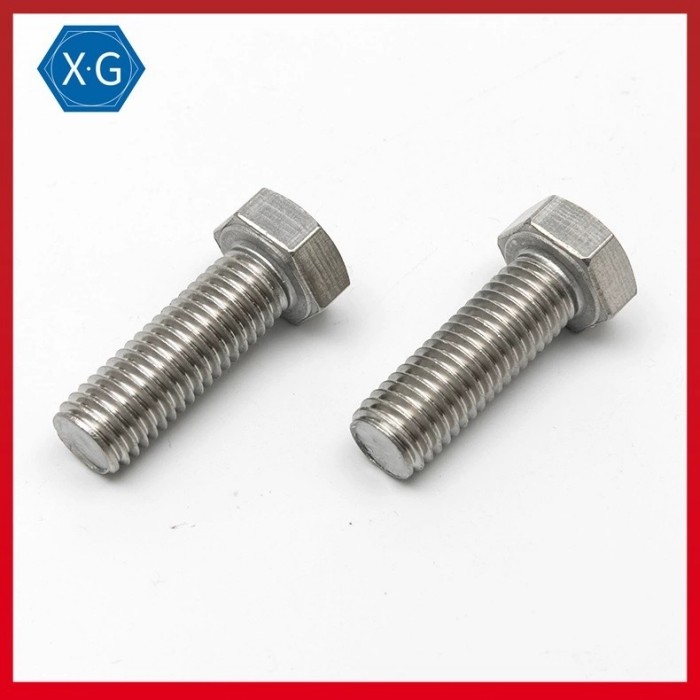

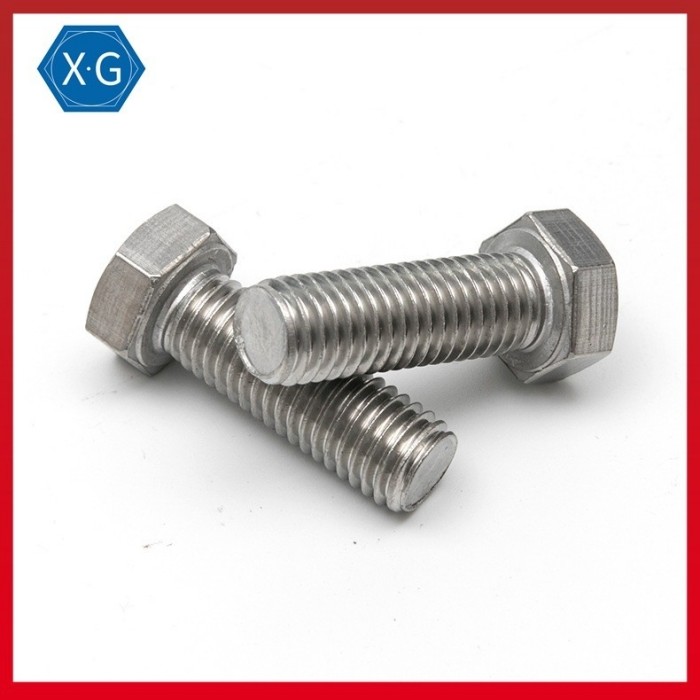

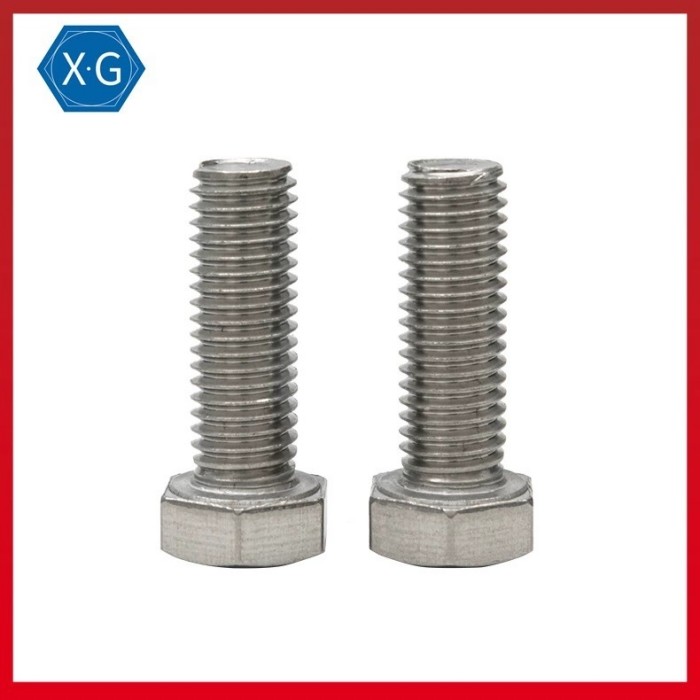

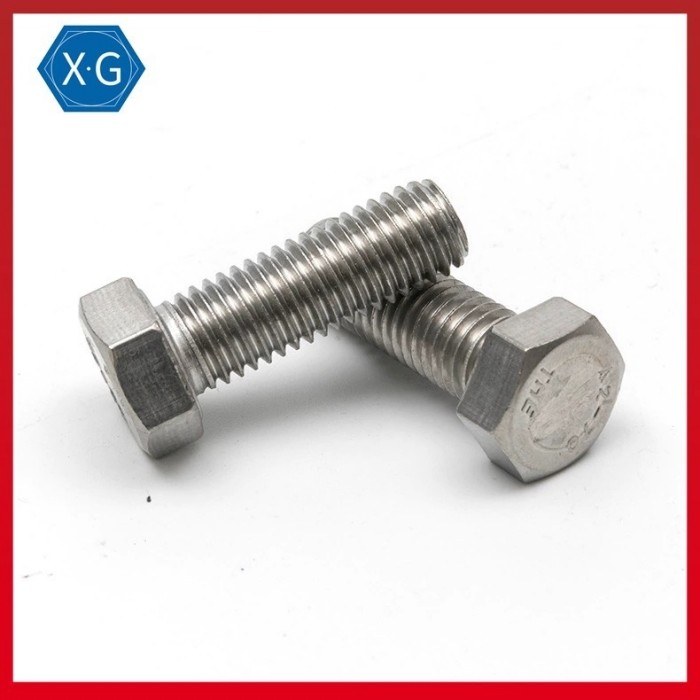

DIN933 Stainless Steel Hex bolts Hex Head Screws full thread A2-70
18-8 Stainless Steel Hex Head Screws
Made from 18-8 stainless steel, these screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head.
Metric screws are also known as A2 stainless steel screws.
Black-oxide screws have a black appearance.
Match the thread spacing of mating components. Coarse threads are the industry standard; choose these screws if you don’t know the pitch or threads per inch. Fine and extra-fine threads are closely spaced to prevent loosening from vibration; the finer the thread, the better the resistance.
Screws that meet ASME or ISO (formerly DIN) specifications comply with these dimensional standards
| Hex bolt fully threaded | ||||||||
| DIN933-1987 | ||||||||
 |
||||||||
| d(mm) | P(mm) | k(mm) | s(mm) | |||||
| A | B | max | min | |||||
| max | min | max | min | A | B | |||
| M1.6 | 0.35 | 1.22 | 0.98 | / | / | 3.2 | 3.02 | / |
| M2 | 0.4 | 1.52 | 1.28 | / | / | 4 | 3.82 | / |
| M2.5 | 0.45 | 1.82 | 1.58 | / | / | 5 | 4.82 | / |
| M3 | 0.5 | 2.12 | 1.88 | / | / | 5.5 | 5.32 | / |
| M3.5 | 0.6 | 2.52 | 2.28 | / | / | 6 | 5.82 | / |
| M4 | 0.7 | 2.92 | 2.68 | 3 | 2.8 | 7 | 6.78 | 6.64 |
| M5 | 0.8 | 3.65 | 3.35 | 3.74 | 3.26 | 8 | 7.78 | 7.64 |
| M6 | 1 | 4.15 | 3.85 | 4.24 | 3.76 | 10 | 9.78 | 9.64 |
| M7 | 1 | 4.95 | 4.65 | 5.04 | 4.56 | 11 | 10.73 | 10.57 |
| M8 | 1.25 | 5.45 | 5.15 | 5.54 | 5.06 | 13 | 12.73 | 12.57 |
| M10 | 1.5 | 6.56 | 6.22 | 6.69 | 6.11 | 17 | 16.73 | 16.57 |
| M12 | 1.75 | 7.68 | 7.32 | 7.79 | 7.21 | 19 | 18.67 | 18.48 |
| M14 | 2 | 8.98 | 8.62 | 9.09 | 8.51 | 22 | 21.67 | 21.16 |
| M16 | 2 | 10.18 | 9.82 | 10.29 | 9.71 | 24 | 23.67 | 23.16 |
| M18 | 2.5 | 11.72 | 11.28 | 11.85 | 11.15 | 27 | 26.67 | 26.15 |
| M20 | 2.5 | 12.72 | 12.28 | 12.85 | 12.15 | 30 | 29.67 | 29.16 |
| M22 | 2.5 | 14.22 | 13.78 | 14.35 | 13.65 | 32 | 31.61 | 31 |
| M24 | 3 | 15.22 | 14.78 | 15.35 | 14.65 | 36 | 35.38 | 35 |
| M27 | 3 | / | / | 17.35 | 16.65 | 41 | / | 40 |
| M30 | 3.5 | / | / | 19.12 | 18.28 | 46 | / | 45 |
| M33 | 3.5 | / | / | 21.42 | 20.58 | 50 | / | 49 |
| M36 | 4 | / | / | 22.92 | 22.08 | 55 | / | 53.8 |
| M39 | 4 | / | / | 25.42 | 24.58 | 60 | / | 58.8 |
| M42 | 4.5 | / | / | 26.42 | 25.58 | 65 | / | 63.1 |
| M45 | 4.5 | / | / | 28.42 | 27.58 | 70 | / | 68.1 |
| M48 | 5 | / | / | 30.42 | 29.58 | 75 | / | 73.1 |
| M52 | 5 | / | / | 33.5 | 32.5 | 80 | / | 78.1 |
