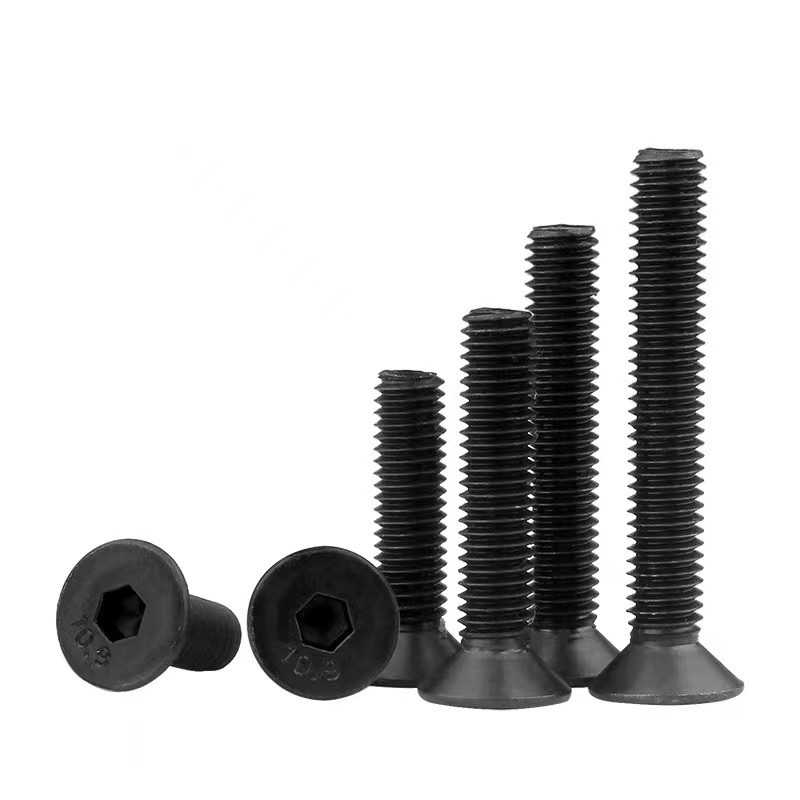

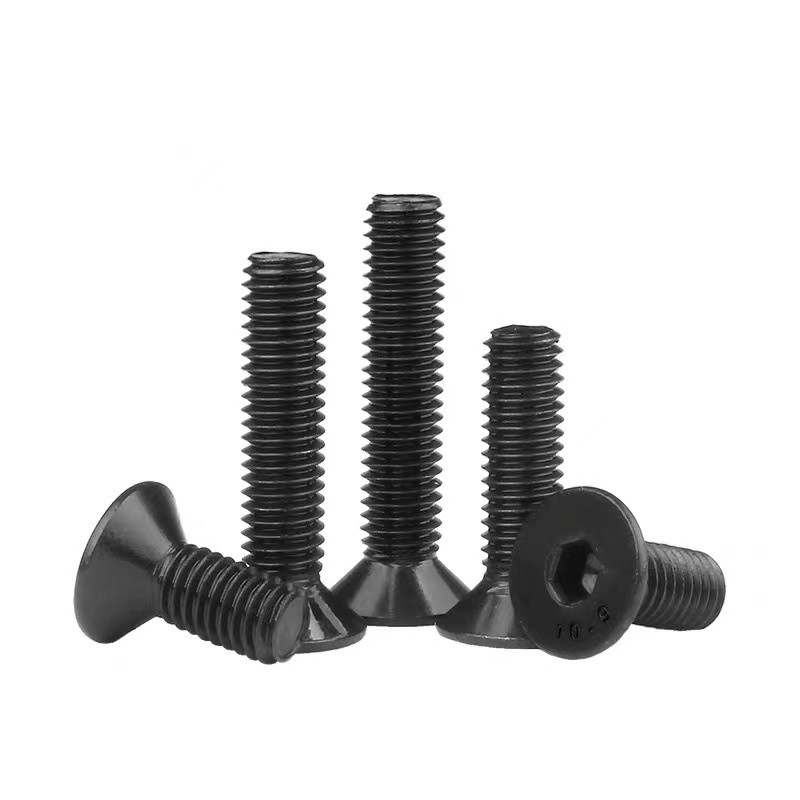

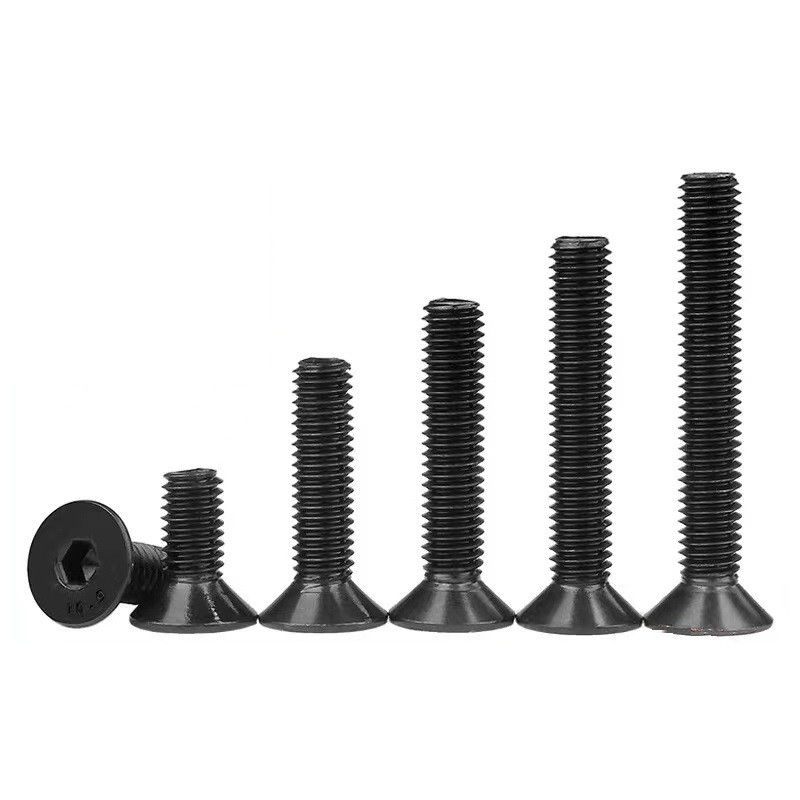

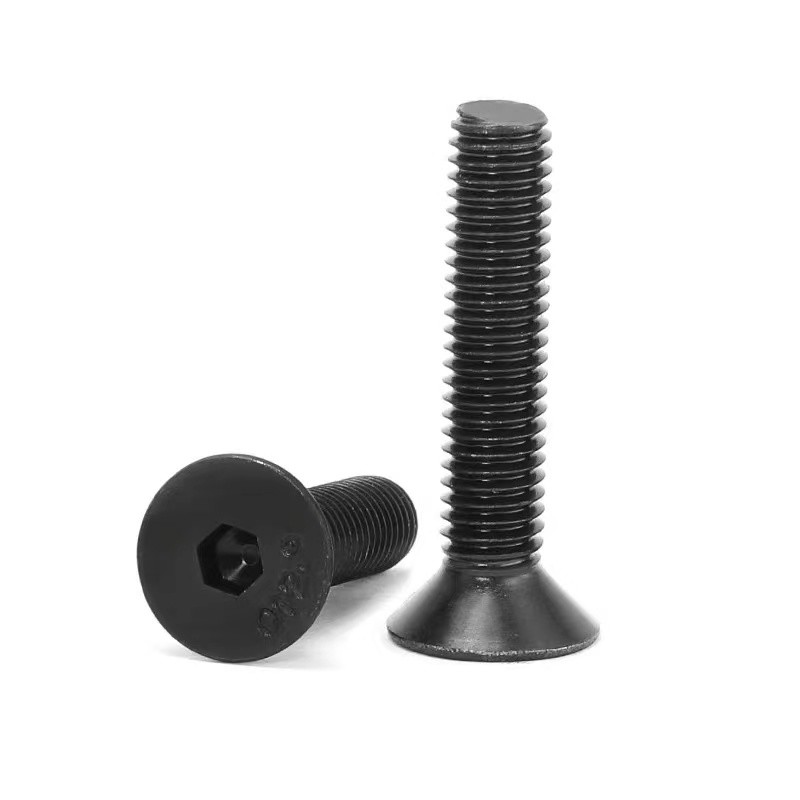

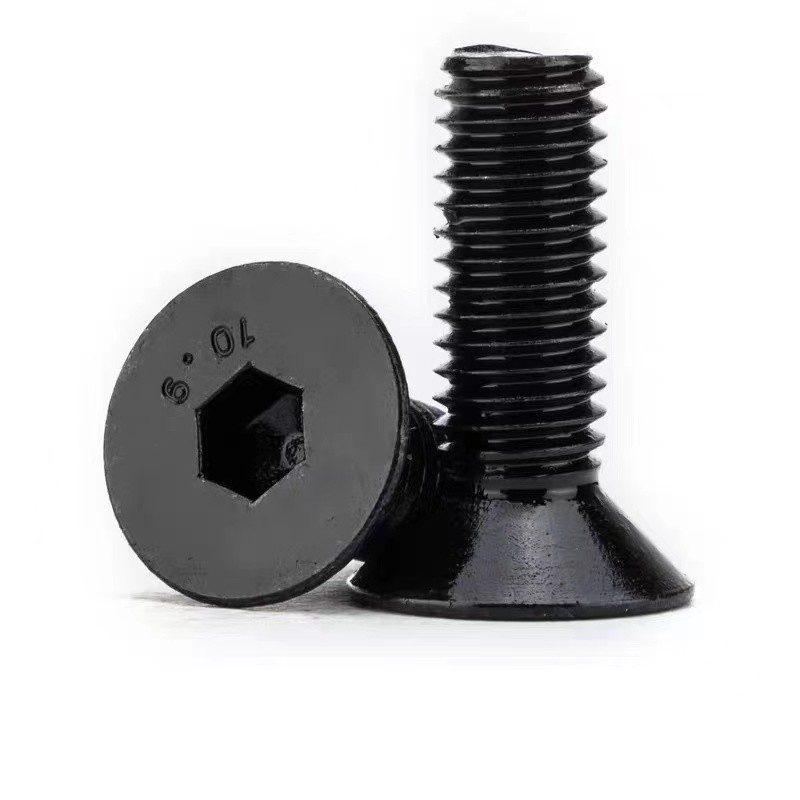

ISO10642 10.9 High Strength Hexagon Socket Countersunk Head Cap Screws Black Oxide

  • ISO10642 10.9 High Strength Hexagon Socket Countersunk Head Cap Screws Black Oxide
  • ISO10642 10.9 High Strength Hexagon Socket Countersunk Head Cap Screws Black Oxide
  • ISO10642 10.9 High Strength Hexagon Socket Countersunk Head Cap Screws Black Oxide
  • ISO10642 10.9 High Strength Hexagon Socket Countersunk Head Cap Screws Black Oxide
  • ISO10642 10.9 High Strength Hexagon Socket Countersunk Head Cap Screws Black Oxide
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ISO10642
Minimum Order Quantity 100pcs
Price 0.01-2.5usd/pc
Packaging Details 25kg per carbon box and then pallet.
Delivery Time 3-15 work days
Payment Terms T/T, L/C
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard DINISO10642 Name Hexagon Socket Countersunk Head Cap Screws
Material Alloy Steel 40Cr Grade Class 10.9
Finish Black Oxide Drive Hex Socket
Thread Full Thread Head Type Countersunk Head
Thread Type Coarse HS CODE 731815.9000
High Light

High Strength Bolts Black Oxide

,

ISO10642 High Strength Bolts

,

Countersunk Head Cap High Strength Bolts
Leave a Message
Product Description

Product Description:



Standard ISO10642 Hexagon Socket Countersunk Head Cap Screws made from alloy steel 40Cr Material, these screws are high strength bolts screws.

They're angled under the head to sit flush within countersunk holes.

Length is measured from the top of the head.



Surface Treatment:

Black Oxide



Product Features:

This standard specifies product grade A hexagon socket countersunk head cap screws with ISO metric screw thread from size M3 up to and including size M24.

Property class is 10.9 class.



Product Drawing:



Hexagon socket countersunk head cap screws
ISO10642 & DIN 7991-1986
ISO10642 10.9 High Strength Hexagon Socket Countersunk Head Cap Screws Black Oxide 0
d(mm) P(mm) b(mm) dk(mm) ds(mm) k(mm) s(mm) t(mm)
L≤125 125<L≤200 L>200 min max min max max min max min max
M3 0.5 12 / / 5.7 6 2.86 3 1.7 2.02 2.1 0.95 1.2
M4 0.7 14 / / 7.64 8 3.82 4 2.3 2.52 2.6 1.55 1.8
M5 0.8 16 / / 9.64 10 4.82 5 2.8 3.02 3.1 2.05 2.3
M6 1 18 24 / 11.57 12 5.82 6 3.3 4.02 4.12 2.25 2.5
M8 1.25 22 28 / 15.57 16 7.78 8 4.4 5.02 5.14 3.2 3.5
M10 1.5 26 32 45 19.48 20 9.78 10 5.5 6.02 7.175 4.1 4.4
M12 1.75 30 36 49 23.48 24 11.73 12 6.5 8.025 8.175 4.3 4.6
M14 2 34 40 53 26.48 27 13.73 14 7 10.025 10.175 4.5 4.8
M16 2 38 44 57 29.48 30 15.73 16 7.5 10.025 10.175 5 5.3
M18 2.5 42 48 61 32.38 33 17.73 18 8 12.032 12.212 5.2 5.5
M20 2.5 46 52 65 35.38 36 19.67 20 8.5 12.032 12.212 5.6 5.9
M22 2.5 50 56 69 35.38 36 21.67 22 13.1 14.032 14.212 8.44 8.8
M24 3 54 60 73 38.38 39 23.67 24 14 14.032 14.212 9.87 10.3







Production Workshop:



ISO10642 10.9 High Strength Hexagon Socket Countersunk Head Cap Screws Black Oxide 1



Product Warehouse:

ISO10642 10.9 High Strength Hexagon Socket Countersunk Head Cap Screws Black Oxide 2
