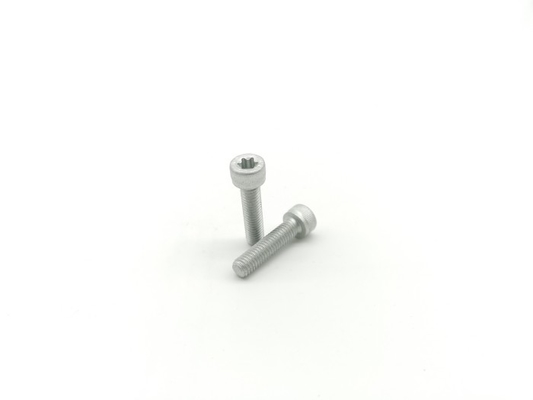

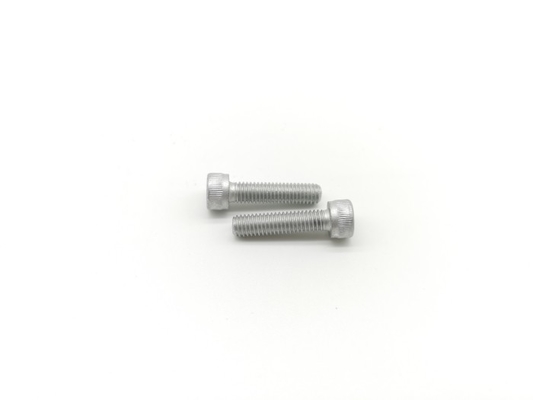

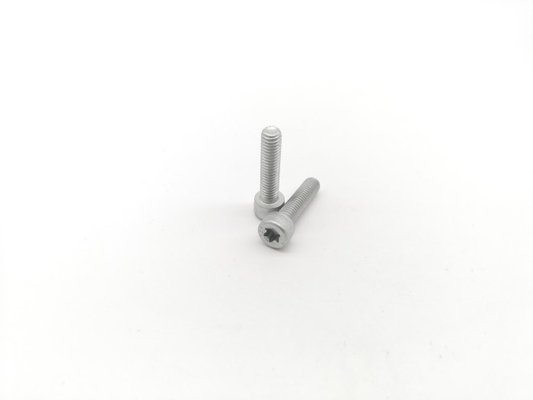

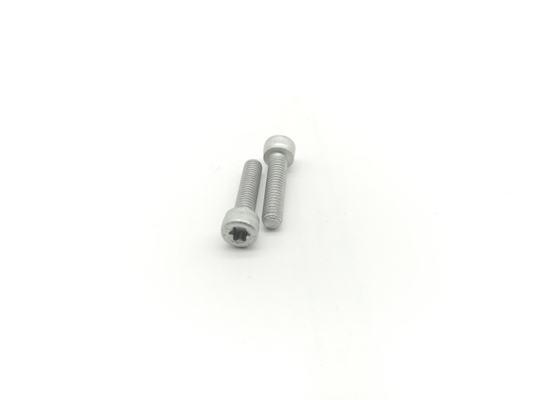

Grade 12.9 High Strength Bolts ISO 14579 Torx Drive Hexalobular Socket Head Cap Screws

  • Grade 12.9 High Strength Bolts ISO 14579 Torx Drive Hexalobular Socket Head Cap Screws
  • Grade 12.9 High Strength Bolts ISO 14579 Torx Drive Hexalobular Socket Head Cap Screws
  • Grade 12.9 High Strength Bolts ISO 14579 Torx Drive Hexalobular Socket Head Cap Screws
  • Grade 12.9 High Strength Bolts ISO 14579 Torx Drive Hexalobular Socket Head Cap Screws
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ISO14579
Minimum Order Quantity 100pcs
Price 0.01-2.5usd/pc
Packaging Details 25kg per carbon box and then pallet.
Delivery Time 5-15 work days
Payment Terms T/T, L/C
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ISO14579 Name Torx Drive
Material Alloy Steel Grade Class 12.9
Finish Black Oxide Drive Torx
Thread Full Thread Thread Fit Coarse 6g/6h
Thread Type Coarse HS CODE 731815.9000
High Light

Grade 12.9 High Strength Bolts XiangGu

,

ISO 14579 Socket Head Cap Screws

,

Hexalobular Socket Head Cap Screws
Leave a Message
Product Description

Hexalobular Socket Head Cap Screws



Product Description:



A Torx-Plus drive has more points of contact than a hex drive, allowing you to tighten these screws with less slippage or damage to the recess. With a tensile strength of 170,000 psi, these alloy steel screws are stronger than Grade 8 steel screws. Their black-oxide finish provides mild corrosion resistance in dry environments. They can be used with both Torx-Plus and standard Torx tools (see Torx bits and Torx keys and drivers). Screws meet ASTM A574 specifications and testing requirements for material quality. Length is measured from under the head.

Coarse threads are the industry standard; choose these screws if you don’t know the threads per inch. Fine threads are closely spaced to prevent loosening from vibration. They are not compatible with coarse threads.



Product Drawing:



Hexalobular Socket Head Cap Screws
GB/T 2671.2-2017
Grade 12.9 High Strength Bolts ISO 14579 Torx Drive Hexalobular Socket Head Cap Screws 0
d(mm) P(mm) b(mm) dk(mm) ds(mm) k(mm) Drive B(mm) t(mm)
min max min max min max min max
Plain Knurl
M2 0.4 16 3.62 3.8 3.98 1.86 2 1.86 2 T6 1.75 0.71 0.84
M2.5 0.45 17 4.32 4.5 4.68 2.36 2.5 2.36 2.5 T8 2.4 0.91 1.04
M3 0.5 18 5.32 5.5 5.68 2.86 3 2.86 3 T10 2.8 1.01 1.27
M4 0.7 20 6.78 7 7.22 3.82 4 3.82 4 T20 3.95 1.42 1.8
M5 0.8 22 8.28 8.5 8.72 4.82 5 4.82 5 T25 4.5 1.65 2.03
M6 1 24 9.78 10 10.22 5.82 6 5.7 6 T30 5.6 2.02 2.42
M8 1.25 28 12.73 13 13.27 7.78 8 7.64 8 T45 7.95 2.92 3.31
M10 1.5 32 15.73 16 16.27 9.78 10 9.64 10 T50 8.95 3.62 4.02
M12 1.75 36 17.73 18 18.27 11.73 12 11.57 12 T55 11.35 4.82 5.21
M14 2 40 20.67 21 21.33 13.73 14 13.57 14 T60 13.45 5.62 5.99
M16 2 44 23.67 24 24.33 15.73 16 15.57 16 T70 15.7 6.62 7.01
M18 2 48 26.67 27 27.33 17.73 18 17.57 18 T80 17.75 7.5 8
M20 2.5 52 29.67 30 30.33 19.67 20 19.48 20 T90 20.2 8.69 9.2
