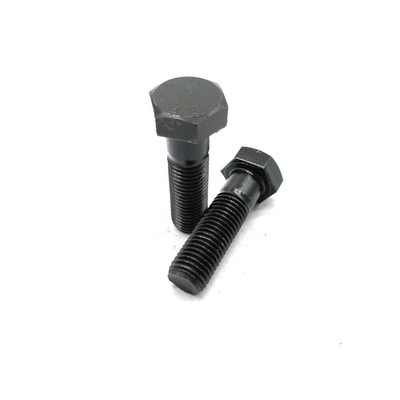

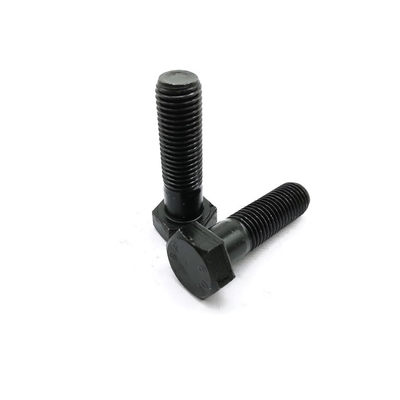

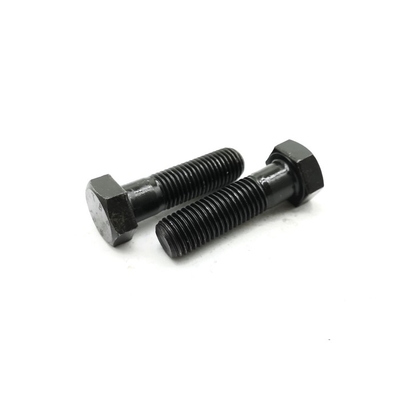

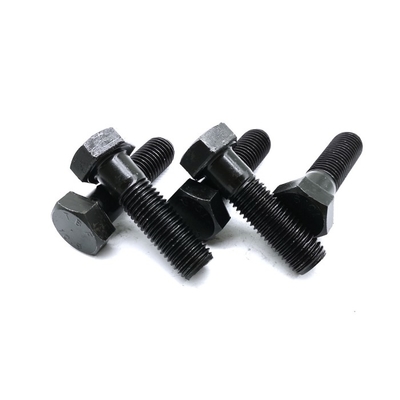

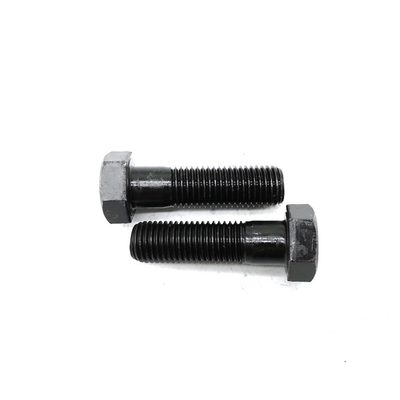

Hex Head High Strength Bolts ISO4014 GB5782 Class 10.9 Black Partial Thread Bolt M6 M48

  • Hex Head High Strength Bolts ISO4014 GB5782 Class 10.9 Black Partial Thread Bolt M6 M48
  • Hex Head High Strength Bolts ISO4014 GB5782 Class 10.9 Black Partial Thread Bolt M6 M48
  • Hex Head High Strength Bolts ISO4014 GB5782 Class 10.9 Black Partial Thread Bolt M6 M48
  • Hex Head High Strength Bolts ISO4014 GB5782 Class 10.9 Black Partial Thread Bolt M6 M48
  • Hex Head High Strength Bolts ISO4014 GB5782 Class 10.9 Black Partial Thread Bolt M6 M48
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ISO4014
Minimum Order Quantity 100pcs
Price 0.01-2.5usd/pc
Packaging Details 25kg per carbon box and then pallet.
Delivery Time 5-15 work days
Payment Terms T/T, L/C
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ISO4014 Name Hex Head Bolts
Material Alloy Steel Grade Class 10.9
Finish Black Oxide Drive Hex Head
Thread Half Thread Thread Fit Coarse 6g/6h
Thread Type Coarse HS CODE 731815.9000
High Light

Hex Head High Strength Bolts xianggu

,

High Strength Bolts ISO 4014 xianggu

,

partial thread bolt M6 M48 xianggu
Leave a Message
Product Description

High-Strength Metric Class 10.9 Steel Hex Head Screws



Product Description:

Choose these Class 10.9 steel screws for high-stress applications, such as valves, pumps, motors, and automotive suspension systems.

They are at least 25% stronger than medium-strength steel screws.

Dimensions meet ISO (formerly DIN) or DIN specifications.

Length is measured from under the head.

Black ultra-corrosion-resistant-coated steel screws resist chemicals and withstand 1,000 hours of salt spray. To maintain corrosion resistance, use these screws with black ultra-corrosion-resistant-coated nuts and washers.

Match the thread spacing of mating components. Coarse threads are the industry standard; choose these screws if you don’t know the pitch. Fine and extra-fine threads are closely spaced to prevent loosening from vibration; the finer the thread, the better the resistance.



Mechanical and physical properties:



Property Class Class 10.9
Tensile Strength 1040Mpa min.
Stress at 0.2% permanent strain 940Mpa min.

Percentage elongation after fracture for

machined test pieces, A, %

 9 min.

Percentage reduction of area after

fracture for machined test pieces, Z, %

 48 min.
Rockwell hardness, HRC 32-39





Product Drawing:



Hex bolt partially threaded GradeA and B
GB/T 5782-2016 & ISO 4014-2011
 Hex Head High Strength Bolts ISO4014 GB5782 Class 10.9 Black Partial Thread Bolt M6 M48 0
d P(mm) b (mm) ds (mm) k (mm) s (mm)
min max A B min max
L≤125 125＜L≤200 L＞200 A B min max min max A B
M1.6 0.35 9 15 28 1.46 1.35 1.6 0.975 1.225 0.9 1.3 3.02 2.9 3.2
M2 0.4 10 16 29 1.86 1.75 2 1.275 1.525 1.2 1.6 3.82 3.7 4
M2.5 0.45 11 17 30 2.36 2.25 2.5 1.575 1.825 1.5 1.9 4.82 4.7 5
M3 0.5 12 18 31 2.86 2.75 3 1.875 2.125 1.8 2.2 5.32 5.2 5.5
M3.5 0.6 13 19 32 3.32 3.2 3.5 2.275 2.525 2.2 2.6 5.82 5.7 6
M4 0.7 14 20 33 3.82 3.7 4 2.675 2.925 2.6 3 6.78 6.64 7
M5 0.8 16 22 35 4.82 4.7 5 3.35 3.65 3.26 3.74 7.78 7.64 8
M6 1 18 24 37 5.82 5.7 6 3.85 4.15 3.76 4.24 9.78 9.64 10
M8 1.25 22 28 41 7.78 7.64 8 5.15 5.45 5.06 5.54 12.73 12.57 13
M10 1.5 26 32 45 9.78 9.64 10 6.22 6.58 6.11 6.69 15.73 15.57 16
M12 1.75 30 36 49 11.73 11.57 12 7.32 7.68 7.21 7.79 17.73 17.57 18
M14 2 34 40 53 13.73 13.57 14 8.62 8.98 8.51 9.09 20.67 20.16 21
M16 2 38 44 57 15.73 15.57 16 9.82 10.18 9.71 10.29 23.67 23.16 24
M18 2.5 42 48 61 17.73 17.57 18 11.285 11.715 11.15 11.85 26.67 26.16 27
M20 2.5 46 52 65 19.67 19.48 20 12.285 12.715 12.15 12.85 29.67 29.16 30
M22 2.5 50 56 69 21.67 21.48 22 13.785 14.215 13.65 14.35 33.38 33 34
M24 3 54 60 73 23.67 23.48 24 14.785 15.215 14.65 15.35 35.38 35 36
M27 3 60 66 79 / 26.48 27 / / 16.65 17.35 / 40 41
M30 3.5 66 72 85 / 29.48 30 / / 18.28 19.12 / 45 46
M33 3.5 / 78 91 / 32.38 33 / / 20.58 21.42 / 49 50
M36 4 / 84 97 / 35.38 36 / / 22.08 22.92 / 53.8 55
M39 4 / 90 103 / 38.38 39 / / 24.58 25.42 / 58.8 60
M42 4.5 / 96 109 / 41.38 42 / / 25.58 26.42 / 63.1 65
M45 4.5 / 102 115 / 44.38 45 / / 27.58 28.42 / 68.1 70
M48 5 / 108 121 / 47.38 48 / / 29.58 30.42 / 73.1 75
M52 5 / 116 129 / 51.26 52 / / 32.5 33.5 / 78.1 80
M56 5.5 / / 137 / 55.26 56 / / 34.5 35.5 / 82.8 85
M60 5.5 / / 145 / 59.26 60 / / 37.5 38.5 / 87.8 90
M64 6 / / 153 / 63.26 64 / / 39.5 40.5 / 92.8 95





Production Workshop:



Hex Head High Strength Bolts ISO4014 GB5782 Class 10.9 Black Partial Thread Bolt M6 M48 1



Product Warehouse:

Hex Head High Strength Bolts ISO4014 GB5782 Class 10.9 Black Partial Thread Bolt M6 M48 2
