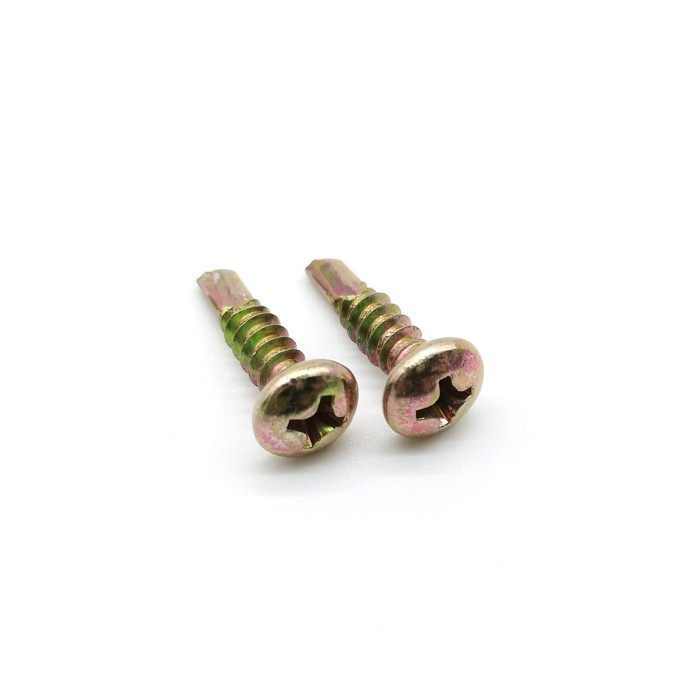

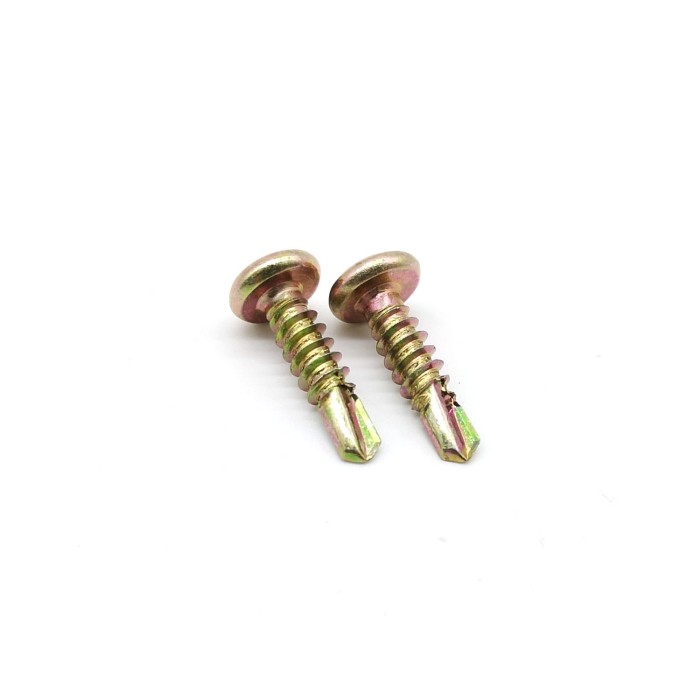

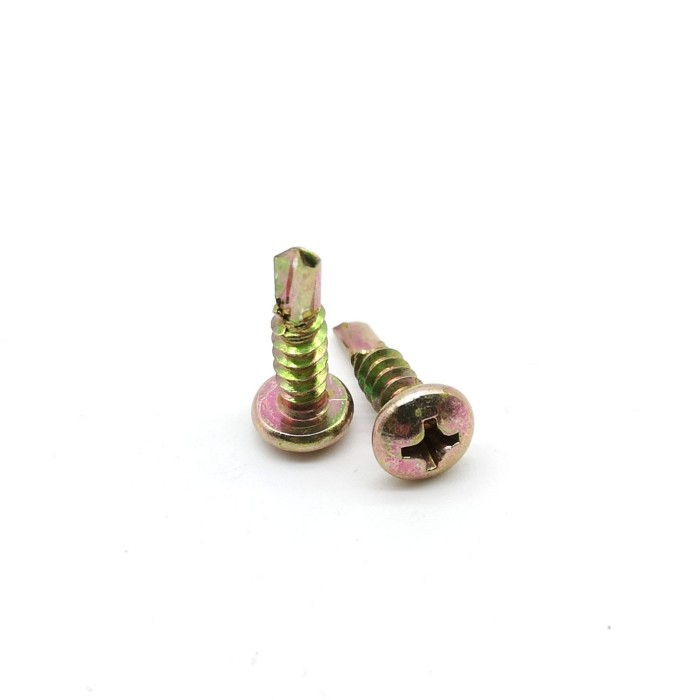

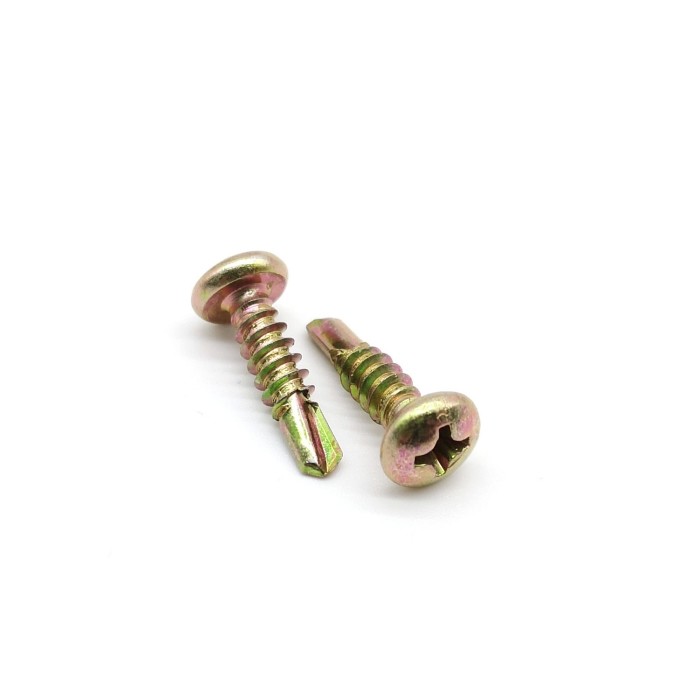

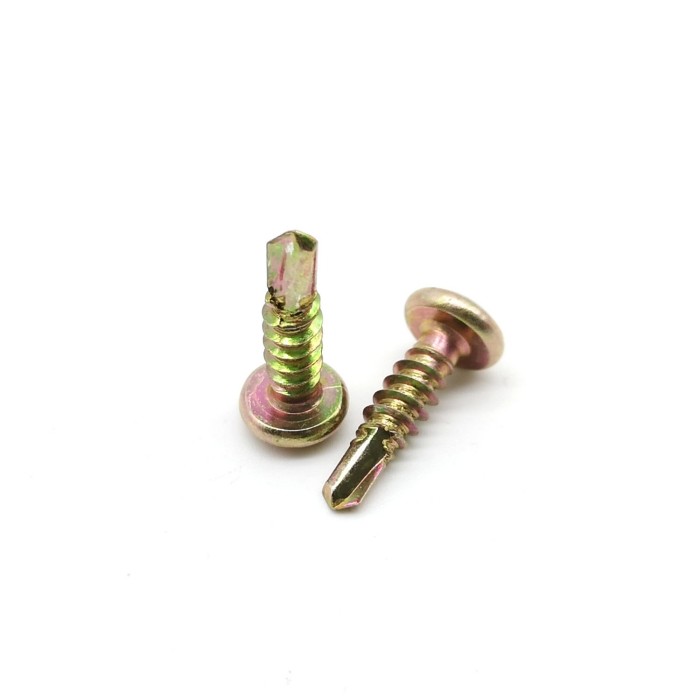

Yellow Zinc Self Tapping Screws Phillips Self Tapping Pan Head Metal Screws

Steel Phillips Rounded Head Drilling Screws for Metal

Product Description:

These steel screws are Yellow zinc plated to resist corrosion in wet environments. They save you time and effort by drilling their own holes and fastening in a single operation.

Length is measured from under the head.

Product Features:

The point on a self-drilling screw is designed to efficiently remove material and precisely size the hole for the thread.The length of the drill flute determines the metal thickness that can be drilled.

Due to their need to drill and tap into various materials,the standard self-drilling screw is a case hardened heat treated carbon steel.

Integrated Drill Point and Tapping threads offer quick transition from drilling to tapping with a lower installation torque.

Product Drawings:

Cross recessed pan head drilling screws with tapping screw threa
DIN 7504N
d(mm)	P(mm)	dk(mm)		k(mm)		Drive Size	dp(mm)
		min	max	min	max		max
ST2.2	0.8	3.7	4	1.4	1.6	0	2.3
ST2.9	1.1	5.3	5.6	2.15	2.4	1	2.8
ST3.5	1.3	6.64	7	2.35	2.6	2	3.1
ST4.2	1.4	7.64	8	2.8	3.1		3.6
ST4.8	1.6	9.14	9.5	3.4	3.7		4.1
ST5.5	1.8	10.57	11	3.7	4	3	4.8
ST6.3	1.8	11.57	12	4.3	4.6		5.8

Production Workshop:

Packing:

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
