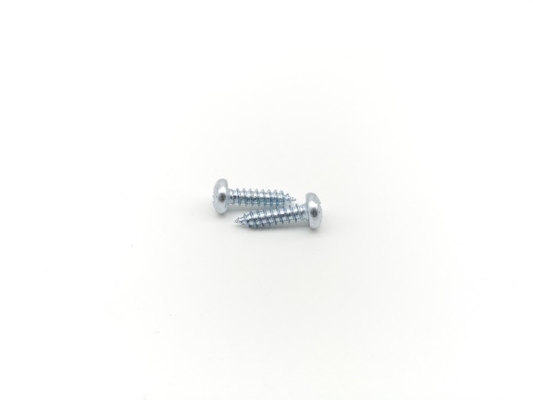

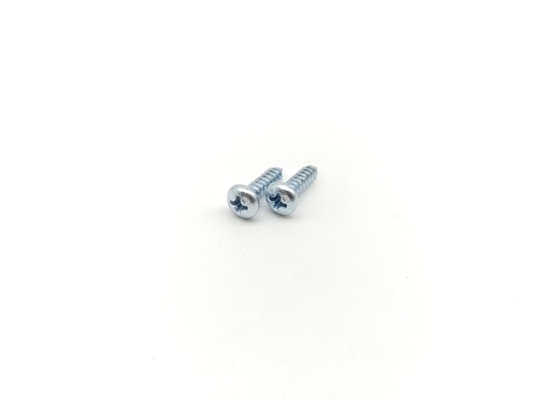

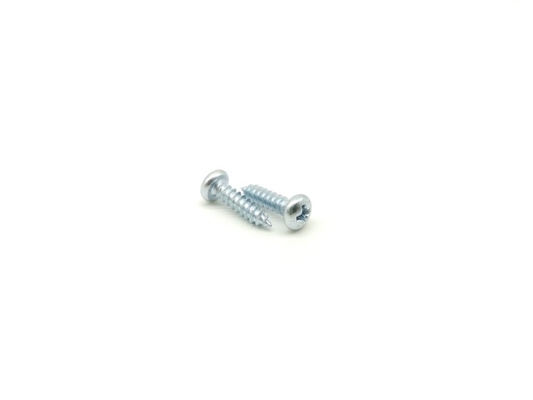

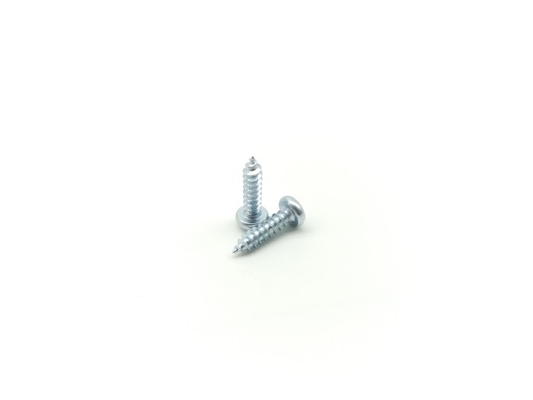

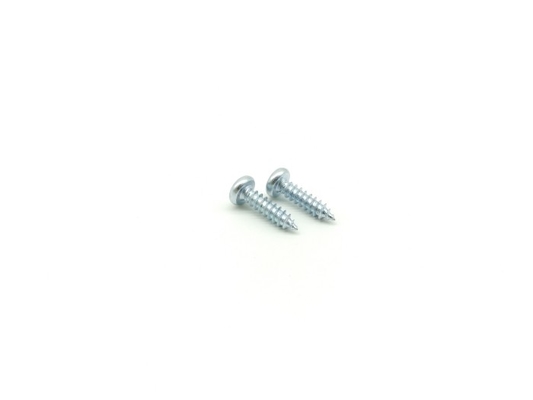

Stainless Steel Self Tapping Sheet Metal Screws Phillips Pan Head Type C Point
| Place of Origin | China |
|---|---|
| Brand Name | XG |
| Certification | ISO9001 |
| Model Number | GB845 |
| Minimum Order Quantity | 100pcs |
| Price | USD0.01-0.3/PC |
| Packaging Details | Bulk into plastic bag and carton box,and then Pallet. |
| Delivery Time | 3-10 work days |
| Payment Terms | T/T |
| Supply Ability | 500000PCS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | GB845 | Grade | 4.8 |
|---|---|---|---|
| Material | Carbon Steel | Finish | Blue White Zinc |
| Size | ST2.9-ST6.3 | Threading | Tapping Point |
| Thread Point | Type C | Heat Treatment | Hardened |
| Drive | Phillips | Head Type | Pan Head |
| High Light | stainless steel self tapping sheet metal screws,Phillips Pan Head screw xianggu,phillips pan head sheet metal screw |
||
Product Description
Steel Phillips Rounded Head Screws for Sheet Metal
Product Description:
Sheet metal screws are designed for connecting thinner metal objects to one another or connecting metal to wood,plastic,and other materials.Many can start their own pilot hole.
These steel screws are available with corrosion-resistant finishes. They penetrate 0.025" and thinner sheet metal.
Length is measured from under the head.
Zinc-plated steel screws resist corrosion in wet environments.
Product Drawings:
| Cross recessed round head tapping screws | ||||||||||
| ISO7049&GB/T 845-1985 | ||||||||||
 |
||||||||||
| d(mm) | ST2.2 | ST2.9 | ST3.5 | ST4.2 | ST4.8 | ST5.5 | ST6.3 | ST8 | ST9.5 | |
| P(mm) | 0.8 | 1.1 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 | 2.1 | 2.1 | |
| dk(mm) | min | 3.7 | 5.3 | 6.64 | 7.64 | 9.14 | 10.57 | 11.57 | 15.57 | 19.48 |
| max | 4 | 5.6 | 7 | 8 | 9.5 | 11 | 12 | 16 | 20 | |
| k(mm) | min | 1.4 | 2.15 | 2.35 | 2.8 | 3.4 | 3.7 | 4.3 | 5.6 | 7.1 |
| max | 1.6 | 2.4 | 2.6 | 3.1 | 3.7 | 4 | 4.6 | 6 | 7.5 | |
| Recessed No. | 0 | 1 | 2 | 3 | 4 | |||||
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
