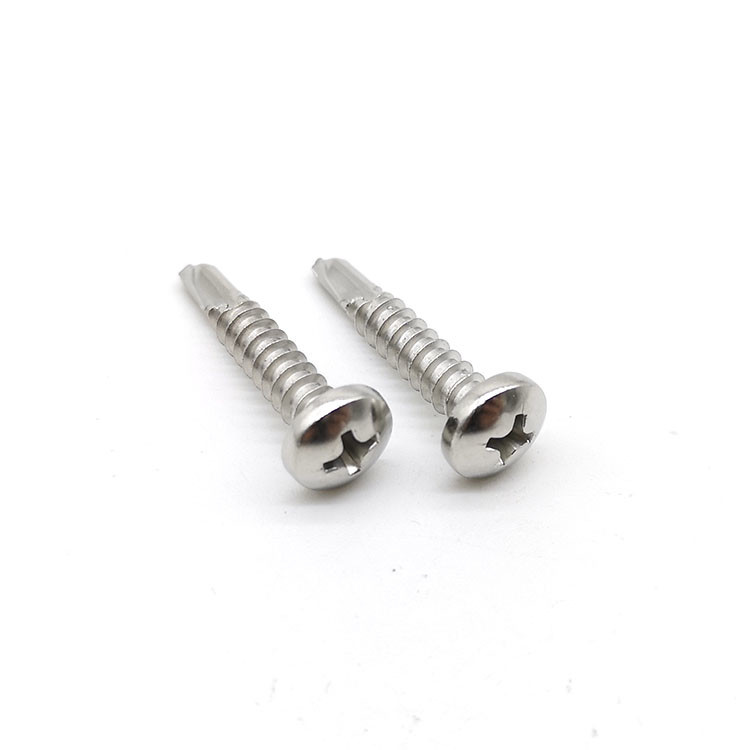

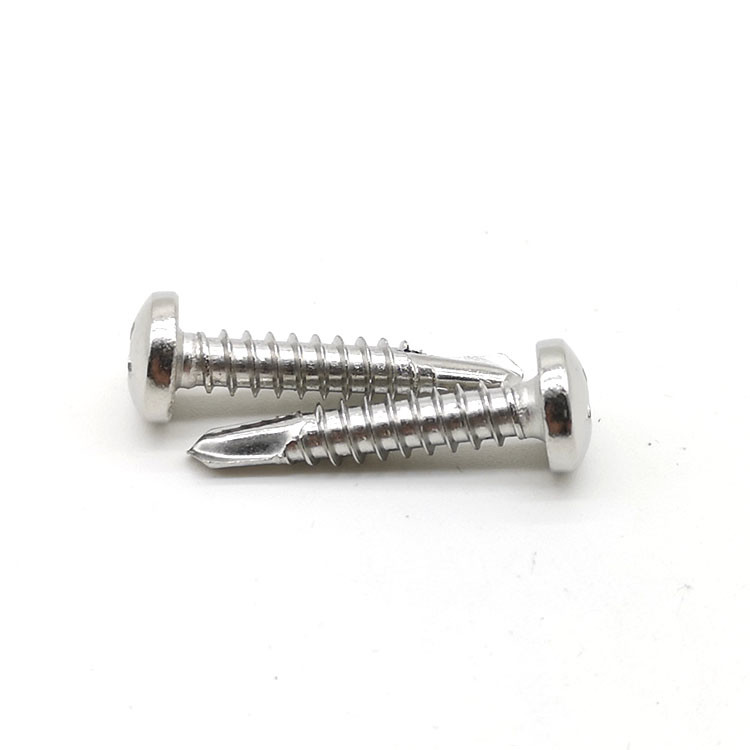

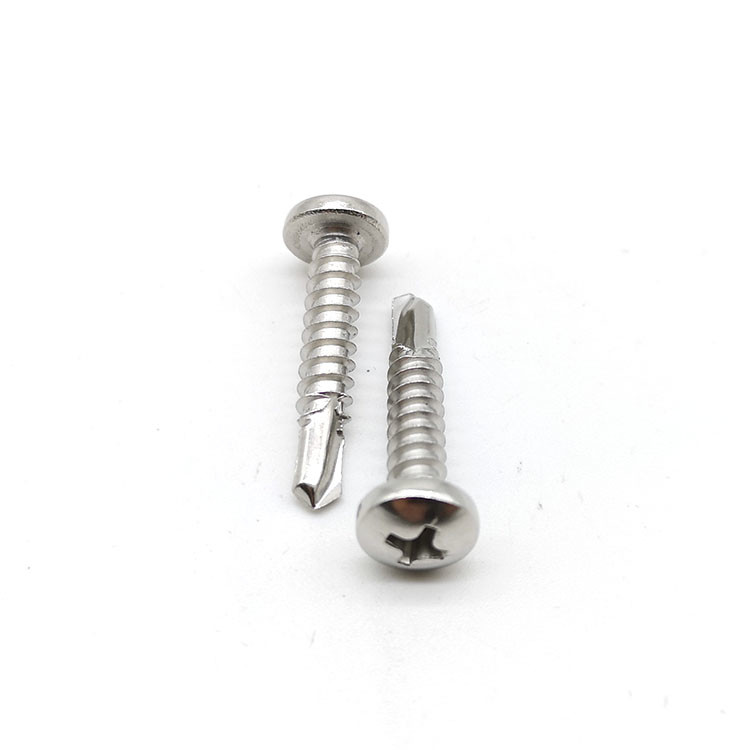

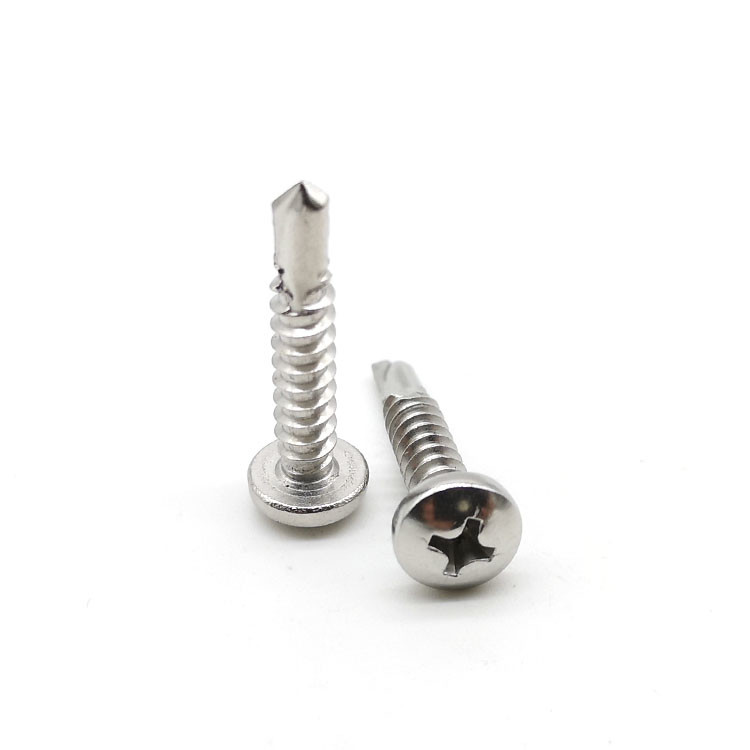

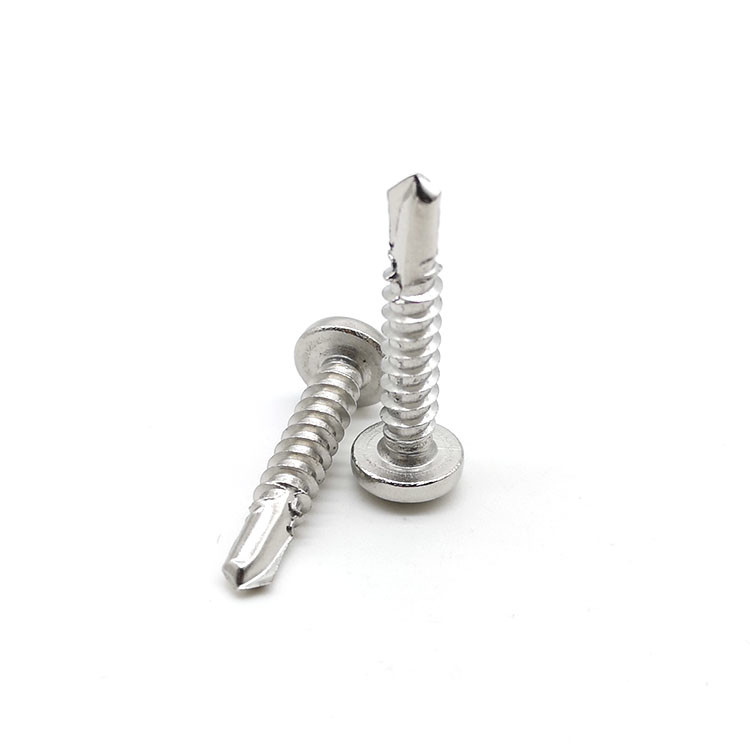

DIN 7504 N Pan Head Self Tapping Phillips Screws Stainless Steel 304

Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number DIN7504N
Minimum Order Quantity 100pcs
Price USD0.01-0.3/PC
Packaging Details Bulk into plastic bag and carton box,and then Pallet.
Delivery Time 3-10 work days
Payment Terms T/T
Supply Ability 500000PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Standard DIN7504N Grade A2-70
Material Stainless Steel 304 Finish Bright
Size ST2.9-ST6.3 Threading Drilling
Tapping Method Thread Forming Drive Phillips
Head Type Pan Head
High Light

din 7504 n pan head screw xianggu


self tapping phillips screws


self tapping phillips screws 304

Leave a Message
Product Description

18-8 Stainless Steel Phillips Rounded Head Drilling Screws for Metal


Product Description:


18-8 stainless steel screws have good chemical resistance and may be mildly magnetic. They save you time and effort by drilling their own holes and fastening in a single operation. They have a hardened steel drill point to penetrate steel. Length is measured from under the head.


Self drilling screws have a drill bit point. Pan heads are slightly rounded with short vertical sides. Phillips drive is x-shaped for installation with a phillips screw driver.

Material: Stainless Steel 304

Screw type: Phillips Pan Head Self Drilling screws;

Screw Size: Diameter ST2.2 to ST6.3,Screw Length 50mm

Ideal use for wood, metal or other tough materials.


Product Drawings:


Cross recessed pan head drilling screws with tapping screw threa
DIN 7504N
DIN 7504 N Pan Head Self Tapping Phillips Screws Stainless Steel 304 0
d(mm) P(mm) dk(mm) k(mm) Drive Size dp(mm)
min max min max max
ST2.2 0.8 3.7 4 1.4 1.6 0 2.3
ST2.9 1.1 5.3 5.6 2.15 2.4 1 2.8
ST3.5 1.3 6.64 7 2.35 2.6 2 3.1
ST4.2 1.4 7.64 8 2.8 3.1 3.6
ST4.8 1.6 9.14 9.5 3.4 3.7 4.1
ST5.5 1.8 10.57 11 3.7 4 3 4.8
ST6.3 1.8 11.57 12 4.3 4.6 5.8




Production Workshop:


DIN 7504 N Pan Head Self Tapping Phillips Screws Stainless Steel 304 1


DIN 7504 N Pan Head Self Tapping Phillips Screws Stainless Steel 304 2
