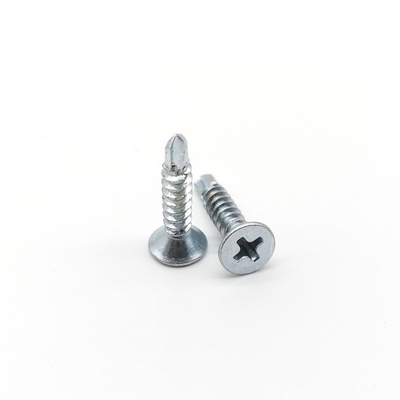

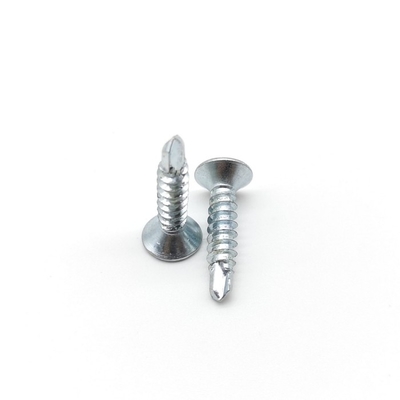

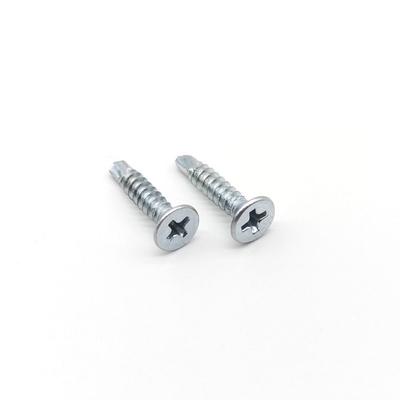

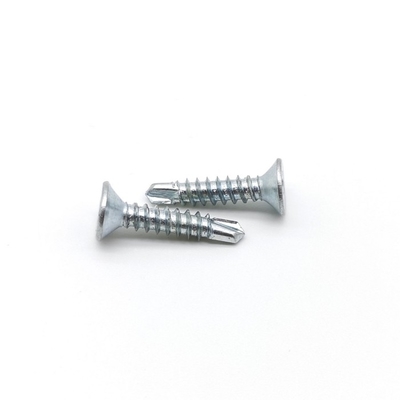

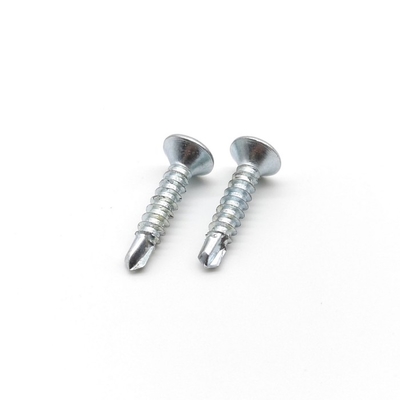

Phillips Zinc Coated Self Tapping Screws Self Drilling Screws Pan Head #2 Point Steel
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | DIN7504P |
| Minimum Order Quantity | 100pcs |
| Price | USD0.01-0.3/PC |
| Packaging Details | Bulk into plastic bag and carton box,and then Pallet. |
| Delivery Time | 3-10 work days |
| Payment Terms | T/T |
| Supply Ability | 500000PCS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | DIN7504P | Grade | Case Hardened |
|---|---|---|---|
| Material | 1022 | Finish | Blue White Zinc |
| Size | ST2.9-ST6.3 | Threading | Drilling |
| Tapping Method | Thread Forming | Drive | Phillips |
| Head Type | Countersunk Head | ||
| High Light | Zinc Plated Self Tapping Screws xianggu,Phillips Self Tapping Screws,Self Drilling Screws Pan Head xianggu |
||
Product Description
Steel Flat Head Drilling Screws for Metal
Product Description:
These steel screws save you time and effort by drilling their own holes and fastening in a single operation. All are beveled under the head for use in countersunk holes. Length is measured from the top of the head.
Black-oxide steel screws are mildly corrosion resistant in dry environments.
Zinc-plated steel screws resist corrosion in wet environments.
Product Features:
The point on a self-drilling screw is designed to efficiently remove material and precisely size the hole for the thread.The length of the drill flute determines the metal thickness that can be drilled.
Due to their need to drill and tap into various materials,the standard self-drilling screw is a case hardened heat treated carbon steel.
Integrated Drill Point and Tapping threads offer quick transition from drilling to tapping with a lower installation torque.
Product Drawings:
| Cross recessed countersunk head drilling screws with tapping screw thread | ||||||
| DIN 7504P-1982 | ||||||
 |
||||||
| d(mm) | P(mm) | dk(mm) | k(mm) | dp(mm) | slot number | |
| min | max | max | max | |||
| ST2.2 | 0.8 | 3.5 | 3.8 | 1.1 | 2.3 | 0 |
| ST2.9 | 1.1 | 5.2 | 5.5 | 1.7 | 2.8 | 1 |
| ST3.5 | 1.3 | 6.9 | 7.3 | 2.35 | 3.1 | 2 |
| ST4.2 | 1.4 | 8 | 8.4 | 2.6 | 3.6 | |
| ST4.8 | 1.6 | 8.9 | 9.3 | 2.8 | 4.1 | |
| ST5.5 | 1.8 | 9.9 | 10.3 | 3 | 4.8 | 3 |
| ST6.3 | 1.8 | 10.9 | 11.3 | 3.15 | 5.8 | |
Production Workshop:
Packing:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
