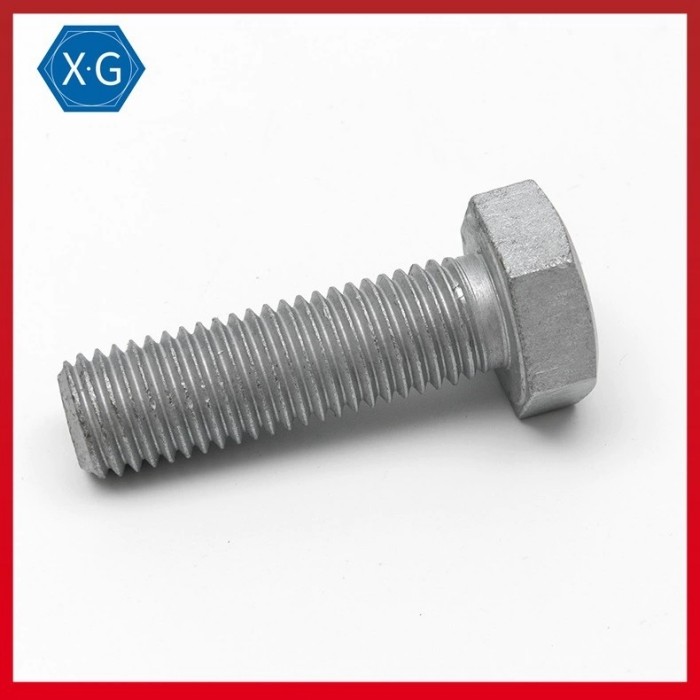

Structural High Strength Bolts HDG Heavy Hex Cap Screw Coarse 2A

  • Structural High Strength Bolts HDG Heavy Hex Cap Screw Coarse 2A
  • Structural High Strength Bolts HDG Heavy Hex Cap Screw Coarse 2A
  • Structural High Strength Bolts HDG Heavy Hex Cap Screw Coarse 2A
  • Structural High Strength Bolts HDG Heavy Hex Cap Screw Coarse 2A
  • Structural High Strength Bolts HDG Heavy Hex Cap Screw Coarse 2A
Place of Origin China
Brand Name XGFH
Certification ISO9001,3.1CERT.
Model Number ASTM A325
Minimum Order Quantity 100PCS
Price USD0.05-5/PC
Packaging Details Bulk into plastic bag and carton box,and then Pallet.
Delivery Time 5-20work days
Payment Terms T/T, L/C
Supply Ability 100000PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Specification ASTM A325 TYPE1 Size ASME/ANSI B18.2.6
Class Type 1 Finish Hot Dip Galvanized
Size System Inch Thread Tolerance Coarse 2A

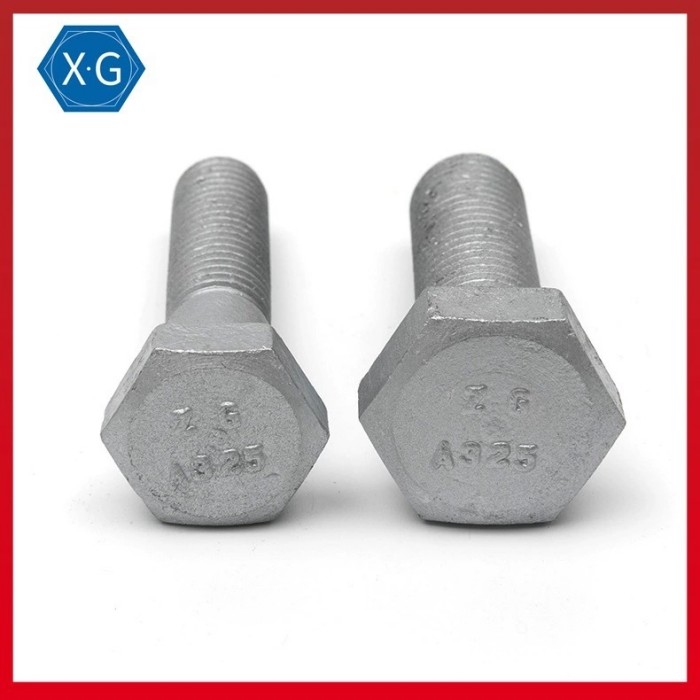

HDG Thickness ≥55μ Head Marking XG-A325
Head Type Hex Head Thread Direction Right Hand
High Light

Structural High Strength Bolts xianggu

,

HDG Heavy Hex Cap Screw xianggu

,

Heavy Hex Cap Screw Coarse 2A
Leave a Message
Product Description

Medium-Strength Steel Heavy Hex Head Screws for Structural Applications



The most common heavy hex head screw, these steel screws meet ASTM A325 regulations for structural joints, such as mating I-beams and scaffolding. Material meets ASTM F3125 specifications for quality. Dimensions meet ASME B18.2.6 specifications. Length is measured from under the head.

Usually fit with ASTM A194 2H Nut and F436 Washer.

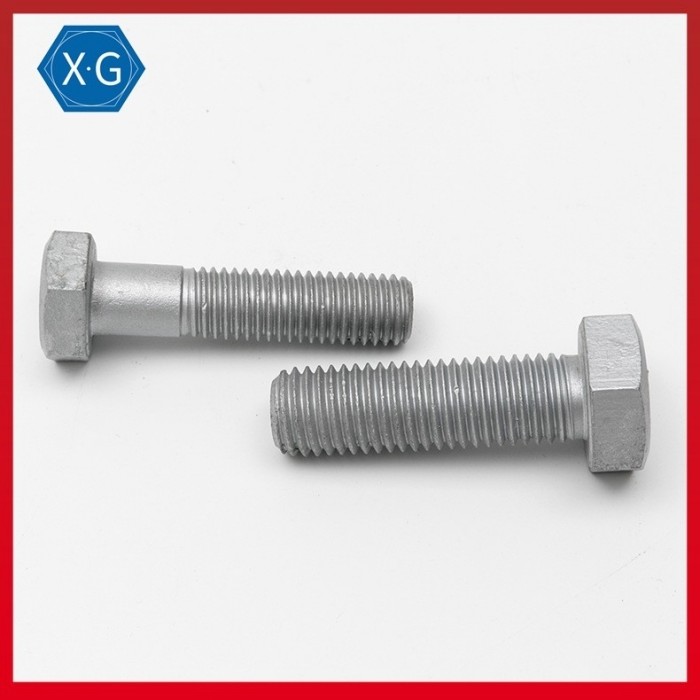

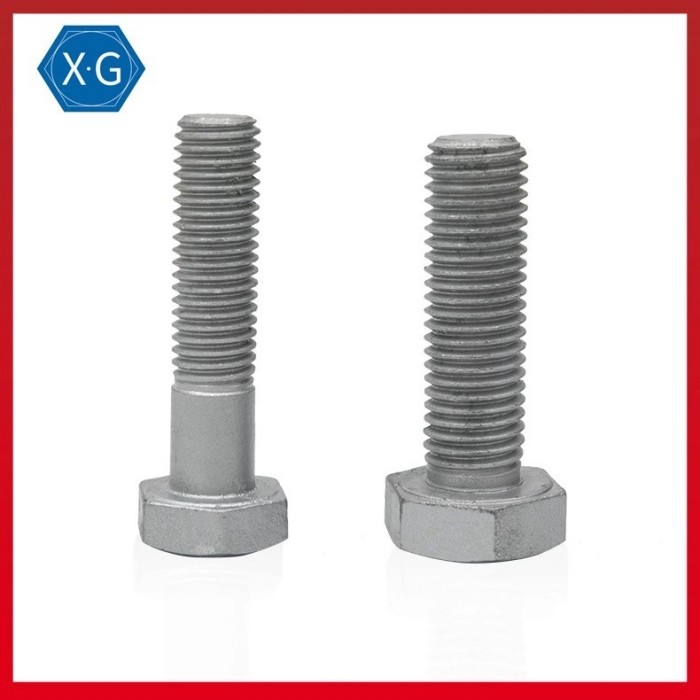

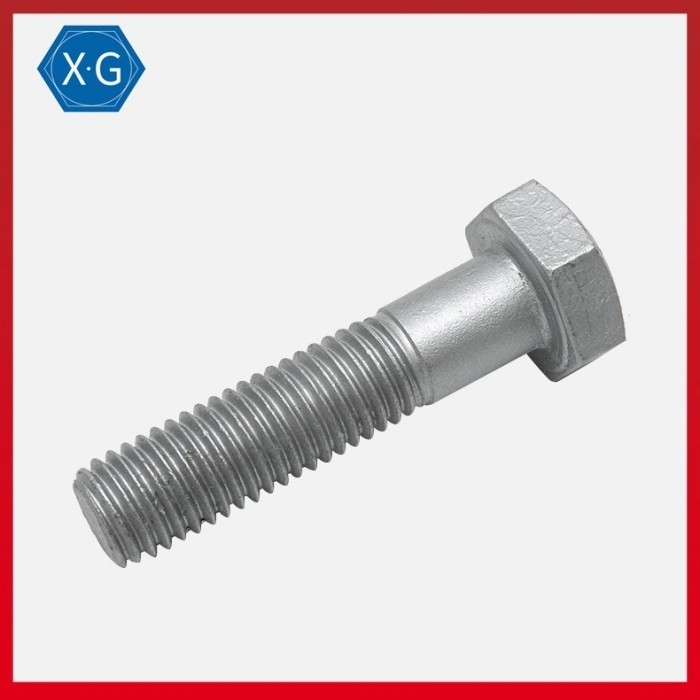

Partially threaded screws come with precise threaded and unthreaded portions, allowing you to place only the stronger unthreaded portion (grip) in joints subjected to sideways forces.

Hot-dipped galvanized screws have a thick coating for excellent corrosion resistance. To ensure compatibility, use these screws with hot-dipped galvanized steel nuts.





Heavy hex structural bolts
ASTM A325/ A490 ASME/ANSI B18.2.6-2011
Structural High Strength Bolts HDG Heavy Hex Cap Screw Coarse 2A 0
d(inch) 1/2 5/8 3/4 7/8 1 1-1/8 1-1/4 1-3/8 1-1/2
P(inch) 13 11 10 9 8 7 7 6 6
ds(inch) min 0.482 0.605 0.729 0.852 0.976 1.098 1.223 1.345 1.47
max 0.515 0.642 0.768 0.895 1.022 1.149 1.277 1.404 1.531
s(inch) Nom 7/8 1-1/16 1-1/4 1-7/16 1-5/8 1-13/16 2 2-3/16 2-3/8
min 0.85 1.031 1.212 1.394 1.575 1.756 1.938 2.119 2.3
max 0.875 1.062 1.25 1.438 1.625 1.812 2 2.188 2.375
e(inch) min 0.969 1.175 1.383 1.589 1.796 2.002 2.209 2.416 2.622
max 1.01 1.227 1.443 1.66 1.876 2.093 2.309 2.526 2.742
k(inch) Nom 5/16 25/64 15/32 35/64 39/64 11/16 25/32 17/32 15/16
min 0.302 0.378 0.455 0.531 0.591 0.658 0.749 0.81 0.902
max 0.323 0.403 0.483 0.563 0.627 0.718 0.813 0.878 0.974
b(inch) Ref. 1 1.25 1.38 1.5 1.75 2 2 2.25 2.25



Structural High Strength Bolts HDG Heavy Hex Cap Screw Coarse 2A 1

Structural High Strength Bolts HDG Heavy Hex Cap Screw Coarse 2A 2
