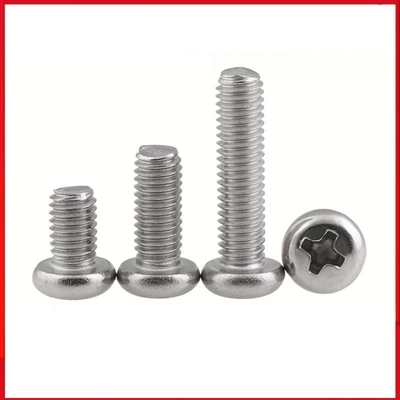

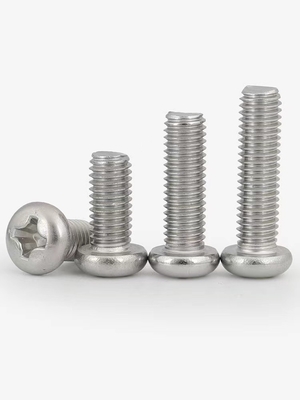

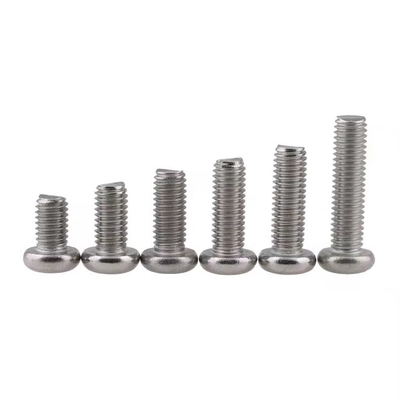

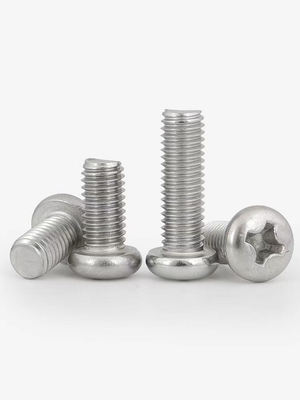

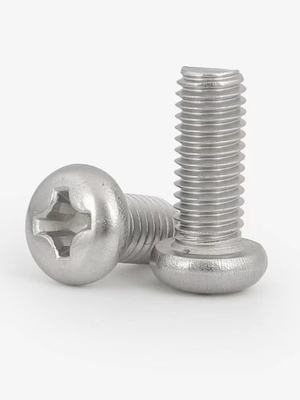

ASME B18.6.3P Stainless Steel Machine Screws Phillips Drive Pan Head 18-8

  • ASME B18.6.3P Stainless Steel Machine Screws Phillips Drive Pan Head 18-8
  • ASME B18.6.3P Stainless Steel Machine Screws Phillips Drive Pan Head 18-8
  • ASME B18.6.3P Stainless Steel Machine Screws Phillips Drive Pan Head 18-8
  • ASME B18.6.3P Stainless Steel Machine Screws Phillips Drive Pan Head 18-8
  • ASME B18.6.3P Stainless Steel Machine Screws Phillips Drive Pan Head 18-8
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ASME B18.6.3P
Minimum Order Quantity 10000pcs
Price 0.01-0.2usd/pc
Packaging Details 20-25KG/Carton box and then pallet.
Delivery Time 3-10 work days
Payment Terms T/T, L/C
Supply Ability 500000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Phillips Drive Pan Head Machine Screw Standard ASME B18.6.3P
Material Stainless Steel 304 Grade 18-8
Finish Bright And Clean Thread Coarse
Threading Fully Threaded System Of Measurement Inch
Thread Direction Right Thread Drive Style Phillips Drive
Heat Type Rounded Head
High Light

Phillips drive pan head machine screw

,

ASME B18.6.3P Steel Machine Screws

,

18-8 Stainless Steel Machine Screws
Leave a Message
Product Description

Product Description:





Stainless Steel Machine Screws



18-8 stainless steel pan head screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head. For partially threaded screws thread length may vary from the minimum thread length published to fully threaded.

Passivated stainless steel screws provide added protection against oxidation and corrosion.



Products name 18-8 Stainless Steel Machine Screw
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L
Steel Grade: Class 4,Class 8,Class 10 and Class 12
Finishing Black Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE
Related Products Hex nut,flat washer and spring washers.
Application

Machine screw are used to fasten machine components,appliances and more.

Screws are angled under the head to sit flush within countersunk holes.
Stock Products Machine screw in stock with Stainless Steel and Black Oxide,Zinc Plated,Yellow Zinc and HDG
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.





Drawing:



Combination Slotted-Cross Recessed Round Head Machine Screws
ANSI/ASME B18.6.3-2010 Table20
ASME B18.6.3P Stainless Steel Machine Screws Phillips Drive Pan Head 18-8 0
d(ich) dk(ich) k(ich) n(ich) t(ich)
min max min max min max min max
#2 0.155 0.167 0.053 0.062 0.023 0.031 0.02 0.031
#3 0.18 0.193 0.069 0.078 0.027 0.035 0.023 0.036
#4 0.205 0.219 0.076 0.086 0.031 0.039 0.027 0.04
#5 0.231 0.245 0.085 0.095 0.035 0.043 0.03 0.045
#6 0.256 0.27 0.093 0.103 0.039 0.048 0.033 0.054
#8 0.306 0.322 0.11 0.12 0.045 0.054 0.041 0.058
#10 0.357 0.373 0.126 0.137 0.05 0.06 0.048 0.068
1/4 0.473 0.492 0.162 0.175 0.064 0.075 0.063 0.087
5/16 0.594 0.615 0.203 0.218 0.072 0.084 0.076 0.106
3/8 0.716 0.74 0.244 0.261 0.081 0.094 0.09 0.123


ASME B18.6.3P Stainless Steel Machine Screws Phillips Drive Pan Head 18-8 1ASME B18.6.3P Stainless Steel Machine Screws Phillips Drive Pan Head 18-8 2

ASME B18.6.3P Stainless Steel Machine Screws Phillips Drive Pan Head 18-8 3





FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time for this machine screw?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
