304 Stainless Steel Phillips Pan Head Machine Screw DIN 7985 Thread Glue Lock
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Phillips Drive Pan Head Machine Screw | Standard | DIN7985 |
---|---|---|---|
Material | Stainless Steel 304 | Grade | A2-70 |
Finish | Passivate | Thread | Coarse |
Threading | Fully Threaded | System Of Measurement | Metric |
Thread Direction | Right Thread | Drive Style | Phillips Drive, Type H |
High Light | stainless steel phillips pan head machine screw,DIN 7985 Screw,m5 stainless steel machine screws |
Product Description:

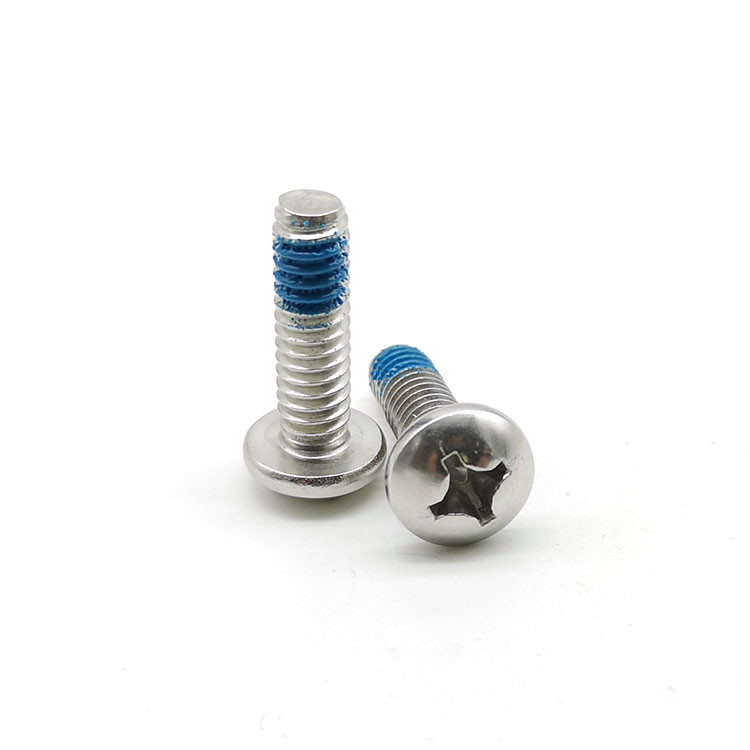

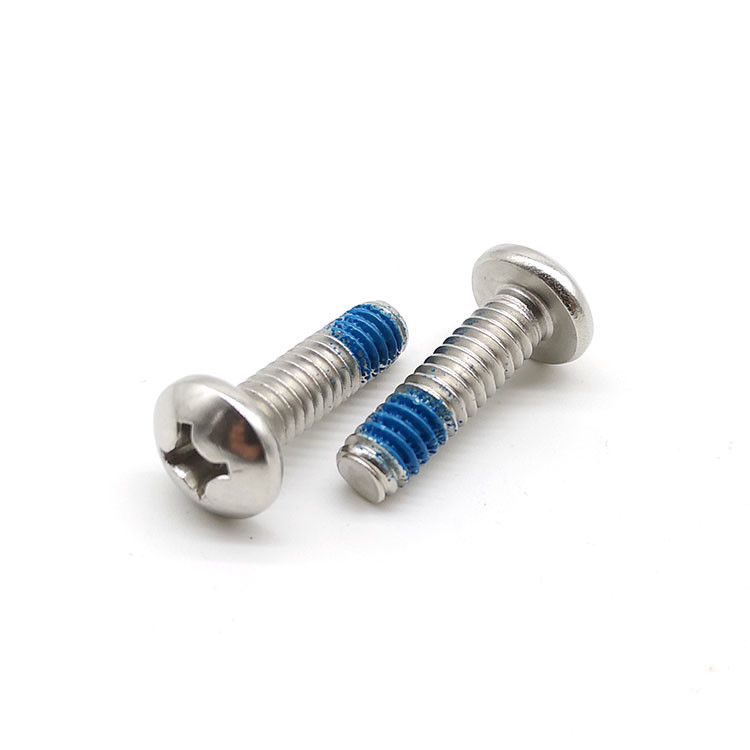

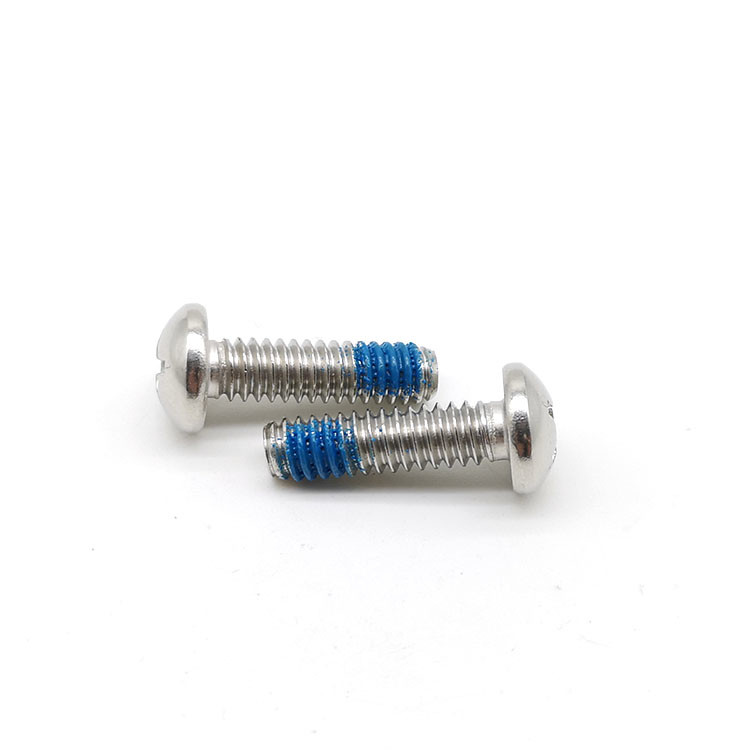

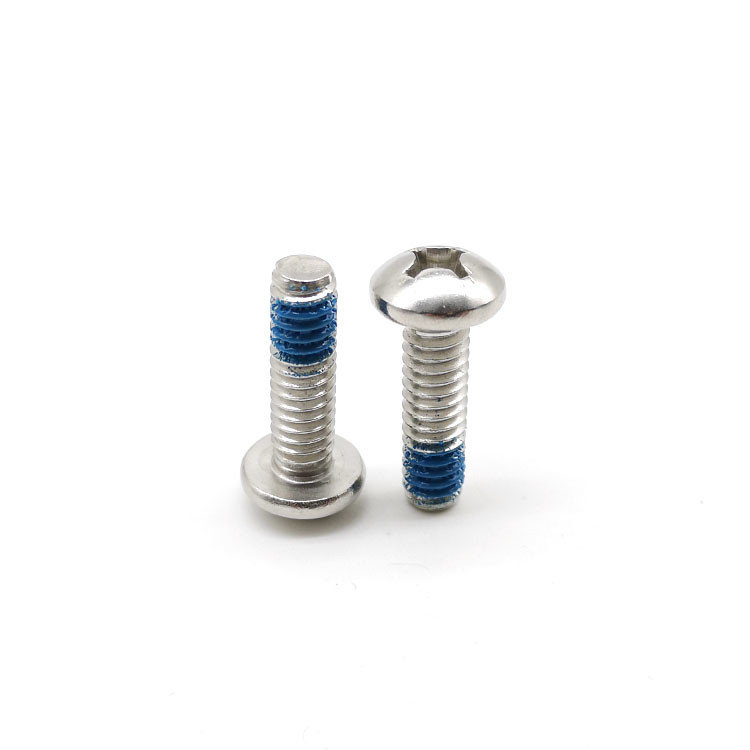

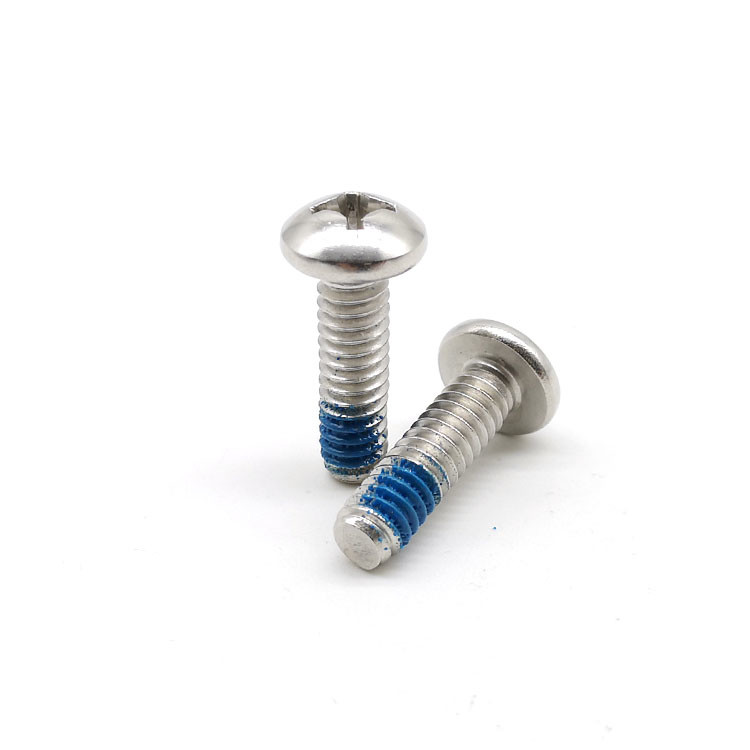

DIN7985 Stainless Steel 304 Thread Glue Lock Pan Head Phillips Drive Screw
DIN7985 Stainless Steel 304 Thread Glue Lock Pan Head Phillips Drive Screw Made In China.
Machine Screws have a uniform diameter the entire length of the shaft as opposed to tapered screws which have a pointed tip.
We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.
Machine Screws can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.
Please state this requirement in your inquiry.
Products name | DIN7985 Stainless Steel 304 Thread Glue Lock Pan Head Phillips Drive Screw |
Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
Material | Carbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L |
Steel Grade: Class 4,Class 8,Class 10 and Class 12 | |
Finishing | Black Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE |
Related Products | Hex nut,flat washer and spring washers. |
Application | Machine screw are used to fasten machine components,appliances and more. |
Stock Products | Machine screw in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG |
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
Focus On Supplying High Quality Fasteners. |
Drawing:
Cross recessed raised cheese head screws | ||||||||||
DIN 7985-1990 | ||||||||||
d(mm) | P(mm) | dk(mm) | k(mm) | b(mm) | M | M1 | Drive Size | |||
min | max | Nom | min | max | min | |||||
M1.6 | 0.35 | 2.9 | 3.2 | 1.3 | 1.18 | 1.42 | 15 | 1.8 | 1.8 | O |
M2 | 0.4 | 3.7 | 4 | 1.6 | 1.48 | 1.72 | 16 | 2.5 | 2.4 | 1 |
M2.5 | 0.45 | 4.7 | 5 | 2 | 1.88 | 2.12 | 18 | 2.7 | 2.6 | |
M3 | 0.5 | 5.7 | 6 | 2.4 | 2.28 | 2.52 | 19 | 3.1 | 3 | |
M3.5 | 0.6 | 6.64 | 7 | 2.7 | 2.58 | 2.82 | 20 | 4.2 | 4 | 2 |
M4 | 0.7 | 7.64 | 8 | 3.1 | 2.95 | 3.25 | 22 | 4.6 | 4.3 | |
M5 | 0.8 | 9.64 | 10 | 3.8 | 3.65 | 3.95 | 25 | 5.3 | 5 | |
M6 | 1 | 11.57 | 12 | 4.6 | 4.45 | 4.75 | 28 | 6.8 | 6.7 | 3 |
M8 | 1.25 | 15.57 | 16 | 6 | 5.85 | 6.15 | 34 | 9 | 8.8 | 4 |
M10 | 1.5 | 19.48 | 20 | 7.5 | 7.32 | 7.68 | 40 | 10.2 | 9.9 |
