304 Stainless Steel Machine Screws ISO2009 Slotted Flat Head Machine Screw

Product Description:

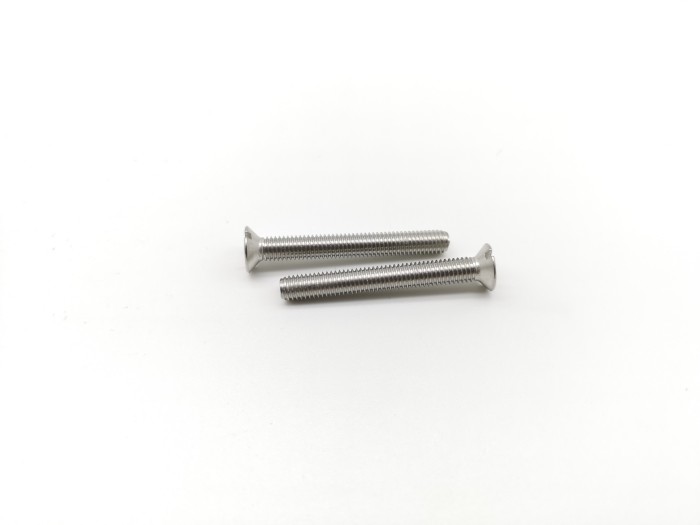

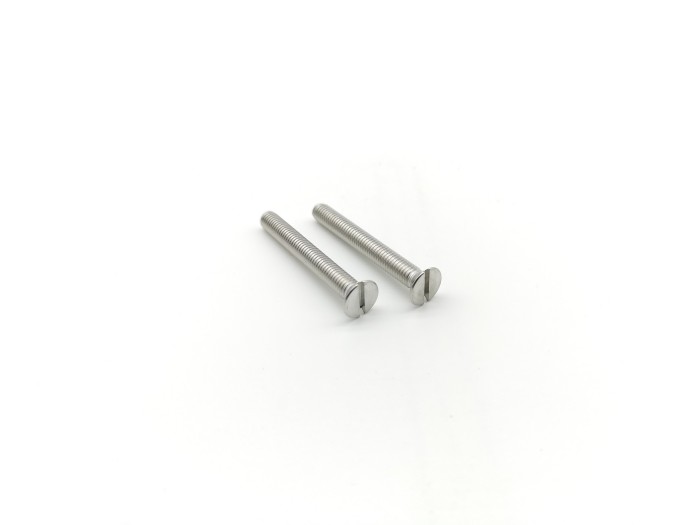

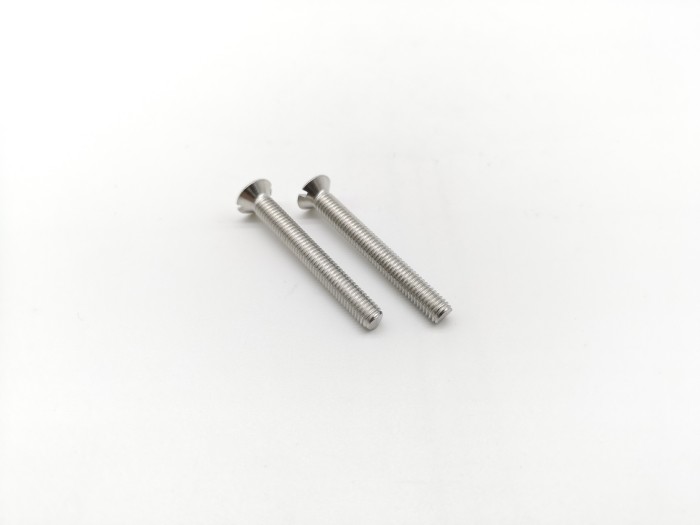

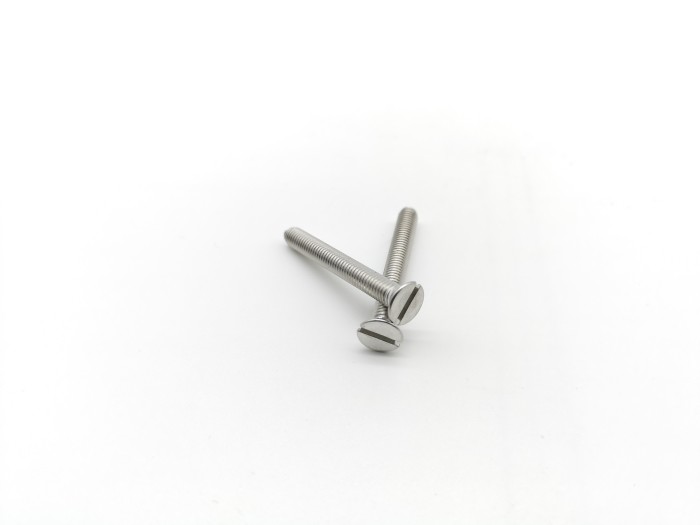

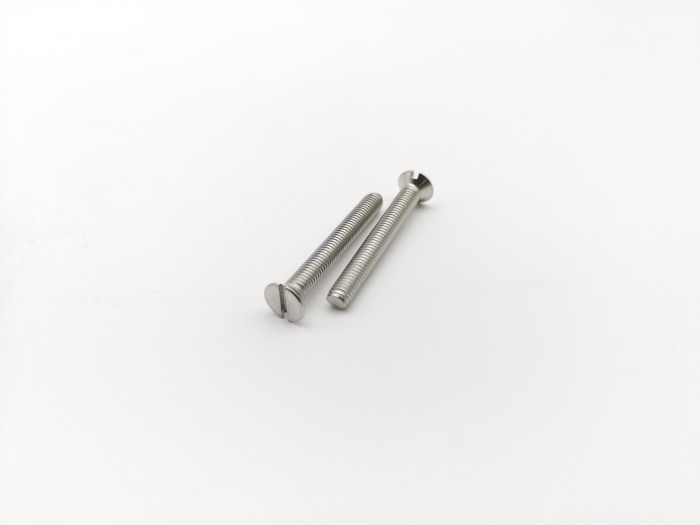

ISO2009 Slotted Drive Flat Head Grade 304 Stainless Steel Machine Screws

ISO2009 Slotted Drive Flat Head Grade 304 Stainless Steel Machine Screws Made In China.

Machine Screws have a uniform diameter the entire length of the shaft as opposed to tapered screws which have a pointed tip.

We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.

Machine Screws can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.

Please state this requirement in your inquiry.

Drawing:

Slotted countersunk head screws
DIN963 & ISO2009
d	P	b	dk		k	n			t
		min	min	max	max	Nom	min	max	min	max
M1.6	0.35	25	2.7	3	1	0.4	0.46	0.6	0.32	0.5
M2	0.4	25	3.5	3.8	1.2	0.5	0.56	0.7	0.4	0.6
M2.5	0.45	25	4.4	4.7	1.5	0.6	0.66	0.8	0.5	0.75
M3	0.5	25	5.2	5.5	1.65	0.8	0.86	1	0.6	0.85
M3.5	0.6	38	6.94	7.3	2.35	1	1.06	1.2	0.9	1.2
M4	0.7	38	8.04	8.4	2.7	1.2	1.26	1.51	1	1.3
M5	0.8	38	8.94	9.3	2.7	1.2	1.26	1.51	1.1	1.4
M6	1	38	10.87	11.3	3.3	1.6	1.66	1.91	1.2	1.6
M8	1.25	38	15.37	15.8	4.65	2	2.06	2.31	1.8	2.3
M10	1.6	38	17.78	18.3	5	2.5	2.56	2.81	2	2.6

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
