ISO14581 Countersunk Head Screws Alloy Steel Class 10.9 Zinc Plated Torx
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | ISO14581 |
| Minimum Order Quantity | 1000pcs |
| Price | 0.01-0.2usd/pc |
| Packaging Details | 20-25KG/Carton box and then pallet. |
| Delivery Time | 3-10 work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 500000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Slotted Cheese Head Machine Screw | Standard | ISO14581,GB2673.1 |
|---|---|---|---|
| Material | Alloy Steel 40Cr | Grade | Class 10.9 |
| Finish | Zinc Plated | Thread | Coarse |
| Threading | Fully Threaded | System Of Measurement | Metric |
| Thread Direction | Right Thread | Drive Style | Torx |
| High Light | ISO14581 Countersunk Head Screws,countersunk machine screw Class 10.9,csk head screw Class 10.9 |
||
Product Description
Product Description:

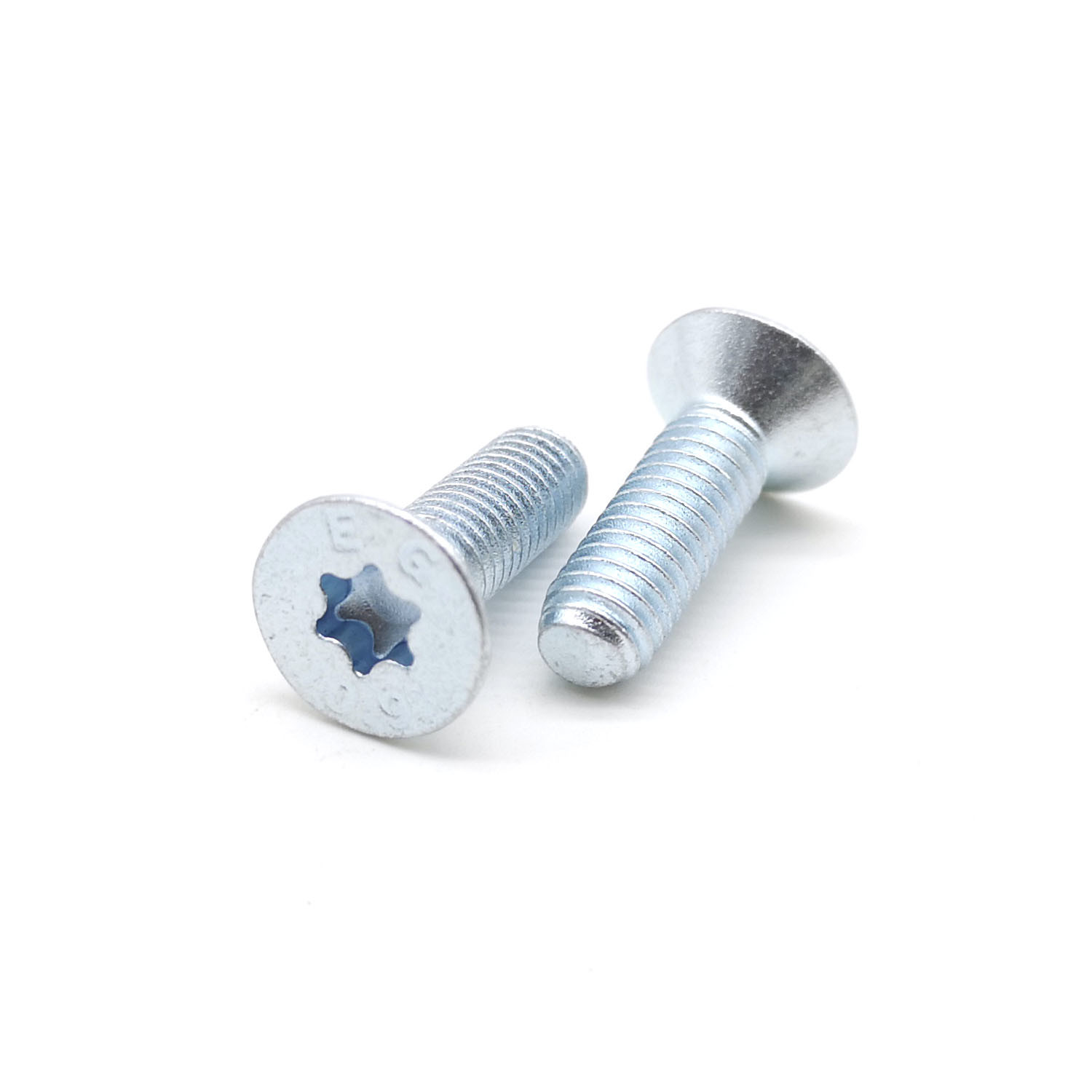

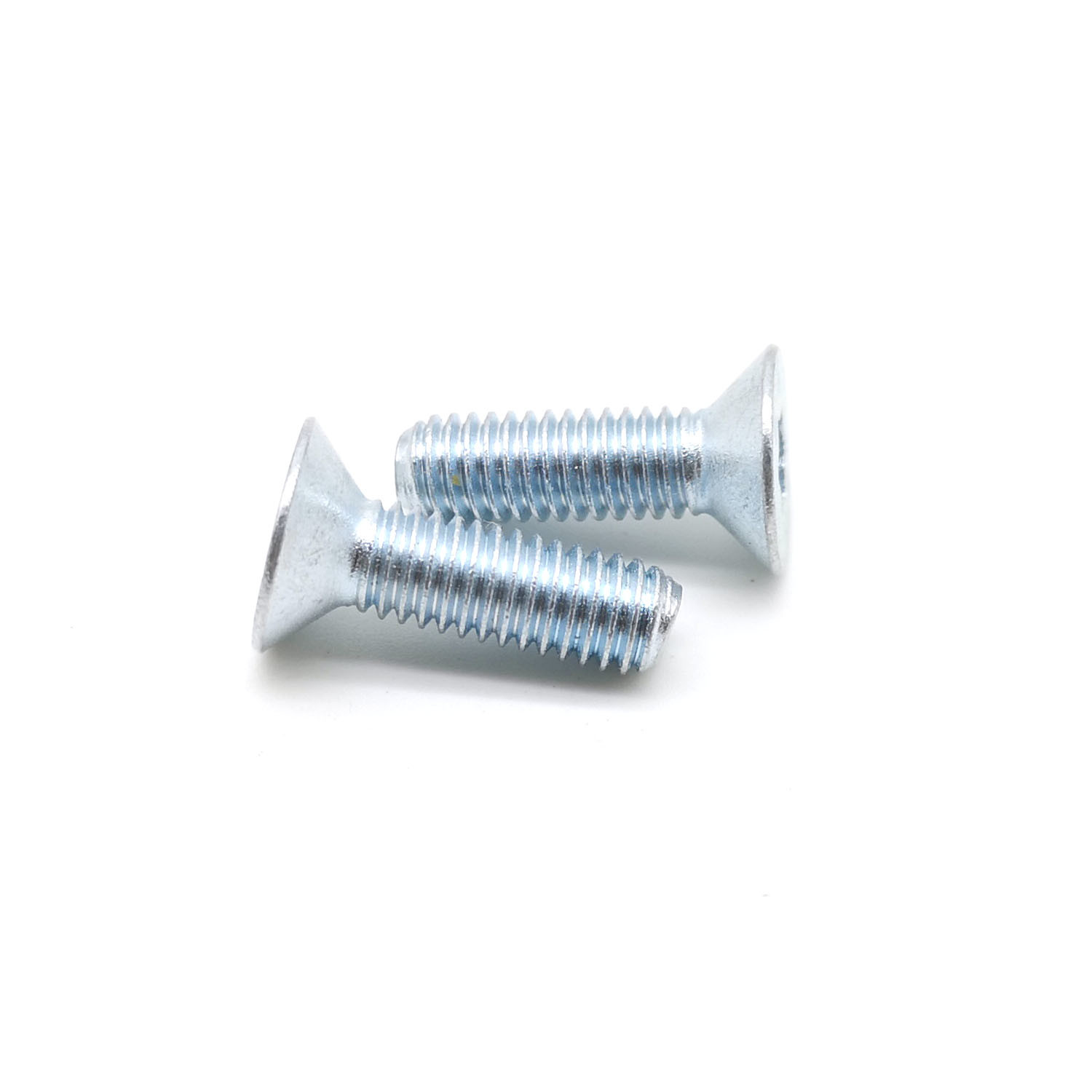

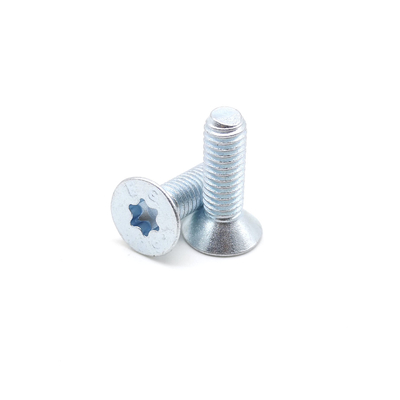

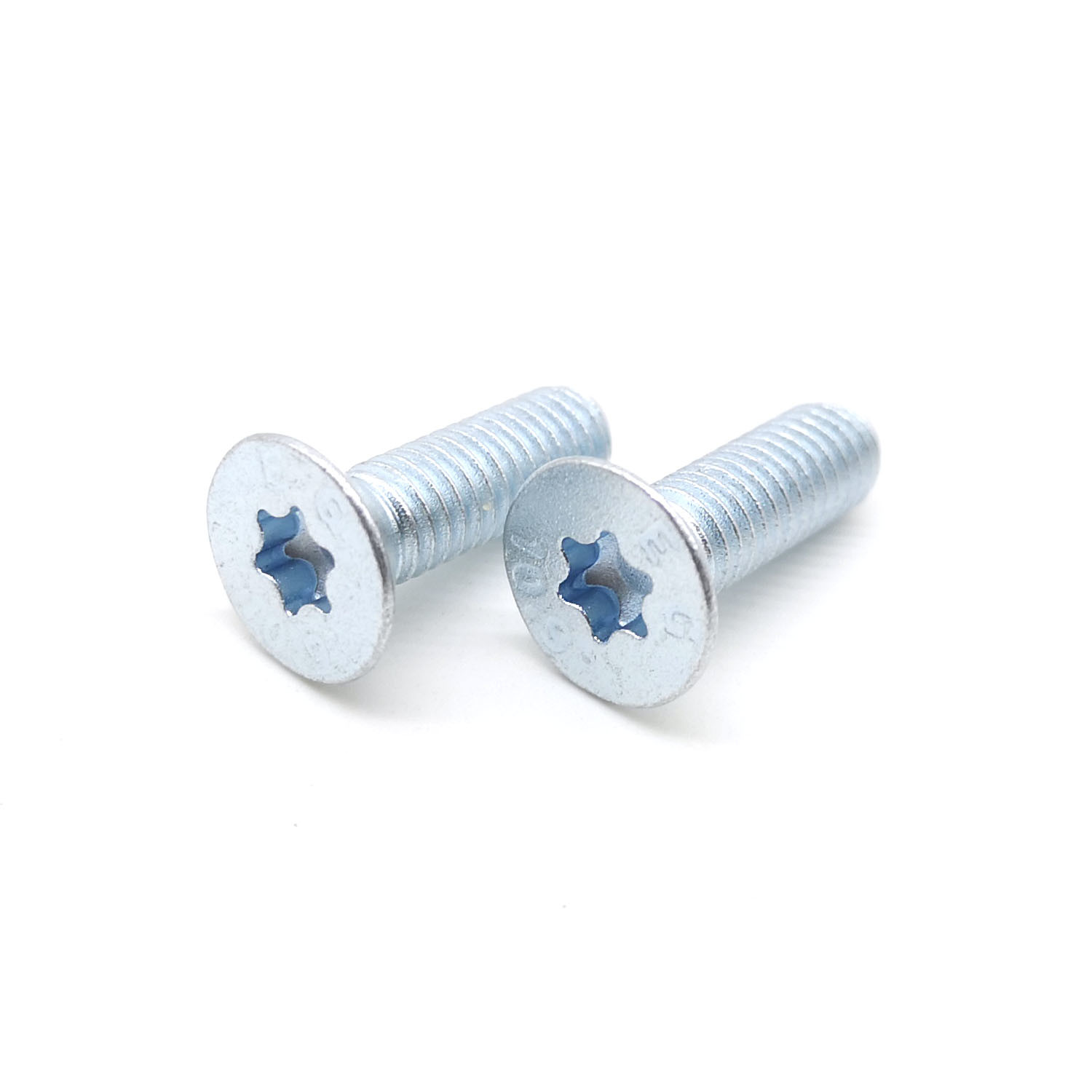

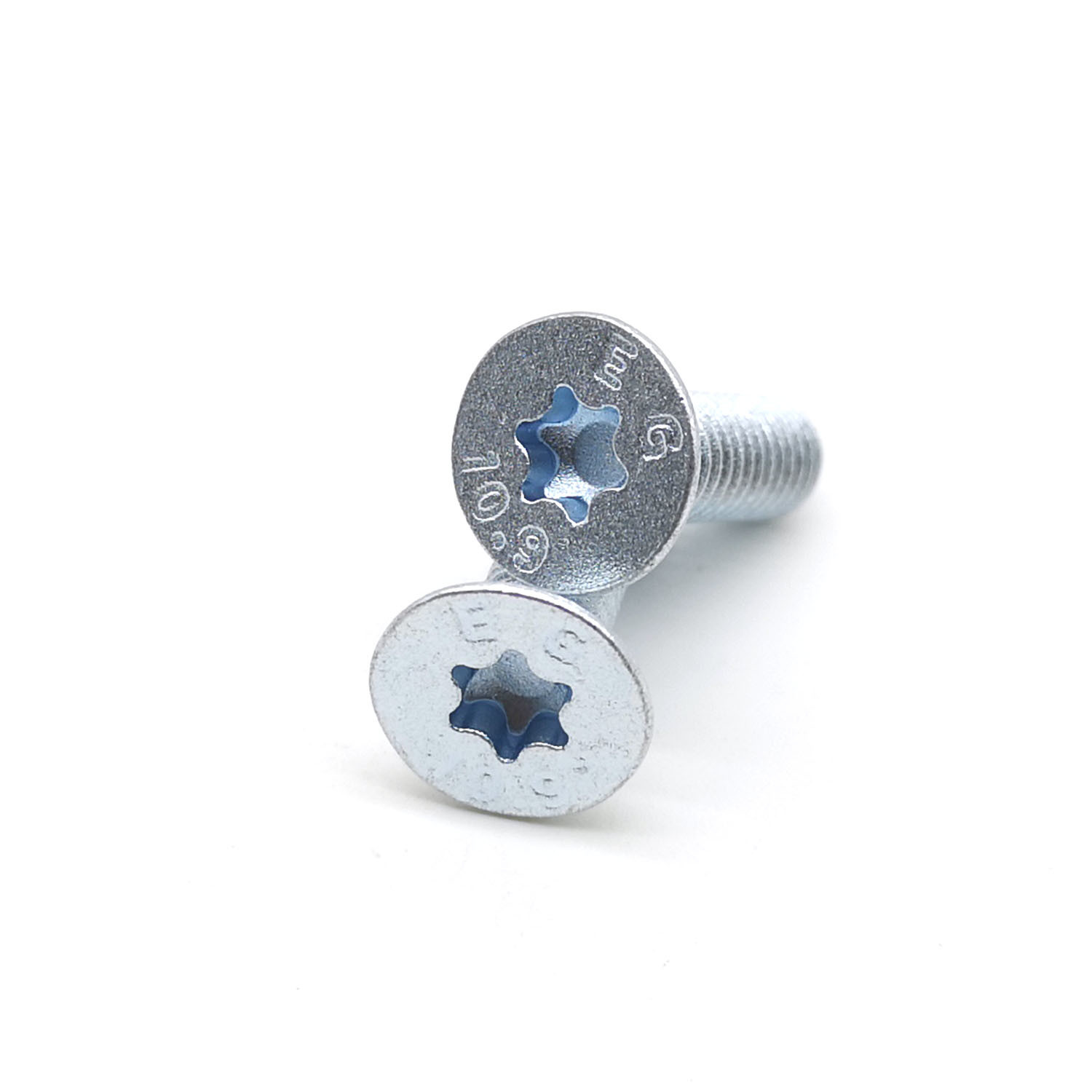

ISO14581 Alloy Steel Class 10.9 Zinc Plated Torx Countersunk Head Screws
ISO14581 Alloy Steel Class 10.9 Zinc Plated Torx Countersunk Head Screws Made In China.
Machine Screws have a uniform diameter the entire length of the shaft as opposed to tapered screws which have a pointed tip.
We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.
Machine Screws can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.
Please state this requirement in your inquiry.
| Products name | ISO14581 Alloy Steel Class 10.9 Zinc Plated Torx Countersunk Head Screws |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L |
| Steel Grade: Class 4,Class 8,Class 10 and Class 12 | |
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE |
| Related Products | Hex nut,flat washer and spring washers. |
| Application | Machine screw are used to fasten machine components,appliances and more. |
| Stock Products | Machine screw in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |
Drawing:
| Hexalobular Lobular Socket Countersunk Head Screws | ||||||||
| ISO 14581 & GB/T 2673-2007 | ||||||||
 | ||||||||
| d(mm) | P(mm) | b(mm) | dk(mm) | k(mm) | t(mm) | 槽号 | ||
| min | min | max | max | min | max | |||
| M6 | 1 | 38 | 10.9 | 11.3 | 3.3 | 1.4 | 1.8 | T30 |
| M8 | 1.25 | 15.4 | 15.8 | 4.65 | 2.1 | 2.5 | T40 | |
| M10 | 1.5 | 17.8 | 18.3 | 5 | 2.3 | 2.7 | T50 | |
| M12 | 1.75 | 48 | 21.5 | 22 | 6 | 3.02 | 3.5 | T55 |
| M14 | 2 | 25 | 25.5 | 7 | 3.22 | 3.7 | ||
| M16 | 2 | 28.5 | 29 | 8 | 3.62 | 4.1 | T60 | |
| M20 | 2.5 | 35.4 | 36 | 10 | 5.42 | 6 | T80 | |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
