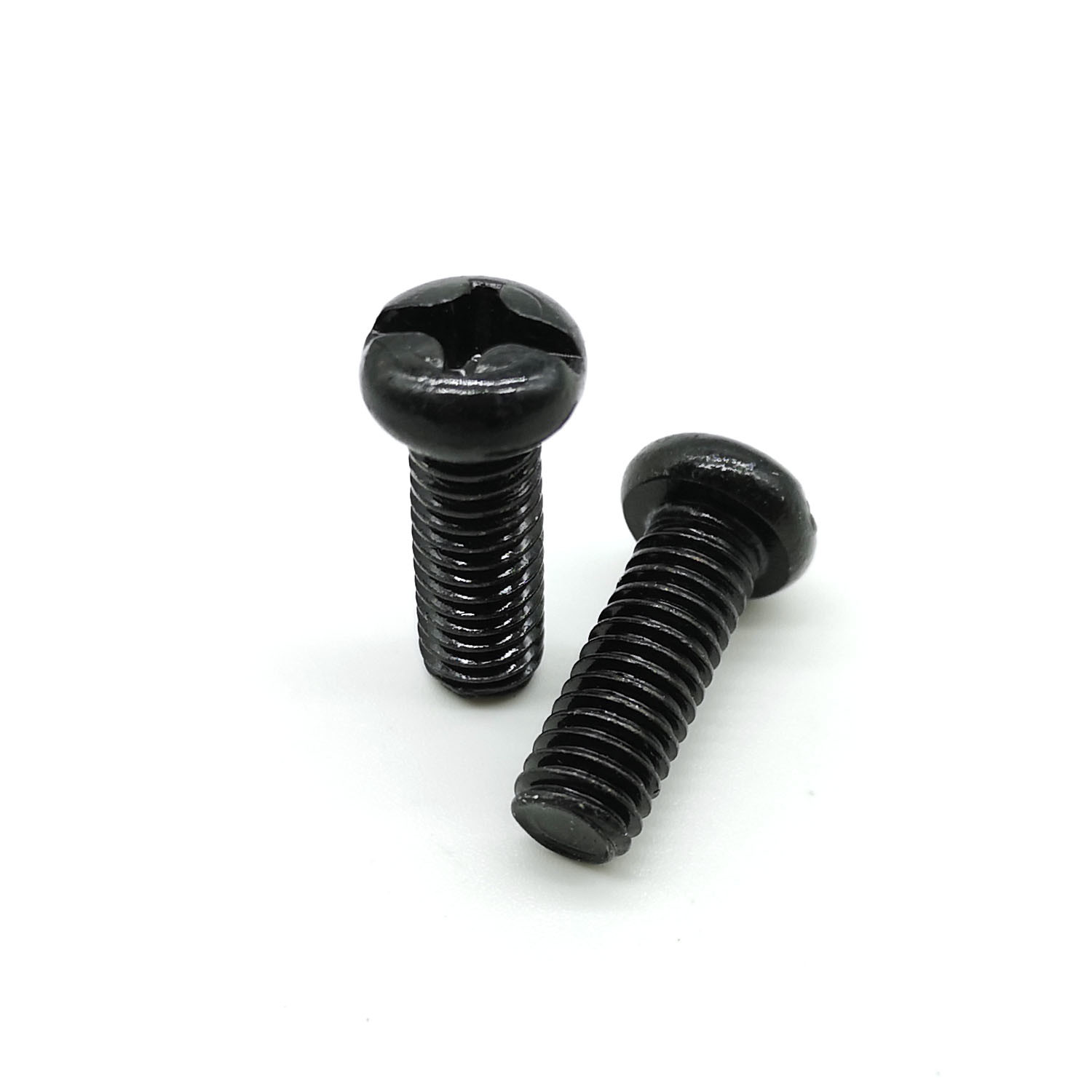

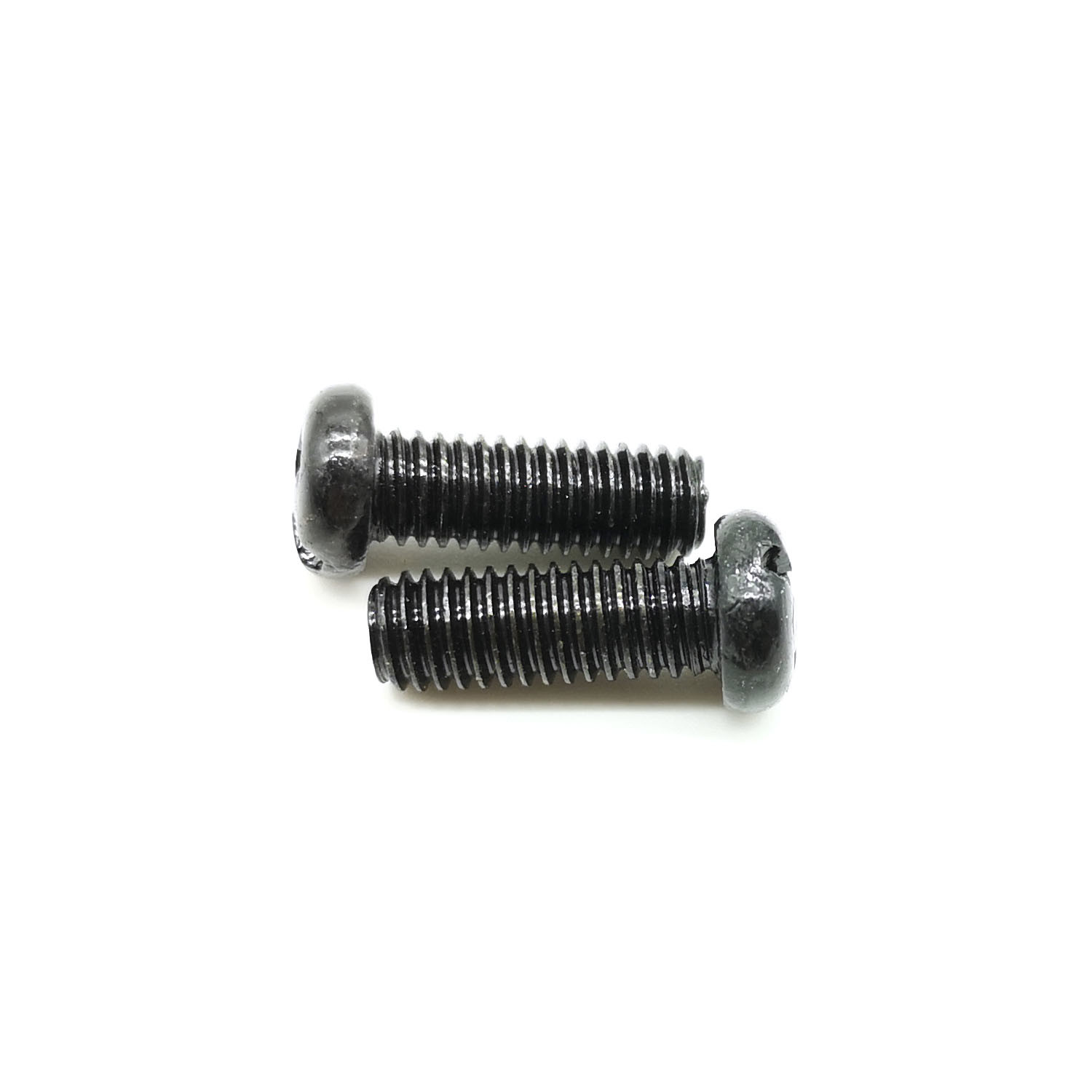

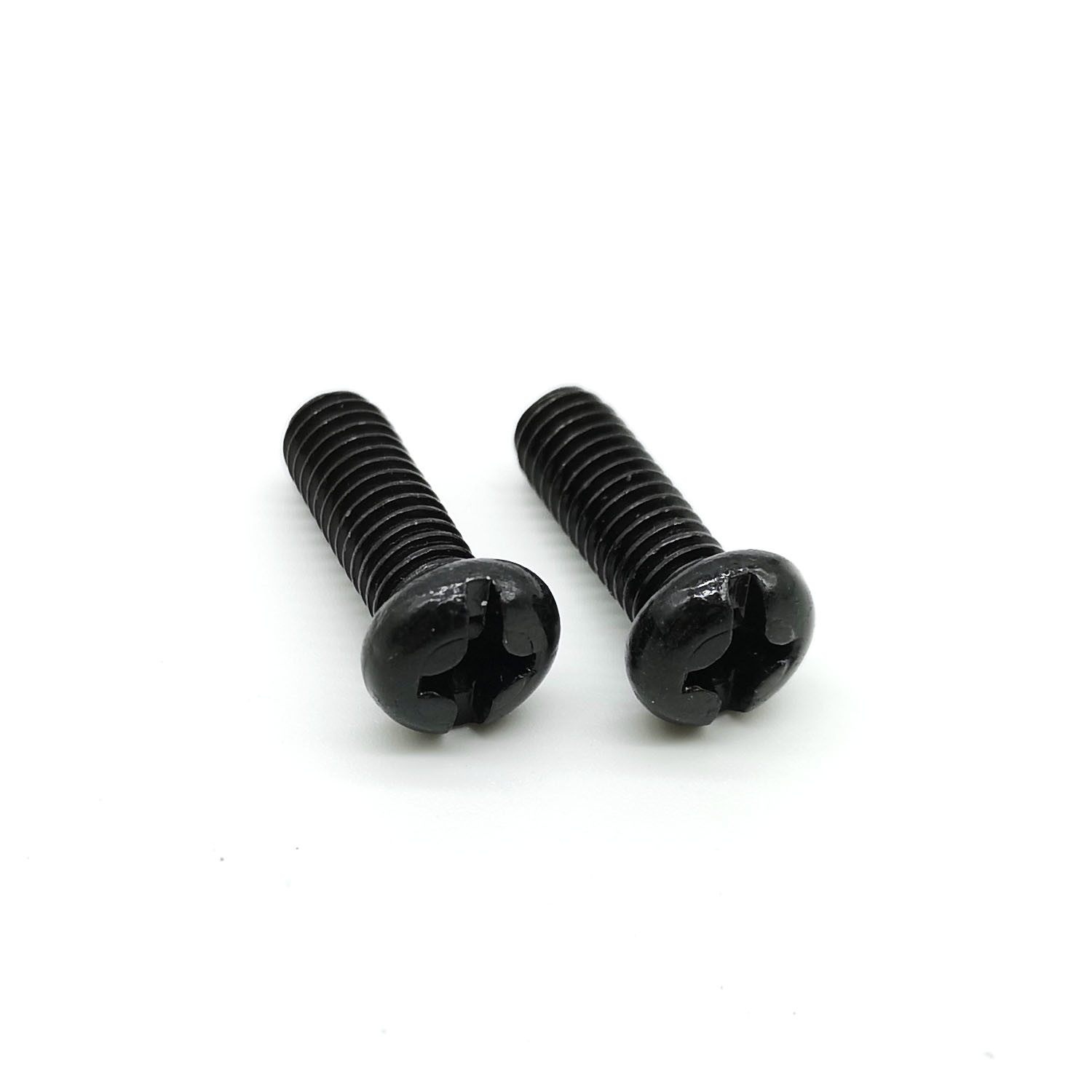

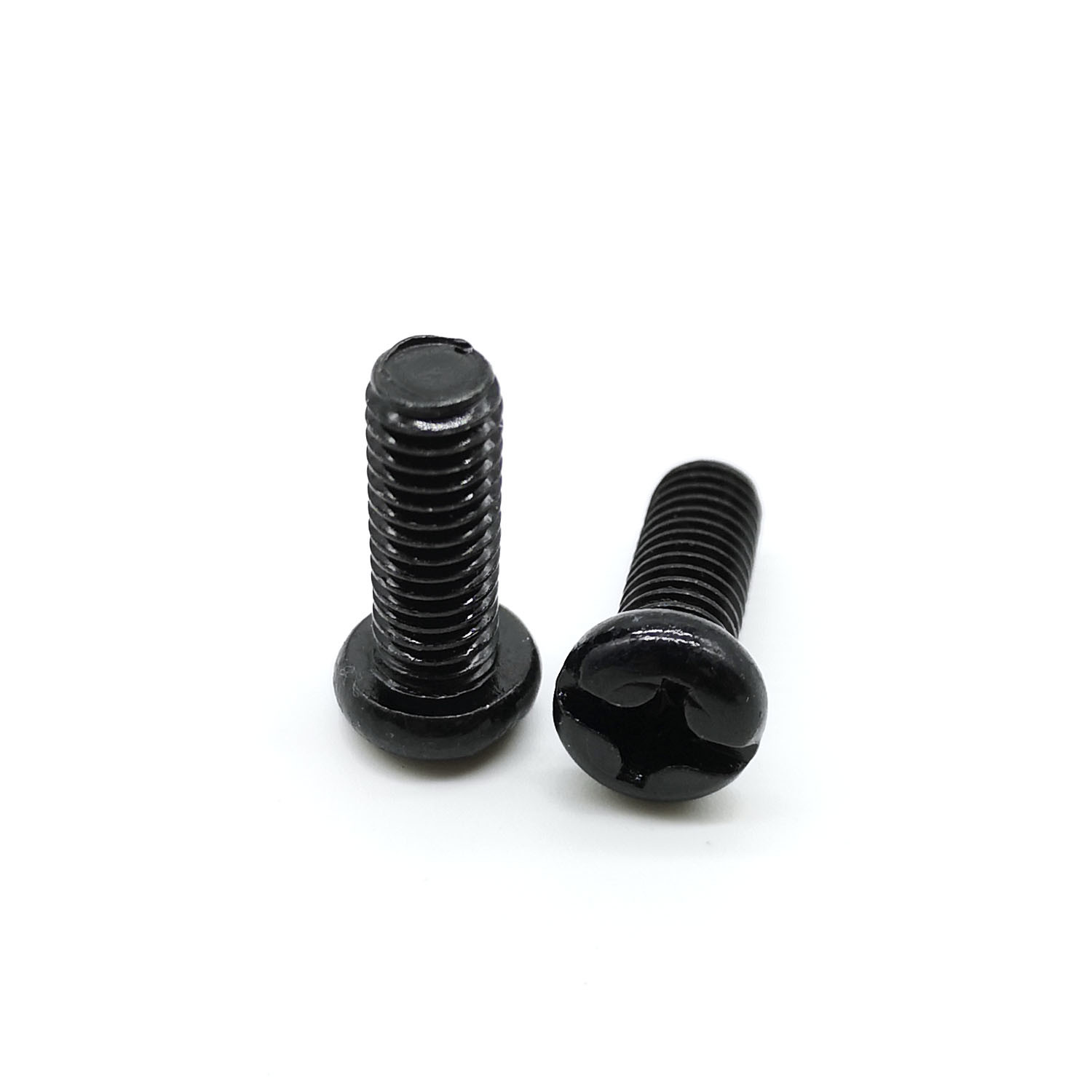

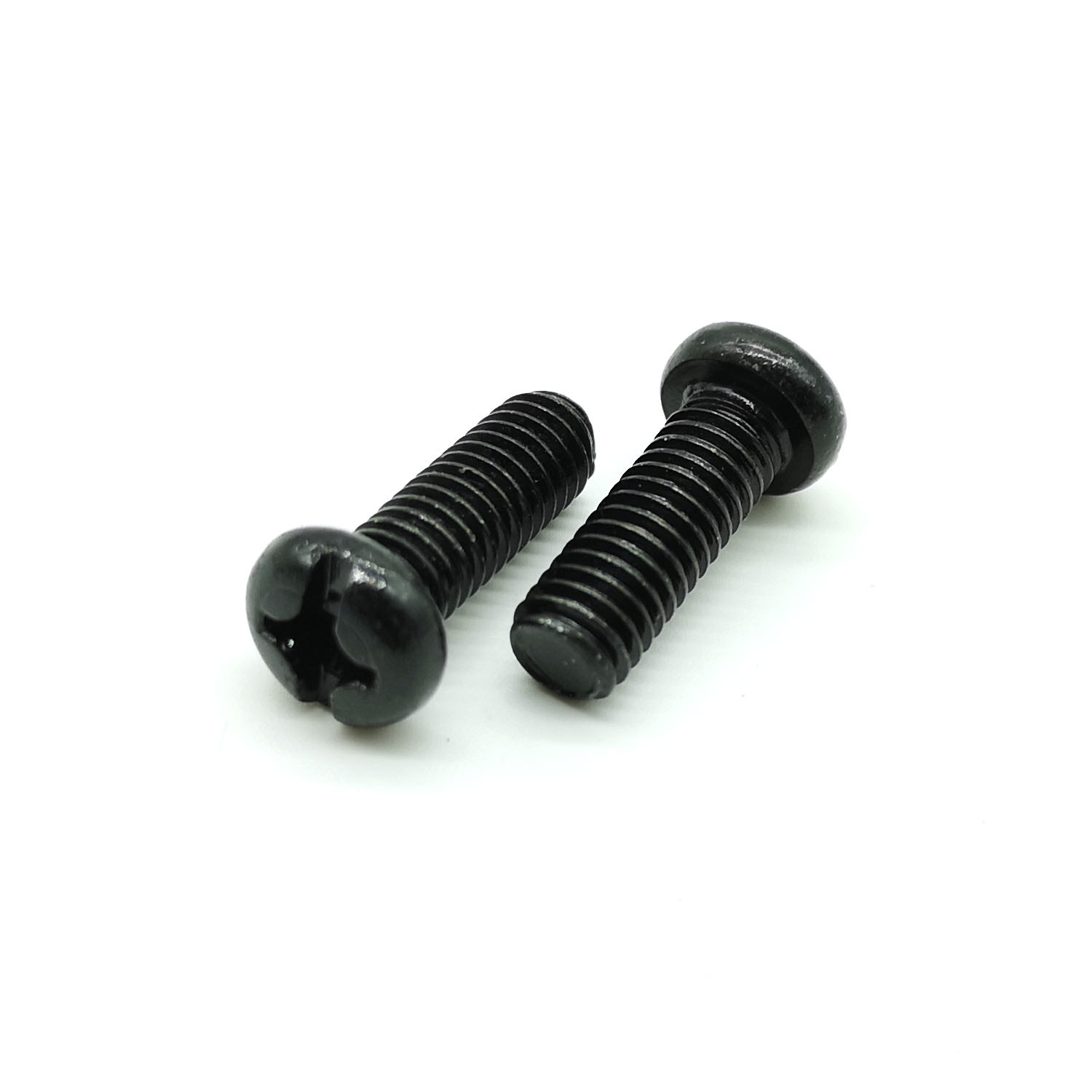

Black Zinc Steel 4mm Slotted Round Head Machine Screws Phillips Combo Drive

  • Black Zinc Steel 4mm Slotted Round Head Machine Screws Phillips Combo Drive
  • Black Zinc Steel 4mm Slotted Round Head Machine Screws Phillips Combo Drive
  • Black Zinc Steel 4mm Slotted Round Head Machine Screws Phillips Combo Drive
  • Black Zinc Steel 4mm Slotted Round Head Machine Screws Phillips Combo Drive
  • Black Zinc Steel 4mm Slotted Round Head Machine Screws Phillips Combo Drive
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ASME B18.6.3 Table 20
Minimum Order Quantity 100pcs
Price 0.01-0.2usd/pc
Packaging Details 20-25KG/Carton box and then pallet.
Delivery Time 3-10 work days
Payment Terms T/T, L/C
Supply Ability 500000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Phillips Clotted Round Head Machine Screw Standard ASME B18.6.3 Table 20
Material Mild Carbon Steel Grade Class 4.8
Finish Black Zinc Plated Thread Coarse
Threading Full Threaded System Of Measurement Imperial,Inch
Thread Direction Right Thread Drive Style Phillips Slotted Combo
High Light

slotted round head machine screws

,

4mm stainless steel machine screws

,

black stainless steel machine screws
Leave a Message
Product Description

Product Description:





Black Zinc Steel Phillips Slotted Combo Drive Round Head Machine Screw



Black Zinc Steel Phillips Slotted Combo Drive Round Head Machine Screw Made In China.

Machine Screws have a uniform diameter the entire length of the shaft as opposed to tapered screws which have a pointed tip.

We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.

Machine Screws can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.

Please state this requirement in your inquiry.



Products name Black Zinc Steel Phillips Slotted Combo Drive Round Head Machine Screw
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L
Steel Grade: Class 4,Class 8,Class 10 and Class 12
Finishing Black Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE
Related Products Hex nut,flat washer and spring washers.
Application Machine screw are used to fasten machine components,appliances and more.
Stock Products Machine screw in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.



Drawing:



Combination Slotted-Cross Recessed Round Head Machine Screws
ANSI/ASME B18.6.3-2010 Table20
Black Zinc Steel 4mm Slotted Round Head Machine Screws Phillips Combo Drive 0
d(ich) dk(ich) k(ich) n(ich) t(ich)
min max min max min max min max
#2 0.155 0.167 0.053 0.062 0.023 0.031 0.02 0.031
#3 0.18 0.193 0.069 0.078 0.027 0.035 0.023 0.036
#4 0.205 0.219 0.076 0.086 0.031 0.039 0.027 0.04
#5 0.231 0.245 0.085 0.095 0.035 0.043 0.03 0.045
#6 0.256 0.27 0.093 0.103 0.039 0.048 0.033 0.054
#8 0.306 0.322 0.11 0.12 0.045 0.054 0.041 0.058
#10 0.357 0.373 0.126 0.137 0.05 0.06 0.048 0.068
1/4 0.473 0.492 0.162 0.175 0.064 0.075 0.063 0.087
5/16 0.594 0.615 0.203 0.218 0.072 0.084 0.076 0.106
3/8 0.716 0.74 0.244 0.261 0.081 0.094 0.09 0.123




Black Zinc Steel 4mm Slotted Round Head Machine Screws Phillips Combo Drive 1Black Zinc Steel 4mm Slotted Round Head Machine Screws Phillips Combo Drive 2

Black Zinc Steel 4mm Slotted Round Head Machine Screws Phillips Combo Drive 3





FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
