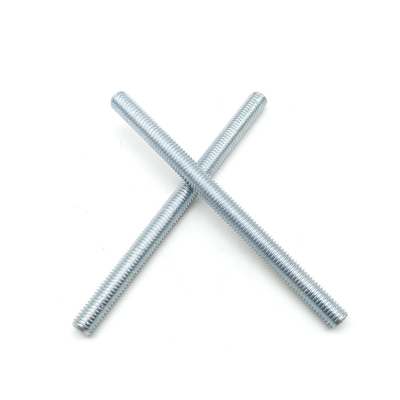

Zinc Plated Stud Threaded Rod din 975 din 976 M24 8.8 Threaded Rod
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001 |
| Model Number | DIN975 |
| Minimum Order Quantity | 100pcs |
| Price | 0.1-5usd/pc |
| Packaging Details | 5-20pcs per bind, and pallet. |
| Delivery Time | 3-10workdays |
| Payment Terms | T/T, L/C |
| Supply Ability | 100000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Threaded Rods | Standard | DIN975 |
|---|---|---|---|
| Material | 35K,C1045 | Grade | 8.8 |
| Finish | Zinc Plated | Coating Thickness | 3-5μ |
| Specification | ISO898-1 | System Of Measurement | Metric |
| Thread Fit | Coarse 6g/6h | Tensile Strength | 800Mpa |
| Highlight | Zinc Plated Stud Threaded Rod,din 975 din 976,m24 8.8 threaded rod |
||
Product Description
DIN976/DIN975 Stud Bolts Grade8.8 Zinc Plated Threaded Rods
Drawing:
| Stud bolts | |||||||
| DIN 976 | |||||||
 |
|||||||
| d(mm) | P(mm) | d(mm) | P(mm) | ||||
| 粗牙 | 细牙 | 极细牙 | 粗牙 | 细牙 | 极细牙 | ||
| M2 | 0.4 | / | / | M24 | 3 | 2 | / |
| M2.5 | 0.45 | / | / | M27 | 3 | 2 | / |
| M3 | 0.5 | / | / | M30 | 3.5 | 2 | / |
| M3.5 | 0.6 | / | / | M33 | 3.5 | 2 | / |
| M4 | 0.7 | / | / | M36 | 4 | 3 | / |
| M5 | 0.8 | / | / | M39 | 4 | 3 | / |
| M6 | 1 | / | / | M42 | 4.5 | 3 | / |
| M8 | 1.25 | 1 | / | M45 | 4.5 | 3 | / |
| M10 | 1.5 | 1.25 | 1 | M48 | 5 | 3 | / |
| M12 | 1.75 | 1.5 | 1.25 | M52 | 5 | 3 | / |
| M14 | 2 | 1.5 | / | M56 | 5.5 | 4 | / |
| M16 | 2 | 1.5 | / | M60 | 5.5 | 4 | / |
| M18 | 2.5 | 1.5 | / | M64 | 6 | 4 | / |
| M20 | 2.5 | 1.5 | / | M68 | 6 | 4 | / |
| M22 | 2.5 | 1.5 | / | M72 | 6 | 4 | / |
Medium-Strength Steel Threaded Rods—Class 8.8
An economical alternative to Grade B7 and Grade B16 threaded rods, these metric Class 8.8 rods are suitable for fastening most machinery and equipment.
Zinc-plated steel threaded rods resist corrosion in wet environments.
Used in plumbing,contracting,and maintenance applications,threaded rods are used to join together and stabilize objects and structures made of wood,metal,and concrete.
