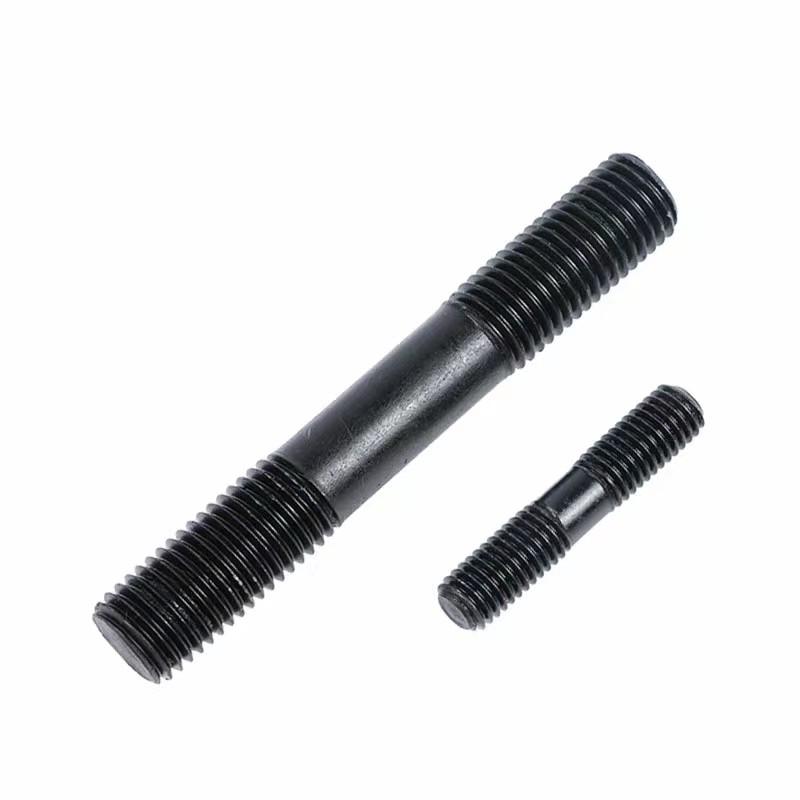

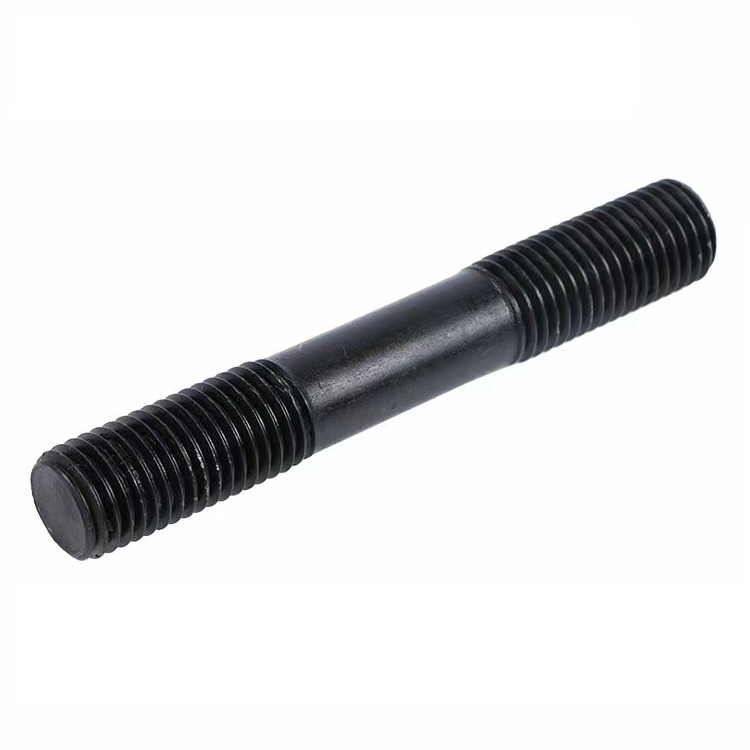

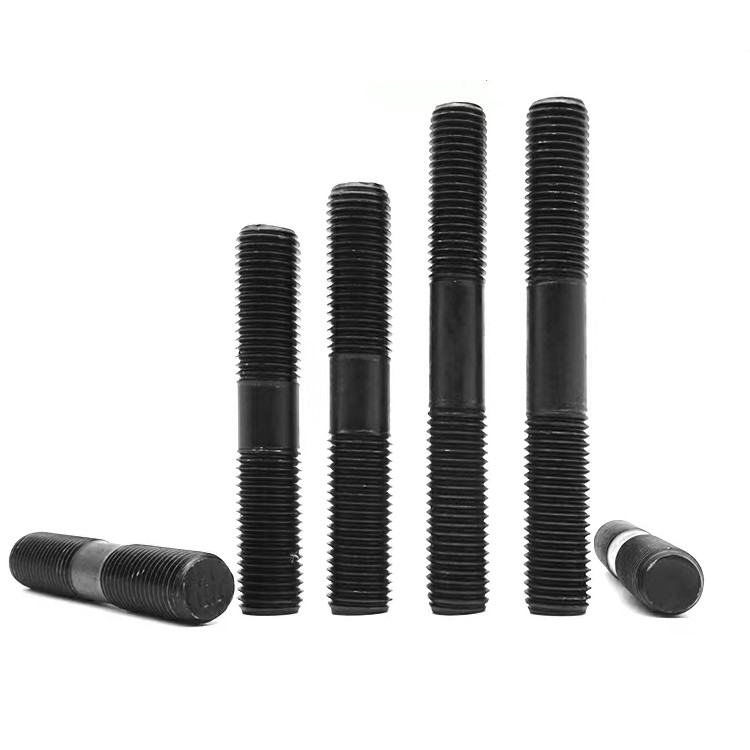

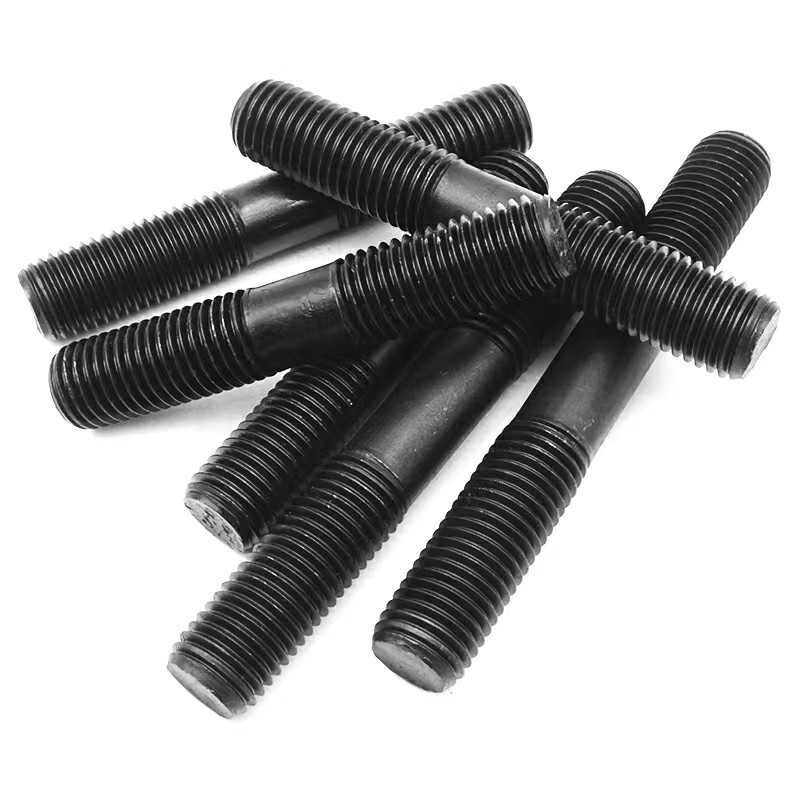

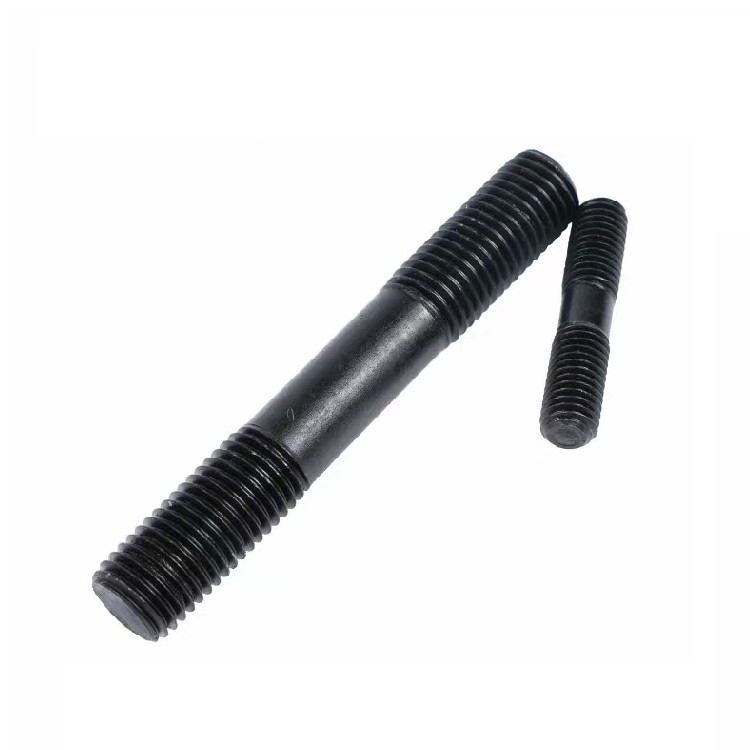

Black Oxide m8 80mm Double End Stud Threaded Rod Setup Grade 5 Steel
| Place of Origin | China |
|---|---|
| Brand Name | XGFH |
| Certification | ISO9001,EN10204 3.1Certificate |
| Model Number | ASME B18.31.1M |
| Minimum Order Quantity | 100pcs |
| Price | 0.1-5usd/pc |
| Packaging Details | 5-20pcs per bind, and pallet. |
| Delivery Time | 3-10workdays |
| Payment Terms | T/T, L/C |
| Supply Ability | 100000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Double End Studs | Material | Medium Carbon Steel |
|---|---|---|---|
| Grade | Class 5 | Finish | Black Oxide |
| Specification | DIN939 | System Of Measurement | Imperial (Inch) |
| Thread | Coarse | Tensile Strength | 125,000psi |
| Thread Requirement | 2A | Hardness | HRC 22 Min. |
| High Light | Double End Stud Threaded Rod,Black Oxide Stud Threaded Rod,m8 80mm threaded rod |
||
Product Description
Product Description:
Setup Studs Grade 5 Steel Black Oxide Double End Studs
Setup Studs Grade 5 Steel Black Oxide Double End Studs Made In China.
We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Threaded Rods and Studs.
Studs can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.
Please state this requirement in your inquiry.
| Products name | Setup Studs Grade 5 Steel Black Oxide Double End Studs |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel:Q235,#45,35CrMo,42CrMo,40Cr;Stainless Steel:SS304, SS316,SS316L |
| Steel Grade: Grade B7,B16,L7,B8,B8M;Class 8.8,10.9,12.9;Grade 2,5,8. | |
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet,PTFE |
| Related Products | Hex nuts,Hex flange nuts,Slotted Nuts and Washers |
| Application |
Secure setup clamps and fixtures to your machine table,or assemble heavy machines,such as engine mounts. These studs act as a pilot when connecting parts since they’re headless,which eases installation. Unlike a bolt,which has a head,they let you access parts from either end,but they require nuts to hold the part. Pair them with a T slot or flanged nut when securing to a machine table.Or,put a nut on before your part to work as a float,allowing you to adjust the height of your part.The unthreaded middles is useful for gripping and adjusting. Also known as double ended studs. |
| Stock Products | Studs in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |
Product Drawing:
| Metric Clamping-Type Studs Table 2 | |||||
| ASME/ANSI B18.31.1M | |||||
|
|
|||||
| d(mm) | P(mm) | b(mm) | U(mm) | ||
| L≤250 | 250<L≤400 | L>400 | max | ||
| M6 | 1 | 18 | 24 | / | 2 |
| M8 | 1.25 | 18 | 24 | / | 2.5 |
| M10 | 1.5 | 26 | 32 | 45 | 3 |
| M12 | 1.75 | 30 | 36 | 49 | 3.5 |
| M14 | 2 | 34 | 40 | 53 | 4 |
| M16 | 2 | 38 | 44 | 57 | 4 |
| M20 | 2.5 | 46 | 52 | 65 | 5 |
| M24 | 3 | 54 | 60 | 73 | 6 |
| M30 | 3.5 | 66 | 72 | 85 | 7 |
| M36 | 4 | 78 | 84 | 97 | 8 |
| M42 | 4.5 | 90 | 96 | 109 | 9 |
| M48 | 5 | / | 108 | 121 | 10 |
| M56 | 5.5 | / | 124 | 137 | 11 |
| M64 | 6 | / | 140 | 153 | 12 |
| M72 | 6 | / | 156 | 169 | 12 |
| M80 | 6 | / | 172 | 185 | 12 |
| M90 | 6 | / | / | 205 | 12 |
| M100 | 6 | / | / | 225 | 12 |
