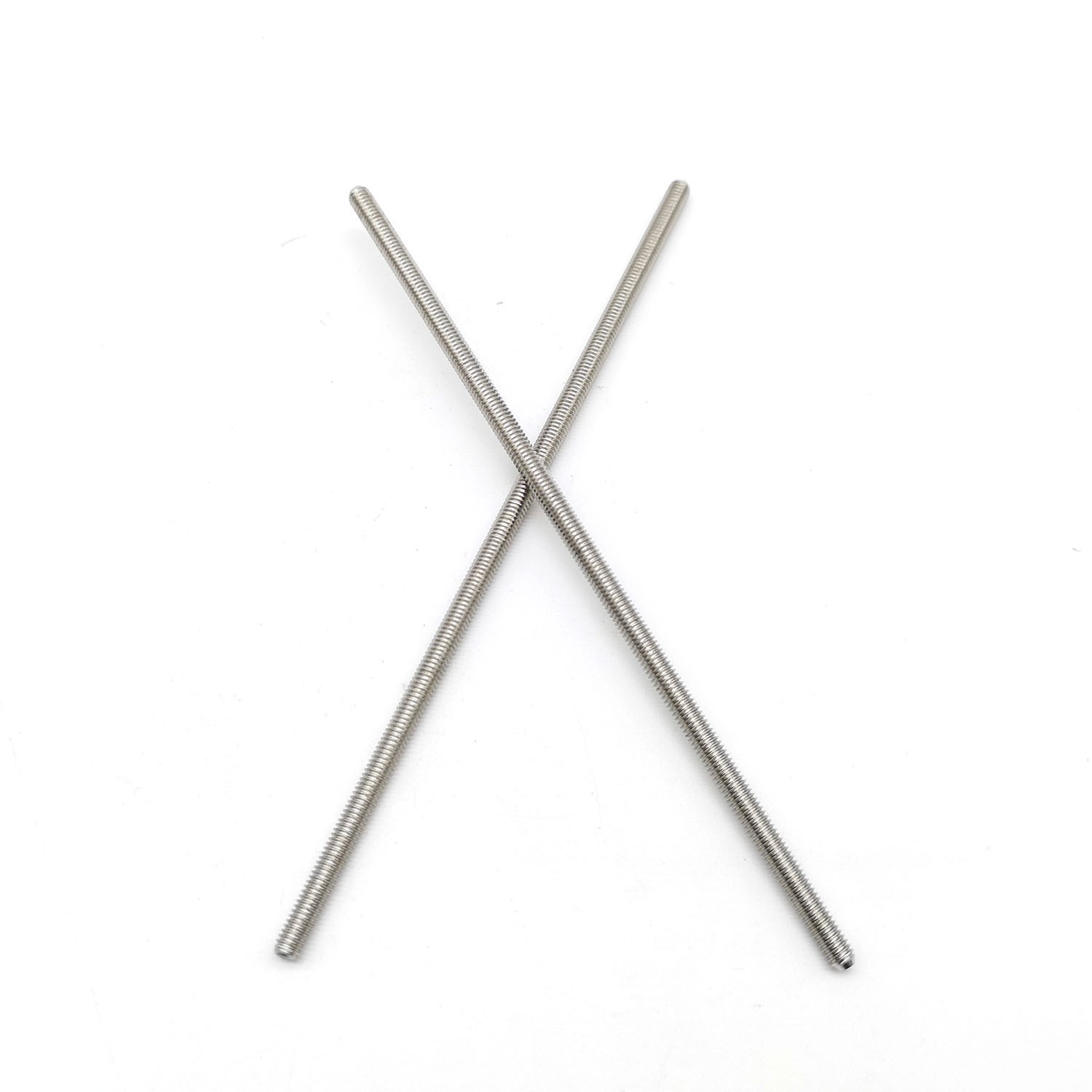

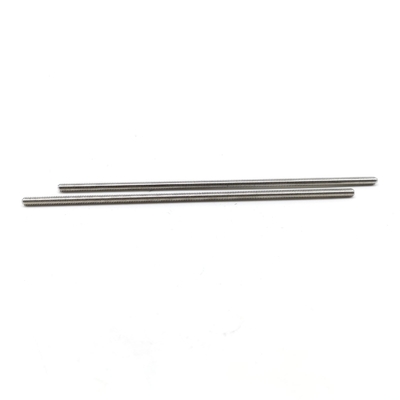

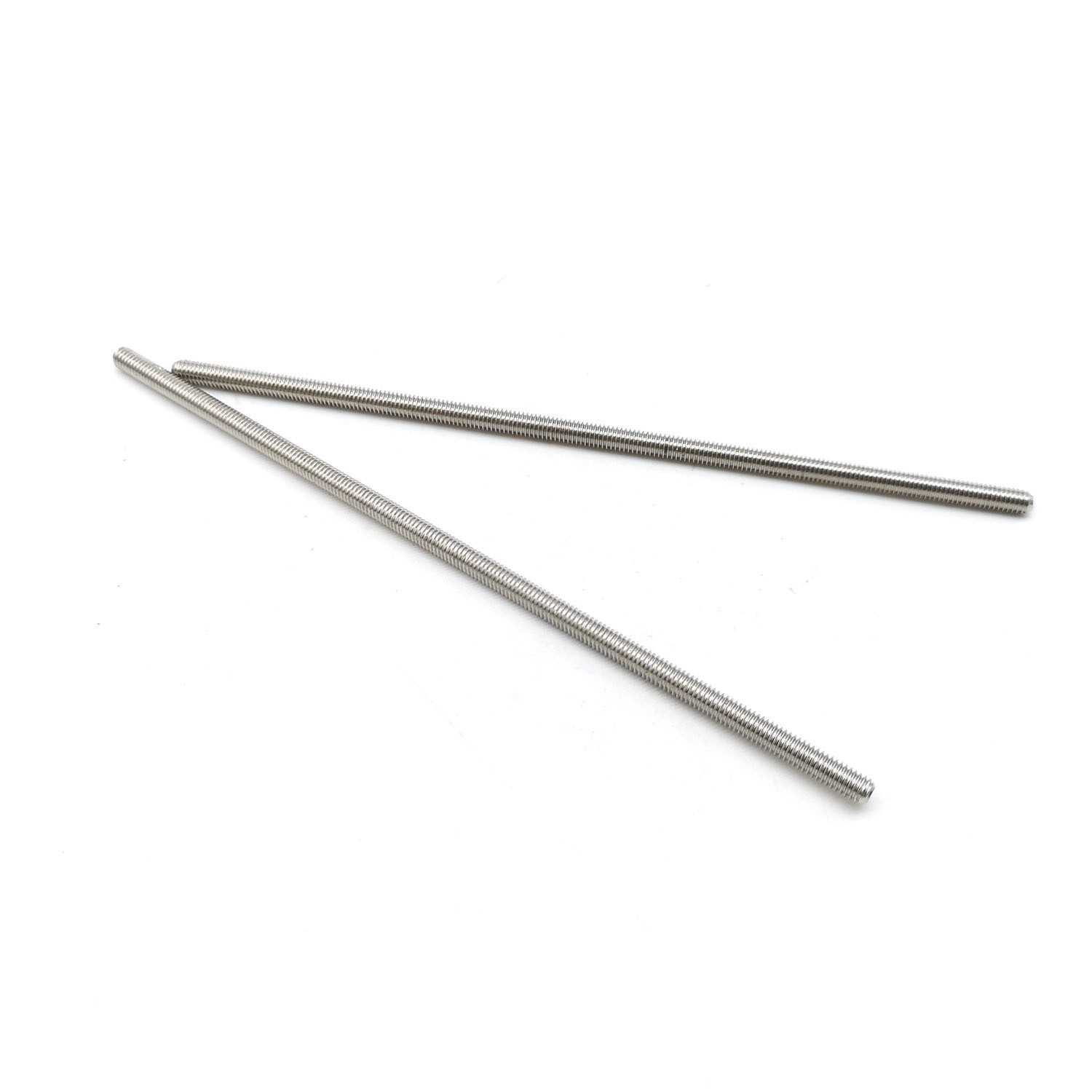

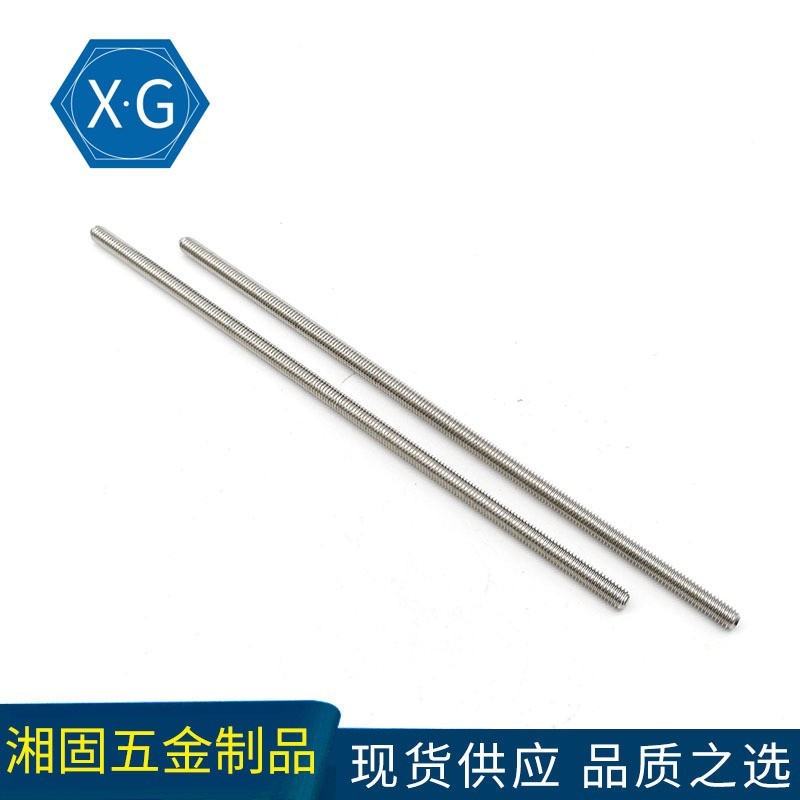

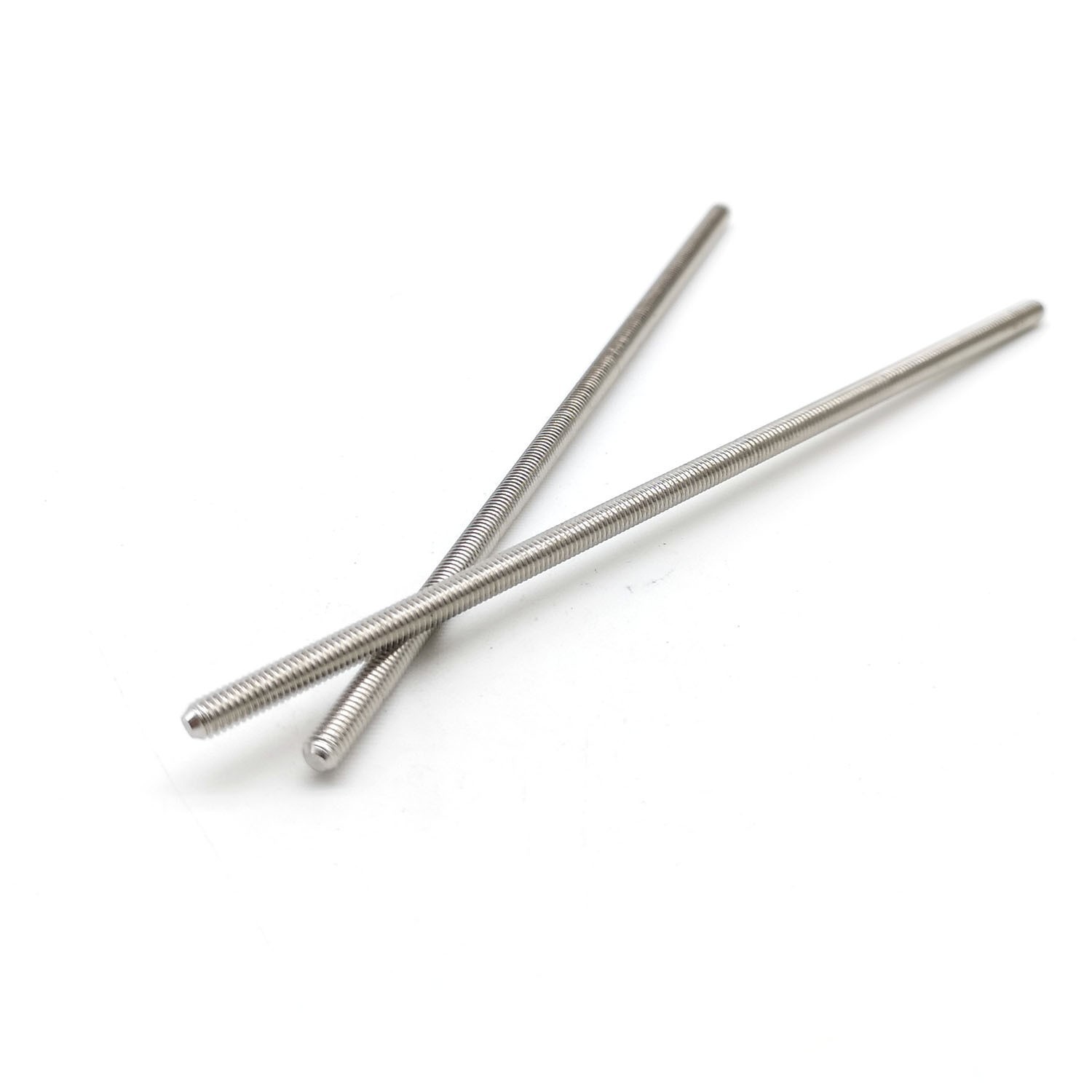

18-8 Stainless Steel Stud Threaded Rod ASTM F593 ASME B18 31.2

  • 18-8 Stainless Steel Stud Threaded Rod ASTM F593 ASME B18 31.2
  • 18-8 Stainless Steel Stud Threaded Rod ASTM F593 ASME B18 31.2
  • 18-8 Stainless Steel Stud Threaded Rod ASTM F593 ASME B18 31.2
  • 18-8 Stainless Steel Stud Threaded Rod ASTM F593 ASME B18 31.2
  • 18-8 Stainless Steel Stud Threaded Rod ASTM F593 ASME B18 31.2
Place of Origin China
Brand Name XGFH
Certification ISO9001,EN10204 3.1Certificate
Model Number ASME B18.31.2
Minimum Order Quantity 100pcs
Price 0.1-5usd/pc
Packaging Details 5-20pcs per bind, and pallet.
Delivery Time 3-10workdays
Payment Terms T/T, L/C
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Threaded Rods Material Stainless Steel 304
Grade 18-8 Finish Plain
Specification ASTM F593 System Of Measurement Imperial (Inch)
Thread Coarse Tensile Strength 100000-150000psi
Thread Requirement 1A Hardness Rockwell B95-C32
High Light

asme b18 31.2

,

18-8 Stud Threaded Rod

,

stainless steel threaded rod
Leave a Message
Product Description

Product Description:



ASME B18.31.2 Stainless steel 18-8 Threaded Rods

ASME B18.31.2 Stainless steel 18-8 Threaded Rods Made In China.

We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Threaded Rods and Studs.

Threaded Rods can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.

Please state this requirement in your inquiry.



Products name ASME B18.31.2 Stainless steel 18-8 Threaded Rods
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel:Q235,#45,35CrMo,42CrMo,40Cr;Stainless Steel:SS304, SS316,SS316L
Steel Grade: Grade B7,B16,L7,B8,B8M;Class 8.8,10.9,12.9;Grade 2,5,8.
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet,PTFE
Related Products Hex Nuts ASME B18.2.2,Flat washers ASME B18.22.1
Application

Used in plumbing,contracting,and maintenance applications,threaded rods are used to join together and stabilize objects and structures made of wood,metal,and concrete.

Also known as UNC/UNRC,it is the most common threading used on bolts,screws and nuts.These threads have faster assembly times,but have less sensitive adjustment.They generally thread easily,yet are slightly weaker than fine threads.
Stock Products Studs in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.





Product Drawing:



Continuous Thread Stud Table1
ASME/ANSI B18.31.2
18-8 Stainless Steel Stud Threaded Rod ASTM F593 ASME B18 31.2 0
d(ich) PP(ich) U(ich)
UNC UNF 8UN UNC UNF 8UN
min max min max min max
1/4 0.25 20 28 / 0.05 0.1 0.036 0.071 / /
5/16 0.3125 18 24 / 0.056 0.111 0.042 0.083 / /
3/8 0.375 16 24 / 0.063 0.125 0.042 0.083 / /
7/16 0.4375 14 20 / 0.072 0.143 0.05 0.1 / /
1/2 0.5 13 20 / 0.077 0.154 0.05 0.1 / /
9/16 0.5625 12 18 / 0.084 0.167 0.056 0.111 / /
5/8 0.625 11 18 / 0.091 0.182 0.056 0.111 / /
3/4 0.75 10 16 / 0.1 0.2 0.063 0.125 / /
7/8 0.875 9 14 / 0.111 0.222 0.072 0.143 / /
1 1 8 12 / 0.125 0.25 0.084 0.167 / /
1-1/8 1.125 7 12 8 0.143 0.286 0.084 0.167 0.125 0.25
1-1/4 1.25 7 12 8 0.143 0.286 0.084 0.167 0.125 0.25
1-3/8 1.375 6 12 8 0.167 0.333 0.084 0.167 0.125 0.25
1-1/2 1.5 6 / 8 0.167 0.333 0.084 0.167 0.125 0.25
1-5/8 1.625 / / 8 / / / / 0.125 0.25
1-3/4 1.75 5 / 8 0.2 0.4 / / 0.125 0.25
1-7/8 1.875 / / 8 / / / / 0.125 0.25
2 2 4-1/2 / 8 0.222 0.444 / / 0.125 0.25
2-1/4 2.25 4-1/2 / 8 0.222 0.444 / / 0.125 0.25
2-1/2 2.5 4 / 8 0.25 0.5 / / 0.125 0.25
2-3/4 2.75 4 / 8 0.25 0.5 / / 0.125 0.25
3 3 4 / 8 0.25 0.5 / / 0.125 0.25
3-1/4 3.25 4 / 8 0.25 0.5 / / 0.125 0.25
3-1/2 3.5 4 / 8 0.25 0.5 / / 0.125 0.25
3-3/4 3.75 4 / 8 0.25 0.5 / / 0.125 0.25
4 4 4 / 8 0.25 0.5 / / 0.125 0.25



18-8 Stainless Steel Stud Threaded Rod ASTM F593 ASME B18 31.2 118-8 Stainless Steel Stud Threaded Rod ASTM F593 ASME B18 31.2 2

18-8 Stainless Steel Stud Threaded Rod ASTM F593 ASME B18 31.2 3

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
